How Ammeters Are Represented and Function in Electrical Circuit Diagrams

Place the measurement device in series with the component under evaluation, ensuring minimal impact on the existing flow path. This positioning guarantees that the entire charge passing through the element also traverses the instrument, delivering precise readings. Avoid parallel connections, as they divide the flow and distort results.

Choose a unit with low internal resistance, ideally below 0.1Ω, to prevent voltage drops that could alter the intended operation of the setup. High-resistance models introduce errors by changing the load characteristics, especially in low-power or sensitive applications. Verify specifications before integration to confirm compatibility with expected current levels.

For alternating waveforms, use an instrument capable of displaying true RMS values. Average-responding meters inaccurately measure non-sinusoidal flows, leading to underestimation in systems with variable pulses or harmonics. Confirm the instrument’s bandwidth to ensure it captures rapid fluctuations without aliasing.

Label the schematic symbol clearly. Indicate polarities for direct flows, using arrows to show the conventional direction (positive to negative). Omit this detail only in symmetrical setups where directionality is irrelevant. Standardize symbols across documentation to avoid misinterpretation during assembly or troubleshooting.

Test with known loads before relying on measurements. Apply a regulated supply and compare readings against theoretical values to confirm calibration. Adjust or replace malfunctioning units if discrepancies exceed 2–3% of the expected output, as drift or damage compromises data integrity.

Key Placement of Current Measurement Tools in Schematics

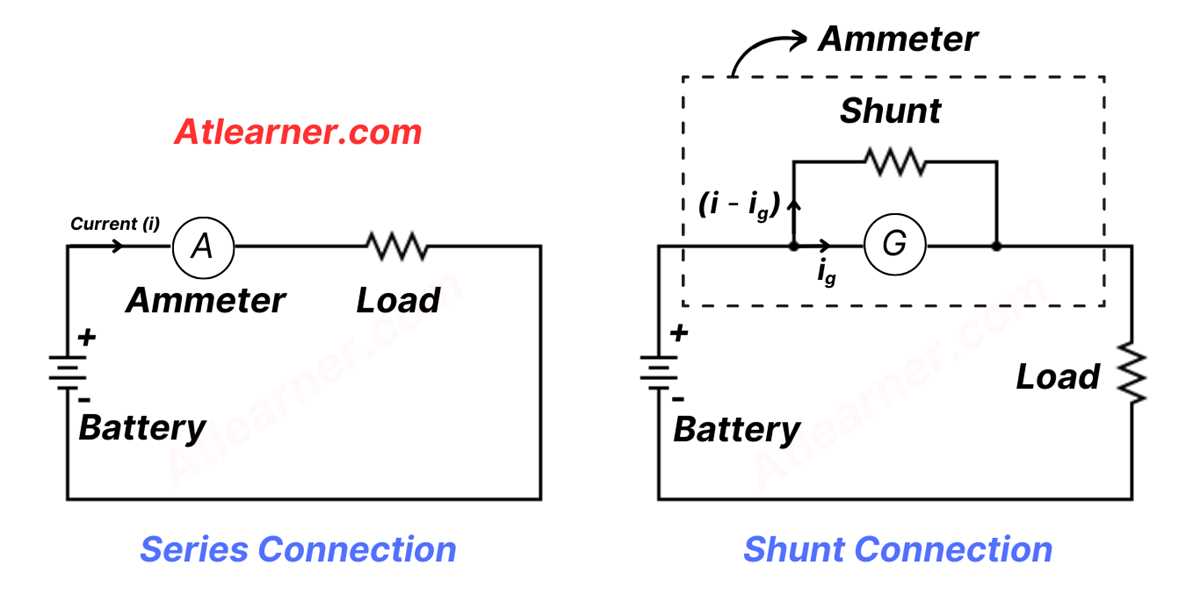

Position the measuring device in series with the load–never parallel–to prevent short paths that distort readings or damage components. Ideal placement lies between the power source and the first resistive element, ensuring full current flow through the meter. For branched designs, insert the tool before any splits to capture total draw, not partial values that mislead analysis.

Use low-resistance shunts where high currents exceed 10A to avoid voltage drops that skew accuracy–typically less than 0.1Ω for standard 50mV output ranges. Digital meters with auto-ranging simplify troubleshooting, but analog variants demand manual scale selection to match expected amplitudes. Avoid daisy-chaining measurements; each insertion introduces cumulative error, especially in sensitive low-power setups.

Label the schematic symbol clearly: an uppercase “A” inside a circle, with arrows indicating polarity if direction matters (e.g., DC systems). For AC, omit polarity markings but keep the same symbol. Verify connections in simulation software before physical assembly–tools like LTspice flag misplaced meters instantly.

How to Identify Current Measurement Symbols in Electrical Drawings

Locate a small circle with a capital letter A inside–this is the standard representation for devices tracking electron flow in schematics. The letter appears alone, without subscripts or additional marks, distinguishing it from other icons.

Check for a vertical line extending from the circle’s center; older blueprints may include this detail, though modern versions often omit it. The line historically indicated polarity but now serves as a legacy identifier.

Examine adjacent labels: measurement instruments frequently appear near resistors, power sources, or branching nodes. Look for nearby Ω, V, or I notations–these reinforce context for the symbol’s purpose.

Compare with similar shapes: voltmeter symbols use a V, while other gauges might show Hz or W. The unadorned A remains consistent across IEEE, IEC, and ANSI standards.

Note the absence of arrows or slashes–unlike diode or transistor markers, the current tracker’s icon keeps its form simple. Some variations may include a dashed circle for AC-specific devices, though this is rare in basic layouts.

Trace connections: the symbol typically bridges two points along a conductor, not interrupting the path. If the circle sits off to the side with a dashed line leading to the wire, it signifies a non-invasive (clamp-style) variant.

Verify in library documentation if working with CAD software. Most platforms catalog this symbol under “measurement” or “indicators”, often grouped with voltmeters and shunts for quick reference.

Cross-check with physical devices: real-world meters with clamp jaws or inline housings match this schematic icon. If the drawing includes board-level components, ensure no microchip symbols (U or IC) are misread as current trackers.

Step-by-Step Guide to Measuring Current in Line

Power off the entire system before making connections. Verify zero voltage with a multimeter across the break point to prevent accidental shorts or damage. Select a suitable measuring tool rated for the expected current–most bench models handle up to 10 A, while clamp types accommodate higher loads without interruption.

Break the conductor at the desired point using a wire cutter or by unsoldering a joint. Ensure clean cuts to avoid frayed strands causing poor contact. Strip 5 mm of insulation from each end if using screw terminals; for soldered joints, expose enough copper to form a reliable bond.

• Align the exposed ends precisely with the instrument’s terminals.
• Tighten screws or solder connections firmly to eliminate resistance from loose fits.
• For high-current paths, use thick-gauge wire or bus bars to match the conductor size.

Re-energize the system in stages: first at low load, then gradually increase while monitoring readings. Observe polarity–reversing leads will show negative values but won’t harm the device. Record initial values and compare against calculated expectations; discrepancies over 5% may indicate faulty connections or incorrect scaling.

Common Mistakes When Integrating Current Measurers in Schematics

Placing the measuring device in parallel with a load instead of in series guarantees incorrect readings. The instrument must share the same path as the component under test to capture the full electron flow; bypassing this rule distorts results, often reading near zero regardless of actual current.

Avoid connecting the leads across power sources–this creates a short, risking damage to both the meter and the power supply. Always verify the schematic path before energizing; a single misplaced connection can overload the device’s internal shunt resistor, rendering it useless.

Overlooking the meter’s range selection leads to blown fuses or clipped readings. Even small current surges from capacitors or inductive loads can exceed default settings. Pre-set the instrument to the highest scale before powering the loop, then adjust downward for precision.

Neglecting Internal Resistance Impact

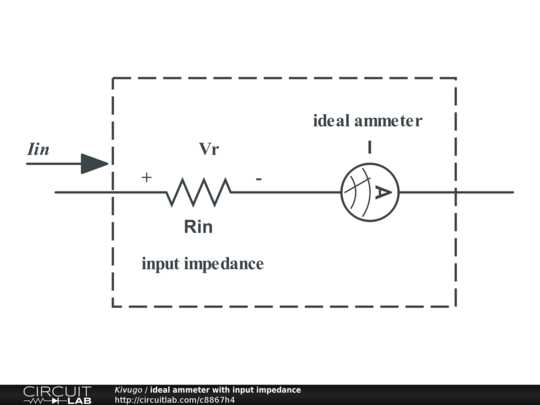

Every meter introduces resistance–typically milliohms–but this adds up in low-power designs. A 0.1Ω shunt in a 5V loop carrying 100mA drops 10mV, skewing measurements by ~2%. Use four-wire Kelvin connections for sub-ampere ranges to neutralize this error.

Failing to isolate the measuring path during transient events (e.g., motor startups or PWM switching) invites noise corruption. Place RC filters upstream (10Ω + 0.1μF) or opt for isolated instruments with built-in transient suppression. Without this, digital displays may fluctuate wildly or latch phantom values.

Assuming the meter’s polarity matches the schematic arrow leads to negative readings or reversed scales. Double-check lead orientation–red to positive, black to negative–especially in bidirectional current paths like battery chargers. A miswire here inverts readings, masking real-world behavior.

Skipping derating for environmental factors (temperature, humidity) shortens the instrument’s lifespan. Most devices are rated for 25°C; sustained operation above 50°C reduces accuracy by 0.5% per °C. Mount meters away from heat sources and use thermal paste for conductive cooling in high-power setups.

Calculating Current Readings Through Measurement Tool Placement

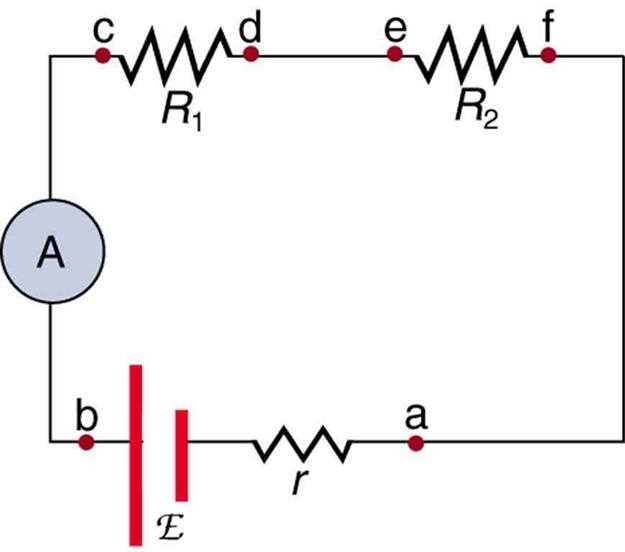

Position the meter in series with the load–never parallel–to ensure accurate flux quantification. In a simple loop, the device reads the identical magnitude as the conductor’s flow, regardless of placement within that path. For resistive components, Ohm’s law applies directly: divide the potential difference across the element by its resistance to verify the meter’s reading. Discrepancies larger than 2% indicate faulty connections or instrument drift.

Branched networks demand Kirchhoff’s current law: the sum of inflowing charges equals the sum of outflowing charges at any junction. Place the instrument on the branch of interest, then cross-check by measuring adjacent paths. Example: a 5A main feed splitting into 3A and 2A branches–deviation beyond ±0.1A warrants recalibration or inspection for leakage. Use the table below for rapid reference in standard configurations.

Configuration	Expected Reading	Tolerance Range	Corrective Action
Single resistor 10Ω at 12V	1.2A	1.18A-1.22A	Check probe insertion depth
Parallel resistors 5Ω & 10Ω at 9V	2.7A total	2.65A-2.75A	Verify branch continuity
Series resistors 2Ω & 3Ω at 5V	1.0A	0.98A-1.02A	Inspect solder joints

High-impedance paths distort readings if the meter’s internal resistance exceeds 1Ω. Select a unit with ≤0.5Ω impedance for 50mA-5A ranges; use a milliampere-scale tool for micro currents to prevent loading errors. Calibrate before each session against a known 0.5A source–zero drift above 0.02% per hour invalidates the session. Log ambient temperature: every 5°C rise above 25°C can inflate readings by 0.3%.

Active elements like transistors alter flux patterns; insert the instrument upstream of the base-emitter junction to measure emitter current without affecting transistor bias. For MOSFETs, compare measured drain current against gate-source voltage using the characteristic curve: 3.3V gate should yield 2.1A drain for a IRFZ44N at 10V supply–deviation signals gate oxide degradation. Multichannel tools split into separate paths; ensure no cross-talk exceeds 0.05% between channels.

Inductive loads introduce phase shifts; capture peak values with a true RMS instrument rather than averaging types. A 100mH coil under 60Hz AC should read 0.75 times the steady DC value–differences beyond 5% suggest core saturation. Shielded probes reduce noise coupling; unshielded leads add parasitic capacitance, causing up to 1.2% error in 1kHz measurements. Ground the instrument chassis separately from the power source to prevent ground loops.

Store tools at 20°C and 50% humidity to prevent thermal emf errors. Replace fuse links rated identical to the maximum scale–10A link on a 5A scale melts under 6A, corrupting subsequent readings. For pulsed currents, use a peak-hold function; typical half-sine pulses read 1.414 times RMS–verify against an oscilloscope trace. Record zero offset monthly: ±3mA drift on a 30A scale indicates contamination in the shunt resistor contacts.
