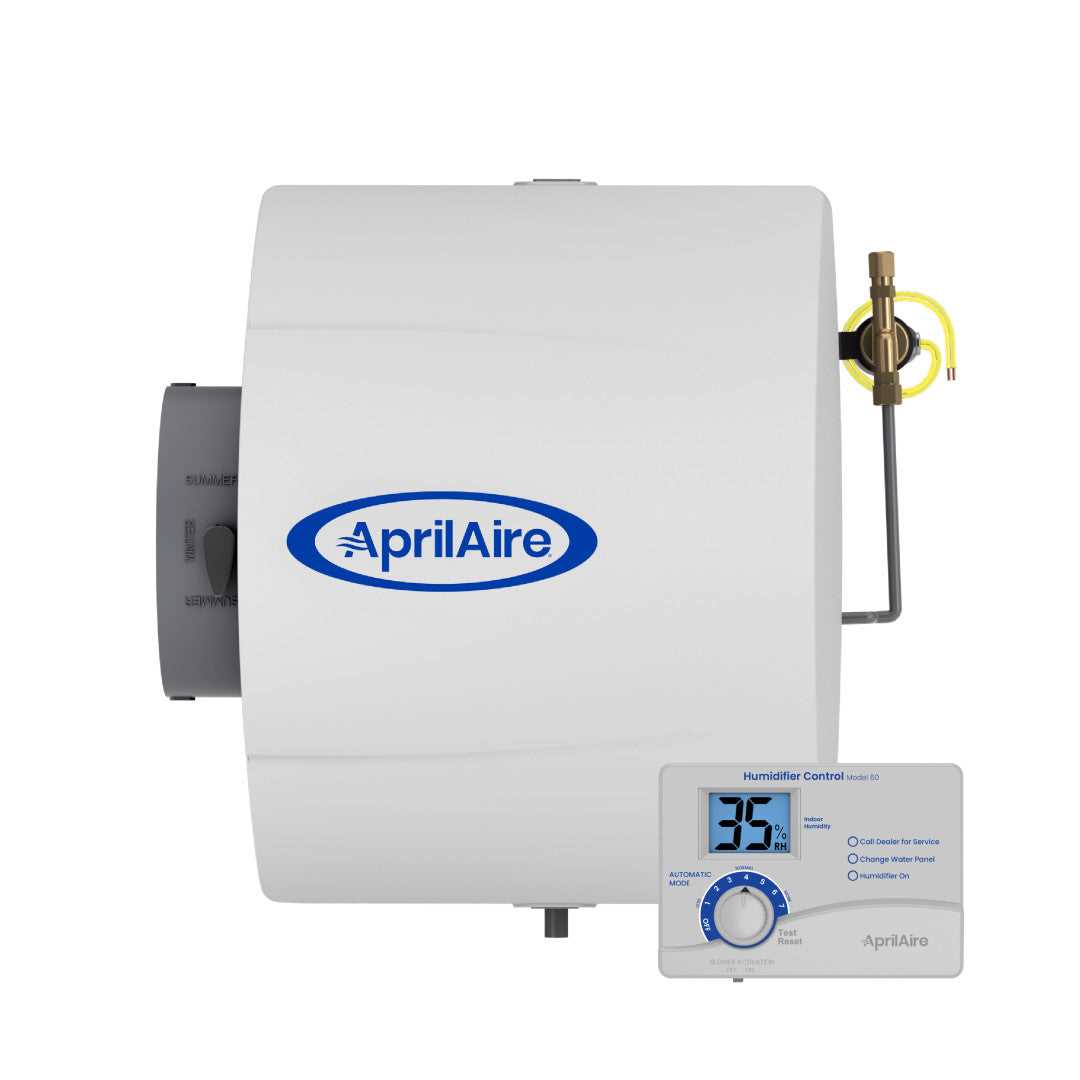

How to Connect Aprilaire 400 Humidifier Step-by-Step Wiring Guide

Begin by locating the dedicated transformer in the HVAC control panel–24V power must come from this source to ensure compatibility with furnace safety circuits. Identify the R (power) and C (common) terminals on the transformer; these deliver the required low-voltage current for operation. Verify the transformer’s amperage rating matches the device’s specs (minimum 20VA) to prevent overheating or system dropout.

Trace the thermostat wiring harness to the furnace interface. Connect the red wire (R) directly to the humidistat or automatic control module input–but never splice into the fan or heat circuits. For models with bypass dampers, route this wire through an auxiliary relay to avoid backfeeding voltage into sensitive components. Use 18-gauge solid-core wire throughout; stranded wire risks loose connections under vibration.

Grounding is non-negotiable. Attach a green or bare copper wire from the unit’s chassis to the furnace’s ground busbar. Omitting this risks erratic operation or component failure, especially in high-efficiency condensate-producing systems. If corrosion is visible on existing grounds, clean with emery cloth before securing new connections.

For digital control boards: confirm the board’s input voltage tolerance (24VAC ±10%). Bridge the R terminal only to inputs labeled “ACC” or “HUM” on the board–random connections can trigger false error codes. If using an external humidistat, parallel its switch contacts with the board’s input; this redundancy ensures fail-safe operation during power fluctuations.

Test all connections with a multimeter before energizing. Probe the circuit between the R wire and ground–readings should stabilize at 24VAC. If voltage drops, inspect for improper terminal torque (target 12–15 in-lbs) or corroded contact surfaces. Replace any wire nuts with crimp connectors where ambient humidity exceeds 60% to maintain long-term integrity.

Connecting the Model 4A Evaporative Steam Unit: Key Steps

Begin by locating the 24V terminal block inside the furnace. The red wire from the control module connects to the “R” or “C” post–verify your furnace manual for exact labeling, as some models use “RC” instead. If your system lacks a dedicated “C” terminal, a common ground can be shared with the furnace’s blower relay, but avoid splicing into refrigerant safety switches.

The gray wire from the unit’s solenoid hooks to the humidistat’s “W” output. Ensure the humidistat is set to “Humidify” mode before making this connection, or the solenoid won’t engage. For systems with variable-speed blowers, add a 5-amp fuse inline with the gray wire to prevent backfeed into the control board during defrost cycles.

Wire Color	Terminal	Function	Notes
Red	R/C	Power supply	24V AC input
Gray	W (humidistat)	Solenoid activation	Disconnects during call for heat
Blue	Neutral bus	Ground reference	Optional for floating transformers

Attach the blue wire to the neutral bus or an isolated ground post. Many older furnaces lack this terminal–if so, run a new ground wire to the nearest metal chassis point, stripping paint at the contact surface to ensure conductivity. Never use the gas valve or draft inducer housing as a ground, as vibration can loosen the connection over time.

For installations using a dedicated 24V transformer, wire the red lead directly to one transformer post and the gray to the other, bypassing the humidistat entirely. Add a DPST switch between the transformer and solenoid to manually override the unit during maintenance. Label both transformer posts clearly, as reversing them will prevent the solenoid from opening.

Test the setup by setting the humidistat to 50% relative humidity and observing the water panel. The solenoid should audibly click within 30 seconds, and water should begin trickling down the distribution tray within 90 seconds. If the solenoid clicks but no water flows, check the saddle valve–most failures stem from improper piercing or debris clogging the 1/4″ tubing.

Route all wiring away from high-temperature zones, particularly near the heat exchanger and condensate drain. Use 18-gauge solid copper wire for all connections, as stranded wires can vibrate loose under furnace air currents. Secure cables every 12″ with nylon tie-wraps, avoiding metal staples that can pierce insulation over time. For outdoor condenser lines, encase wires in flexible conduit rated for UV exposure.

Finalize by resetting the furnace circuit breaker and confirming the humidistat’s display illuminates. Run a full heating cycle while monitoring the water flow–expect intermittent dripping rather than a steady stream. If the furnace cuts off during humidification, the gray wire may be shorting to ground; recheck all connections with a multimeter in continuity mode before restarting the system.

Finding the Installation Guide on Your Model

Check the inner panel of the device’s front cover. Most units print the schematic directly on the plastic or metal surface behind the access door. Look for a small, often white or yellow label with thin black lines and terminal markings–this is the primary reference.

Alternative Locations for Documentation

• Inside the electrical compartment where the power cord enters the housing.
• On the back side of the cover panel, sometimes obscured by insulation material.
• Attached to the water distribution tray or pad assembly under removable clips.

If the built-in reference is missing or faded, the original printed manual typically includes a fold-out page near the back. Verify the version number stamped on the lower right corner of the unit matches the document–older revisions may differ.

For devices installed after 2018, the schematic might also be embedded in a QR code sticker affixed next to the serial number. Scan it with a phone to pull up the latest digital copy without searching for physical labels.

Installation Guide for HVAC-Integrated Moisture Control Unit

Locate the 24VAC transformer near the furnace control board–typically a small rectangular block with two or three screw terminals. Confirm voltage with a multimeter before proceeding to avoid damaging the system or creating short circuits.

Identify the solenoid valve connections on the moisture regulator. One wire pairs with the furnace’s W (heat call) terminal, while the second attaches to the transformer’s common side (labeled “C”). Strip 1/4 inch of insulation from each wire end, then secure under terminal screws with a screwdriver, ensuring no exposed copper extends beyond the clamp.

• Label each connection using masking tape and a marker to prevent confusion during future service.
• Check furnace manual for specific W terminal placement–some models label it “H” or “HT” instead.
• If installing a wall-mounted control unit, run 18-gauge thermostat wire from the regulator to the controller, avoiding sharp bends or areas with high electromagnetic interference.

Connect the water supply line using 1/4-inch copper tubing or reinforced flexible tubing. Attach one end to the unit’s inlet valve, using thread sealant tape on the fitting threads to prevent leaks. Route tubing to the nearest cold water tap, cutting to exact length to avoid kinks that restrict flow. Install a saddle valve or T-fitting, ensuring the valve handle moves freely without binding.

Verify all connections hold under pressure by turning on the water supply briefly. Watch for drips at joints–tighten with a wrench if necessary, but avoid overtightening brass fittings to prevent thread damage. After confirming no leaks, recheck electrical connections for tightness, then restore power to the HVAC system.

1. Set the control unit dial to “Test” mode. Listen for the solenoid valve to click open–if silent, use the multimeter to test continuity across the valve terminals.
2. Observe the water panel for even dampness across its surface. Dry spots indicate clogged distribution channels–clean with a soft brush if needed.
3. Adjust the dial to the desired relative humidity setting (35-45% for most homes). The system should cycle on when the furnace runs, maintaining consistent operation without continuous water flow.

Mount the water panel vertically in the airflow path, following the airflow direction arrows on the housing. Secure with the provided screws, ensuring the panel sits flush against the ductwork with no gaps. Misalignment reduces efficiency and can lead to water bypass, causing condensation buildup on duct surfaces.

Locating the Proper Connection Points for Electrical and Heating System Compatibility

Attach the low-voltage transformer lead to the “R” terminal on the control board–this is typically marked in red and serves as the 24V power source. Pair the corresponding “C” terminal (common) with the transformer’s neutral wire to complete the circuit. Verify the furnace’s schematic to confirm terminal labels, as some models use “W” or “Y” for auxiliary connections instead of a dedicated humidistat input. Discrepancies here risk short-circuiting or failing to activate the device’s solenoid valve.

Furnace Control Board Integration

Connect the device’s solenoid valve wire to the “HUM” or “HM” terminal if available. Older heating systems may lack this designation, requiring a jumper wire spliced into the “G” (fan) terminal for manual operation–ensure the fan relay engages during calls for moisture release. For smart thermostats, reroute through the accessory terminal cluster provided by the manufacturer, avoiding direct splicing into high-voltage components. Use 18-gauge solid copper wire with a maximum run length of 50 feet to prevent voltage drop.

Test continuity between the furnace’s transformer and the solenoid using a multimeter set to 200 ohms. A reading above 50 ohms indicates a poor connection, necessitating re-crimping of terminals or replacement of corroded wires. If the system uses an external humidistat, wire it in parallel with the existing thermostat circuit, ensuring the “R” and “C” leads align with the corresponding furnace terminals without crossing low-voltage and high-voltage paths.

For zoned systems, isolate the humidification relay to prevent cross-feeding moisture controls across multiple zones. Label all wires with heat-resistant sleeves, and secure connections with wire nuts tightened to 5 lb-in of torque. Document the final configuration against the heating system’s schematic to streamline future diagnostics, particularly if the board features dual-fuel or staging capabilities requiring precise terminal assignments.
