Complete Pioneer DMH-1500NEX Wiring Harness Connection Guide
Start by identifying the OEM power connector in your vehicle–typically a 12-pin plug with color-coded leads. The red wire (constant 12V) and yellow (switched ignition) must align with the aftermarket unit’s rear interface without splicing. Verify the purple illumination lead (dimmer control) matches the factory radio’s behavior to avoid backlighting issues. Misalignment here causes erratic brightness settings or failure to power down properly.
For amplifier integration, locate the blue/white remote turn-on wire on the replacement system’s plug-in assembly. This 200mA output must trigger the external amp’s relay–check impedance levels first to prevent overload. If your setup includes a subwoofer, ensure the RCA pre-outs (front/rear/sub) connect directly to dedicated amp channels; using Y-adapters splits signal strength by 3dB, degrading bass response.
Grounding requires direct chassis attachment–never rely on seat tracks or painted surfaces. Use a 10-gauge black wire secured to bare metal with a ring terminal and star washer. Poor grounding introduces alternator whine, especially in 5V USB circuits. Test speaker outputs with a multimeter before finalizing connections: +4Ω impedance on factory coils is standard, but mismatches distort audio at higher volumes.
For steering wheel controls, the gray connector on the adapter kit carries CAN bus signals–ensure compatibility with your vehicle’s protocol (i.e., iDrive, MOST). If no data transmission occurs, bypass the relay by connecting directly to the control module’s pins 12 (clock) and 13 (data), but expect limited functionality without firmware updates.
Final step: Secure all connections with adhesive-lined heat shrink tubing–not electrical tape–for waterproofing. Route cables away from sharp edges and moving parts, such as gear shifters or pedals. A torque wrench at 12 lb-ft prevents overtightening dash screws, avoiding plastic panel cracks during disassembly.

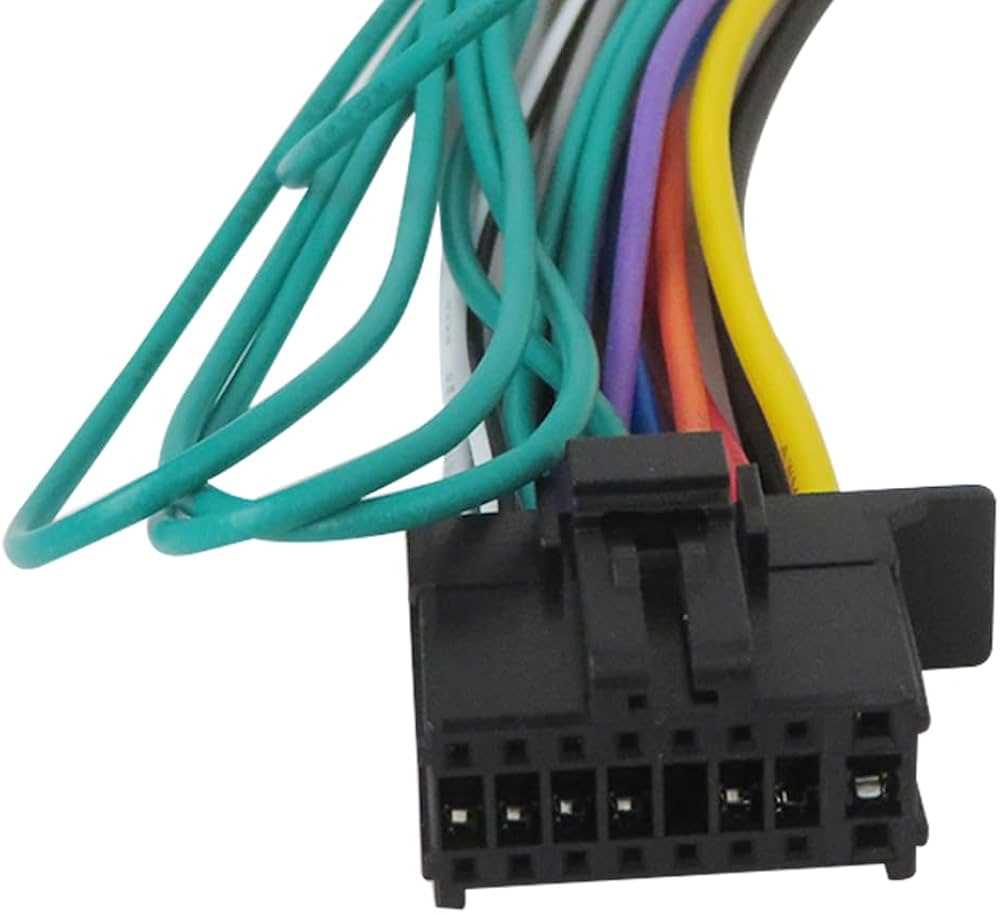

Installation Connector Pinout Reference for AV Unit
Connect the 16-pin main power interface to your vehicle’s fuse box using the following pin assignments–verify compatibility with a multimeter before securing connections:
| Pin Number | Function | Wire Color | Required Voltage |
|---|---|---|---|
| 3 | Constant +12V | Yellow | 11.5–14.5V |
| 4 | Ground | Black | 0V |
| 5 | Ignition | Red | 11–14V (key-on) |
| 7 | Illumination | Orange/White | 0–12V (dimmer-controlled) |
| 8 | Reverse detection | Pink | 10–14V (gear engaged) |
Strip each conductor to 5–7mm, use crimp connectors for stranded wires, and heat-shrink tubing over joints to prevent oxidation–skip soldering on high-current paths (pins 3/4/5) to avoid voltage drop. For factory steering wheel control integration, match the CAN-H/L lines (pins 12/13) to your car’s OBD-II protocol–consult the vehicle’s service manual for bus resistance values (typically 60Ω between CAN-H/L). If static persists on the backup camera feed, insert a 100Ω resistor in series with the video signal (pin 6, purple) or relocate the ground reference to a chassis point closer to the camera mount.

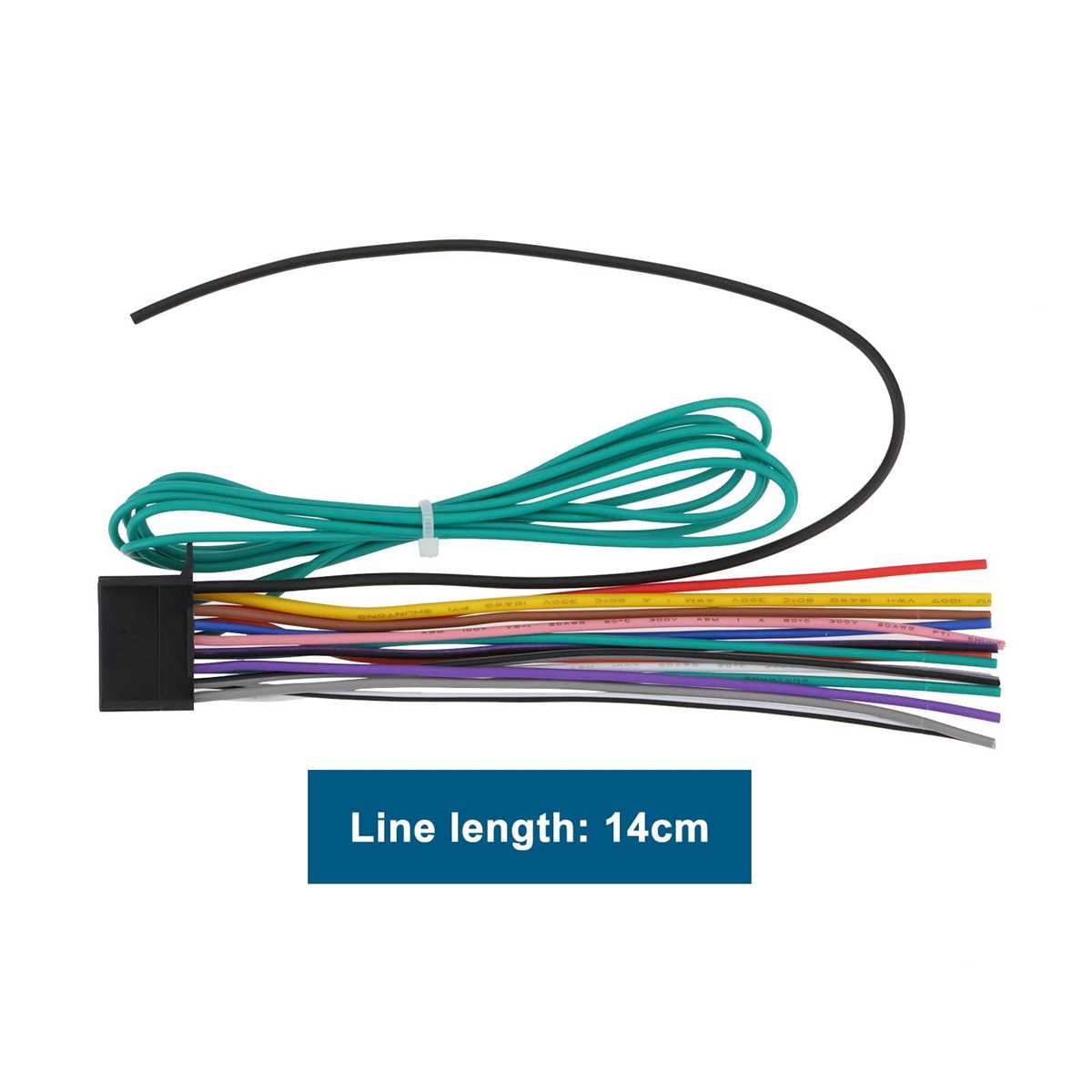

Selecting the Right Connection Kit for Your Car Stereo Upgrade
Begin by verifying the OEM plug layout in your vehicle’s service manual. The DMH-1500NEX interface requires a 16-pin quadlock connector for power, signal, and antenna control–ensure the adapter matches this pinout precisely. Common aftermarket brands like Metra 70-1761 or Scosche GM05B align with this configuration, but cross-reference with your car’s make and year. For European models, Axxess AX-ADBG12 often provides the correct pin assignments.
Check for retained accessory power (RAP) compatibility if your vehicle uses a data bus for stereo controls. Adapters labeled “CAN-BUS ready” prevent post-install errors like low voltage warnings or random shutdowns. Vehicles with GM-LAN, MOST, or Ford SYNC systems need specific harnesses–Metra 70-5520 (Ford) or Axxess AX-ADCF11 (GM) resolve these issues. Avoid universal harnesses without labeled circuitry, as they may lack essential resistors or fuses.
- Toyota/Lexus: Metra 70-8114 (2010+ models)
- Honda/Acura: Scosche HO21B (includes subwoofer output)
- Volkswagen/Audi: Axxess AX-ADVW12 (supports MIB1/MIB2)
- Subaru: Metra 70-8115 (integrates steering wheel controls)
Test the adapter’s illumination wire before finalizing the purchase. Some harnesses, like Scosche SU25B, include a dimmer circuit to sync with dashboard lighting, while others require manual adjustments via the stereo’s settings. For vehicles with LED backlighting, ensure the kit contains a PWM-compatible wire–failing to address this can cause flickering or dimming failures. Measure the existing connector’s amperage rating; excessive draw risks blowing the fuse link.
Color-coding varies between kits–confirm the following standard matches:
- Yellow (B+): Battery direct (must include inline fuse)
- Red (ACC): Ignition-switched power
- Black (GND): Chassis ground (minimum 12-gauge)
- Blue/White (AMP): Remote turn-on for amplifiers
- Purple: Rear right speaker (+)
- Green: Rear left speaker (+)
For steering wheel control retention, integrate a separate interface module like Pac-Audio RP4-GM11 or Axxess ASWC-1. These modules plug into the harness’s 3.5mm aux port and translate OEM button signals into the stereo’s protocol. Verify the module’s firmware version; older releases may not support voice command buttons or scroll wheels. If your vehicle uses analog resistances instead of digital signals, a resistor-based kit (e.g., Metra ASWC-UNI) is necessary.
Step-by-Step Installation Guide for the Multimedia Head Unit
Disconnect the vehicle’s battery before handling any electrical connections to prevent short circuits or damage to components.
Identify the factory radio’s power cables: constant 12V (yellow), ignition/switched 12V (red), and ground (black). Match these to the new interface adapter’s corresponding wires–verify polarity with a multimeter if labels are unclear. Mistakes here can fry the unit or drain the battery.
Secure the ground wire directly to the chassis using a clean, bare-metal surface. Sand away paint or corrosion first–poor grounding causes interference, dimming, or malfunctions. Use a star washer for maximum conductivity.
Connect the illumination wire (typically orange or orange/white) to the vehicle’s dash-light circuit. This ensures the display dims automatically with headlights. Some models require an inline resistor if brightness flickers.
Attach the antenna lead (usually blue/white) to the power antenna or amplifier trigger output. This activates external amplifiers or powered antennas when the system powers on. Double-check with the vehicle’s manual–some models need a relay for aftermarket setups.
Route the speaker outputs carefully, matching front/rear and left/right channels. Twist same-side pairs together to reduce noise. Avoid excess length–trim wires to prevent sagging, which can vibrate and loosen over time. Test each channel individually before finalizing.
Plugins like USB, backup camera, and steering wheel controls require specific adapters. Use the manufacturer’s pinout chart–some cameras need a 6V power supply separate from the main harness. Label each connector to avoid misplugging during reassembly.
Reconnect the battery and verify all functions: radio, navigation, phone pairing, and climate controls. If issues arise, recheck the ignition wire–some vehicles require it to be combined with the constant 12V for full functionality.
Common Installation Errors and Preventive Measures for Aftermarket Head Units
Reversing the power and ground connections immediately damages sensitive electronics. The constant 12V (yellow) lead must connect to the battery or fuse block using 18-20 AWG wire with inline fuse rated 10A; the chassis ground (black) requires a clean, bare-metal surface secured with a star washer and M6 bolt. Use a multimeter to verify zero ohms between ground and negative battery terminal before finalizing. Apply dielectric grease to connections to prevent oxidation, especially in high-humidity climates.
Incorrect speaker wiring causes phase cancellation and poor audio quality. Match positive (typically solid-colored) and negative (striped) wires to corresponding door or dashboard terminals. Test each channel with a 1 kHz sine wave; if output drops by ≥60%, swap the +/− polarity. Avoid mixing factory amp outputs with direct speaker feeds–some OEM systems use differential signals, requiring a line output converter (LOC). Check impedance matching: 4Ω speakers need ≥20W rms; 2Ω loads risk overheating the amplifier.
Ignoring illumination and data links leads to non-functional backlighting or steering controls. The dimmer/illumination wire (orange/white) must connect to the vehicle’s lighting circuit–consult the factory manual for exact pinouts, as some models use PWM instead of analog voltage. For retained steering wheel controls, an adapter module (e.g., Axxess ASWC-1) is required; splicing into CAN bus wires without proper decoding causes intermittent faults. Verify all data lines with a logic probe for consistent 5V pulses.
Overlooking fuse ratings and wire gauge burns fuses or melts insulation. Use the following reference:
- Constant 12V (yellow): 10A fuse, 18 AWG
- Switched 12V (red): 5A fuse, 20 AWG
- Accessory (blue): 2A fuse, 22 AWG
- Amplifier remote (blue/white): 2A fuse, 22 AWG
For high-power setups, upgrade to 12 AWG for speaker wires and twist pairs to reduce interference. Secure all splices with solder and heat-shrink tubing; electrical tape degrades over time.
Skipping the parking brake and reverse signal connections risks legal violations and backup camera failure. The parking brake wire (pink) must complete a circuit when engaged, or video playback will lock. The reverse trigger (purple/white) activates the backup camera–connect directly to the reverse light circuit or use a relay if voltage exceeds 12V. Test both functions at each installation step; reversing polarity on the camera input (≤10V) damages the video processor.
