Complete Arduino Atmega328P Circuit Schematic for DIY Projects
Start with a minimal configuration: power the ATmega168/328 family IC via a 5V regulated supply, connecting VCC to pin 7 and GND to pin 8. Add a 16 MHz crystal between pins 9 and 10, paralleled with two 22 pF capacitors to ground. This ensures stable clock signals for timing-critical operations.
Reset circuitry is non-negotiable–tie pin 1 (RESET) to VCC through a 10 kΩ pull-up resistor. Include a 0.1 µF decoupling capacitor between VCC and GND near the IC to suppress noise. For ISP programming, expose MOSI (pin 17), MISO (pin 18), SCK (pin 19), and RESET to a 6-pin header.
For serial communication, connect TXD (pin 3) and RXD (pin 2) via a 3.3V/5V logic-level shifter if interfacing with modern peripherals. Omit unnecessary components–skip the onboard LED/resistor unless debugging is required, as it draws unnecessary current.
Voltage regulation varies by application. A LM7805 linear regulator suffices for stable 5V, but switch to a TPS62743 buck converter for battery-powered designs, yielding 95% efficiency at 3.3V. Always use a reverse-polarity protection diode (e.g., 1N4007) between the power input and regulator.
Ground planes reduce interference. Route a dedicated AGND for analog signals, separating it from digital ground (DGND) near the IC. Connect them at a single point–typically the power supply’s negative terminal–to minimize ground loops.
For low-power projects, enable Brown-Out Detection (BOD) by setting fuses to BODLEVEL=1.8V. This prevents erratic behavior during voltage drops. Use the PRR (Power Reduction Register) to disable unused modules (e.g., ADC, SPI) if they’re not required.
Test the setup incrementally: verify clock signals with an oscilloscope, check reset functionality by momentarily grounding pin 1, and confirm ISP connectivity using avrdude or PlatformIO. Skipping these steps risks silent failures–especially in sleep modes or interrupt-driven routines.
Building a Compact Microcontroller Board: Key Schematic Insights
Start with the core: 28-pin DIP microcontroller requires a stable 16 MHz crystal oscillator connected to pins 9 and 10, paired with two 22pF ceramic capacitors grounded on each side to ensure precise timing. Skip the internal RC oscillator–external quartz delivers higher accuracy for serial communication and PWM tasks.
Power distribution demands attention: maintain separate rails for analog and digital supplies. Use a 100nF decoupling capacitor near each VCC pin (pins 7, 20, 21) and AVCC (pin 22) to suppress noise. For battery-powered designs, add a 10μF electrolytic capacitor at the power entry point to handle load transients.
- Reset circuitry: connect a 10kΩ pull-up resistor to the reset pin (pin 29) with a 100nF capacitor to ground for debouncing. Avoid omitting this–unpredictable resets will corrupt EEPROM writes.
- In-system programming headers: route pins 1 (MOSI), 17 (SCK), 18 (MISO), and 29 (RESET) to a 6-pin ISP connector. Keep traces short to prevent signal degradation during high-speed flashing.
- LED indicators: use a 220Ω resistor in series with a status LED on pin 19 (D13) for debugging. This pin sources sufficient current for most small LEDs without needing a transistor driver.
Analog reference optimization: if using ADC, connect AREF (pin 21) to a clean voltage source (3.3V or 5V) via a 1μF capacitor to stabilize readings. Avoid sharing AREF with digital lines–crosstalk distorts measurements below 10mV.
For bootloader compatibility ensure the first 2KB of flash remain reserved. Use a dedicated 3.3V or 5V LDO regulator if powering from USB or external supply–this microcontroller consumes only 30mA active current, but unstable voltage triggers brown-out resets. Test the schematic with a multimeter for continuity on all ISP and power rails before applying power.
Basic Pin Configuration and Power Supply Requirements
Connect the microcontroller’s VCC pin to a regulated 5V source for stable operation. A linear regulator like the LM7805 delivers consistent power with minimal ripple, critical for ADC accuracy. Input voltage should stay between 7-12V to prevent overheating while maintaining efficiency; exceeding 12V risks thermal shutdown.
Ground all GND pins to a common low-impedance plane, avoiding shared paths with high-current devices. Noise from motors or relays can corrupt signal integrity–use star grounding for sensitive applications. Decouple VCC with a 0.1µF ceramic capacitor near the pin to filter transient spikes, especially when driving inductive loads.
Reserve pins 27 (AVCC) and 22 (AREF) for analog functions, supplying them with the same 5V reference. Avoid connecting AVCC directly to VCC if using a switching regulator to reduce analog noise–add an LC filter or LDO for cleaner measurements. Leave AREF floating if internal reference (1.1V) is used to prevent errors.
IO pins tolerate 5V logic but sink/source a maximum of 40mA per pin, with an absolute limit of 200mA total across all pins. Exceeding these values triggers thermal protection or permanent damage. For higher loads, use a transistor or MOSFET with a flyback diode to handle currents safely.
Unused pins should be configured as inputs with internal pull-ups enabled (20-50kΩ) to prevent floating states. External pull-ups/downs are unnecessary unless interfacing with open-drain devices. Disable digital input buffers on analog pins to reduce power consumption in low-power modes.
For battery-operated designs, prioritize low-dropout regulators (e.g., MCP1700) to extend run time. Sleep modes reduce current draw to microamperes but require careful wake-up circuit planning–use interrupt-driven pins (e.g., INT0/INT1) to restore full functionality without periodic polling.
Minimal Standalone Configuration for AVR Microcontroller

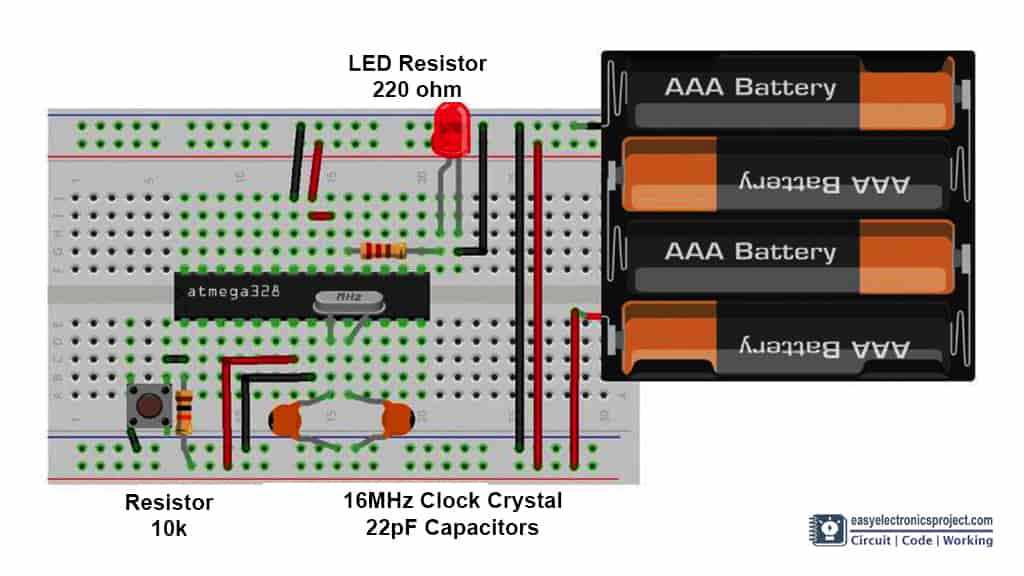

For a functional barebones setup, solder the following components directly to perfboard: a 16 MHz crystal with two 22 pF load capacitors, a 10 kΩ pull-up resistor on the reset pin, and decoupling capacitors (0.1 µF ceramic) across VCC-GND and AVCC-GND pairs. Power the board with 5 V DC from a linear regulator like the 7805, ensuring input voltage stays below 12 V to prevent overheating.

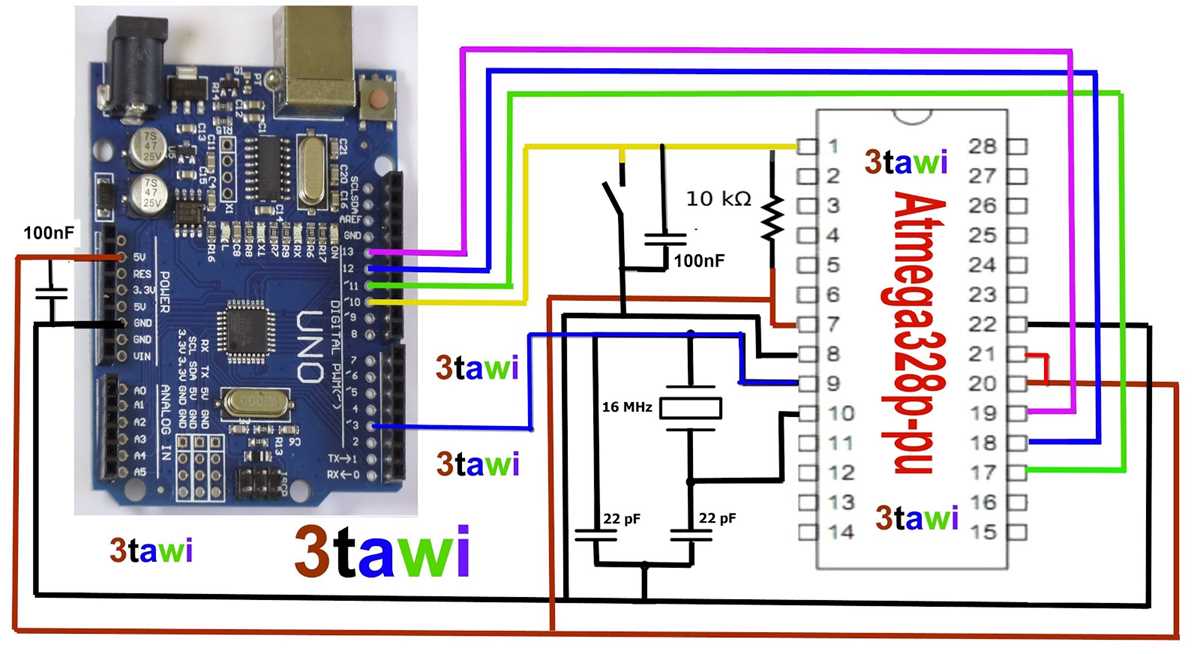

Programming requires a 6-pin ISP header with standard pinout: MOSI (PB3), MISO (PB4), SCK (PB5), RESET (PC6), VCC, GND. Flash hex files using avrdude or Atmel Studio via any compatible programmer (USBasp, AVRISP mkII). Omit the bootloader if relying solely on ISP; this saves 2 KB of flash.
| Component | Value | Purpose |
|---|---|---|
| Crystal | 16 MHz | System clock source |
| Load caps | 22 pF | Crystal stability |
| Pull-up resistor | 10 kΩ | Reset signal hold-high |
| Decoupling caps | 0.1 µF | Noise suppression |
Voltage Considerations
Brown-out detection (BOD) should be enabled at 2.7 V via fuse bits to protect EEPROM during power dips. For battery-powered projects under 3.3 V, replace the 16 MHz crystal with an 8 MHz ceramic resonator or internal RC oscillator; this extends runtime by reducing current draw to ~3 mA active, ~200 nA idle mode. Avoid sourcing more than 20 mA per IO pin; aggregate current must stay below 200 mA.
Laying Out Traces
Keep high-speed traces (SCK, crystal) under 2 cm; ground fill beneath them to reduce EMI. Route analog reference (AREF) away from digital lines; add a 0.1 µF cap to AREF if using ADC. Place the reset button near the microcontroller; a 100 nF cap across it filters contact bounce, eliminating false triggers during low-power sleep modes.
Crystal Oscillator Setup and Clock Signal Connections
Use a 16 MHz crystal with two 22 pF load capacitors for stable timing in high-speed microcontroller applications. Connect the crystal directly to the XTAL1 and XTAL2 pins, ensuring traces are as short as possible to minimize parasitic capacitance–ideally under 5 mm. Ground the capacitor leads to the nearest GND plane to reduce noise interference, especially in circuits operating above 10 MHz. Avoid routing other signal lines parallel to the oscillator traces to prevent crosstalk, which can degrade clock accuracy.
Verify oscillation startup by probing the XTAL2 pin with an oscilloscope–expect a clean sine wave between 0.5V and 1.8V peak-to-peak. If the signal is distorted or absent, check capacitor values (typically 18–27 pF) and ensure proper soldering; cold joints or excessive flux residue can prevent oscillation. For cost-sensitive designs, a ceramic resonator (e.g., 16 MHz) offers a simpler alternative, though with lower frequency stability (±0.5% drift). Keep power supply noise below 10 mV ripple to avoid reference clock jitter, particularly in precision timing applications.
Reset Signal Routing and Pushbutton Control
Connect the master system reset line to the MCU’s dedicated pin (active-low) through a 10 kΩ pull-up resistor to VCC. This ensures stable logic high during normal operation while allowing manual or external reset triggers. Bypass the reset line with a 0.1 µF ceramic capacitor to ground to filter noise and prevent spurious resets, particularly in environments with switching power supplies or RF interference.
Implement manual restart via a momentary SPST pushbutton tied between the reset node and ground. Place the switch within 5 cm of the processing unit to minimize inductance, which can cause contact bounce. For reliable debouncing, add a 100 nF capacitor in parallel with the switch–this combination reduces false triggers without requiring firmware delays. Avoid RC time constants exceeding 50 ms to prevent start-up sequencing issues with peripheral ICs.
Advanced Considerations
- For battery-powered builds, replace the pull-up with a weak 47 kΩ resistor to reduce quiescent current while maintaining reset integrity.
- In high-reliability applications, route the reset trace away from noisy traces (e.g., PWM, SPI clock lines) or shield it with ground pours if routing space is constrained.
- Test reset functionality under -40°C to +85°C thermal cycling; marginal switches may exhibit intermittent behavior at temperature extremes.
- For programming interfaces, ensure reset pulse width exceeds 2.5 µs for clean in-circuit programming without requiring manual intervention.
