Complete Guide to Designing Your Own Audio Amplifier Circuit

Begin with a two-stage Class AB push-pull configuration for optimal linearity and power efficiency. Use TDA2050 or LM3886 integrated circuits as the foundation–both deliver 50W RMS per channel with symmetrical ±35V power supply with low-ESR capacitors (minimum 4,700µF per rail) to eliminate ripple under full load. Bypass each main capacitor with a 0.1µF ceramic disc to suppress high-frequency noise.

For discrete transistor builds, pair 2N3055/MJ2955 complementary output transistors with a BD139/BD140 driver stage. Bias the transistors at 50mA quiescent current using a 1N4148 diode string (3 diodes in series) to prevent thermal runaway. Include a 10Ω emitter resistor on each output device to improve stability and current sharing. The input stage should employ a differential pair (e.g., BC547/BC557) with a 1kΩ tail resistor for common-mode rejection.

Critical grounding practices: Star-ground topology is non-negotiable–connect all ground returns (input, feedback, power supply) at a single point near the reservoir capacitors. Route signal grounds separately from power grounds to avoid coupling. Use shielded twisted-pair cable for input leads, keeping runs under 30cm to minimize RF interference. Fit a Zobel network (10Ω resistor + 0.1µF capacitor) across each output terminal to dampen inductive speaker loads and prevent oscillation.

Thermal management: Mount all power devices on heatsinks with ≥5°C/W rating, using thermal compound (e.g., Arctic MX-6). Install a 10kΩ NTC thermistor between the bias diodes and output transistors to dynamically adjust quiescent current as temperature rises. For safety, add fast-blow fuses (2A for signal path, 5A for power rails) and back-to-back diodes (1N4007) across the speaker outputs to clamp back-EMF during transients.

Gain settings: Aim for 20–30dB closed-loop gain. With the LM3886, use a 20kΩ feedback resistor and 1kΩ input resistor to achieve 26dB. For discrete designs, ensure the differential stage operates in deep Class A (collector current ≥1mA) to retain low-noise performance. Capacitive coupling at the input (1µF polypropylene) blocks DC while preserving bandwidth down to 5Hz.

Building a High-Fidelity Sound Circuit: Key Layout Principles

Start with a dual-rail power supply delivering ±12V to ±18V for optimal headroom. Linear regulators like LM317/LM337 reduce ripple better than switching alternatives, critical for low-noise output. Place decoupling capacitors (100nF ceramic) within 2cm of each IC’s power pins to prevent high-frequency oscillations. For grounding, use a star topology–connect all ground paths to a single central point near the main smoothing capacitor to avoid ground loops.

Component Selection for Low Distortion

• Use metal film resistors (1% tolerance) in the feedback loop to minimize Johnson noise.
• Opt for polypropylene film capacitors in signal paths (values ≥1μF) to preserve phase accuracy.
• Choose a low-noise op-amp like the NE5532 or OPA2134; avoid single-transistor front ends unless slew rate above 20V/μs is confirmed.
• For output stages, pair complementary MOSFETs (e.g., IRF510/IRF9510) or Darlington transistors (TIP122/TIP127) with emitter resistors (0.22Ω–0.47Ω) to stabilize current distribution.

Bias the output stage in Class AB with a Vbe multiplier circuit, setting quiescent current to 50–100mA per device. Adjust the trimmer (typically 5kΩ) while monitoring idle current–target 20–50mV across emitter resistors to eliminate crossover distortion. Insert a Zobel network (10Ω resistor + 100nF capacitor) between the output and ground to prevent high-frequency instability, especially with inductive loads.

Isolate the signal input with a 1:1 isolation transformer if connecting to consumer electronics. Add a 10kΩ potentiometer as a volume control before the first gain stage, avoiding carbon-track types due to noise. For thermal stability, mount a 10kΩ NTC thermistor near the output devices to dynamically adjust bias as temperatures rise–critical in enclosed chassis without active cooling.

PCB Layout Best Practices

1. Route high-current paths (≥2A) with minimum 2mm trace width, preferably on the top layer for heat dissipation.
2. Keep input and output traces separated by at least 10mm, or use a ground plane between them.
3. Place input coupling capacitors (≤1μF) adjacent to the connector to block DC offset.
4. Use vias generously for ground connections but avoid stitching them in high-current loops.
5. Locate the power supply’s smoothing capacitors as close as possible to the rectifier diodes to minimize ripple.

Test the circuit in stages: first, verify DC operating points with a dummy load (8Ω/10W). Measure AC performance using a 1kHz sine wave at 1Vrms; total harmonic distortion should remain below 0.1% up to 20kHz. If oscillations occur, reduce loop gain by decreasing compensation capacitor values (typically 30pF–100pF) or add a small series resistor (47Ω) at the input of the feedback network.

Key Components for a Fundamental Sound Boosting Circuit

Select an operational transistor like the 2N3055 or TIP41C for its robust current-handling capability–up to 15A for the former–ensuring minimal distortion during peak signal phases. Pair it with a complementary device (e.g., MJ2955 or TIP42C) to achieve symmetrical output drive, critical for preserving waveform fidelity at higher volumes.

Power Supply Essentials

Use a dual-rail voltage setup (±12V to ±40V) to avoid clipping in single-ended designs. A bridge rectifier (e.g., KBPC3510) with a minimum 10A rating prevents sag under load, while smoothing capacitors–4700µF per rail for every 10W output–eliminate ripple. For transient response, add a 0.1µF film capacitor across each power rail close to the active devices.

• Input coupling caps: 1µF–10µF electrolytic (tantalum for lower noise) blocks DC offset without attenuating bass frequencies.
• Output coupling: 1000µF–4700µF electrolytic to handle reactive speaker loads (4Ω–8Ω) without phase shift at 20Hz.
• Bypass caps: 0.01µF ceramic on IC power pins or transistor bases to filter high-frequency noise.

Choose carbon film resistors (5% tolerance) for signal paths–1/4W for bias networks, 1/2W–1W for emitter resistors in Class AB stages. Metal film offers better stability but increases cost; reserve them for feedback loops where precision (1%) reduces distortion below 0.1%.

Feedback network requires a 10kΩ resistor in series with a 22pF–100pF capacitor between the output and inverting input to tame high-frequency oscillations. Adjust the resistor value to set gain (Rf/Rin); typical ratios range from 10:1 to 50:1 for line-level signals.

1. Bias diodes (1N4007 or LED) establish ~1.4V drop for Class AB stages, preventing crossover distortion. Match their forward voltage to the transistors’ base-emitter junction (e.g., 2x 1N4148 for silicon devices).
2. Heatsinks for output devices must dissipate 1W per °C rise. For a 50W design, a 10°C/W sink ensures maximum junction temperature stays below 150°C.
3. Thermal protection: Add a PTC thermistor (MF72) in series with the power supply if ambient temperatures exceed 50°C.

Output inductors (2µH–5µH) prevent capacitive loading from damaging transistors during high-frequency transients. Use 18AWG magnet wire wound on a ferrite core for saturation currents above 5A. Place a 0.1Ω resistor in parallel to dampen ringing.

Grounding and Layout

Star-ground every return path–signal, power, and speaker grounds–to a single point near the smoothing capacitors. Keep high-current traces (>1A) at least 3mm wide for 1oz copper; double the width for 2oz. Separate analog and digital paths by ≥1cm to avoid crosstalk. Add 10µF–100µF polyester caps to decouple each IC or transistor’s power pin within 5mm of the device.

Mastering Circuit Blueprints for Sound Reinforcement

Identify power rails first–thick lines at the top and bottom, typically labeled with voltage values (e.g., +15V, -15V, GND). Trace these to their origin, usually smoothing capacitors (marked C1, C2) or voltage regulators (7815/7915). Verify polarity: electrolytic caps (cylindrical symbols) must align with their positive terminal facing the higher potential rail. Active components like transistors (Q1, Q2) often follow, their bases controlled via resistors (R3) or input coupling caps (C3). Note junction points: intersecting lines without a dot indicate no connection, while dots mark true intersections requiring solder.

Map signal flow from input jack to the speaker terminal. Follow the path through RC networks (resistors and caps forming filters) or ICs (labeled U1, e.g., LM386). Check pin assignments–datasheets pinpoint functions like “IN+,” “GND,” “OUT.” Measure expected voltages at key nodes with a multimeter (e.g., 0V at GND, half-rail at bias points). If waveforms distort, probe stages sequentially: clipping at the output stage suggests incorrect biasing (resistors R4/R5 ratio) or insufficient power supply headroom. Heat sinks should align with thermally coupled parts (TO-220 packages).

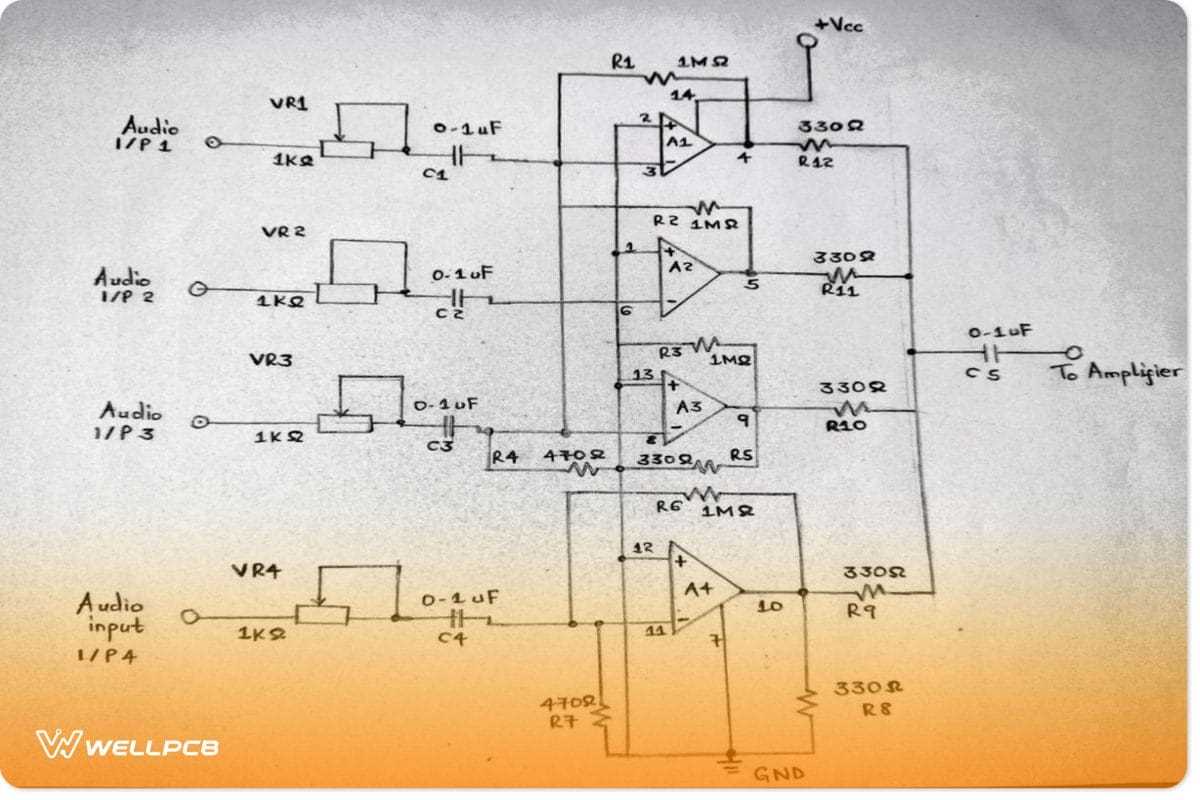

Step-by-Step Guide to Drawing Your First Circuit Blueprint

Select graph paper with 5x5mm grid spacing for precision–engineers standardized this for readability. Free tools like KiCad or even a ruler and pencil work equally well. Begin with a DC power source at the top: use a battery symbol (two parallel lines, one longer for positive) labeled “+12V” and ground (three descending lines). Place all power components vertically aligned to maintain logical flow.

Sketch input connections next: a 3.5mm jack or RCA terminal with distinct lines for signal and ground. Draw the first operational stage–a pair of transistors in a complementary configuration–using NPN/PNP symbols (circle with arrow for emitter, collector, base). Maintain 2cm spacing between components; cramped designs lead to tracing errors. Label transistor pins immediately (“Q1: BC547”) to avoid confusion.

Establish Signal Path and Feedback Loops

Route the weak signal through a coupling capacitor (curved line with parallel plates, “10µF”)–this blocks DC offset while allowing AC passage. Add a 10kΩ potentiometer (zigzag line with arrow) before the first transistor’s base for gain control. Use straight lines for signal paths; avoid diagonal crossings by rerouting under components. Introduce a feedback resistor (“47kΩ”) from the output back to the input stage to stabilize amplification.

Ground every unused pin–floating nodes induce noise. Draw decoupling capacitors (0.1µF) near the power rail and ground for high-frequency stability. Use dotted lines for hidden connections or off-board wiring. Verify each connection meets at a junction dot–omitting this causes ambiguity. For power transistors, add a heatsink symbol (rectangle with diagonal stripes) even on paper; thermal considerations start here.

Refine and Validate Your Layout

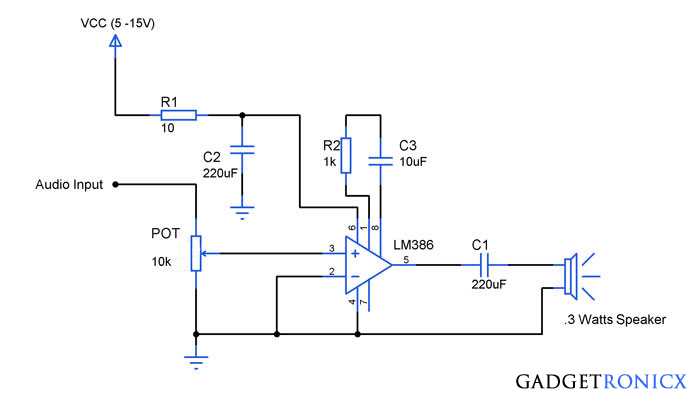

Cross-reference your drawing with a reference design–TI’s LM386 datasheet includes a minimalist template. Number each component sequentially (R1, R2; C1, C2) and update a bill of materials on the same sheet. Use colored pencils: red for power rails, blue for ground, green for signals. Common pitfalls include reversed polarity on electrolytic capacitors (mark “+” explicitly) and forgotten pull-down resistors (100kΩ) on MOSFET gates.

Simulate before building: free tools like LTspice accept hand-drawn schematics scanned as images. Convert scanned files to PNG (300 DPI) and verify netlist connections. Print a test copy and trace each path with a highlighter–missed connections appear instantly. Add revision numbers (“Rev A: Initial Draft”) in the bottom-right corner for future iterations. Store the original with folded edges protected; graphite smudges render schematics unreadable.
