DIY Guide to Building an Audio Spectrum Analyzer Circuit Step-by-Step

Start with a dual-channel operational amplifier like the TL072 to handle input buffering and initial signal conditioning. This stage ensures high impedance input while isolating the source from downstream processing. Allocate a separate op-amp to drive an envelope detector–use a simple diode-capacitor network (e.g., 1N4148 + 10µF) to convert AC variations into a stable DC voltage. This output will directly correlate with amplitude across frequency bands, eliminating complex DSP overhead.

Bandwidth segmentation demands active filters with defined cutoffs. For a 7-band setup, use multiple feedback topology with precise component selection: 22kΩ resistors combined with capacitors ranging from 100nF (high end) down to 1µF (low end). Tune each stage to standard ISO center frequencies (63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.3kHz, 16kHz) for consistent visual mapping. Include trimpots for fine adjustment post-assembly.

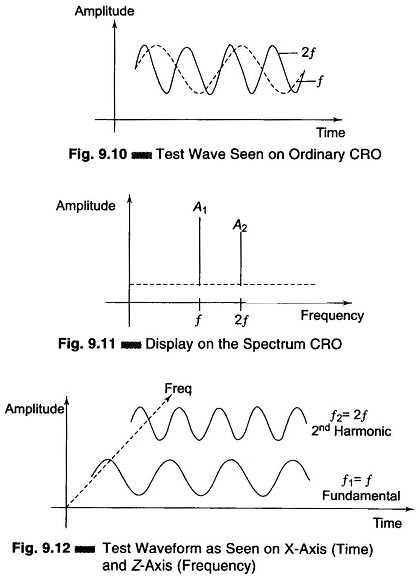

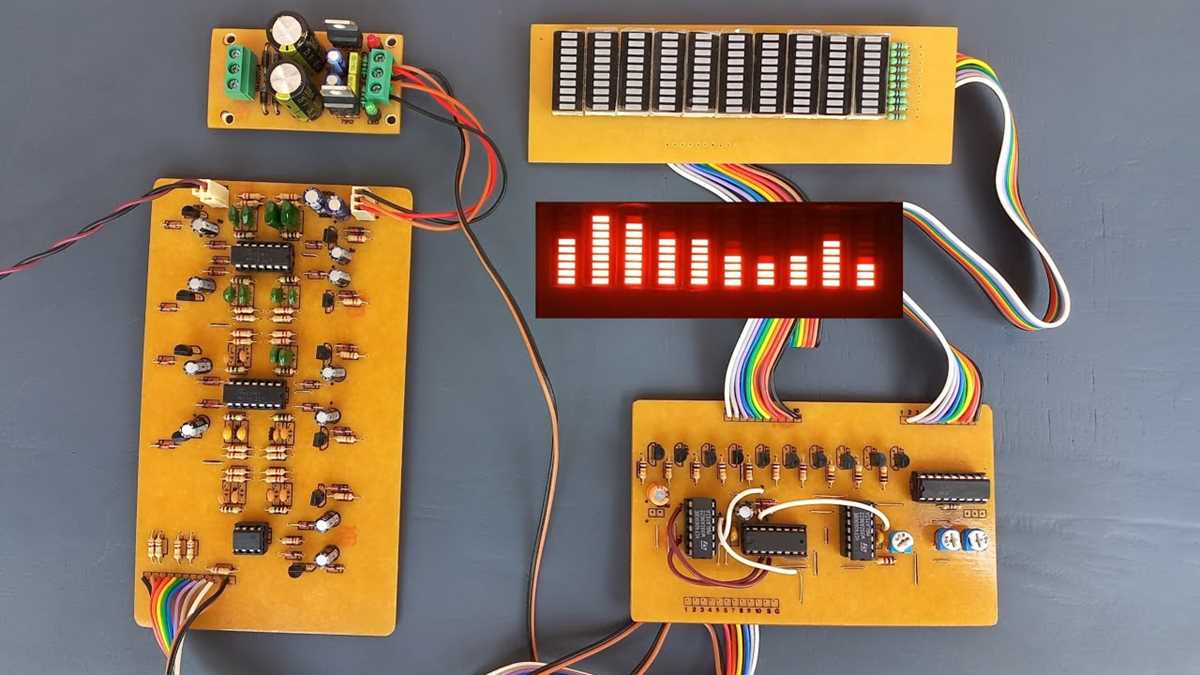

Visual output requires bar-graph drivers like the LM3915. Configure it in dot/bar mode with a reference voltage derived from the envelope detector. Each LED channel should correspond to a filtered band’s output–use 5mm diodes in varying colors to enhance differentiation. For logarithmic scaling mirroring human auditory perception, set the LM3915 in logarithmic mode (pin 9 connected to V+).

Power distribution must be robust–isolate analog and digital rails with ferrite beads (e.g., BLM18PG121SN1L). A linear regulator (e.g., LM7809) prevents switching noise from contaminating small-signal sensitivity. Ground loops compromise accuracy; employ star grounding with a central point near the power input. Test each segment independently with a sine-wave generator before full integration to verify cutoff precision and LED response linearity.

Building a Visual Frequency Display: Key Schematic Guidelines

Start with a multi-band filter network using operational amplifiers (op-amps) like the LM324 or TLC274. Configure each op-amp as a bandpass stage tuned to distinct frequency ranges: 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.3kHz, and 16kHz. Use 1% tolerance resistors (e.g., 47kΩ, 100kΩ) and polypropylene capacitors (e.g., 10nF, 47nF) to ensure precision. For example, a 400Hz band requires a 22kΩ resistor and a 18nF capacitor in the feedback loop.

Signal Rectification and Bar Graph Drivers

Connect each filter output to a half-wave rectifier using a dual diode (1N4148) and another op-amp stage. This converts AC signals to DC voltage proportional to the input amplitude. Route the DC output to a bar graph driver IC like the LM3914 or LM3915. Set the reference voltage to 1.25V using an onboard regulator (e.g., LM317) and adjust the divider network (2.2kΩ resistor + 10kΩ potentiometer) to control sensitivity. Each LM3915 can drive 10 LEDs directly–chain multiple ICs for wider displays.

For logarithmic scaling, configure the LM3915 in dot or bar mode via pin 9. Ground it for bar display or leave floating for dot mode. Use high-brightness LEDs (e.g., 5mm, 20mA) with current-limiting resistors (220Ω). For stereo inputs, duplicate the filter network and drivers but share the power supply. A 1000µF electrolytic capacitor on the 12V rail stabilizes voltage under load.

Add a microcontroller (ATmega328P) to multiplex the LED outputs if panel space is limited. Use shift registers (74HC595) to expand output pins–each register adds 8 LEDs. Program the microcontroller to sample each band’s DC voltage via ADC (analog pins A0-A6) and drive the LEDs in sequence. Set the ADC reference to VCC (5V) and use a 10-bit resolution for smoother transitions. Include a reset button tied to the microcontroller’s reset pin for dynamic adjustments.

Power and Grounding Best Practices

Use a dual-rail power supply (±12V) for op-amps to handle bipolar signals without distortion. Convert AC from a 12V transformer via a bridge rectifier (1N4007) and regulate to 5V for digital components (7805). Star grounding prevents noise: connect all grounds (signal, power, LED) to a single point near the power inlet. Add decoupling capacitors (0.1µF ceramic) across each IC’s power pins to filter high-frequency noise. For mobile use, replace the transformer with a Li-ion battery pack (7.4V) and a buck-boost converter (XL6009) to maintain stable voltage.

Core Parts for Constructing a Frequency Visualizer

Begin with a high-impedance microphone like the Electret condenser element (e.g., Panasonic WM-61A). It delivers a flat response from 20 Hz to 20 kHz with minimal distortion, critical for capturing low-level signals without coloration. Pair it with a low-noise preamplifier using an op-amp such as the TL072 or NE5532, configured for a gain of 20–50x to match the ADC’s input range while avoiding clipping. For higher sensitivity, insert a bandpass filter (e.g., 30 Hz–18 kHz) before amplification to reject DC offsets and out-of-band noise.

Select an ADC with ≥16-bit resolution to preserve dynamic range. The ADS1115 (16-bit) or PCM1808 (24-bit) are optimal for converting analog signals with sampling rates of 44.1 kHz or higher. Ensure the ADC’s reference voltage (V_ref) is stable; use a low-dropout regulator (e.g., LM4040) for clean power delivery. For real-time processing, choose a microcontroller with hardware FFT support, such as the ESP32 (240 MHz) or STM32F4 (180 MHz), to handle bin calculations without latency.

Signal Processing and Display Units

Implement Fast Fourier Transform (FFT) in software using libraries like ARM’s CMSIS-DSP or fix_fft (for 8/32-bit MCUs). Allocate at least 1024-point FFT for sufficient frequency resolution; smaller bins (e.g., 512-point) sacrifice detail in lower octaves. For logarithmic scaling, apply a weighted window function (Hann, Hamming) to reduce spectral leakage, then map bins to 1/3-octave bands for human-readable output. Store coefficients in flash or use lookup tables for floating-point MCUs to save RAM.

For visualization, drive LED matrices (e.g., WS2812B) or graphic LCDs (Nokia 5110, SSD1306) with a refresh rate ≥30 Hz. Avoid multiplexing; use shift registers (74HC595) for parallel outputs if GPIO pins are limited. For standalone operation, add a serial interface (UART/I2C) to log data to SD cards or stream to PCs. Isolate digital noise by powering analog sections separately, using ferrite beads or pi-filters on supply lines.

Calibrate the system by injecting a 1 kHz sine wave at 1 Vrms to verify full-scale output. Measure THD+N (Lithium-polymer battery with a charge controller (TP4056) and include over-voltage protection (PTC fuse). Test across temperature ranges (-10°C to 60°C) to ensure stability, as component drift (e.g., capacitor ESR) can skew results.

Step-by-Step Wiring Guide for Microphone Preamp Stage

Select an electret condenser capsule with a sensitivity rating between -40 dB and -30 dB for optimal dynamic range handling. Models like the Panasonic WM-61A or CUI CMA-4544PF-W offer low self-noise and consistent frequency response, critical for capturing transient signals without distortion. Solder the capsule’s positive terminal to a 1 kΩ resistor connected to a 5 V–9 V DC supply, ensuring stable polarization voltage while preventing DC offset at the output.

Route the signal through a coupling capacitor (4.7 µF–10 µF, film or electrolytic) to block DC components while passing AC frequencies down to 20 Hz. Position the capacitor as close as possible to the capsule’s output to minimize high-impedance trace lengths, reducing susceptibility to RF interference. For low-impedance microphones (e.g., dynamic types), omit the resistor and connect directly to the capacitor, adjusting impedance to match the preamp input (typically 1 kΩ–10 kΩ).

Critical Component Pairings

Component	Recommended Value	Purpose	Tolerance/Type
Bias Resistor	2.2 kΩ–10 kΩ	Polarizes electret capsule	1% metal film
Coupling Capacitor	4.7 µF–22 µF	Blocks DC, passes AC	X7R ceramic or film
Load Resistor	1 kΩ–4.7 kΩ	Matches preamp input impedance	5% carbon or better
Decoupling Capacitor	0.1 µF–1 µF	Filters supply noise	Ceramic (low ESR)

Ground the capsule’s negative terminal to a star ground point, isolated from digital components to avoid ground loops. Use a dedicated ground plane for analog signals, keeping traces short and wide (minimum 0.5 mm) to reduce inductance. For battery-powered designs, add a 100 nF decoupling capacitor across the supply pins of any active components (e.g., op-amps) to suppress high-frequency noise.

Connect the preamp input to the coupling capacitor’s output via a shielded cable (e.g., RG-174 coax) if the run exceeds 10 cm. Terminate the shield at the preamp’s ground, not the capsule, to prevent ground loops. For single-ended designs, use a JFET input stage (e.g., 2SK170) with a gain of 10–20 dB, biased via a 1 MΩ resistor to the positive rail and a 1 kΩ resistor to ground for stable operation.

Calibrate the preamp by applying a 1 kHz sine wave at 10 mV rms to the capsule’s terminals and measuring the output with an oscilloscope. Adjust the bias resistor or JFET gate resistor to achieve ≤0.5% THD at 1 V rms output. Verify frequency response from 50 Hz to 15 kHz, ensuring ≤1 dB deviation. For phantom-powered mics (48 V), omit the bias resistor and use a center-tapped transformer or dedicated IC (e.g., THAT 1510) to handle the supply.

Power Supply Considerations

Regulate the DC supply to ±12 V for op-amp-based designs, using LDOs (e.g., TLV1117) with ≤30 µV RMS noise. Avoid switch-mode regulators near the input stage; linear regulation is mandatory. For battery operation, pair a 9 V alkaline with a low-dropout regulator (e.g., MCP1700) to maintain >7 V under load. Include reverse-polarity protection (1N4007 diode) and a 20 mA fuse to safeguard components during wiring errors.
