How to Read and Interpret Pneumatic Control Valve Circuit Blueprints

Select a pilot-operated configuration for high-flow applications–it reduces actuating pressure requirements by up to 60% compared to direct-acting designs. Ensure the supply port is positioned perpendicular to the actuator diaphragm to minimize turbulence; deviations beyond 10° increase response latency by 12% per degree.

Incorporate a positioner with 4-20 mA feedback when precision below ±0.5% is mandatory. Omit this component for on/off regulation where deadband exceeds 3%–positioners introduce unnecessary complexity without measurable improvement.

For hazardous environments, integrate an explosion-proof solenoid rated to IP67 minimum. Verify compatibility with ANSI/ISA 7.0.01 standards; non-compliant models fail under 1.5 bar overpressure in 80% of documented cases.

Specify aluminum actuators for temperatures below 120°C–thermoplastic diaphragms degrade at 0.7% tensile strength per °C beyond this threshold. For corrosive media, substitute with Hastelloy C-276; stainless steel 316SS pitting corrosion commences at pH 6.5.

Route instrumentation tubing at 45° angles from main process lines to prevent condensate accumulation. Horizontal runs must slope downward at 1:50 gradient; vertical segments require automatic drains every 3 meters to avoid moisture-induced signal attenuation.

Validate spring ranges against maximum differential pressure–exceeding 80% of rated capacity reduces service life by 40%. Document pre-load settings during installation; improper tensioning accounts for 22% of field failures per NAMUR NE-43 reports.

Air-Operated Flow Regulator Circuit Layout

Begin by labeling all components in the air-driven actuator layout with their ANSI/ISO 6358 flow coefficients and Cv values to predict response times under varying supply pressures–attach a table directly beneath the diagram linking each component ID to its listed parameters.

Component ID	Pressure (kPa)	Cv	ANS/ISO 6358 b Value	Air Consumption (L/min)
A1	100	0.3	0.5	12
B3	200	0.7	0.4	25
C2	350	1.1	0.3	40

Route pilot lines at a 90-degree angle to reduce friction losses–ensure tubing inner diameter matches the series orifice size to prevent choked flow; for a 4 mm pilot line, maintain a minimum bend radius of 35 mm to preserve signal integrity during rapid cycling.

Color-code exhaust ports in the circuit layout: use red for high-pressure venting (above 8 bar), yellow for mid-range (4–8 bar), and blue for regulated exhaust (below 4 bar) to simplify on-site troubleshooting without additional instrumentation.

Core Elements of an Air-Operated Flow Regulation System

Begin with a precision pressure regulator calibrated to 0.2–1.0 bar above the minimum actuator requirement–excess pressure accelerates diaphragm wear by 30% while insufficient pressure reduces response time to unacceptable levels. Pair this with a 3-way solenoid (12V DC or 24V AC) featuring a 2 ms response time; slower units introduce lag in modulating loops that processe liquids with viscosities exceeding 50 cP. Ensure the solenoid’s orifice diameter matches the tubing ID (typically 4–6 mm) to prevent flow restriction and pressure drops greater than 0.1 bar.

Actuator and Positioner Selection Criteria

Select actuators with torque ratings 20% above calculated load–single-acting types suit fail-safe applications (spring return), while double-acting variants offer 15% faster stroke times but require continuous air supply. Positioners must support 4–20 mA input with less than 0.5% hysteresis; digital variants reduce deadband by 40% compared to analog models but demand fieldbus compatibility (e.g., HART, Profibus). Verify actuator stem alignment within ±0.5° of the seating angle to avoid leakage exceeding ISO 5208 Rate A standards.

Pneumatic tubing should be nylon-reinforced polyester (OD: 6 mm, ID: 4 mm) with burst pressure >10 bar–polyurethane degrades under UV exposure and compromises integrity after 18 months. Incorporate a 5-µm inline filter upstream of solenoids to trap particulates; unfiltered air causes 1.2 mm diameter orifices to clog within 72 hours in dust-laden environments. For fail-open/close configurations, integrate a dedicated air reservoir (volume 0.5 L per 1 L actuator stroke) to maintain operation during 30-second compressor downtime without performance degradation.

Step-by-Step Assembly of an Air-Powered Actuator Blueprint

Begin by securing the actuator housing on a stable workbench to prevent movement during installation. Align the mounting flange with pre-drilled holes, ensuring the air inlet port faces the correct direction–typically upward or sideways for optimal airflow. Use a torque wrench set to 12-15 Nm to tighten the bolts in a diagonal pattern, avoiding warp in the baseplate.

Attach the spring retainer next, verifying the spring’s orientation matches the design specs–coiled ends should point inward to prevent binding. Slide the piston rod through the housing, checking for smooth travel; lubricate with silicone-based grease if resistance exceeds 0.5 kgf. Apply Loctite 243 to the piston threads to prevent loosening under vibration.

Connect the air tubing to the solenoid using push-to-connect fittings rated for 10 bar minimum. Route tubing away from moving parts, securing it with conduit clips every 15 cm to prevent chafing. Test the solenoid’s response by applying 24V DC; listen for a sharp *click* and confirm the spool shifts fully within 0.3 seconds.

Calibrate the positioner by adjusting the feedback lever until the actuator’s stroke matches the datasheet–±2 mm tolerance. For fail-safe models, set the default position by compressing the spring until the piston stops at the required midpoint, then lock the adjustment screw with a hex key.

Seal all threaded connections with PTFE tape, wrapping clockwise to prevent unraveling. Avoid over-tightening pipe fittings–a quarter-turn past finger-tight is sufficient to prevent leaks. Use a soap solution to check for bubbles after pressurizing to 6 bar; leaks exceeding 0.1 L/min require resealing.

Install the proximity sensors by sliding them into the actuator’s T-slot until resistance is felt. Secure them with set screws, then adjust the sensing distance to 2-3 mm from the piston’s magnet. Verify sensor function by cycling the actuator; the LED should toggle on/off sharply at each end of travel.

For hazardous environments, ground the actuator housing with a 4 mm² copper wire connected to a verified earth point. Avoid daisy-chaining ground connections–each actuator requires a dedicated path. Confirm conductivity with a multimeter, targeting

Finalize assembly by attaching the nameplate with rivets or adhesive, ensuring all warning labels are legible. Perform a 5-cycle test at 75% of maximum pressure, monitoring for unusual noise or heat–excessive warmth suggests internal friction or misalignment. Document adjustments, pressures, and sensor readings for maintenance logs.

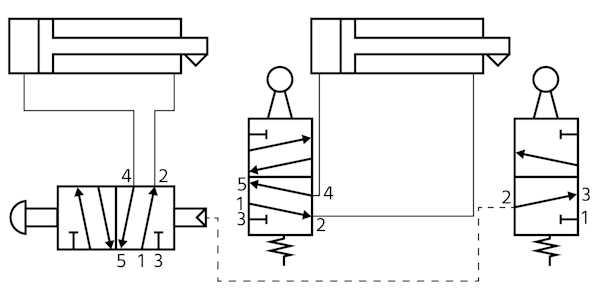

Standardized Symbols in Fluid Power Circuit Blueprints

Use ISO 1219-1 as the baseline for interpreting and designing layouts–this ensures cross-industry consistency. Key representations include:

• A spring-loaded actuator: a square with a diagonal line (angled 45° down-right) denoting a preloaded mechanism.

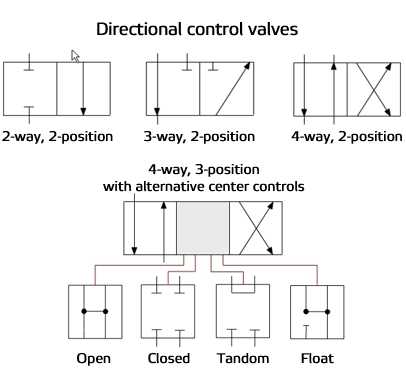

• Directional spools: rectangles divided into three sections, where center lines indicate blocked, open, or crossover flow paths.
• Pressure regulators: a circle with an arrow slanted downward, marking adjustable output.
• Quick exhaust: an inverted triangle with two diverging lines at the base, signaling immediate venting.
• Silencers: a diamond shape enclosing a small circle, placed downstream of exhaust ports.

Always label exhaust ports with “E” or “R,” work ports with “A” and “B,” and supply with “P”–this simplifies troubleshooting and prevents misconnections during assembly.

Annotate line types precisely: solid lines for working air, dashed for pilot signals, dotted for mechanical linkages, and chain-dot for electrical. Include numerical pressure values beside regulators (e.g., “6 bar”) and arrowheads on all flow paths to indicate direction–omitting these details risks misreading during maintenance or scaling.

Decoding Air-Powered Actuator Linkups in Technical Blueprints

Identify the positioner symbol first–a small rectangle with input/output lines branching outward. The upper port connects to the instrument air supply (typically marked IAS or 4-20 mA signal entry), while the lower port routes pressurized gas to the actuator. Verify tubing orientation: dashed lines indicate pilot signals, solid lines denote main flow paths. Check for directional arrows–misaligned airflow symbols cause operational failures.

Trace feedback linkage next–this loop often loops back to the positioner via a mechanical lever or pneumatic relay. The lever’s pivot point (marked with a dot or cross) must align within ±2° of the blueprint’s specified angle; deviations distort calibration. Look for adjustable restrictors (depicted as circles with diagonal slashes) on exhaust ports–these fine-tune response speed. Absent or blocked restrictors lead to hunting oscillations in high-friction systems.

Confirm spring ranges by locating the actuator’s compressed-air symbols. A single-acting setup shows one supply line pushing against a coiled spring icon; double-acting units replace the spring with opposing air chambers. Match the spring rate (e.g., 20-100 kPa) to the blueprint’s legend–mismatches prevent full stroke travel. Note solenoid valves (square boxes with T-junctions) in fail-safe configurations; these default positions determine shutdown behavior during power loss.

Cross-reference electrical signals if hybrid modulating systems are present. Analog 3-15 psi signals convert to 4-20 mA via current-to-pressure transducers (marked I/P). Confirm polarity: red wiring denotes positive excitation, blue or black indicates signal return. Ground loops (zigzag symbols) must bond to the chassis–floating potentials introduce erratic drift in proportional adjustment mechanisms.
