Automatic Transfer Switch Circuit Design with Wiring Guide for Backup Power

Start with a double-throw relay configuration rated for at least 125% of your load’s peak current. A 30-amp relay suffices for most residential applications, but industrial setups demand 100-amp or higher variants to prevent contact welding. Position the common terminal (COM) to connect the primary energy source, while the normally closed (NC) and normally open (NO) terminals link to the mains and backup supply, respectively. Ensure the coil voltage matches your control system–12V DC or 24V AC are common, but verify compatibility with your sensor logic.

Voltage sensing is critical: use a dual-comparator IC like the LM393 to monitor both sources simultaneously. Set hysteresis with a 10kΩ resistor between the output and non-inverting pin, plus a 1µF capacitor to filter noise. For grid voltage detection, a 9V Zener diode protects the circuit from surges, while a 10kΩ potentiometer fine-tunes the threshold (typically 80-90% of nominal voltage). The backup generator’s voltage should trigger at 95-110% of its rated output to avoid false transfers.

Incorporate a 5-second delay before engaging the backup to prevent brief outages from causing unnecessary shifts. A 555 timer in monostable mode, paired with a 100kΩ resistor and 47µF capacitor, achieves this reliably. For high-power systems, add a contactor with a separate coil circuit to isolate the control logic from heavy currents. Use 14 AWG wire for control signals and 8 AWG or thicker for power paths, depending on load demand. Ground the neutral busbar of both sources independently to avoid circulating currents during transitions.

Test the system under load conditions–simulate a blackout by disconnecting the mains and verify the backup engages without flickering or resets. Measure voltage drops across relay contacts; exceeding 0.5V suggests pitted contacts requiring replacement. For added safety, include a manual override switch bypassing the automation, allowing immediate reversion to the primary source if the backup fails. Document your wiring layout, labeling every conductor with heat-shrink tubing to streamline troubleshooting.

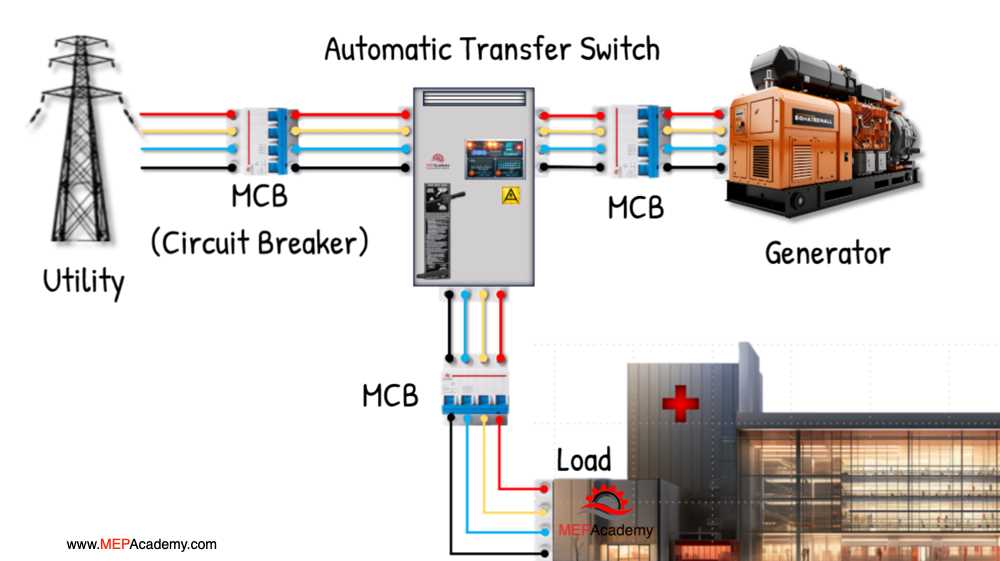

Automatic Power Redirection Mechanism: Key Schematic Layout

Integrate a dual-source selector with a priority delay relay rated for 20–30 amperes to handle inductive loads. Use a solid-state comparator (LM393) or optocoupler (MOC3041) for galvanic isolation between sensing and control lines. Configure hysteresis on the comparator via a 10kΩ feedback resistor to prevent chatter during voltage transitions within ±5% of nominal.

• Primary source detector: Connect a 47kΩ voltage divider to the utility grid, scaling input to 5V for microcontroller analog input (e.g., ATmega328).
• Secondary source monitor: Apply identical scaling to the backup generator (12V/24V DC) via a shunt regulator (TL431).
• Switching element: Employ 100A contactors with AC-rated coils (220V/24V), ensuring mechanical interlocking to prevent cross-conduction.

For fail-safe operation, hardwire a normally closed relay (OMRON G2R) in series with the primary contactor coil. Add a manual override bypass (SPDT toggle) to force backup engagement without controller intervention. Include crowbar protection (SIDAC KIV24) across sensitive nodes to clamp transient spikes above 600V.

Optimize transient response with snubber networks (0.1μF + 10Ω) across each contactor pole, reducing arcing wear. Calibrate sensor thresholds using a precision multimeter during commissioning: adjust potentiometers (10-turn 10kΩ) until primary detection triggers at 190V AC (–10%) and backup disconnection occurs at 85% of generator warm-up voltage.

Validate the design with a load step test: connect a 1kW resistive heater and confirm contactor switchover completes within 120ms (measured via oscilloscope on TP7: comparator output). Log failures if coil dropout occurs below 80% of nominal hold-in voltage or if neutral shift exceeds 3V during crossover events.

Core Hardware for Reliable Power Transition Systems

Select a double-throw relay rated at least 50A for residential applications, with silver alloy contacts to prevent welding under inductive loads. Pair it with a microprocessor-based control module capable of sub-200ms response time–models like Omron G9EA or Schneider Electric TeSys offer verified performance. Ensure the chosen relay includes mechanical interlocks to eliminate cross-conduction risks between utility and backup sources, a common failure point in improperly designed setups.

Integrate a current-sensing circuit using hall-effect sensors (ACS712 for 20A ranges, ACS758 for 50A+) to monitor real-time load conditions; these provide galvanic isolation while detecting voltage sag or interruption within 1 cycle. For the power backbone, use tinned copper busbars (minimum 3mm thickness) or 6AWG stranded wire with heat-resistant sleeves (XLPE or silicone) to handle inrush currents–avoid soldered joints, as they degrade under thermal cycling. Add a MOV-based surge protector (varistor clamping voltage 1.5× nominal) and ceramic capacitors (0.1µF, X2 class) across relay coils to suppress transients, preventing false triggering during grid fluctuations.

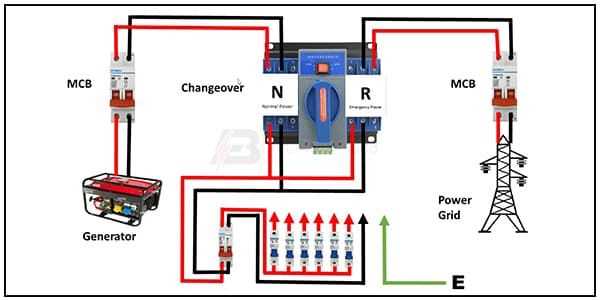

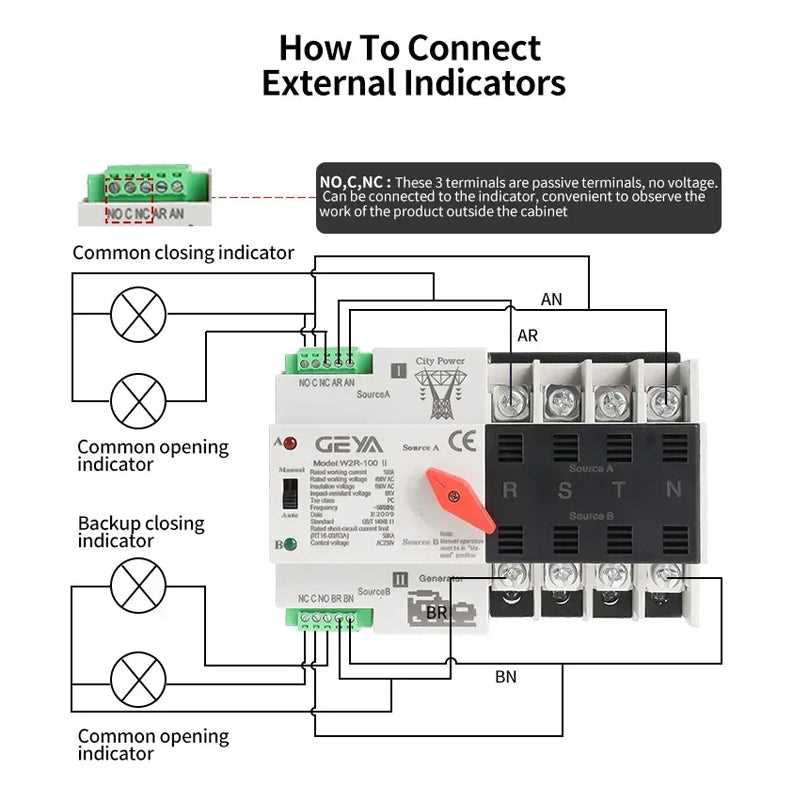

Step-by-Step Wiring Guide for a Basic Backup Power Selector

Begin by securing a double-pole, double-throw (DPDT) relay with a coil voltage matching your system–typically 12V or 24V DC for small setups. Position it between the primary and secondary power inputs, ensuring the relay’s contacts can handle at least 20% more than your maximum load current. Label each terminal clearly: main power (L1, L2), backup source (L3, L4), and output (T1, T2). Use 10AWG copper wire for currents up to 30A, scaling to 6AWG for 50A+ loads.

Connecting Inputs and Outputs

Attach the main power source to the relay’s normally closed (NC) terminals: connect L1 to the first NC contact and L2 to the second. For the backup source, wire L3 to the first normally open (NO) terminal and L4 to the second. Route the output from the common (C) terminals–T1 and T2–directly to the load or distribution panel, inserting a 60A breaker between the relay and load if handling high currents. Verify polarity; reverse connections risk damaging equipment.

Integrate a sensing module–a low-voltage cutoff or voltage-sensing relay–into the control circuit. Connect it across L1 and L2 to monitor primary power; when voltage drops below 85% of nominal (e.g., 102V for 120V systems), the module must trigger the relay coil. Use a 1A fuse in series with the coil to prevent overload. For manual override, add a maintained toggle switch in parallel with the sensing module.

Finalize by testing with a multimeter: measure continuity between T1/T2 and L1/L2 (closed circuit) with main power on, then simulate a primary failure–output should shift to L3/L4 within 50ms. Check for arcing at relay contacts during transition; if present, upgrade to a hybrid solid-state model rated for inductive loads. Secure all connections with heat-shrink tubing and strain relief (e.g., cable clamps) to prevent vibration loosening. Repeat tests under full load to confirm stability.

How to Select the Right Relay for Your Power Changeover Mechanism

Choose a relay with a coil voltage matching your control signal–common options include 12V DC, 24V DC, 120V AC, or 230V AC–to prevent overheating or failure. Verify the coil resistance: low-voltage relays (e.g., 12V) typically draw higher current, requiring thicker wiring to avoid voltage drops.

Prioritize relays with contact ratings exceeding your load by at least 20%. For resistive loads (e.g., heaters), a 10A relay suffices for 8A loads, but inductive loads (e.g., motors) demand 50% derating–opt for 16A relays to handle 8A motor currents safely. Check the manufacturer’s datasheet for “make/break” capacities, as inrush currents can be 6–10× the steady-state value.

For high-cycle applications, select relays with mechanical lifespans of 1,000,000+ operations. Industrial-grade relays (e.g., Omron MY4 or TE Connectivity K10P) endure frequent toggling, unlike consumer-grade variants failing at 100,000 cycles. Consider the contact material: silver-nickel resists welding in DC loads, while silver-tin oxide handles AC arcs better.

Use the table below to compare key relay types for power changeover applications:

Relay Type	Max Load (Resistive)	Max Load (Inductive)	Typical Lifespan	Response Time (ms)	Cost (USD)
Electromechanical (General Purpose)	10A	5A	100,000	10–20	5–15
Power Relay (PCB Mount)	30A	15A	500,000	15–30	20–50
Industrial Relay (Panel Mount)	50A	30A	1,000,000+	20–40	30–100
SSR (AC Output)	40A	25A	NA (Solid State)	0.1–1	25–80

DC loads below 1A? Opt for reed relays (e.g., Hamlin HE721) with hermetically sealed contacts to eliminate oxidation. For AC loads up to 2A, choose mercury-wetted relays (e.g., Coto 9001) for arc suppression, though these are sensitive to orientation.

Mount relays with DIN rail or screw terminals in high-vibration environments (e.g., generators). PCB-mount relays suit static installations but require heatsinks for currents above 10A. Ensure clearance around relay coils–ambient temperatures above 60°C degrade performance, reducing lifespan by 50% per 10°C increase beyond the rated 85°C.

Test relay contacts with a multimeter under load before deployment. Measure contact resistance: values above 50 milliohms indicate corrosion or pitting, requiring replacement. For mission-critical systems, parallel redundant relays (e.g., two 10A relays for a 15A load) prevent single-point failures.
