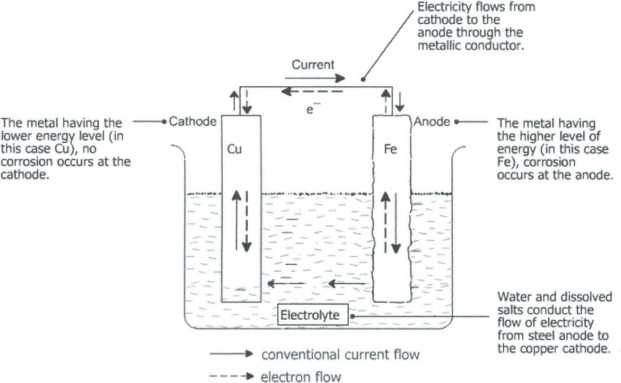

Understanding Galvanic Cell Structure Step-by-Step Schematic Breakdown

To construct a functional voltaic system, begin with two electrodes: zinc and copper. Zinc should be immersed in a 1.0 M zinc sulfate solution, while copper belongs in a 1.0 M copper sulfate electrolyte. Ensure each half-cell contains a metal strip at least 10 cm long and 1 cm wide, submerged halfway to maximize surface contact without wasting material.

Connect the electrodes externally using a conducting wire–copper wiring with a cross-sectional area of 2.5 mm² is optimal for minimizing resistance. Include a salt bridge saturated with potassium nitrate (KNO₃) between the solutions; a U-shaped glass tube filled with 3% agar in KNO₃ works best, preventing premature ion depletion while maintaining charge balance. Position the bridge so each end sits 1 cm below the liquid surface to avoid air gaps.

Measure the open-circuit voltage immediately after assembly. A zinc-copper pair under standard conditions should yield ~1.10 V. If readings are lower, check for oxide layers on electrode surfaces–polish both metals with fine-grit sandpaper (400+ grit) until shiny. Verify solution concentrations: deviations above 0.1 M reduce potential; distilled water must be used to avoid contaminant interference.

For consistent performance, control temperature at 25°C. Room fluctuations above 30°C accelerate degradation of the salt bridge; below 15°C, reaction kinetics slow noticeably. Monitor internal resistance by inserting a multimeter in series during operation–expect ~0.5 Ω for a properly assembled unit. Higher values indicate poor connections or corroded terminals; re-clean contact points if resistance exceeds 1.0 Ω.

Expect current delivery to decline by ~2% per hour under continuous load (50 mA). To prolong lifespan, disconnect the external circuit when idle–parasitic reactions consume zinc even without a load. Replace spent solutions every 48 hours of operation; zinc sulfate may develop white precipitates (zinc hydroxide), signaling depletion.

Visual Representation of Electrochemical Power Sources

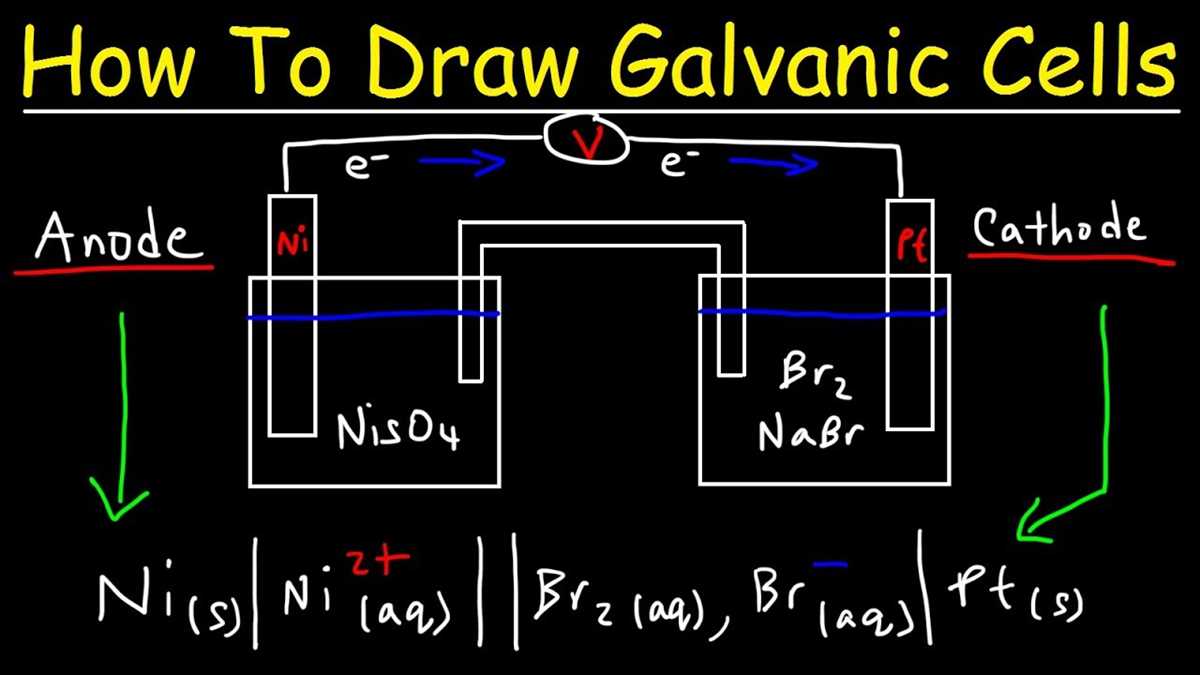

Start by labeling each component in the illustration with clear, distinct annotations. Use standardized symbols: a vertical line for phase boundaries, double lines for salt bridges, and arrows to indicate electron flow direction. Include these key elements:

• Anode (oxidation site) – zinc or magnesium strip immersed in its salt solution (e.g., ZnSO₄)
• Cathode (reduction site) – copper or silver plate in its respective electrolyte (e.g., CuSO₄)
• External wire connecting electrodes, marked with resistance (Ω) if workload is shown
• Porous barrier or U-shaped tube filled with inert electrolyte (e.g., KCl in agar gel)
• Half-reactions written beneath each electrode with standard reduction potentials

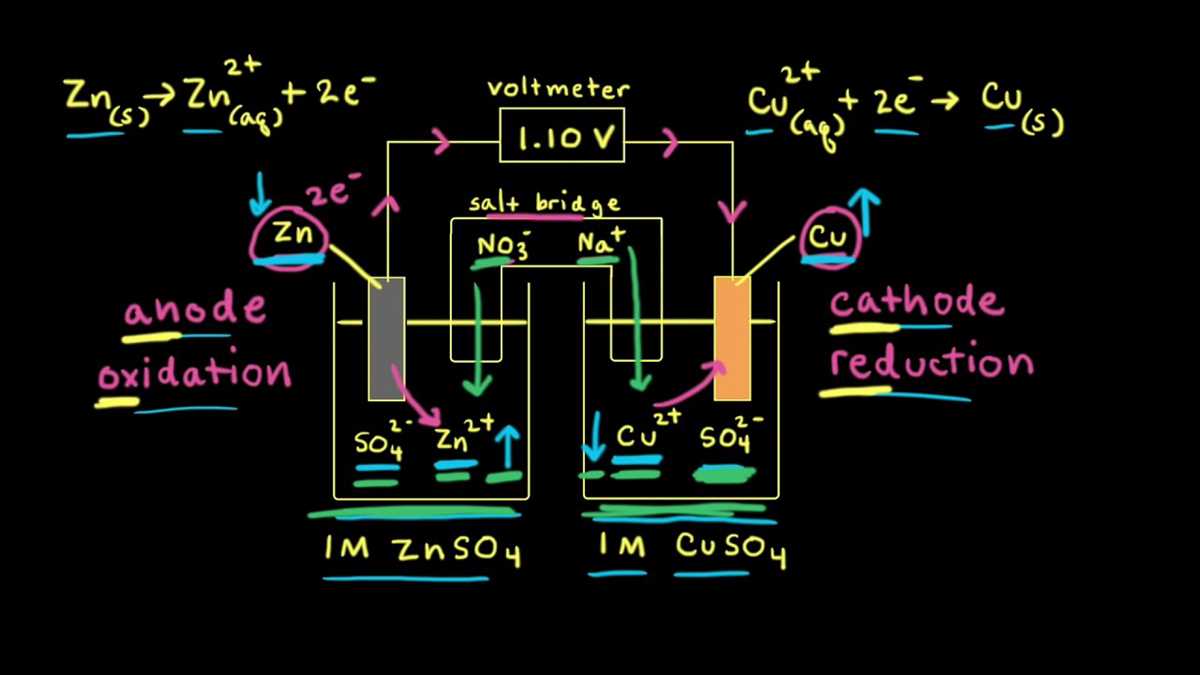

Indicate charge separation by placing “–” signs near the anode and “+” signs near the cathode. Add a voltmeter symbol across the external circuit to show measured voltage (typically 1.10 V for Zn–Cu coupling). For precise voltage reference, note ambient conditions: 25°C, 1 M concentration for solutes, 1 atm pressure for gases.

Break down electron transfer visually:

1. At the anode surface, atoms lose electrons and enter solution as cations
2. Electrons travel through the wire to the cathode
3. Cations in cathode solution gain electrons and deposit as neutral metal
4. Anions from the salt bridge migrate toward the anode compartment to maintain neutrality
5. Cations from the salt bridge move toward the cathode side

Color-code phases: blue for electrolyte solutions, black for metal electrodes, gray for conductive wire, red for positive terminals, black for negative. Use dashed arrows to show ion movement through the separator and solid arrows for electron flow. Always orient the anode on the left and cathode on the right for consistency.

Calculate and display expected voltage using the Nernst equation alongside the drawing. Include steps for temperature correction if non-standard conditions apply. For example, with Zn and Cu electrodes:

• E°cell = E°cathode – E°anode = +0.34 V – (–0.76 V) = +1.10 V
• Adjusted for 0.1 M Zn²⁺ and 0.5 M Cu²⁺:
  • E = E° – (0.0592/2) log ([Zn²⁺]/[Cu²⁺])
  • E = 1.10 – 0.0296 log (0.1/0.5) ≈ 1.13 V

Add a legend explaining notation and symbols directly beneath the illustration. Verify all labels for readability–minimum 8-point font for printed figures, scalable vector format for digital use. Test figure clarity by reducing size to 50 %; all text and lines must remain legible.

Creating a Basic Electrochemical Device Illustration: A Practical Guide

Start by sketching two distinct compartments–left for oxidation, right for reduction–using rectangular boxes or beakers. Label the left container with the anode material (e.g., zinc) and the right with the cathode (e.g., copper). Draw a vertical line between them to represent a salt bridge or porous barrier, ensuring ions can migrate without mixing solutions.

• Use arrows inside each compartment to show electron flow: from anode to cathode via an external wire.
• Mark the anode with a minus (-) sign and the cathode with a plus (+) sign.
• Inside the containers, note the electrolyte solutions: ZnSO₄ on the left, CuSO₄ on the right.

Add critical components:

1. External circuit: Connect the electrodes with a straight line or wire, adding a bulb or voltmeter symbol if measuring voltage.
2. Salt bridge: Draw a U-shaped tube filled with inert electrolyte (e.g., KCl or KNO₃) between containers.
3. Reaction indicators: Write half-reactions near each electrode:
   • Anode: Zn → Zn²⁺ + 2e^–
   • Cathode: Cu²⁺ + 2e^– → Cu

Distinguish phases with labels: solids (Zn, Cu) at electrode bases, aqueous ions in solution. Use subscripts (s, aq) for clarity. Include concentration values if known (e.g., 1M ZnSO₄). Avoid clutter by placing non-essential labels (like wire length) outside the main illustration.

Refining the Drawing

Check for consistency:

• Electron flow must align with redox half-reactions.
• Ion movement through the salt bridge must balance charge (e.g., SO₄^2- moving left, K⁺ moving right).
• Simplify by omitting solvent molecules unless illustrating solvation effects.

For digital tools, use distinct colors: red (anode), blue (cathode), black (wire). For hand-drawn versions, cross-hatch the salt bridge or shade electrodes lightly. Finalize by adding a title block with system specifics: “Zinc-Copper Electrochemical Pair, Standard Conditions, 25°C.”

Critical Elements to Identify in an Electrochemical Chain Illustration

Always mark the anode and cathode with their respective half-reactions. The anode–where oxidation occurs–should display its elemental symbol (e.g., Zn → Zn²⁺ + 2e⁻), while the cathode must show reduction (e.g., Cu²⁺ + 2e⁻ → Cu). Include oxidation states and electron count for clarity. Omitting these details obscures the core redox process and renders the illustration useless for troubleshooting or calculations.

Salt Bridge and Electrolyte Solutions

Label the salt bridge with its ionic composition (e.g., KNO₃ or Na₂SO₄) and directional arrow indicating ion flow. Specify the electrolyte concentrations in both compartments–write these in molarity (e.g., 1 M ZnSO₄, 1 M CuSO₄). Avoid generic terms like “solution”; exact values eliminate ambiguity and ensure reproducibility when verifying standard potentials or Nernst equation applications.

External circuit components demand equal precision. Identify the voltmeter or resistor with its resistance value (if applicable) and polarity. Indicate wire connections between electrodes–use solid lines for metallic conductors and dashed lines for ion pathways. For dynamic setups, add flow direction arrows for electrons (from anode to cathode) and conventional current (opposite). Skip decorative elements; every labeled item must serve a functional or analytical purpose.

Frequent Errors in Drawing Electrochemical Setup Illustrations

Labeling oxidation and reduction sites backward is a critical flaw. The anode, where oxidation occurs, must always be marked on the left, while the cathode (reduction) belongs on the right. Swapping these positions misleads viewers about electron flow and confuses reaction direction. Check electrode potentials: the more negative value indicates the anode.

Omitting the salt bridge or misplacing it disrupts charge balance. The bridge must span both half-cells without touching electrodes. A common error is drawing it too short, breaking contact with solutions. Use KNO₃ or Na₂SO₄ for inert electrolytes; avoid reactive ions like Cl⁻ that form precipitates with metals such as Ag⁺.

Avoid These Symbol Missteps

Plating electrons as positive charges violates physics. Electrons carry negative charge; arrows showing flow must point from anode to cathode. Another mistake: neglecting equilibrium arrows for reversible reactions. Indicate both forward and reverse directions, especially in systems like Cu²⁺/Cu or Zn²⁺/Zn.

Underestimating concentration differences skews interpretation. Label solutions as 1 M unless specified otherwise; failing this implies non-standard conditions. For gases like H₂ or Cl₂, note pressure–typically 1 atm. Missing these details makes Nernst equation calculations erroneous.

Overcomplicating designs with unnecessary components adds confusion. Stick to essential elements: two electrodes, two solutions, a bridge, external circuit. Adding extra wires, labels, or decorative shapes distracts from core functions. Use straight lines for connections; wavy or jagged lines imply resistance or heating, which aren’t relevant here.
