Badland 5000 Winch Complete Wiring Schematic and Installation Guide

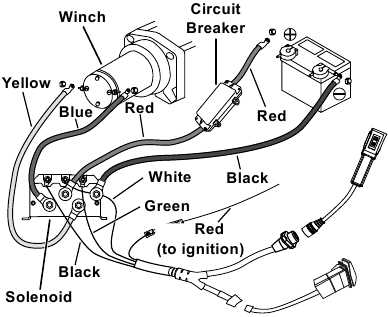

Connect the primary power feed directly to the vehicle’s battery using 2-gauge cables to minimize voltage drop under load. Route wires away from moving parts, sharp edges, and exhaust systems–secure them with adhesive-lined heat shrink tubing at vulnerable points. The solenoid should mount within 30 cm of the battery for optimal response, avoiding enclosed spaces where heat accumulates. A 200-amp circuit breaker or fuse must be installed within 15 cm of the battery’s positive terminal; omit this step and risk wire melt or fire under stalled conditions.

Ground the system through a dedicated 2-gauge wire bolted to clean, bare metal on the chassis–avoid painted surfaces or rubber bushings. If corrosion exists, remove it with a wire brush before securing. For auxiliary controls (e.g., wireless remotes), splice into the solenoid’s trigger circuit using 18-gauge wire, protecting connections with a 30-amp fuse. Test continuity with a multimeter before energizing: readings should show 0.2 ohms or less across terminals; higher values indicate loose connections or damaged components.

Isolate the electrical schematic by separating high-current paths (motor/solenoid) from signal wires (remote, indicator lights). Label all wires with heat-resistant sleeves–yellow for positive, black for ground, blue/green for auxiliary functions. If integrating with LED winch lights, use a separate 30-amp relay to prevent voltage spikes from damaging the main system. Double-check all crimps and solder joints under load; a single weak point can fail during recovery operations in extreme terrain.

Electrical Setup for the ZX-9 Power Hauler

Begin by disconnecting the vehicle’s negative battery terminal to prevent accidental shorts. The ZX-9 solenoid pack mounts directly above the motor housing–secure it with the factory bolts using a 10mm socket. Ensure the ground lead, typically a thick black cable, attaches to a clean, unpainted metal surface on the frame; corrosion here will degrade performance.

Route the control cables away from sharp edges and moving parts. The positive lead (red) from the power unit connects to the battery’s positive terminal via an Anderson SB175 connector–verify the crimp for tightness before installation. If modifying for remote operation, splice the wireless receiver wires (green and yellow) into the solenoid’s trigger circuit, following the color codes in the service manual to avoid reversing polarity.

Solenoid and Motor Connections

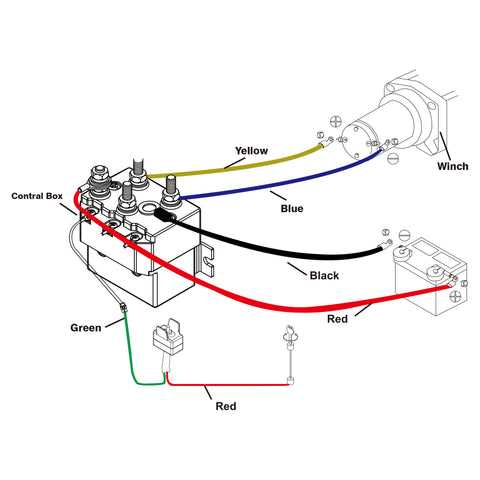

Label each wire before disconnecting the old setup. The two small posts on the solenoid control activation: the yellow wire energizes the in-haul, while the blue triggers the out-haul. Cross-wiring these will cause erratic operation or damage. Use heat-shrink tubing over all splices–electrical tape degrades under UV exposure.

Check the motor’s thermal cutoff switch, if equipped. This safety feature interrupts current at 220°F; bypassing it risks overheating the armature. For heavy-duty cycles, upgrade the factory 4-gauge wiring to 2-gauge–voltage drop over 10 feet exceeds 0.5V, reducing pulling force by up to 12%.

Test the system in free-spool mode before loading. Listen for unusual noises: a faint hum is normal, but grinding or clicking indicates misaligned gears or insufficient lubrication. Apply dielectric grease to all terminal connections to prevent oxidation. Reconnect the negative battery terminal last–observe for sparks, which signal a short circuit.

Troubleshooting Common Wiring Issues

If the remote fails, measure voltage at the solenoid’s trigger posts–12V should appear momentarily when engaging. No voltage? Check the inline fuse (30A) and receiver battery. Intermittent operation often stems from loose control-box connections; tighten the Phillips screws securing the circuit board.

For vehicles with auxiliary lighting, isolate the haul’s power feed to avoid dimming headlights during operation. Install a 60A relay between the battery and motor, triggered by the remote signal. This prevents voltage sag under load, which can corrupt the ECU in modern vehicles. Avoid daisy-chaining accessories–total current draw should not exceed 80% of the alternator’s rated output.

After installation, cycle the haul fully in and out three times without load. Monitor cable tension: uneven spooling strains the motor and reduces line speed by 20%. Store the remote in a dry case–humidity causes corrosion on the PCB traces within six months. Replace the wireless module if button response lags beyond 0.3 seconds.

Key Pulling System Electrical Parts and Their Roles

Begin by locating the solenoid pack–typically a compact, rectangular unit with four terminals. Two larger posts handle high-current output to the motor, while two smaller screws connect to the remote control and ground. Verify continuity between the large terminals with a multimeter while activating the trigger; resistance should drop to near-zero if switches function correctly. Replace solenoids showing intermittent engagement, as internal corrosion is common after exposure to moisture.

Examine the motor’s brush assembly next. Remove the access plate on the rear housing to inspect brush springs and contacts–these wear unevenly, leading to slow spooling or stalling under load. Clean the commutator surface with 400-grit emery cloth, then apply dielectric grease to prevent oxidation. Measure armature resistance: readings above 2 ohms suggest excessive wear, and rebuilding or replacement is necessary. Avoid cheap carbon brushes–they degrade faster, causing inconsistent power delivery.

Critical Connections to Inspect

• Primary power feed: 4-gauge cable from battery to solenoid. Frayed insulation or heat signatures indicate resistance–upgrade to welding cable if hauling over 3,000 lbs frequently.
• Ground circuit: Direct path from motor casing to chassis. Paint or rust here creates voltage drop; scrape contact points to bare metal and secure with star washers.
• Remote switch: Test continuity of the coiled cable–internal breaks cause failure at full stretch. Hardwire a wireless kit if frequent coiling damages the original leads.

Check the thermal overload protector, usually embedded in the motor housing. It disconnects power at 220°F (105°C) to prevent burnout. If the system cuts out prematurely, bypass only during emergency recovery–not for sustained pulls–then replace the faulty protector. For high-duty cycles, install an auxiliary cooling fan aimed at the motor vents; airflow reduces heat buildup by 30% during repeated pulls over 1,500 lbs.

How to Safely Attach the 4.5-Ton Pulling Unit’s Drive Mechanism

Disconnect the vehicle’s battery negative terminal before handling any electrical connections to prevent short circuits or accidental activation. Locate the control box typically mounted near the front bumper or integrated into the fairlead assembly–verify its mounting bolts are torqued to 8-10 ft-lbs to avoid vibration damage.

Identify the motor’s dual primary leads: one red (positive) and one black (negative). Strip 1/2 inch of insulation from each lead, then crimp a 4-6 AWG ring terminal onto each end–ensure crimp pressure exceeds 1,200 psi for secure contact. Connect the red lead to the solenoid’s “M” terminal and the black lead to the solenoid’s ground stud, matching polarity markings on the housing. Use dielectric grease on terminals to prevent corrosion from moisture ingress.

Trace the solenoid’s secondary circuit: two smaller gauge wires (usually 12 AWG) link the control box to the motor. Route these wires away from exhaust manifolds, sharp edges, or rotating components–maintain a 3-inch minimum clearance. Secure the wires with zip ties every 6 inches, using adhesive-backed mounts for sections prone to movement. Check wire gauge against the system’s 200A fuse rating: undersized wires risk overheating.

Reconnect the battery negative terminal, then test the motor via the handheld remote. Activate the engaged direction for 2-3 seconds while monitoring for unusual noises–grinding or whirring suggests misaligned gears. If the cable retracts unevenly, adjust the brake tension using the 10mm adjustment nut on the drum assembly, turning clockwise to increase resistance. Calibrate until the cable layers evenly with no slack.

For final validation, load-test the system with a 2,000 lb anchor (e.g., a tree trunk or recovery point). Engage the pulling phase, ensuring the motor maintains consistent torque without stalling. If voltage drops below 11V during operation, inspect the vehicle’s alternator output–minimum 13.8V under load is required. Document the test results, noting cable speed (ideal: 2-4 ft/min) and thermal performance (motor housing should not exceed 140°F).

Proper Installation of Control Box and Electrical Connection Assembly

Secure the command module to a flat, vibration-resistant surface near the vehicle’s battery using M6 stainless steel bolts–avoid mounting directly behind grille openings or wheel wells where moisture accumulation occurs. Pre-drill holes at 30mm intervals to match the unit’s pre-threaded anchor points; apply dielectric grease to bolt threads before tightening to 12-15 Nm torque. Route the bundled conductors away from exhaust manifolds, moving suspension components, and sharp edges–maintain a minimum 50mm clearance from hot or abrasive surfaces. If passing through firewall grommets, use tapered nylon bushings to prevent insulation chafing; seal entry points with flexible silicone compound rated for -40°C to +120°C.

• Connect red (positive) terminal directly to auxiliary battery posts using 4 AWG tinned copper cable; never splice into existing starter circuits.
• Attach ground (black) terminal to unpainted chassis point within 300mm of power source–clean mounting surface to bare metal, then treat with anti-corrosion paste.
• Plug the multi-pin connector into command module with downward orientation to prevent water ingress; verify audible click engagement.
• Label each conductor segment with heat-shrink identifiers matching schematic color codes–green/yellow stripe (remote switch), blue (motor solenoid), white (thermal cutoff).
• After securing all junctions, apply 500V megohmmeter test between each terminal and chassis ground–minimum acceptable reading is 1 MΩ.
• Energize system briefly (≤5 seconds) while observing for uniform solenoid click and absence of voltage drop >0.3V at control switch contacts.
