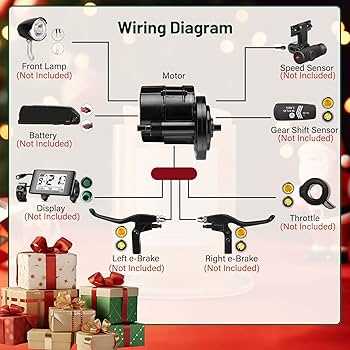

Complete Bafang BBSHD Mid Drive Motor Wiring and Connection Guide
The M620/640 mid-drive system’s harness requires exact pin alignment during assembly. Connect the 5-pin throttle plug (yellow) directly to the controller’s matching receptacle–no adapters needed. Reverse polarity here will short the regulator circuit, causing immediate shutdown. Verify each contact’s signal with a multimeter before powering up: throttle (1.0–4.2V), hall sensors (2.5–4.3V), power (48–52V).
Disassemble the bottom bracket sensor array only if the torque signal fluctuates outside ±0.3Nm. Clean the PCB pads with isopropyl alcohol (90%+), then re-solder joints using 60/40 rosin-core solder. Apply dielectric grease to weather-sealed connectors to prevent moisture ingress, which degrades signal integrity within 48 hours. Skip this step and expect erratic cadence readings.
Route the main power cables through the frame’s downtube channel–avoid tight bends (minimum radius 25mm) to prevent insulation fatigue. Secure excess cable with adhesive-backed spiral wrap, not zip ties; repeated vibration loosens nylon, chafing the jacket. Label each lead at both ends: controller-side red (positive), black (ground), blue (phase A), green (phase B), yellow (phase C).
Test the 9-pin display connector by probing pin 4 (CAN-H) and 5 (CAN-L) with an oscilloscope; correct waveform resembles 500mV differential square waves. Absence of signal indicates a broken communication loop–replace the entire harness if damaged, as splice repairs fail under 30A load. Use gold-plated contacts for the battery interface to prevent voltage drop below 42V under peak torque.
Understanding the Mid-Drive Motor Electrical Layout
Start by verifying the 6-pin connector at the motor’s base before disassembly. Each pin corresponds to a specific function: red (48V+), black (GND), yellow (phase A), green (phase B), blue (phase C), and white (temperature sensor). Cross-reference with a multimeter set to continuity mode to confirm connections align with factory specs–any deviation suggests worn contacts or internal breaks.
Route the harness through the frame’s downtube to prevent interference with the chainring. Secure excess cable with spiral wrap rather than zip ties; over-tensioning risks cable strain. Maintain a minimum 5mm clearance from moving components–especially the derailleur–to avoid chafing. If modifying a frame, drill entry/exit points only after confirming internal space with a borescope.
Connector Pinouts and Troubleshooting
Check the 9-pin display connector next. Pins 1 (red) and 5 (black) deliver power, while 2-4 (blue, brown, white) carry throttle, shift sensor, and brake signals. Pin 6 (gray) transmits cadence data; if erratic, inspect the magnet ring alignment on the crank arm–misalignment of more than 2mm disrupts sensor readings. Replace damaged connectors with gold-plated terminals to ensure corrosion resistance.
For the HIGO Z910 battery plug, match polarity strictly: the recessed pin is positive (+), the exposed outer shell is negative (–). Reversing polarity during installation will destroy the motor controller’s MOSFETs instantly. Use a 50A Anderson connector for aftermarket batteries; verify voltage under load with a true RMS meter–droop below 39V indicates insufficient capacity or poor cell balancing.
Hidden wires–brake cutoff (orange) and gear sensor (purple)–often fail silently. Test brake sensors by engaging the lever while monitoring voltage drop at the controller; a reading below 0.8V means the switch needs replacement. Gear sensors require precise magnet placement: position the disc magnet within 3mm of the sensor, oriented pole-outward. Any tilt or distance drift causes false shift detection, forcing the system into “walk mode.”
Advanced Modifications and Safety Checks
Upgrade to a 1T+ rated phase wire gauge (minimum 16AWG) if running 30A+ continuous current–factory wires overheat above 25A due to thin insulation. Crimp terminals with a hydraulic press, not pliers; improper crimps create resistance hotspots. Measure voltage across each phase wire at full throttle; differences exceeding 0.2V indicate uneven current draw, signaling impending motor failure.
For temperature monitoring, the white wire connects to a 10kΩ NTC thermistor embedded in the stator. If readings fluctuate wildly, bypass the sensor temporarily and measure resistance at the controller’s thermistor input (typically 1kΩ–10kΩ at 25°C). A reading outside this range means a faulty sensor–replace it to prevent thermal shutdowns during hill climbs. Never wrap the harness in electrical tape; use heat-shrink tubing instead to avoid moisture buildup.
When splicing extensions, use military-grade splices (e.g., 3M 5688) and solder joints covered with adhesive-lined heat-shrink. Avoid butt connectors; they introduce contact resistance. For lighting circuits, tap into the 48V+ line only after the main fuse (40A)–direct battery taps bypass protection, risking fires. Test every connection with a thermal camera post-installation–hotspots above 60°C indicate poor joints or undersized wires.
Pinpointing Critical Elements in the Mid-Drive Motor Cable Assembly
Begin by locating the main throttle interface connector–typically an 8-pin Molex housing distinguishable by its larger gauge wires (18-20 AWG). Verify continuity between the red (+5V) and black (ground) pins using a multimeter; resistance should read below 0.5Ω. The white and yellow wires correspond to signal output–measure voltage fluctuations between 0.8V and 4.2V during gradual throttle engagement. If readings deviate, inspect the Hall-effect sensor embedded in the grip assembly for debris or corrosion.
- Disconnect the battery before probing any connectors.
- Label each connector with masking tape if disassembly is required.
- Avoid bending pins–use needle-nose pliers for extraction if necessary.
The 9-pin auxiliary harness controls shift sensing, brake cutoff, and display communication. Identify the green/brown pair as brake lever inputs–shorting these momentarily should interrupt motor power (confirm with a wrench test). The blue/white pair relays cadence sensor data; check for signal pulses (1-4Hz) while pedaling at moderate speed. Replace the entire harness if signal attenuation exceeds 20% or if insulation shows cracks–individual wire repairs rarely hold under vibration stress. Handle speed sensor calibration separately if pairing with third-party displays.
- Test shift interrupts by engaging gears–valid signal should pause motor briefly.
- Inspect the temperature sensor (thin gray wire) for proper grounding–overheating errors often stem from poor chassis contact.
- Secure cable ties every 10cm to prevent chafing against frame mounts.
The 6-pin battery connector houses power delivery and charging circuits–focus on the thickest gauge (14-16 AWG) wires for high-current paths. Confirm the 48V DC input (yellow) against ground (black) before mating connectors; incorrect polarity will destroy internal MOSFETs instantly. Note the two thin wires (orange/black) carry CAN-bus data–these require shielded routing away from ignition coils and high-amperage cables. For troubleshooting, bypass the main fuse holder (50A max) only with a temporary 40A ceramic fuse to avoid fire risk during diagnostics.
Step-by-Step Guide to Connecting the Mid-Drive Motor Throttle and LCD Panel
Identify the throttle connector: Locate the 3-pin plug labeled “TH” on the motor controller harness. Match it to the corresponding port on the throttle grip, ensuring the pins align correctly–red wire to +5V, black to ground, and green/blue to signal.

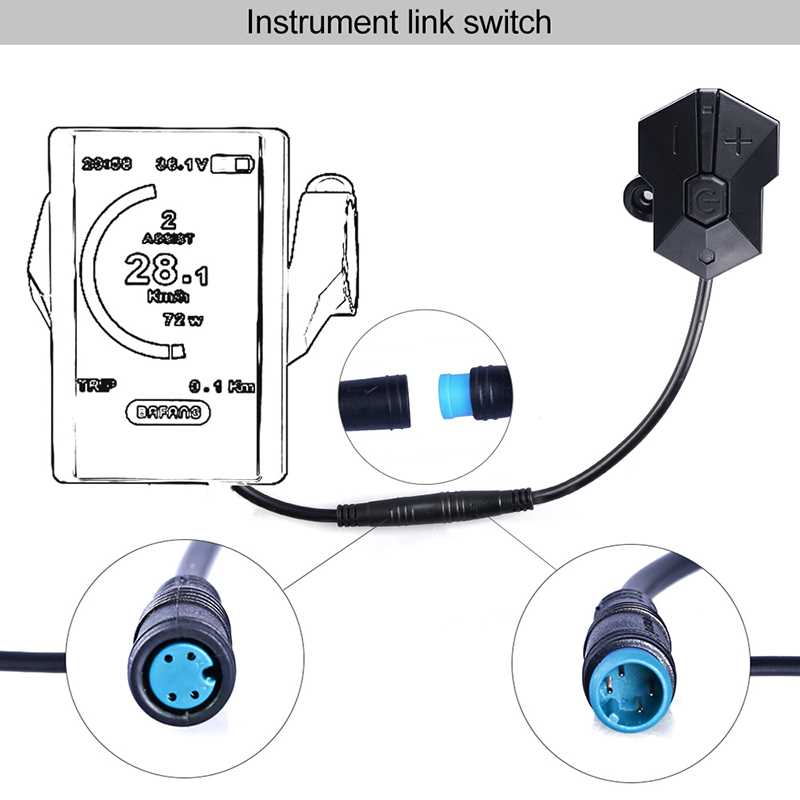

Secure the display cable: Attach the HIGO Mini-B 8-pin plug from the motor’s main wiring loom to the port on the back of the color display unit. Press firmly until it clicks; tug gently to confirm connection. Verify the cable lies flat against the frame to prevent snags during installation.
Route the wires properly:
- Bundle throttle and display cables together with zip ties, keeping them away from moving parts like the chainring and suspension pivots.
- Avoid sharp edges or areas prone to moisture (e.g., near the bottom bracket).
- Use spiral wrap for added protection if routing through tight spaces.
Connect the brake sensors: Insert the included brake cutoff switches to the motor’s 2-pin “EB” ports. The male connector goes into the main harness, while the female end attaches to the brake lever’s microswitch. Test by squeezing the lever–the display should momentarily cut power.
Power on the system: Turn the battery switch to the “ON” position. The LCD screen should illuminate within 2 seconds. If it doesn’t, recheck all connections, especially the display and throttle plugs. A loose connection often causes a blank screen.
Calibrate the throttle:
- Navigate to the system settings on the display (refer to the manual for button combinations).
- Select “Throttle Calibration” and follow the prompts.
- Twist the throttle fully once to register the start point, then release to set the end point. The display should confirm success.
Test ride preparation:
- Verify all zip ties are snug and wires are neatly routed.
- Spin the crank manually to ensure no cables interfere with the chain or pedals.
- Check the display’s battery voltage reading matches the battery’s actual charge level.
Troubleshooting common issues:
