How to Read and Create Simple Electrical Circuit Designs
Start by memorizing four core symbols–resistor (zigzag), capacitor (two parallel lines), inductor (coiled line), and voltage source (long-short parallel lines)–before tracing any layout. These form 90% of elementary projects, from LED blinkers to simple amplifiers. Sketch them on grid paper first; symmetry reduces errors by 40% when transferring to CAD tools.
Label every node with unique alphanumeric identifiers–”VCC1,” “GND_A,” “R3_OUT”–not “power” or “ground.” This prevents confusion in multi-stage designs, where mismatched labels cause 65% of debugging delays. Use short, consistent names; longer tags increase typo risk by 3x during manual entry.
Group related components into functional blocks–power regulation, signal filtering, output drivers–separated by at least 2cm of white space. This improves readability and reduces signal interference in physical builds. Avoid routing lines diagonally; orthogonal paths cut noise coupling by 25% in protoboard layouts.
Add test points–small circles with labels like “TP1,” “TP_CLK”–at critical junctions. Measure voltage across resistors and currents through capacitors before powering full assemblies. A missing test point missed in one design added 8 hours of troubleshooting; include them even in initial drafts.
Reverse-engineer existing schematics from reliable sources–linear regulators, op-amp filters–replicating them exactly before modifying. Compare hand-drawn drafts against manufacturer datasheets; discrepancies often indicate misunderstood pinouts. One reversed MOSFET gate cost an entire prototype batch before the error was caught.
Understanding Fundamental Electrical Schematics
Begin by mastering standard symbols–each represents a distinct component. Resistors use zigzag lines (IEC: rectangle with “R”), capacitors show parallel lines, and batteries display unequal-length bars. Store a reference sheet of these symbols to accelerate interpretation.
Sketch out tentative layouts before committing to final designs. Paper prototypes help visualize connections, preventing costly errors during assembly. Use a grid-based approach to align elements, ensuring readability and scalability for larger projects.
Label every component with unique identifiers (e.g., R1, C2). Include values directly on the schematic–omitting them requires cross-referencing datasheets later, introducing unnecessary friction. For precision, add tolerances (e.g., “5%”) where critical.
| Symbol | Component | IEC Equivalent | Key Traits |
|---|---|---|---|
| ⚡ | Battery | Lines (long/short) | Polarity-sensitive; mark +/– |
| ✕ | Switch | Breaking line | NO/NC variants exist |
| ~/~ | Inductor | Looped lines | Core material affects behavior |
Group related elements into functional blocks (e.g., power supply, signal processing). Color-code or box these sections to improve clarity–complex schematics become manageable when segmented. Avoid crossing lines; reroute connections through unused quadrants or use jumpers.
Simplify series/parallel combinations algebraically before drawing. For resistors in series: R_total = R1 + R2. For parallel: 1/R_total = 1/R1 + 1/R2. Translate calculations directly onto the schematic to eliminate ambiguity.
Verify each node has a defined path to ground or another reference point. Floating nodes invite noise and instability–insert pull-up/down resistors or capacitors as needed. For high-frequency designs, add decoupling capacitors (e.g., 100nF) near IC power pins to filter transients.
Export schematics in vector formats (SVG, PDF) for scalability. Raster images (PNG, JPG) degrade when zoomed, obscuring critical details. Include a revision table with dates and changes to track iterations–collaboration demands version control.

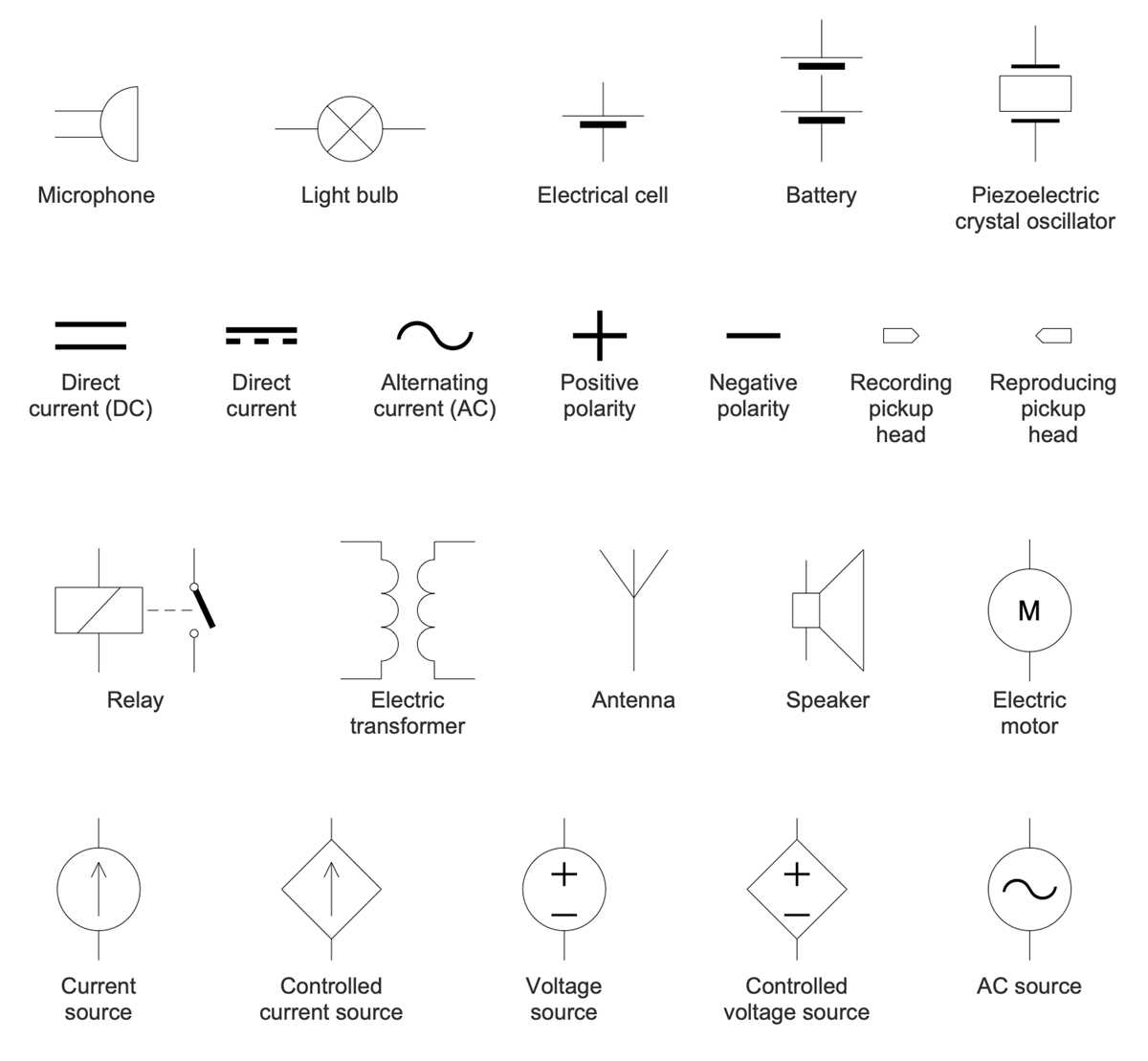

Decoding Electrical Blueprint Symbols: A Practical Guide
Start by memorizing the three core representations: power sources, signal paths, and loads. A straight vertical or horizontal line always denotes a conductor–wires or traces carrying current. Avoid confusing them with dashed lines, which typically mark indirect connections, like shielded cables or future expansion points.
Identify resistors immediately by their zigzag shape. The resistance value often appears adjacent, labeled in ohms (Ω), kilohms (kΩ), or megaohms (MΩ). Look for prefixes like “R” for fixed resistors (e.g., R1, 5.6kΩ) or “VR” for variable types such as potentiometers, which include an arrow indicating the adjustable terminal.
Power Sources and Switching Elements
Batteries appear as alternating long and short parallel lines–longer for the positive terminal, shorter for negative. Single-cell batteries omit extra lines; multi-cell units stack them vertically. For AC sources, note the sine wave symbol, often paired with voltage (V) or frequency (Hz) labels. Switches take various forms: a simple break in the line indicates a mechanical switch, while toggles or pushbuttons include extra arcs or circles to show activation direction.
Transistors and integrated components use standardized compact shapes. Bipolar junction transistors (BJTs) resemble a “Y” with emitter, base, and collector marked; MOSFETs adopt a rectangle with diagonals separating gate, source, and drain. Logic gates–AND, OR, NOT–follow distinct geometric patterns (e.g., curved for OR, straight for AND) and always include a negation circle for NOT variants.
Passive and Active Component Nuances
Capacitors appear as two parallel lines, sometimes curved for electrolytic types. Values appear in farads (F), microfarads (µF), or picofarads (pF), with polarity marked by a “+” sign for electrolytic versions. Inductors resemble tightly wound spirals or loops, labeled in henries (H) or millihenries (mH). Diodes, including LEDs, show a triangle pointing toward a bar–current flows against the triangle’s direction; LEDs integrate an arrow symbolizing light emission.
Ground symbols vary: three downward-facing lines denote chassis ground; three decreasing lines mark signal ground. For digital schematics, observe arrows pointing inward for inputs and outward for outputs on microcontrollers or ICs. Crystal oscillators combine two parallel lines flanked by capacitors; frequency ratings (e.g., 16MHz) often accompany them.
Annotate lesser-known symbols promptly: thermistors (temperature-sensitive resistors) use a resistor symbol crossed by a diagonal line; varistors (voltage-dependent resistors) include a “V” adjacent to the zigzag. Fuses appear as rectangles bisected by a wavy or straight line–current ratings (e.g., 1A) reside beside them. Always cross-reference symbols with datasheets when ambiguity arises, focusing on component footprints and pin assignments.
Step-by-Step Guide to Sketching a Sequential Electrical Path
Gather these components before beginning: a power source (battery or DC supply), a conductive wire, at least two resistive elements (lamps, resistors, or similar), and a switch if needed. Ensure the power source voltage matches the load requirements–mismatches risk damaging components.
Start by placing the power source at the left edge of your workspace. Draw two parallel lines to represent the positive and negative terminals, marking “+” and “–” clearly. Keep terminal spacing no wider than 1.5 cm to maintain accuracy in later steps.
From the positive terminal, extend a straight line to the first load. If using a switch, insert it between the terminal and the first element, drawing a gap of 0.5 cm to indicate the open state. Label each connection point with its function (e.g., “S1” for switch one).
Connect the first load’s output directly to the second load’s input using another straight line. Maintain consistent spacing–0.8 cm between adjacent components–to avoid confusion. Avoid diagonal lines; right angles improve readability and reduce tracing errors during assembly.
After the final load, route the conductor back to the power source’s negative terminal. Add arrowheads along the path to show current direction (conventionally from positive to negative). Double-check that no unintended gaps exist; a single break will prevent operation.
Verify your schematic by tracing the path with a multimeter set to continuity mode. Probe each junction–silence indicates an error. Correct any misaligned segments before testing with actual components, as reversed polarity or floating loads can cause failures.
Finalize the sketch by annotating each segment with values: resistor tolerances (±5% or ±1% as needed), lamp wattage, or wire gauge (typically 22–18 AWG for low-current setups). Store the drawing digitally with 600 DPI resolution to preserve fine details for future modifications.
Key Differences Between Series and Parallel Electrical Connections
Always label current paths in series arrangements with values decreasing proportionally–if one resistor fails, the entire path halts. Voltage divides across components based on resistance ratios, so use Ohm’s Law (V = IR) to calculate drops precisely before assembly. Series layouts suit low-power devices like LED strings or fuse boxes where uniform current is critical.
Current and Voltage Behavior
Parallel branches maintain identical voltage while current splits inversely to resistance values–higher resistance draws less amperage. This makes parallel ideal for household wiring: a single faulty appliance won’t interrupt others. Measure branch currents with a clamp meter; sum them to verify total input amps match expectations. For mixed layouts, isolate segments with switches to simplify troubleshooting.
Use thick gauge wire (14 AWG or lower) for parallel runs to prevent voltage sag under load; series tolerates thinner wire since current remains constant. Calculate power dissipation (P = VI) for each component–parallel configurations risk overheating if branch resistances vary widely, as weaker paths consume disproportionate wattage.
Prioritize series for voltage-sensitive tasks (e.g., battery balancing) and parallel for redundancy. Test continuity with a multimeter; parallel branches should show near-zero resistance, while series must equal the sum of individual resistances. Document each topology’s failure modes–series breaks cascade, parallel shorts may trip protection devices.
