Understanding Common Electrical Schematic Symbols for Beginners
Start by memorizing three core resistor variants–fixed, variable, and potentiometer–each marked with a distinct zigzag line. Fixed resistors use a single straight zigzag, variable types add an arrow crossing the line, and potentiometers combine a zigzag with a diagonal arrow. These markers instantly signal resistance value, adjustability, and tap terminals, letting you trace current paths without hesitation.
Grounds split into three primary types: earth, chassis, and signal. Earth grounds show three descending lines of decreasing length, chassis grounds replace the third line with a flat bar, and signal grounds stack three parallel lines. Connect earth grounds to physical soil, route chassis grounds to metal enclosures, and reserve signal grounds for reference points in low-noise circuits.
Distinguish between batteries and DC supplies immediately. Batteries stack two parallel lines–long for positive, short for negative–while DC supplies sandwich a plus and minus sign between two horizontal bars. Replace generic symbols with cell-specific icons if batteries share a common terminal; a dot at the intersection flags a connected node.
Switches demand precision: use a simple gap for SPST, bridge the gap with a diagonal line for SPDT, and duplicate the SPDT structure for DPST or DPDT. SPST handles single circuits, SPDT routes signals between two paths, and DPDT toggles dual circuits. Add momentary functionality by appending an arc next to the switch line.
Capacitors split into polarized and non-polarized forms. Polarized types display a curved plate (negative) facing a straight plate (positive); non-polarized capacitors align two straight plates. Tantalum devices substitute the curved plate with a small rectangle, flagging different dielectric properties.
Inductors adopt a coiled line, differentiating air-core, iron-core, and ferrite-core by straight, parallel, or slanted lines beneath the coil. Air-core inductors resist magnetic interference, iron-core boost inductance, and ferrite-core handle high-frequency filters. Pair core symbols with numerical values to preempt trial-and-error adjustments.

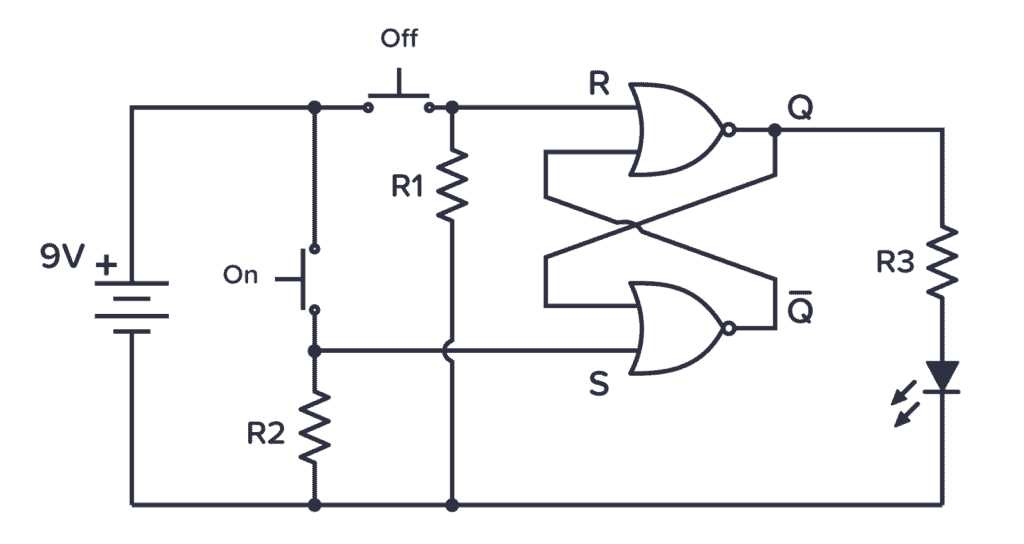

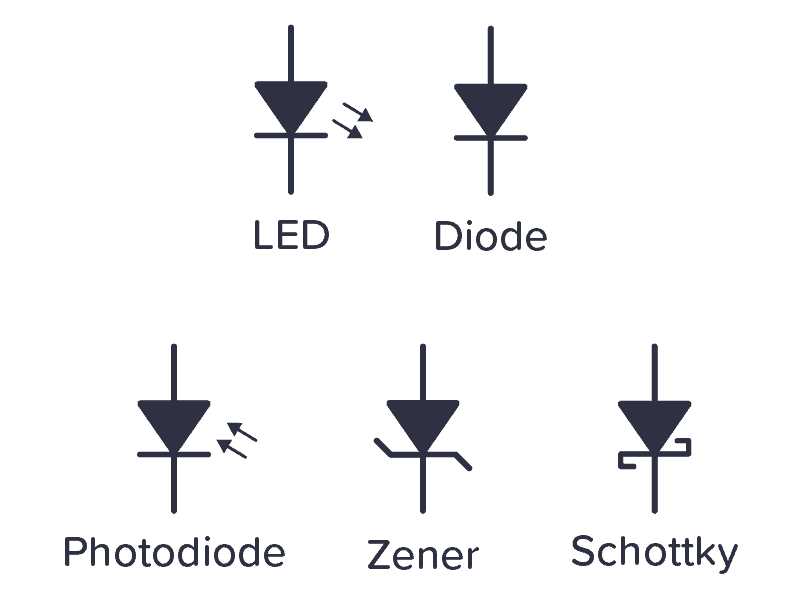

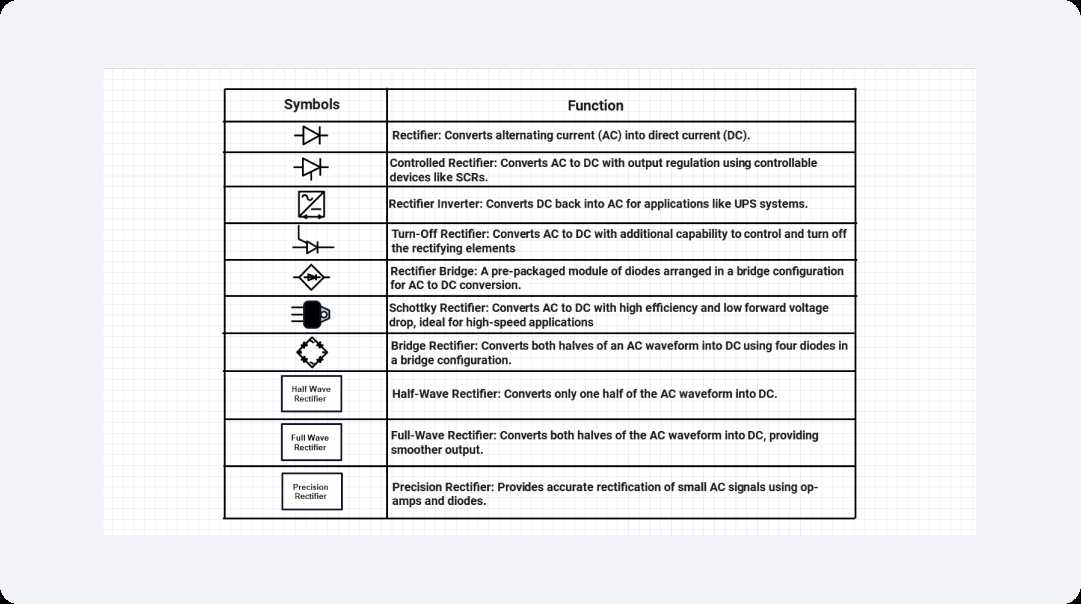

Semiconductors map directly to function: a triangle arrow marks diodes, dual arrows denote transistors, and gate-symbol combinations reveal thyristors. Directionality matters–arrow orientation dictates current flow, gate placement signals control terminals, and casing outlines indicate packaging. Swap generic diode lines for Zener, Schottky, or LED variants to avoid misalignment with voltage or luminous requirements.
Key Electrical Component Representations in Circuit Design
Start by memorizing the standard graphical representations for resistors, capacitors, and inductors–these form the backbone of any circuit layout. A resistor is depicted as a zigzag line (or sometimes a rectangle with “R” inside), while a capacitor uses two parallel lines (or one curved line for polarized types). Inductors appear as a series of loops or a coiled line. Verify component values directly on the layout: resistors use ohms (Ω), capacitors farads (F), and inductors henrys (H). For integrated circuits, study the pin configurations of common packages like DIP or SOT–misplacing a pin by even one position can render a design non-functional.
Use distinct shapes for active components to prevent confusion. Transistors vary by type: NPN/PNP bipolar junction transistors (BJTs) show a vertical line with an arrow indicating current flow, while MOSFETs add a second horizontal line for the gate. Diodes include a triangle pointing toward a straight line, with variations like LEDs (additional lines for light emission) or Zener diodes (angled line at the end). Always label semiconductor designators (e.g., Q1, D2) and polarities–reversing a diode’s orientation can damage the circuit. For power sources, batteries are drawn as alternating long and short parallel lines, with the longer line representing the positive terminal.
Grounds and connections require precise notation. A common ground is a single line with descending branches, while chassis ground adds an additional horizontal line. Signal grounds use a different symbol (three descending lines) to separate analog and digital sections. For wiring, straight lines represent direct connections; intersections without a dot imply no electrical contact, while a black dot confirms a junction. Avoid “floating” nets by explicitly tying unused inputs to ground or a defined voltage–this prevents erratic behavior in digital circuits. When designing multi-layer boards, differentiate between via types: through-hole vias connect all layers, while blind or buried vias target specific layers.
Adopt industry-standard annotations for clarity. Label test points (TP) and reference designators (U for ICs, C for capacitors) consistently across prototypes. For resistors, use color-coded bands or numerical values (e.g., 10kΩ) near the symbol. Switches vary by function: SPST (single line), SPDT (split line), or DIP switches (multiple parallel lines). Fuses appear as a rectangle with a line through it, often labeled with current ratings (e.g., 500mA). In RF designs, add transmission line symbols (two parallel lines with spacing proportional to impedance) and antenna types (dipole, Yagi). Store custom libraries of frequently used elements–such as microcontroller modules or sensor packages–to accelerate future designs.
How to Spot Resistors, Capacitors, and Inductors in Circuit Layouts
Resistors appear as zigzag lines or a simple rectangle in most blueprints. The zigzag variation typically represents fixed resistors, while rectangles may denote variable or precision types–check for an arrow crossing the shape to confirm adjustability. Look for numerical values adjacent to the symbol (e.g., 470Ω or 1k); tolerances like ±5% often follow in parentheses. If no unit is specified, assume ohms (Ω) for single-digit or double-digit values and kilo-ohms (kΩ) for three-digit numbers.
Capacitors use two parallel lines–either straight or curved–for non-polarized types, while polarized versions show a curved line beside a straight one, with a plus sign marking the positive terminal. Electrolytic capacitors often include the curved line as an indicator of polarity, but some variations depict a filled semicircle for the negative side. Values like 10µF, 0.1µF, or 100nF are written near the symbol; voltage ratings (e.g., 16V) may accompany them if critical. Ceramic capacitors frequently omit voltage ratings unless specified.
Inductors display as a tightly coiled line, resembling a spring, or three semicircles connected in series–both styles represent the same component. Air-core inductors omit additional markings, while magnetic-core types may add a single straight line through the coil or a pair of parallel lines to signify the core material. Values like 10µH, 1mH, or 100µH appear alongside; ferrite beads sometimes use a simplified arrow-through-coils symbol to distinguish high-frequency applications. Watch for dashed lines around inductors, which indicate shielding.
Key Transistor Graphics and Pin Layouts
Begin by identifying the transistor’s primary terminals–emitter, base, and collector–for bipolar junction types (BJTs) or source, gate, and drain for field-effect variants (FETs). Mislabeling these can lead to circuit malfunction, so cross-reference datasheets with visual representations. For instance, a standard NPN BJT (e.g., 2N3904) will show the emitter arrow pointing outward, while a PNP (e.g., 2N3906) reverses this direction. Always verify the pinout against the component’s documentation, as manufacturers may alter standard conventions for specific packages.
Below is a reference table for the most widely used transistor types and their typical pin arrangements:
| Type | Name | Common Example | Pin Layout (TO-92 Package) |
|---|---|---|---|
| NPN BJT | Bipolar Junction Transistor | 2N3904 | E-B-C (left to right, flat side facing you) |
| PNP BJT | Bipolar Junction Transistor | 2N3906 | E-B-C (left to right, flat side facing you) |
| N-Channel MOSFET | Enhancement Mode FET | IRF540N | G-D-S (TO-220, tab is drain) |
| P-Channel MOSFET | Enhancement Mode FET | IRF9540N | G-D-S (TO-220, tab is drain) |
| JFET | Junction FET | 2N5457 (N-Channel) | D-G-S (TO-92, varies by manufacturer) |
Handling Ambiguity in Pinouts
For surface-mount devices (SMD) like SOT-23 or SOT-223 packages, pin configurations differ from through-hole counterparts. A SOT-23 NPN transistor might arrange pins as C-B-E rather than E-B-C. Use a multimeter in diode-test mode to confirm: the base-emitter junction should exhibit ~0.6-0.7V drop (silicon), while the base-collector behaves similarly. For MOSFETs, check for near-zero resistance between source and drain when the gate is biased; no conduction indicates a faulty or misidentified device.
Critical Considerations for Circuit Design
When substituting transistors, match key parameters: VCEO (collector-emitter breakdown), IC (continuous collector current), and hFE (current gain). A 2N3904 (IC = 200mA) cannot replace a TIP31C (IC = 3A) without risking thermal failure. For FETs, focus on VDS (drain-source voltage) and RDS(on) (on-resistance). Always derate voltage ratings by 20-30% for reliability. Additionally, thermal management is non-negotiable–attach heatsinks to TO-220 packages when operating near maximum ratings, as even short overcurrent events can degrade performance permanently.
Switches, Relays, and Push Buttons: Distinguishing Variants
Select momentary push buttons for actions requiring temporary engagement, like reset functions–these close the circuit only while pressed. Latching variants maintain state after release, making them ideal for power toggles or mode selections. Verify contact ratings: 50 mA for signal circuits versus 10 A for power applications. SPST (single pole, single throw) suffices for simple on/off tasks, while DPDT (double pole, double throw) handles two independent circuits simultaneously.
Relays demand scrutiny of coil voltage and contact configuration. A 5V coil suits microcontroller-driven designs, but 24V coils tolerate noise better in industrial settings. Form A (normally open) contacts activate loads when energized; Form C (changeover) adds versatility by switching between two paths. For high-current loads (above 2A), prefer mechanical relays with silver-cadmium oxide contacts over solid-state types, which excel in fast switching (under 1ms) but struggle with inductive loads.
Critical Selection Criteria
- Current capacity: Ensure contacts exceed maximum circuit amperage by 20-30%. A 3A switch fails prematurely in a 2.5A circuit.
- Dielectric strength: Industrial relays require ≥1,500V isolation; signal relays suffice with 500V.
- Actuation force: Momentary buttons need 1-3N for tactile feedback; membrane keypads use ≤0.5N for touch sensitivity.
- Environmental sealing: IP67-rated switches resist moisture/dust ingress in outdoor or washdown environments.
Thermal relays deserve separate attention: bimetallic types (Class 10A) respond to sustained overloads (125% of rated current for 2 minutes), while electronic relays offer adjustable trip curves for precise motor protection. Push-pull buttons combine latching and momentary modes in a single actuator, reducing panel clutter where space is constrained. For safety-critical applications, use mushroom-head emergency stops with direct mechanical contacts–electronically debounced switches introduce unacceptable delay in emergency disconnections.
Common Missteps and Fixes
- Undersized relays: A 10A relay handling 12A will weld contacts within 5,000 cycles. Always overspecify or add snubber circuits.
- NO/NC confusion: Verify contact labeling against circuit requirements. A normally closed relay fails safe for alarm circuits.
- Coil voltage mismatch: A 12V relay driven by 5V will not activate fully, causing contact chatter. Use a transistor driver for low-voltage control signals.
- AC/DC mixing: AC coils on DC circuits overheat; DC coils on AC circuits hum excessively. Specify coil voltage type during procurement.
For high-frequency switching (above 1 kHz), opt for reed relays with mercury-wetted contacts, achieving ≤100 ns bounce times. Rotary switches simplify multi-mode selection (e.g., 12-position for instrument gain settings) but verify indexing mechanisms–detented types prevent accidental mode changes. DIP switches, despite their compact form, are ill-suited for high-density PCBs due to manual actuating limitations; replace with programmed microcontroller GPIOs where possible.
