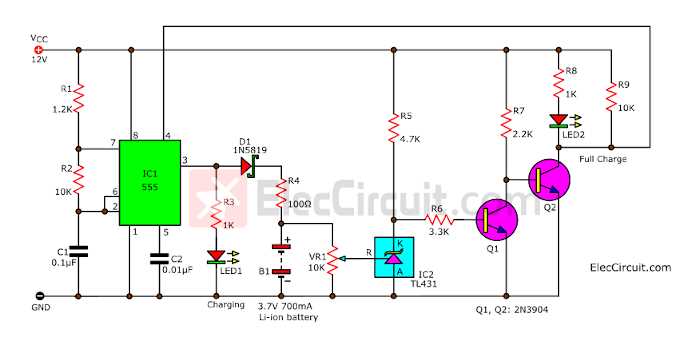

Step-by-Step Guide to Building a Reliable Battery Charger Circuit

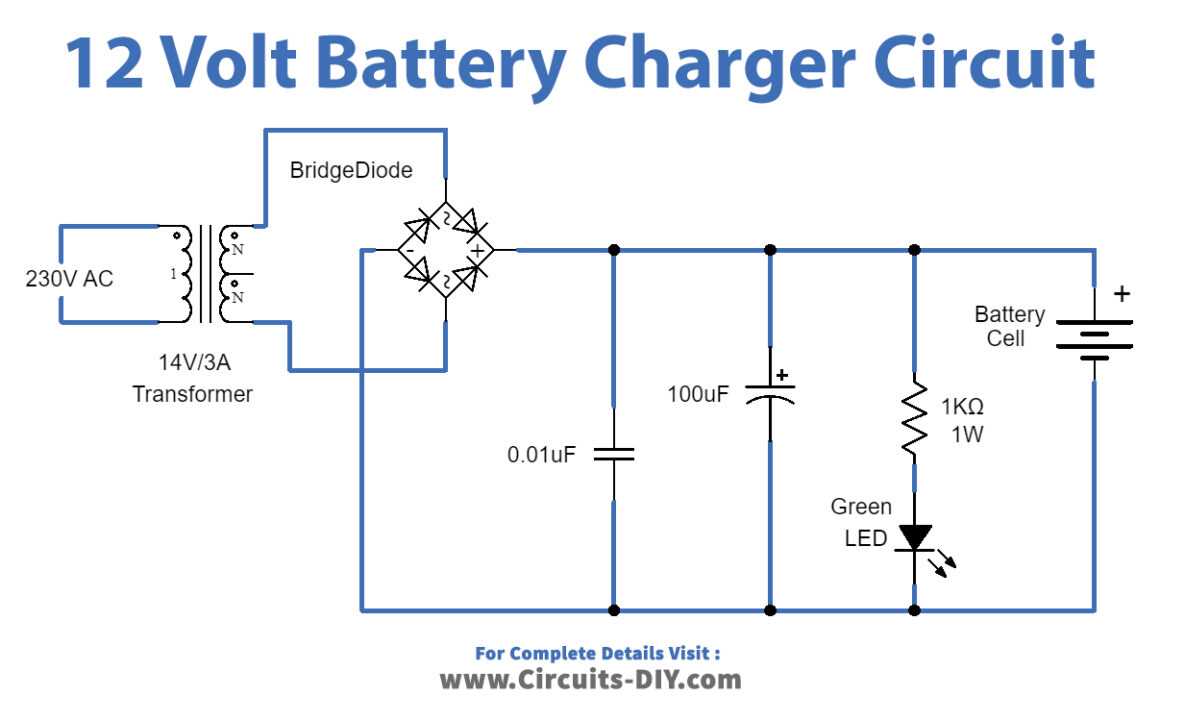

For a reliable energy replenishment module, start with a transformer-based rectifier configuration. A 12V AC input stepped down to 15V RMS ensures sufficient headroom for regulation. Use a bridge rectifier (e.g., GBPC2506) to convert AC to pulsating DC, followed by a smoothing capacitor (4700µF, 35V) to minimize ripple voltage below 1%.
Implement a linear voltage regulator like the LM317 for adjustable output. Configure it with two resistors: R1 (240Ω) and R2 (potentiometer, 5kΩ) to set the target voltage. For lithium-ion cells, maintain 4.2V ±0.05V tolerance. Add a current-limiting resistor (e.g., 1Ω, 1W) to prevent thermal runaway during initial connection.
Include protection features: a Zener diode (5.1V, 1W) for reverse polarity safeguards and a thermistor (NTC 10kΩ) for temperature monitoring. For lead-acid variants, set float voltage to 13.8V and equalization to 14.4V. Ensure the layout separates high-current paths (minimum 2mm trace width) from sensitive control lines to avoid interference.
Test the assembly with an oscilloscope to verify ripple below 50mV p-p before connecting any energy storage device. For higher efficiency in portable designs, replace the LM317 with a switching regulator (e.g., MP2307) achieving >90% conversion while reducing heat buildup. Always fuse the input line (3A slow-blow) to mitigate short-circuit risks.

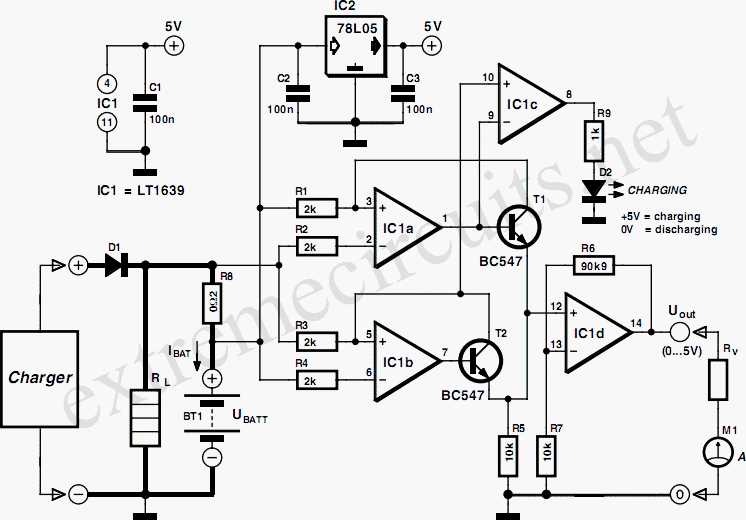

Designing an Optimal Power Supply Schematic for Energy Storage Units
Select a transformer with a secondary voltage 1.5–2.5× the nominal output required; for a 12 V unit, aim for an 18–24 V AC RMS rating to compensate for diode drops and regulation losses. Ensure the transformer’s current rating exceeds the continuous draw by at least 30 % to prevent overheating during extended cycles.
Place a full-wave rectifier bridge immediately after the transformer; use Schottky diodes (e.g., 1N5822) for lower forward voltage drops (~0.3 V) over standard silicon diodes (~0.7 V). This reduces heat dissipation and improves conversion efficiency by 8–12 % compared to half-wave alternatives.
Incorporate a smoothing capacitor with a minimum capacitance of 2000 µF per ampere of output current. For a 5 A system, opt for 10 000 µF electrolytic capacitors rated at twice the peak voltage; parallel smaller capacitors (e.g., 0.1 µF ceramics) to suppress high-frequency noise from switching regulators.
Voltage Regulation and Current Limiting
Employ an adjustable linear regulator (e.g., LM317) with a dropout voltage ≤ 2 V under maximum load. Configure the feedback resistors to maintain output ±0.1 V of the target, ensuring thermal stability across ambient temperature swings from –10 °C to +50 °C. For higher efficiency, replace linear regulators with a buck converter module (e.g., MP2307), which achieves >90 % efficiency at 1 A loads.
Integrate a current-limiting resistor in series with the sensing path; use a 0.1 Ω, 5 W power resistor to protect the unit from short-circuit conditions. Monitor the voltage across this resistor with a comparator (e.g., LM393) to cut off power when the drop exceeds 75 mV, corresponding to a 7.5 A threshold, preventing thermal runaway in the storage cells.
Add a thermal cutoff switch rated for 75 °C near critical components–the transformer core and regulator heatsink. Mount it with thermal adhesive to ensure rapid response; specify a normally closed switch that opens at 80 °C to halt operation before reaching unsafe temperatures.
Label test points on the schematic: input AC, post-rectification DC, post-regulation output, current sense, and thermal sensor. Use 1 % tolerance thick-film resistors in feedback loops to maintain consistent charging profiles; encode component values directly in the silkscreen layer for quick troubleshooting and replication.

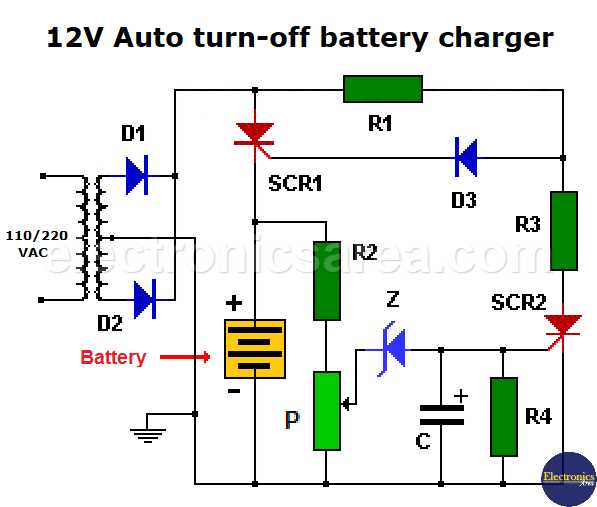

Key Elements for Building Your Own Power Supply Unit
Begin with a transformer rated at 12V AC for low-voltage applications, ensuring it can handle at least 2A to prevent overheating. Avoid cheap, unbranded models–look for UL-listed or CE-marked components with explicit current ratings. For adjustable units, a center-tapped transformer simplifies voltage regulation later in the build.
A bridge rectifier (KBPC2510 or similar) converts AC to DC, requiring a minimum 3A forward current to avoid voltage drops under load. Mount it on a heatsink if ambient temperatures exceed 40°C or if sustained output exceeds 1.5A. Check datasheets for peak inverse voltage (PIV)–ensure it exceeds 50V for 12V systems.
Smoothing capacitors (electrolytic, 2200µF or higher) reduce ripple to below 50mV pp, critical for sensitive electronics. Place them within 2cm of the rectifier to minimize inductance; prefer low-ESR types for high-current demands. Calculate capacitance using C = (I_load)/(2 * f * V_ripple), where f is the ripple frequency (100Hz for full-wave).
For regulated output, a linear regulator like LM317 provides adjustable voltage (1.25V–37V) with built-in thermal shutdown. Pair it with a TO-220 heatsink (thermal resistance ≤ 10°C/W) and thermal paste for outputs above 500mA. Output capacitors (1µF ceramic) stabilize transient response–place them as close as possible to the regulator’s output pin.
Include a fast-acting fuse (250V, 2A–5A) on the primary side to prevent transformer damage during shorts. For secondary protection, use a PTC resettable fuse (e.g., 1A at 16V) to limit current without permanent failure. Add a reverse-polarity protection diode (1N4007) across the output if connecting to sensitive loads.
Optional but recommended: A schottky diode (1N5822) on the regulator’s output for efficiency, and a 47kΩ bleed resistor across capacitors to discharge stored energy safely. For LED indicators, use a 3mm red (2V) for power and green (3V) for charge completion, each with a 470Ω series resistor to limit current.
Step-by-Step Assembly of a Linear Power Supply Regulator
Begin by securing a LM317 voltage regulator on a perforated board, ensuring the input, output, and adjustment pins align with unobstructed copper traces. Solder a 1N4007 diode across the regulator’s input and ground to prevent reverse polarity damage–cathode facing the positive terminal. Connect a 470µF electrolytic capacitor between the input pin and ground to stabilize incoming voltage fluctuations, followed by a 0.1µF ceramic capacitor for high-frequency noise suppression. On the output side, add a 100µF electrolytic capacitor to smooth current delivery, paired with another 0.1µF ceramic capacitor to filter residual ripple.
Attach a 240Ω resistor between the output and adjustment pins, then pair it with a 1.5kΩ trimpot to ground to set the output voltage–turn clockwise to increase, counterclockwise to decrease. Verify voltage with a multimeter, targeting 4.2V for Li-ion cells or 1.4V per NiMH cell. Add a red LED with a 1kΩ series resistor between the output and ground to indicate operational status. Enclose the assembly in a ventilated casing, ensuring heatsinks contact the regulator if handling currents above 500mA.
How to Design a Switching Power Supply for Energy Storage Replenishment
Select a buck-boost topology for versatility across input voltages. For lithium-ion packs, target an output range of 3.0–4.2 V per cell; set a fixed 4.15 V float threshold to extend cycle life. Use a synchronous MOSFET stage–NMOS on both high and low sides–to cut conduction losses below 30 mΩ. Ensure the inductor’s saturation current exceeds the peak switch current by 40 % to prevent core collapse at 1.5 A.
Configure pulse-width modulation at 300 kHz to balance transient response and component size; a 22 µF ceramic output capacitor stabilizes the voltage loop while reducing ripple below 15 mV. Implement over-current protection via a 20 mΩ shunt resistor; clamp the feedback node to 0.6 V to limit output to 120 % of nominal. Add a soft-start circuit–RC time constant of 80 ms–to avoid inrush currents exceeding 3 A during activation.
- Feedback network: 1 % tolerance resistors, ratio 1:10 for 1.2 V reference.
- Temperature sense: NTC thermistor, beta 3950, threshold at 45 °C.
- Gate drive: 10 Ω series resistor, 3.3 nF snubber to suppress ringing.
Isolate control and power grounds with a star point at the input capacitor negative terminal; route high-current traces on 2 oz copper with 3 mm width per ampere. Choose a switching regulator IC with built-in UVLO–set at 5.5 V–and hiccup-mode fault recovery to clear sustained shorts. Validate loop stability with a network analyzer; ensure phase margin >45° at 5 kHz gain crossover.
For multi-cell stacks, interleave two channels–phase shift 180°–to halve input ripple current at 600 kHz. Store energy in a 10 µH ferrite-core inductor (TDK SL1207); verify core loss below 2 W at 1 MHz, 2 A. Use a low-ESR polymer capacitor–56 µF, 6.3 V–for output bulk storage; bypass with 1 µF X7R ceramics at the point-of-load.
Thermal management dictates PCB layout: place the IC and MOSFETs within 3 mm of a ground plane pour; expose topside pads for heatsinks if ambient exceeds 60 °C. Test under worst-case conditions–minimum input (4.5 V), maximum load (2 A)–to confirm efficiency >88 % and junction temperature
Calculating Resistor and Capacitor Values for Optimal Power Cell Energy Flow
For a 5V supply with a target 500mA current, use a 10Ω resistor in series. Ohm’s law dictates: R = V/I, where V = 5V - Vforward (typical diode drop ~0.7V). Adjust resistor values in 1Ω increments to fine-tune output. Below is a reference table for common supply voltages and current targets:
| Supply (V) | Target Current (mA) | Resistor (Ω) ±5% | Power Rating (W) |
|---|---|---|---|
| 3.3 | 200 | 13 | 0.25 |
| 5 | 500 | 9 | 0.5 |
| 12 | 1000 | 12 | 2 |
Avoid resistors exceeding their power rating; calculate dissipation using P = I²R. For pulsed energy transfer, derate by 20% to prevent overheating. Carbon film resistors work for low-power designs, while metal film provides tighter tolerances for precision applications.
Input capacitance smooths rectified voltage ripples. Use C = I/(2fΔV), where f is the AC frequency (50/60Hz) and ΔV is the allowed ripple (typically 0.1V). A 2200µF capacitor at 50Hz yields ~45mV ripple at 500mA. Electrolytic capacitors degrade under reverse polarity–observe polarity markings. For high-frequency switching (above 1kHz), ceramic capacitors (X7R dielectric) offer stable performance.
Filter capacitance values scale with load resistance. A rule of thumb: C ≥ 10/(fR), where R is the equivalent load resistance. Below 100µF, ripple suppression weakens; above 10,000µF, startup inrush current surges. Balance capacitance with a small (0.1µF) ceramic bypass capacitor to suppress high-frequency noise.
Thermal derating applies to both resistors and capacitors. Aluminum electrolytic capacitors lose 50% capacitance at -40°C; ensure capacitance remains adequate at operating temperatures. Resistors rated for 125°C function at 70°C without derating, but above this, reduce load by 1% per °C. Multilayer ceramic capacitors maintain stability across temperature ranges but exhibit voltage-dependent capacitance–consult manufacturer datasheets for derating curves.
For current-limiting resistors, wirewound types handle higher power but introduce inductance. Use non-inductive metal film for switching applications. Measure voltage drop across the resistor with a multimeter to verify calculated values; unexpected drops indicate parasitic resistance or incorrect component tolerance.
Select resistors and capacitors based on transient response. A 1ms transient demands C = IΔt/ΔV; for 500mA over 1ms with 0.5V tolerance, use 1000µF. ESR of electrolytic capacitors increases with age–replace if ESR exceeds 1Ω at 100Hz. Film capacitors avoid this issue but have lower capacitance density.
Verify calculations with an oscilloscope. Probe across the output to confirm ripple amplitude and transient recovery time. A load step test (e.g., switching from 10% to 90% load) reveals overshoot; adjust capacitance accordingly. For critical applications, simulate with SPICE models to refine values before prototyping.
