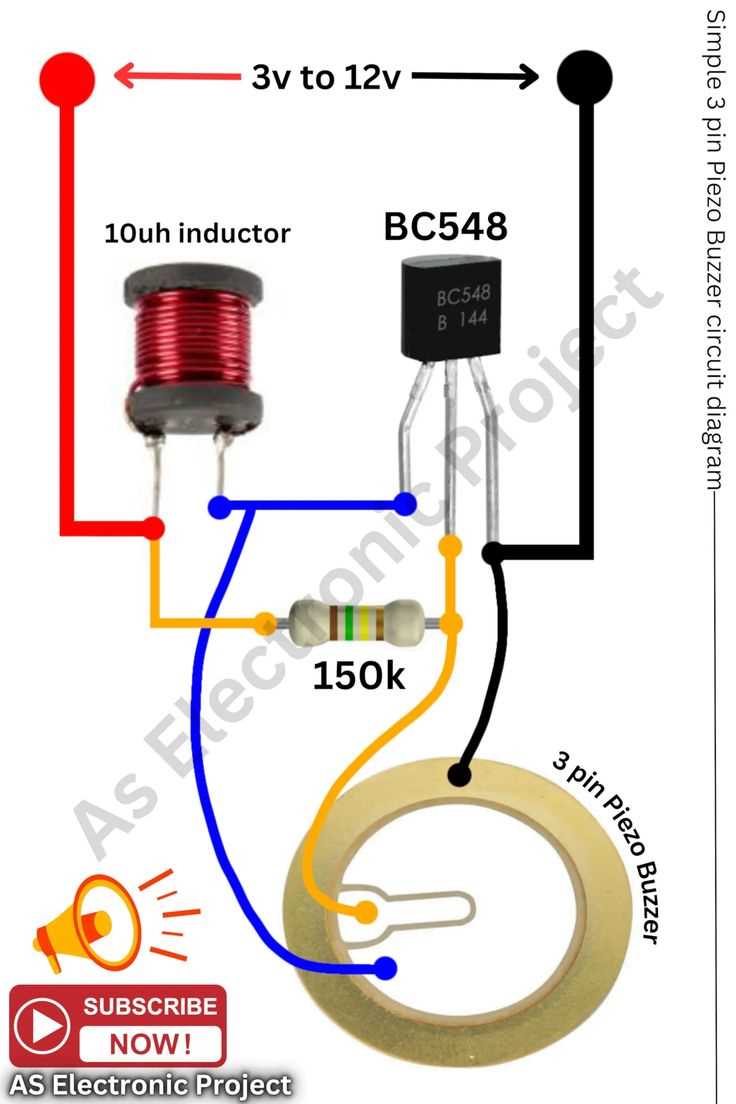

Complete BC548 Transistor Circuit Schematic and Application Guide
For low-power audio or signal amplification, use the NPN general-purpose transistor in a common-emitter configuration with a 1kΩ base resistor, 10kΩ collector resistor, and 4.7µF coupling capacitors. This setup delivers stable gain around 100 while minimizing distortion at input levels below 50mV. Polarize the base at 0.7V with a voltage divider–opt for a 47kΩ and 15kΩ pair for consistent performance across supply voltages from 5V to 12V.
Test stability by sweeping input frequencies from 20Hz to 20kHz while monitoring the output waveform. Clipping should occur symmetrically at ±4V for a 9V supply. If idle current exceeds 1mA, reduce the collector resistor or add a 100Ω emitter resistor to improve thermal drift resistance. Avoid parasitic oscillations by keeping wiring under 5cm and using a star-ground layout.
Calibrate sensitivity by adjusting the base resistor. A 470Ω value raises gain but risks saturation with stronger signals. For battery-powered designs, power consumption drops below 6mW with a 6V supply–ideal for portable applications. Replace the transistor with a higher-beta version if consistent amplification is critical, but note tighter tolerances reduce variability tolerance.
Verify the schematic against real-world behavior using a multimeter and oscilloscope. Measure collector voltage at 45-55% of supply, emitter near 0.1V, and base 0.6V above emitter. Deviations point to incorrect resistor values or faulty components. For troubleshooting, bypass the coupling capacitors with 1µF ceramics–this reveals high-frequency noise sources.
Practical Guide to Using the NPN Transistor Configuration
Begin with a 1kΩ resistor between the base and the input signal to prevent overloading. Pair this with a 10kΩ pull-down resistor at the base to ensure stable switching and avoid floating voltages. This setup minimizes noise and erratic behavior in low-power applications like audio preamplifiers or small signal switches.
For amplification stages, connect a 4.7kΩ collector resistor to the positive rail (5V–12V) and a 1kΩ–4.7kΩ emitter resistor to ground. The emitter resistor stabilizes the gain by introducing negative feedback, while the collector resistor defines the output impedance. Test with a 1kHz sine wave input; expect a clean amplification with minimal distortion if resistors are properly sized.
Common Pitfalls and Fixes
- Overheating: Verify the collector current stays below 100mA. Exceeding this risks thermal runaway. Use a heatsink if operating near maximum ratings.
- Distorted output: Check the load resistor value–too low (47kΩ) risks clipping. Aim for 4.7kΩ–22kΩ.
- No response: Probe the base voltage. It should read ~0.7V above the emitter when active. If not, confirm the input signal voltage exceeds the forward bias threshold.
In switching applications, bypass the emitter resistor with a 10µF capacitor to enhance speed during transitions. This is critical for relay drivers or LED matrices where response time matters. Avoid exceeding the 30V collector-emitter voltage limit; higher voltages demand alternatives like the 2N2222.
For battery-powered designs, add a 100nF decoupling capacitor across the supply rails near the transistor’s power pins. This suppresses voltage spikes and ensures consistent performance. Replace generic values with precise calculations if the load draws >50mA: use Ohm’s Law to adjust resistor sizes based on your supply voltage and desired current.

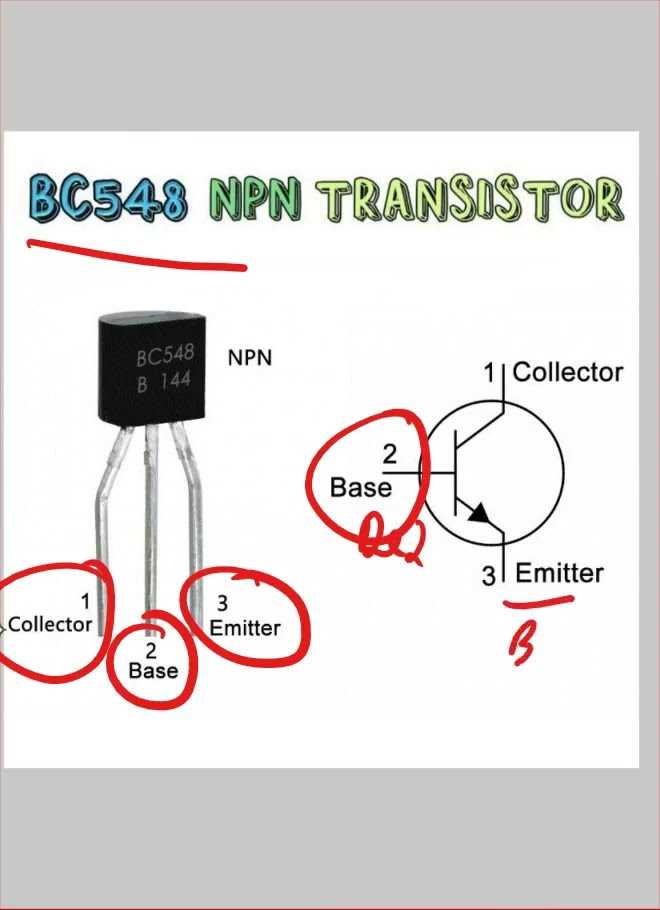

Understanding the NPN Component Pin Arrangement
Always verify the lead layout by orienting the device’s flat side toward you with the leads pointing downward–this places the emitter on the left, base in the center, and collector on the right. Confirm against the datasheet for batch variations, as some manufacturers invert the emitter-collector positions despite identical TO-92 packaging. Test continuity with a multimeter set to diode mode: a forward voltage drop of ~0.6-0.7V between base and emitter or base and collector indicates correct orientation, while reversed leads produce open-circuit readings.

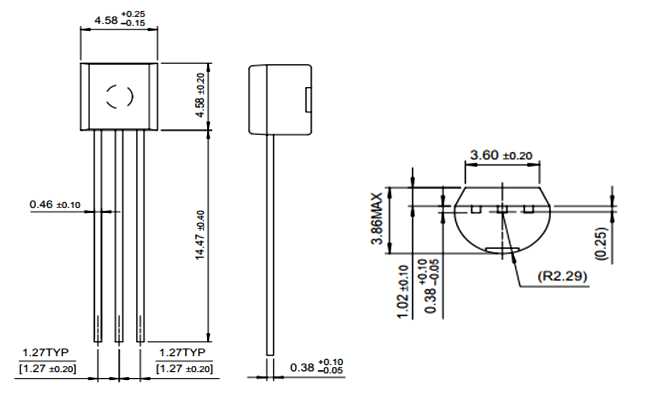

The physical spacing between leads measures 1.27mm (center-to-center), requiring PCB pads with ≥0.8mm diameter holes for reliable soldering–narrower pads risk lifted traces during thermal stress. Store components with leads shorted (e.g., conductive foam) to prevent ESD damage, particularly to the base-emitter junction, which typically handles only ±5V reverse bias before failure.
Step-by-Step Breadboard Assembly for NPN Transistor Configurations
Position the transistor’s emitter lead in the first row of the solderless board, ensuring the adjacent vertical column remains free for ground connection. Insert a 220Ω resistor between the base pin and the second row, aligning its legs vertically to avoid shorting with nearby components. Connect the resistor’s free end to a 10kΩ potentiometer output, leaving the outer potentiometer terminals unoccupied for later signal input adjustments.
Link the collector to a 470Ω load resistor, then route this resistor’s opposite end to the positive rail near the board’s edge. Verify the rail voltage matches the expected 5V supply–use a multimeter’s DC setting if inconsistencies appear. If the rail exceeds 5.2V, insert a 100nF ceramic capacitor between the rail and ground to stabilize transient currents during switching.
Signal Input and Output Placement
Attach a 1µF electrolytic capacitor between the base resistor’s junction and the signal source, observing polarity labels. The capacitor’s negative terminal should face the signal input, preventing reverse voltage damage. Skip using jumper wires for this connection–directly press the capacitor leads into the board to minimize parasitic inductance.
For output testing, snap a 3mm red LED between the collector resistor’s node and the negative rail, anode toward the resistor. Confirm the LED illuminates when the potentiometer reaches approximately 60% rotation; dimming below this point indicates insufficient base current. Replace the LED with a 1kHz buzzer for audible feedback if precise threshold detection is required.
Grounding and Noise Reduction
Route all ground connections to a single vertical column, consolidating the emitter, potentiometer’s lower terminal, and capacitor ground into adjacent holes. Avoid daisy-chaining grounds–this creates voltage drops under load. Add a 10µF tantalum capacitor across the power rails directly beneath the transistor’s footprint to suppress high-frequency noise from switching transitions.
Extend a 10cm jumper wire from the common ground column to the breadboard’s negative bus bar, then to the power supply’s ground terminal. If the supply lacks a dedicated ground post, splice a crocodile clip onto the negative lead, ensuring only one connection point per terminal to prevent ground loops. Test continuity from the transistor’s emitter to the supply ground–resistance should read below 0.5Ω.
Isolate the signal input with a 0.1µF film capacitor between the source and the 1µF coupling capacitor. This forms a high-pass filter cutting DC offsets below 15Hz, critical when interfacing with audio sources or variable sensors. For digital signals, swap the film capacitor for a 1nF ceramic type to block sub-5kHz noise while passing edges faster than 1µs.
Finalize the layout by anchoring all loose component legs with short jumper wires, tying unused board rows to ground via 1MΩ resistors to prevent floating nodes. Power the assembly through a bench supply with current limiting set to 20mA–exceeding this trips the limiter, indicating either a shorted transistor or misaligned components. Recheck all connections against this sequence before applying voltage.
Common Biasing Methods for Small-Signal NPN Transistors in Amplifier Stages
For stable Class A operation, employ a voltage-divider bias with an emitter resistor (RE) of 1 kΩ to 3.3 kΩ for typical collector currents between 1 mA and 5 mA. This configuration yields a thermal stability factor (S) near 10–20, calculated as S = (1 + β) / [1 + (βRE / (RB + RE))], where RB is the Thevenin resistance seen at the base. Keep the divider resistors within 10 kΩ–100 kΩ to avoid excessive base current loading; values outside this range degrade noise performance or risk insufficient bias.
Key Biasing Configurations Compared
| Bias Type | Typical RE (Ω) | VCE Stability | Voltage Gain (AV) | Use Case |
|---|---|---|---|---|
| Fixed | 100–470 | Poor (S ≈ 100) | 50–200 | Simple buffers |
| Voltage-Divider | 1 k–3.3 k | Good (S ≈ 10–20) | 30–150 | General amplification |
| Collector-Feedback | 1.5 k–4.7 k | Moderate (S ≈ 30–50) | 20–100 | RF stages |
| Emitter-Bias | 500–1.5 k | Excellent (S ≈ 5–10) | 40–180 | Low-noise preamps |
For low-noise preamplifiers, emitter bias with a dual supply (±5 V to ±15 V) and an emitter resistor bypassed by a 10 μF–100 μF capacitor eliminates distortion while maintaining a quiescent current of 0.5 mA–2 mA. Calculate the emitter resistor via RE = (VEE − 0.6 V) / IC; ensure the collector resistor (RC) limits dissipation to VCE and IC . Use a parallel 10 kΩ resistor at the base for temperature-compensated biasing, reducing drift by 80% compared to uncompensated designs.
Voltage and Current Ratings for Safe Transistor Handling
For reliable operation, the silicon NPN device must not exceed a collector-emitter voltage (VCEO) of 30V when the base is open. Exceeding this threshold risks avalanche breakdown, degrading performance or causing immediate failure. Ensure power supplies and signal sources stay well below this limit, accounting for transient spikes that may briefly surpass nominal values.
- Collector current (IC): Maintain continuous currents under 100mA. Short pulses up to 200mA are permissible if duty cycles remain under 10% and adequate heat dissipation is provided.
- Emitter-base reverse voltage (VEBO): Keep this below 5V to prevent junction damage; even brief overvoltages here can permanently alter gain characteristics.
- Total power dissipation (Ptot): 500mW at 25°C ambient, derating linearly by 5mW/°C above this temperature. Enforce this with appropriate heatsinking when operating near maximum ratings.
Bias networks must constrain base current to stay under 5mA DC while allowing sufficient drive for the intended amplification. Excessive base current saturates the device, increasing collector current beyond safe margins and elevating junction temperatures. Employ resistor dividers with values selected to limit base current appropriately for the load impedance attached to the output terminals.
- Verify all voltage rails during initial power-on using a calibrated oscilloscope; ringing or overshoot >10% of nominal values requires RC snubbing.
- Insert a 1N4007 diode in series with the collector lead if inductive loads (relays, motors) are switched–flyback voltages can exceed VCEO during turn-off.
- Measure case temperature with a contact probe; sustained readings above 75°C indicate inadequate thermal management.
Failure to observe these parameters accelerates electromigration within the die, increases leakage currents, and reduces switching speed. Always consult the manufacturer’s datasheet for lot-specific variations, as production tolerance can shift absolute maximum ratings by ±5%.
