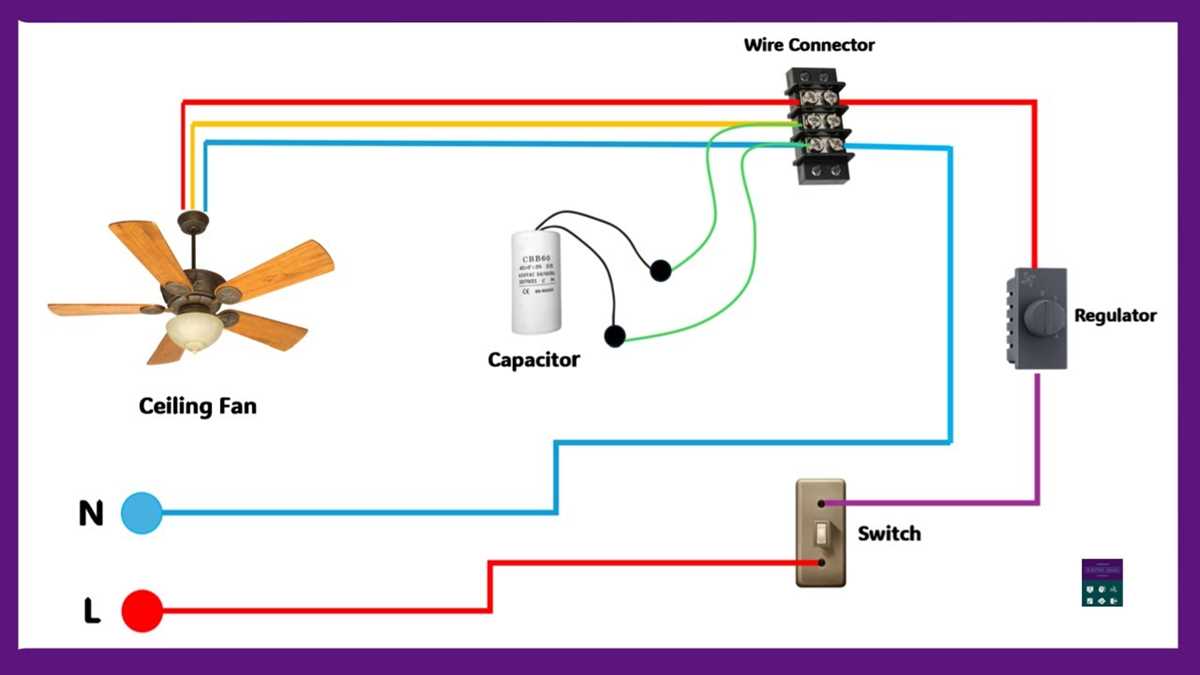

How to Connect a 3-Wire Ceiling Fan Step-by-Step Wiring Guide

For a standard household suspended airflow unit, locate the black conductor as the primary live feed. Attach it to the corresponding terminal on the motor housing. The white conductor serves as the neutral–secure it to the neutral point marked on the mounting bracket. The red or blue conductor typically controls auxiliary functions such as lighting or speed regulation. If no additional features are present, cap this conductor with a wire nut to prevent unintended contact.

Verify the installation by testing the rotation speed in all available settings. If the device operates intermittently or not at all, inspect the connection points for loose strands or improperly secured conductors. Ensure all terminals are tightened to specification–most manufacturers recommend 1.5–2.0 Nm of torque for aluminum or copper leads. Avoid twisting conductors together without mechanical fastening; heat shrinkage or crimp connectors provide superior reliability over prolonged use.

In older installation codes (pre-2011), some configurations paired the auxiliary conductor with a dedicated wall switch. Modern setups often integrate this into a dual-function regulator switch or smart control module. If retaining an older layout, confirm the switch is rated for minimum 15A inductive load to prevent overheating. For dimmable lighting attachments, use a CL-rated switch to avoid damaging integrated circuits.

Measure resistance across the conductors before finalizing assembly. A properly functioning system should register:

• Live-to-neutral: 20–80 ohms (motor-dependent)
• Live-to-ground: Infinite resistance (open circuit)
• Neutral-to-ground: 0 ohms (continuous)

Readings outside these ranges indicate a short, open circuit, or incorrect internal wiring. Consult the unit’s service manual for model-specific tolerances–generic diagrams may omit variations for permanent split capacitor or shaded pole motors.

Electrical Hookup Guide for Three-Conductor Ventilation Units

Connect the black conductor to the power supply live terminal (L) at the wall switch or junction box–this handles motor rotation. The blue wire links to the illumination source (if present), typically requiring a separate switch leg unless integrated dimming is used. Verify the unit’s manual: some models route blue through the same circuit as black when independent control isn’t needed.

Attach the white neutral to the matching bus in the electrical panel or neutral splice. Never omit this step–neutral completes the circuit for both motor and lighting functions, preventing erratic operation or overvoltage. For systems lacking a neutral at the switch (e.g., older installations), run an additional 14 AWG conductor from the nearest junction; failure to do so violates NEC 300.3(B) and may trip AFCI breakers.

Grounding and Safety Compliance

The bare copper or green-insulated lead bonds to the grounding bus. In metal junction boxes, ensure the box itself is grounded via a pigtail to the fan’s ground terminal–this protects against leakage currents and fault conditions. If the installation uses a plastic box, ground the device’s frame directly to the supply-side ground. Test continuity with a multimeter (resistance <1Ω) before energizing.

For variable-speed models, identify the red conductor (if included): this serves as a second live input for multi-tap switch configurations. Pair it with a dual-switch setup (e.g., one for airflow, one for light) or a single-pole double-throw (SPDT) switch. Label all conductors at both ends–misidentification during future maintenance risks short circuits or reversed polarity, damaging capacitors in shaded-pole motors.

How to Distinguish Conductors in Rotary Air Circulator Installations

Begin by verifying the voltage supply at the junction box. Most residential systems operate on 120V, but confirm this with a multimeter before proceeding. The three leads typically consist of:

• A live (hot) conductor – usually black, red, or another dark color, carrying current from the breaker
• A neutral conductor – typically white, completing the circuit back to the panel
• A ground conductor – bare copper or green, providing safety in case of faults

In some cases, you may encounter a switched live (often red) that controls lighting separately from the motor. Always check for continuity between the switch and this lead to avoid misconnections.

Identify the motor’s internal connections by removing the decorative cover. Rotary devices usually label their terminals as MOTOR, LIGHT, and COMMON–though manufacturer variations exist. Use the product manual to cross-reference colors against function. If labels are absent, note that:

• The primary speed control lead (often black) connects directly to power
• The neutral terminal remains consistent (white)
• A third lead (sometimes blue or striped) may link to capacitor circuits for rotation direction

Trace each conductor back to its origin in the housing–capacitors are frequently the source of secondary leads.

Resolving Ambiguity in Color Coding

Older or imported models may deviate from standard color schemes. When colors conflict:

1. Examine the splice box for factory labels or stickers explaining non-standard colors
2. Use a non-contact voltage tester to confirm live wires–neutral and ground won’t register
3. Follow the path of each conductor through the downrod or mounting bracket, noting which enters the motor casing

Bear in mind that dual-switch configurations (like separate light/motor controls) require careful pairing of incoming and outgoing live conductors.

Test connections by temporarily securing wires with wire nuts and energizing the circuit. If the motor spins backward, swap the live and capacitor leads. For lighting circuits, ensure the bulb brightness matches expectations–dimmer behavior indicates incorrect pairings. Never assume continuity; verify each connection with a multimeter set to ohms mode (

Document your findings by photographing connections before disassembly. When reinstalling, match each conductor to its corresponding terminal tightly–loose connections create resistance, leading to premature wear or fire hazards. For systems with remote receivers, additional low-voltage conductors may appear; treat these separately from the primary power leads.

Step-by-Step Guide to Installing a Rotary Air-Circulator with Three Conductors

Before handling any electrical connections, shut off power at the circuit breaker. Verify absence of current using a non-contact voltage tester on the supply lines and fixture terminals. A single misstep here risks severe injury or death.

Identify the three conductors in the junction box: typically, one black (live), one white (neutral), and one bare or green (ground). The new rotary unit’s motor housing will match these–black to black, white to white, and ground to ground. Twist corresponding strands together firmly, securing each with a wire nut rated for 14-gauge conductors.

If the overhead fixture includes a lighting kit, locate the blue conductor–this carries power to the illumination module. Connect it to the black supply line alongside the motor’s lead, ensuring all three (black, blue, and line) twist together under one nut. Loose connections cause arcing; double-check each splice.

Mount the motor housing to the outlet box using the provided hardware. Thread screws into the designated mounting holes, ensuring the unit hangs level. Misalignment strains the motor bearings, shortening operational lifespan. Tighten fasteners until snug–over-torquing strips threads in the junction box.

Once secured, install the rotor blades. Align the blade arms with the motor’s mounting posts, then fasten each with the included screws. Use a screwdriver to apply consistent torque; uneven blade angles create imbalance, leading to wobble and excessive noise.

Restore power at the breaker. Test the rotary unit and lighting kit (if present) separately using the wall switch or pull-chain. Listen for unusual humming or buzzing–indicative of loose connections or incorrect conductor pairing. If anomalies persist, de-energize and reinspect all splices.

For variable-speed models, locate the regulated switch assembly. The red conductor (speed control) connects to the corresponding terminal on the switch. If absent, cap it with a wire nut to prevent accidental contact with live circuits. Improper handling of this conductor voids manufacturer warranties.

Finalize installation by attaching the decorative canopy. Align it with the outlet box, press firmly, and secure with the provided retaining ring or screws. Ensure no conductors are pinched or exposed–exposed strands violate electrical codes and pose fire hazards.

Frequent Errors in Installing a Rotary Air Circulator with Three Conductors

Mixing live and neutral lines during setup causes immediate short circuits or component failure. Verify each conductor’s purpose with a multimeter before connection–black typically carries current, white returns it, and green or bare grounds the system. Skipping this step risks damaging the motor, switch, or house circuits, especially in older homes where color codes may differ.

Ignoring the pull-chain switch sequence leads to inconsistent operation. Most rotary units require the switch to be in a specific position (often “off”) before finalizing connections. Failure to do so can result in the device running at incorrect speeds or not responding to wall controls. Consult the manufacturer’s guide for exact switch positions during installation.

Overlooking junction box weight limits creates a safety hazard. Lightweight boxes rated for 35 lbs may fail under a heavier rotary assembly (some exceed 50 lbs). Replace with a fan-rated box, secured to a joist with heavy-duty screws. Using drywall anchors alone invites detachment, risking electrical fires or ceiling damage.

Incorrectly pairing conductors to the wall regulator disrupts speed control or reverses direction. Match the motor’s labeled wires (e.g., “light,” “high,” “common”) to the switch’s terminals precisely. Swapping “high” and “common” can make the unit spin backward or stall. Label each conductor with tape before disconnecting the old fixture to avoid confusion.

Failing to test the circuit breaker compatibility trips power unexpectedly. Rotary motors draw 5–10 amps at startup; standard 15-amp breakers suffice, but 20-amp may be needed for large models. Check the breaker rating and wire gauge (14 AWG for 15-amp, 12 AWG for 20-amp) to prevent overheating. If uncertain, consult an electrician to audit the household panel.
