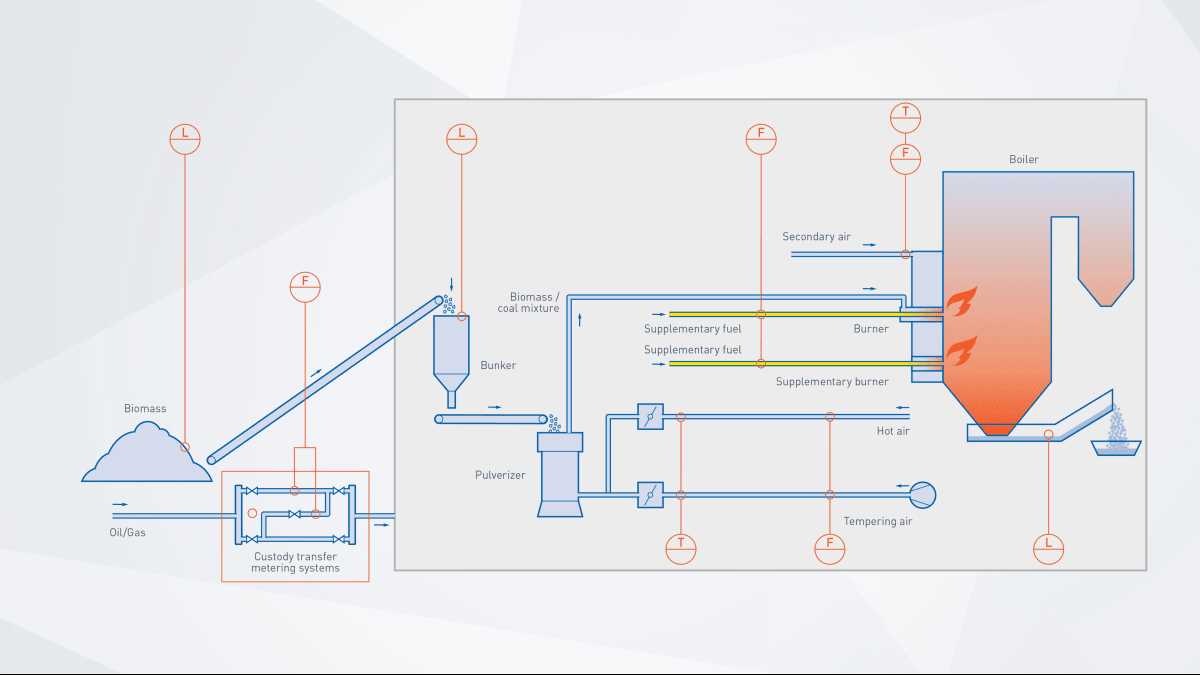

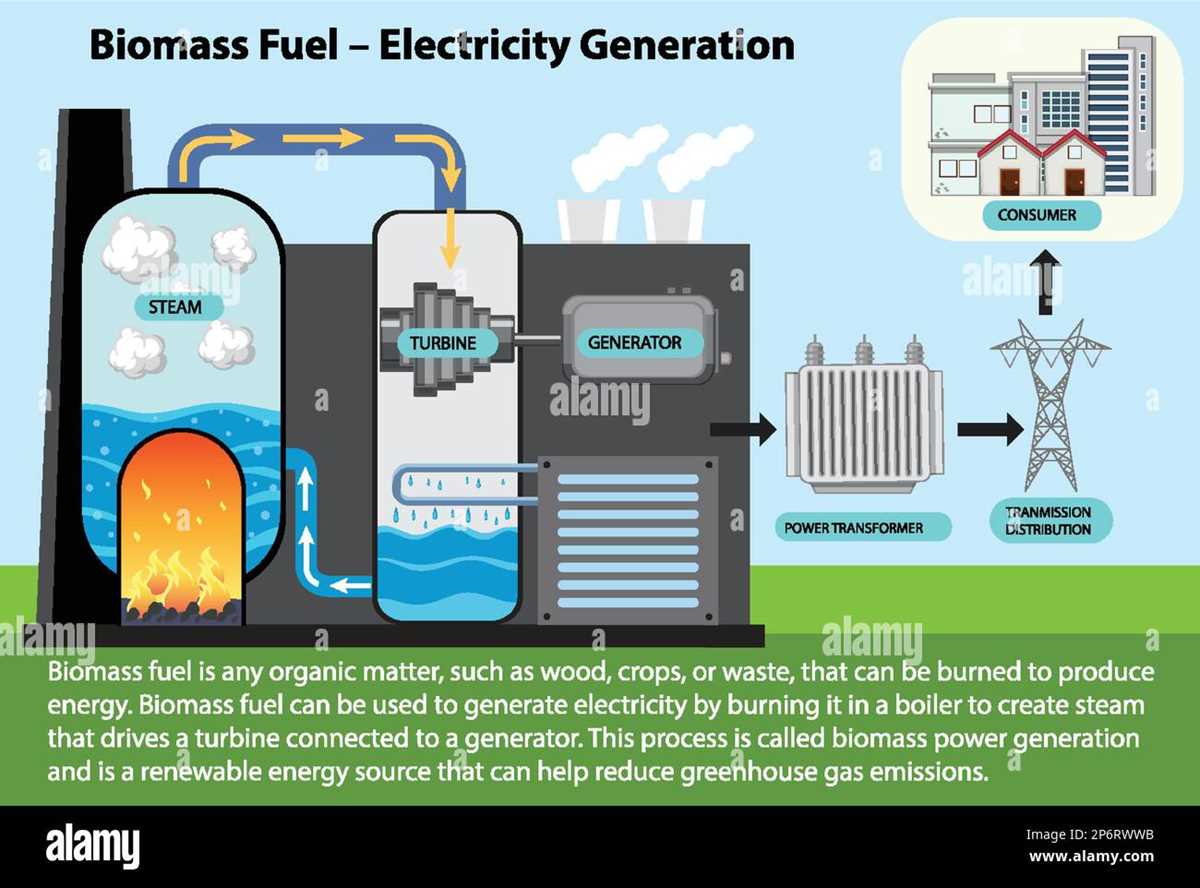

Detailed Schematic of a Biomass Power Plant Electrical and Thermal Flow
Integrate a fluidized bed reactor with a combustion efficiency above 90% to maximize heat recovery from organic feedstock. Use dried wood chips, agricultural residues, or municipal solid waste with moisture content below 20% to reduce corrosion in downstream components. Specify a multi-cyclone separator for particulate removal–targeting particles larger than 10 microns–to protect the steam turbine blades from erosion.
Install a three-pass fire-tube boiler rated at 60 bar and 450°C to optimize thermal exchange while maintaining structural integrity. Pair it with an economizer to preheat feedwater, increasing overall cycle efficiency by 3-5%. For gas cleanup, deploy an electrostatic precipitator downstream of the boiler outlet; it achieves 99.5% removal efficiency for sub-micron fly ash, ensuring compliance with EU Directive 2010/75/EU emission limits.
Select a condensing steam turbine with a variable nozzle design to accommodate fluctuating steam flows–common when processing feedstock with uneven calorific values. Couple it directly to a synchronous generator rated at 50 Hz, 11 kV, and equip the system with a static excitation control to maintain voltage stability within ±0.5%. Cool the condenser using a closed-loop cooling tower with a drift eliminator efficiency above 97% to minimize water consumption in arid regions.
Implement a supervisory control system integrating real-time thermal imaging on the boiler furnace and continuous emission monitoring sensors for CO, NOx, and SO₂. Set PID control loops to adjust air-to-fuel ratios dynamically, targeting excess oxygen levels between 4-6% dry basis to prevent incomplete combustion and slagging. Ensure redundancy in critical sensors and actuators with fail-safe interlocks to halt operations if pressure or temperature exceeds 1.2× design limits.
Key Components of an Organic Fuel Energy Facility Layout
Begin by positioning the fuel reception and preparation zone adjacent to the combustion chamber to minimize handling losses. Use a sealed conveyor system with a throughput capacity 20% higher than peak load requirements–typically 15-25 tons per hour for medium-scale operations–to prevent bottlenecks. Store processed feedstock in silos with automated moisture control (target 10-12% moisture content) to ensure consistent calorific value, which directly impacts thermal efficiency by up to 12%.
The core conversion unit should integrate a fluidized bed reactor for feedstock with particle sizes below 50mm or a grate furnace for larger, irregular materials. Opt for a modular design allowing scalability from 5MW to 50MW without structural modifications. Include a primary and secondary air injection system, calibrated to a 3:2 oxygen ratio, to reduce unburned carbon in ash by 40% and meet NOx emission targets below 200mg/Nm³.
Implement a multi-stage gas cleaning train immediately downstream of the thermal converter. Use a cyclone separator followed by a baghouse filter (3μm particle retention) and a wet scrubber for sulfur removal if feedstock contains >0.5% sulfur. Store recovered ash in sealed containers–approximately 3-5% of feedstock weight–for potential use as soil amendment, yielding additional revenue of $8-12 per ton.
| Component | Optimal Specifications | Failure Impact |
|---|---|---|
| Feedstock Screw Conveyor | 120% peak load capacity, corrosion-resistant alloy | 5-7% energy loss, unscheduled downtime |
| Fluidized Bed Reactor | 850-900°C operating temp, 1.2-1.5s residence time | Incomplete combustion, tar formation |
| Heat Exchanger (Superheater) | Steam temp 450-500°C, pressure 60-80 bar | Up to 15% efficiency drop |
| Condensing Turbine | Isentropic efficiency >85%, exhaust pressure 0.1 bar | Reduced power output by 18-22% |
Design the steam cycle with a reheat loop to achieve >35% net electrical efficiency. Position the turbine on a vibration-isolated foundation and use a three-stage condensation system with cooling towers sized for ambient temperatures up to 40°C. Integrate a PLC-based control system with redundant sensors for critical parameters (pressure, temperature, flow), ensuring real-time adjustments within ±2% of setpoints. Perform annual maintenance on high-wear components–such as refractory lining and turbine blades–to extend operational lifespan beyond 25 years while maintaining thermal efficiency above 30%.
Critical Elements in an Organic-Fueled Energy Facility Layout
Position the fuel reception and storage zone at the facility’s periphery with direct access to transportation routes. Use covered silos or bunkers with automated conveyors to handle varying feedstock moisture levels (up to 60% for green residues). Design storage for a minimum 3-day operational buffer at full capacity–typically 3,000–5,000 m³ for mid-sized installations–to mitigate supply chain disruptions. Install moisture sensors and ventilation systems to prevent spontaneous combustion in high-oxygen environments.
Combustion and Thermal Conversion Core
Select a fluidized bed boiler for feedstock flexibility (grate-fired system for larger, uneven materials. Size the boiler for 40–60 bar pressure and 400–540°C steam temperature to optimize thermal efficiency (80–88% LHV basis). Integrate a multi-cyclone separator upstream of the flue gas cleanup to remove >90% of coarse particulates. Use selective non-catalytic reduction (SNCR) for NOₓ control, injecting urea or ammonia at 850–950°C for 50–70% reduction.
- Primary heat exchanger: Arrange superheaters and economizers in counterflow configuration to maximize ΔT (>150°C approach temperature).
- Secondary heat recovery: Install an air preheater to raise combustion air to 200–250°C, boosting thermal efficiency by 3–5%.
- Slag handling: Use water-cooled screws for wet extraction or vibrating conveyors for dry systems to maintain
Locate the steam turbine-generator set on a vibration-isolated concrete foundation (condensing turbine for highest output (up to 150 MWₑ) or a back-pressure unit if district heating integration is required. Match generator cooling–air-cooled for 98% availability targets. Position the step-up transformer within 50 m of the generator to minimize cable losses (
Design the flue gas treatment train in sequential modules: electrostatic precipitator (ESP) for fine particulate (99% removal), followed by a dry or semi-dry scrubber for SO₂ control (add hydrated lime at Ca:S = 2:1 for 90% reduction). Install a fabric filter (baghouse) downstream for heavy metals and dioxins, operating at 20–30 m/s exit velocity to ensure plume rise; monitor emissions continuously (O₂, CO, NOₓ, SO₂, TOC) with QAL1-certified analyzers.
- Site the water treatment system upstream of the boiler feedwater make-up, using reverse osmosis for
- Integrate a closed-loop cooling tower with drift eliminators (
- Allocate space for ash disposal (bottom ash: 5–10% of feedstock; fly ash: 1–3%) in lined containment cells with runoff collection.
Step-by-Step Feedstock Handling and Preprocessing Flow
Design the reception pit with a 48-hour storage capacity to buffer delivery fluctuations; equip it with a vibratory feeder (50-100 t/h throughput) and magnetic separator (1.2 Tesla) to remove ferrous contaminants before size reduction. Use a primary shredder (e.g., hammer mill, 300 kW) with a 75 mm screen for initial particle breakdown–target a 50-70% pass rate at
- Drying: Deploy a rotary dryer (10-15% moisture target) using waste heat from the combustion chamber (400-500°C flue gas); maintain a counterflow configuration for heat exchange efficiency (>85% recovery). Add a cyclone separator post-dryer to capture fines (PM10) and reintroduce them into the fuel stream.
- Storage: Convey dried material via dense-phase pneumatic system (0.5 MPa, 30 m/s) to a sealed silo (72-hour capacity); integrate level sensors (ultrasonic, ±0.5% accuracy) and nitrogen inerting (O₂
- Dosage: Calibrate rotary valves (±1% mass flow accuracy) and weighbelts (C3 class) upstream of the stoker feeder to ensure ±3% fuel-to-air ratio consistency.
- Quality monitoring: Embed NIR sensors (850-1050 nm) at the dryer exit to detect moisture (±0.3% deviation) and calorific value (≤±2% error); trigger automatic recirculation for out-of-spec batches.
Combustion Chamber Design and Heat Exchange Optimization in Renewable Fuel Facilities
Install fluidized bed combustion chambers for fuels with moisture content above 50%. These systems maintain combustion efficiency at 90-95% even with inconsistent feedstock quality by suspending particles in a turbulent air stream at temperatures of 850-900°C. Use refractory lining with alumina content above 60% to reduce wear rates by 40% compared to conventional firebrick. Integrate secondary air injection ports at 30° angles to the primary flow to minimize cold zones and achieve near-complete carbon burnout.
Select waterwall tube configurations for high-pressure steam generation. Spaced at 50-70mm intervals, these tubes absorb up to 60% of radiant heat while protecting chamber walls. For fuels with chlorine content above 0.5%, install a nickel-based alloy overlay on the first 2 meters of tubing to prevent corrosion rates exceeding 0.2mm/year. Use forced circulation designs with recirculation ratios of 4:1 to maintain critical heat flux margins above 30%.
Implement multi-pass economizers with staggered finned tubes. This arrangement increases heat transfer coefficients by 35-45% compared to plain tubes while reducing fouling from particulate matter. Position the economizer downstream of the superheater to protect it from high-temperature corrosion. Maintain flue gas velocities between 8-12 m/s to balance erosion control and heat absorption efficiency. For units processing agro-residues, add sootblowers operating at 30-minute intervals to prevent ash accumulation on fin surfaces.
Use cyclone separators as the primary heat recovery stage for units handling fine particulates. Design inlet velocities at 20-25 m/s to achieve 98% particle removal efficiency above 10μm diameter. Position the cyclone between the combustion chamber and economizer to protect downstream components from abrasive wear. Calculate cyclone dimensions using the Stairmand high-efficiency design equations, maintaining a height-to-diameter ratio of 3:1 for optimal vortex formation.
Install condensing heat exchangers where final exhaust temperatures fall below 120°C. Use borosilicate glass tubes or PTFE-coated stainless steel to resist sulfuric acid condensation. Maintain water inlet temperatures below 50°C to achieve additional energy recovery of 10-15% of fuel input. Size the condenser surface area based on the dew point of flue gases, typically requiring a 1.5-2.0 factor above non-condensing designs.
For grate-based systems, select reciprocating grates with air-cooled side seals rated for 1200°C operation. Space grate bars at 3-5mm intervals to minimize fuel leakage while allowing primary air penetration. Calculate air distribution ratios at 60-70% through the grate and 30-40% above the bed. Install infrared pyrometers at three heights to monitor bed temperature stratification and adjust air flows to maintain ±20°C uniformity across the combustion zone.
Incinerate fuel batches with ash content above 15% using rotary combustion chambers. Design kiln rotation speeds between 0.5-3 RPM to achieve residence times of 30-60 minutes. Maintain a slight negative pressure (-5 to -15 Pa) throughout the kiln to prevent fugitive emissions. Install refractory with 85% alumina content in the hot zone and transition to 60% alumina in the intermediate zone to balance wear resistance and thermal expansion compatibility.
