Thermistor Circuit Guide for Accurate Temperature Detection

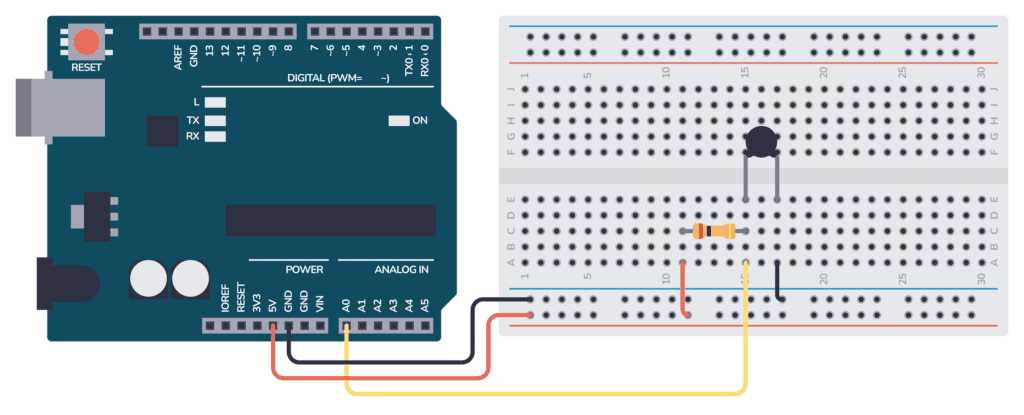

temperature measurement using thermistor circuit diagram

Start with a voltage divider arrangement when interfacing a resistive sensor to an ADC. Place the component between a stable reference voltage (3.3V or 5V) and ground, then tap the midpoint on an analog input pin. A 10 kΩ pull-up or pull-down resistor ensures optimal sensitivity for typical ±1% tolerance sensors. Avoid parasitic capacitance by keeping traces under 10 cm–longer runs require a buffer amplifier like the MCP6001.

For nonlinear correction, implement a lookup table or quadratic approximation in firmware. A 10-bit ADC (e.g., AVR’s ATmega328) yields 0.3 °C resolution with a 25 °C reference point at 10 kΩ. Calibrate at two endpoints (0 °C and 50 °C) using ice-water slurry and heated enclosure–deviations beyond ±0.5 °C signal trace contamination or thermal lag.

Replace discrete resistors with trimmer potentiometers (Bourns 3296W) for field-adjustable span/offset. Add a Schottky diode (1N5817) across sensor leads to clamp reverse-polarity spikes. For high-ambient environments (>85 °C), swap epoxy-coated sensors for glass-encapsulated types–thermal mass doubles, but accuracy improves to ±0.2 °C.

Ground the analog reference plane directly beneath the sensor to minimize noise coupling. If EMI persists, insert a 10 nF ceramic capacitor across the sensor and a series ferrite bead at the ADC input. For battery-powered nodes, disable the ADC between conversions (AVR’s ADEN bit) to reduce current draw below 10 µA.

Precision Sensor-Based Monitoring Setup

Assemble a voltage divider with a negative temperature coefficient (NTC) resistor and a fixed-value reference resistor (e.g., 10 kΩ). Select the reference value to match the sensor’s nominal resistance at your target midpoint–ideally 50% of the supply voltage (Vcc) at room conditions. For example, a 10 kΩ NTC paired with a 10 kΩ resistor will yield 2.5 V at 25°C when powered by 5 V. Calibrate by measuring the output at known benchmarks (0°C, 25°C, 50°C) using a high-impedance multimeter or ADC (12-bit resolution minimum). Record the ADC readings and corresponding resistance values to derive a piecewise linear equation or use the Steinhart-Hart model for higher accuracy: 1/T = A + B(ln R) + C(ln R)³, where T is in Kelvin, and A, B, C are device-specific coefficients.

Optimize response time and noise immunity:

  • Place the sensor 1–2 cm from the target surface, avoiding direct contact with heat sinks or airflow.
  • Add a 0.1 µF decoupling capacitor between the ADC input and ground to filter high-frequency noise.
  • Use twisted-pair wiring if the sensor extends more than 30 cm from the processing unit to reduce EMI.
  • For dynamic environments, sample at 10 Hz and apply a 5-point moving average to smooth readings.

Verify performance under thermal transients by immersing the sensor in stirred ice water (0°C ±0.2°C) and a boiling water bath (100°C ±1°C at sea level). Adjust coefficients if the error exceeds ±0.5°C in either test. Store lookup tables in EEPROM for systems without floating-point support, using linear interpolation between pre-calculated values.

Common Pitfalls and Mitigation

  1. Self-heating: Limit current through the NTC to <100 µA. For a 5 V supply, use a 50 kΩ reference resistor to reduce dissipation below 0.5 mW.
  2. Parasitic capacitance: Keep traces short (<5 cm) between the sensor and ADC. For longer runs, add a 10 kΩ series resistor to dampen oscillations.
  3. ADC loading: Avoid capacitive loads >10 pF on the input pin. Buffer the output with an op-amp (e.g., MCP6002) if driving CMOS inputs.
  4. Lead resistance: Use 4-wire (Kelvin) connection for sensors with >1 m cable runs to eliminate voltage drop errors.

Choosing the Optimal NTC Sensor for Your Specific Need

Begin by identifying the operating span of your system–NTC probes excel in ranges from -50°C to 150°C, but high-precision variants like the USP10982 extend accuracy down to ±0.1°C within 0°C–70°C. Match the sensor’s nominal resistance (typically 2.252kΩ, 5kΩ, or 10kΩ at 25°C) to your signal conditioning stage to minimize amplification noise.

Key Criteria for Selection

  • Response speed: Epoxy-coated beads react in ~1–3 seconds, while glass-encapsulated types require 5–10 seconds but tolerate 300°C transients.
  • Stability: Look for dissipation constants above 3mW/°C to reduce self-heating errors in still air; ventilated housings can drop this below 1mW/°C.
  • Package: SMD 0402/0603 thermistors suit PCB layouts, whereas probe-style B57861 variants (3mm diameter) endure corrosive fluids up to pH 12.

Prioritize interchangeability–±1% tolerance sensors like the NCP18WF104 eliminate recalibration when replacing units. For medical-grade applications, select parts with ISO 10993 biocompatibility certification to prevent leachables during prolonged skin contact.

  1. Verify the B-value consistency–deviation above ±1% alters sensitivity curves, requiring firmware compensation in linearization algorithms.
  2. Assess lead material: Nickel-plated copper withstands 150°C, while silver-coated leads handle 200°C but oxidize in sulfur-rich environments.
  3. Check hysteresis limits: High-quality beads exhibit

For HVAC systems, choose PTC alternatives only if the application requires overtemperature cutoff above 120°C–PTCs reset unpredictably below 70°C. In contrast, NTCs provide continuous monitoring across the entire spectrum, though their nonlinearity demands look-up tables or Steinhart–Hart equation coefficients (typically A=1.129241×10⁻³, B=2.341077×10⁻⁴, C=8.775468×10⁻⁸ for 10kΩ parts).

Avoid generic “10k” labels–ensure the part number specifies the R-T curve (e.g., Beta 3950K vs. Beta 4050K). Misalignment here introduces errors exceeding 5°C at extreme ends. For cryogenic use below -100°C, select glass-sealed CWF1 series or carbon-film sensors instead, as standard epoxy coatings become brittle.

Mounting method directly impacts thermal lag–direct soldering to heatsinks reduces response time by 40% compared to adhesive fixation. For remote sensing, twisted-pair 28AWG copper wire minimizes RF interference but limits cable length to ~10 meters without signal repeaters. Always validate the self-heating coefficient via datasheet–critical for battery-powered devices where every 0.5mW counts.

Constructing a Simple Resistive Network with a Thermal Sensor

Select a negative temperature coefficient (NTC) element with a resistance of 10 kΩ at 25°C for optimal voltage variation across typical operational ranges. A 1 kΩ to 100 kΩ fixed resistor works best–higher values increase sensitivity but reduce current flow, impacting signal strength.

Arrange the components in series: connect the NTC element to the positive rail, then link the fixed resistor to ground. This configuration ensures the output voltage–which varies inversely with sensor resistance–is taken at the junction between the two parts.

Power the setup with a stable 5V DC source to avoid fluctuations that skew readings. Ensure the supply’s ripple does not exceed 10 mV peak-to-peak; linear regulators like the LM7805 provide cleaner output than switching types for low-current applications.

Add a 0.1 μF ceramic capacitor across the fixed resistor to filter high-frequency noise, especially if the leads to the microcontroller exceed 10 cm. For extended cable runs, increase the capacitor to 1 μF and add a 10 μF electrolytic at the input to suppress low-frequency interference.

Calibrate the network by recording output values at known points. Place the NTC in an ice bath (0°C) and boiling water (100°C) to establish endpoints. Typical values for a 10 kΩ NTC paired with a 4.7 kΩ resistor:

Reference Point (°C) Measured Resistance (kΩ) Output Voltage (V)
0 ~32.5 0.62
25 10.0 1.85
50 ~3.6 3.18
100 ~0.7 4.21

Avoid exceeding 5 mA through the NTC to prevent self-heating errors; calculate current as I = Vsupply / (RNTC + Rfixed). For example, at 25°C with 5V and Rfixed = 4.7 kΩ, current is 0.34 mA–well within safe limits.

Use a 10-bit ADC (e.g., ADS1115) to capture the output, offering 1024 resolution steps. This provides ~4.88 mV per step with a 5V reference–sufficient for 0.1°C resolution between 0°C and 50°C. For wider ranges, adjust Rfixed to compress the voltage span across the ADC’s input.

Minimize thermal mass around the NTC by housing it in a vented, thin-walled probe. Epoxies like Stycast 2850FT conduct heat poorly; opt for thermally conductive adhesives (e.g., Arctic Silver) if bonding to metal surfaces. Response time improves from >10 s to ~1 s when switching from 5 mm epoxy beads to 1 mm aluminum-clad sensors.

Precision Conversion via Steinhart-Hart Formula

Apply the Steinhart-Hart coefficients A, B, and C when resistance readings demand sub-0.1°C accuracy. For a 10 kΩ NTC probe at 25°C, typical values are A=1.129241×10⁻³, B=2.341077×10⁻⁴, and C=8.76741×10⁻⁸. Multiply the natural log of resistance (ln(R)) by these constants in sequence: ln(R)³·C + ln(R)²·B + ln(R)·A + 1. Take the reciprocal of the result to yield the Kelvin scale output. Always verify coefficients from a trusted datasheet–generic approximations risk errors exceeding 0.5°C.

Embed polynomial terms directly into firmware to reduce computational latency. A pre-calculated lookup table covering 1 kΩ to 100 kΩ spans most operational ranges efficiently. Store entries at 1 Ω intervals for 12-bit ADC resolutions; interpolation handles intermediary values. Avoid floating-point divisions–use bit-shifting or fixed-point arithmetic where clock cycles are critical, especially in low-power designs.

Offset calibration corrects inherent sensor drift. Measure resistance at three reference points (e.g., 0°C, 25°C, 50°C) to derive custom A/B/C values. Least-squares fitting refines coefficients; typical 1% tolerance probes yield ±0.15°C precision post-calibration. Store adjusted constants in EEPROM to bypass recalibration during device resets.

For high-precision applications, account for self-heating by limiting current to

Validate outputs against certified references like PT100 RTDs. Log discrepancies in 5°C increments across the operational band (–40°C to 125°C). Disregard calculations outside the sensor’s linear range–Steinhart-Hart loses accuracy beyond the probe’s specified limits, where errors grow exponentially.
