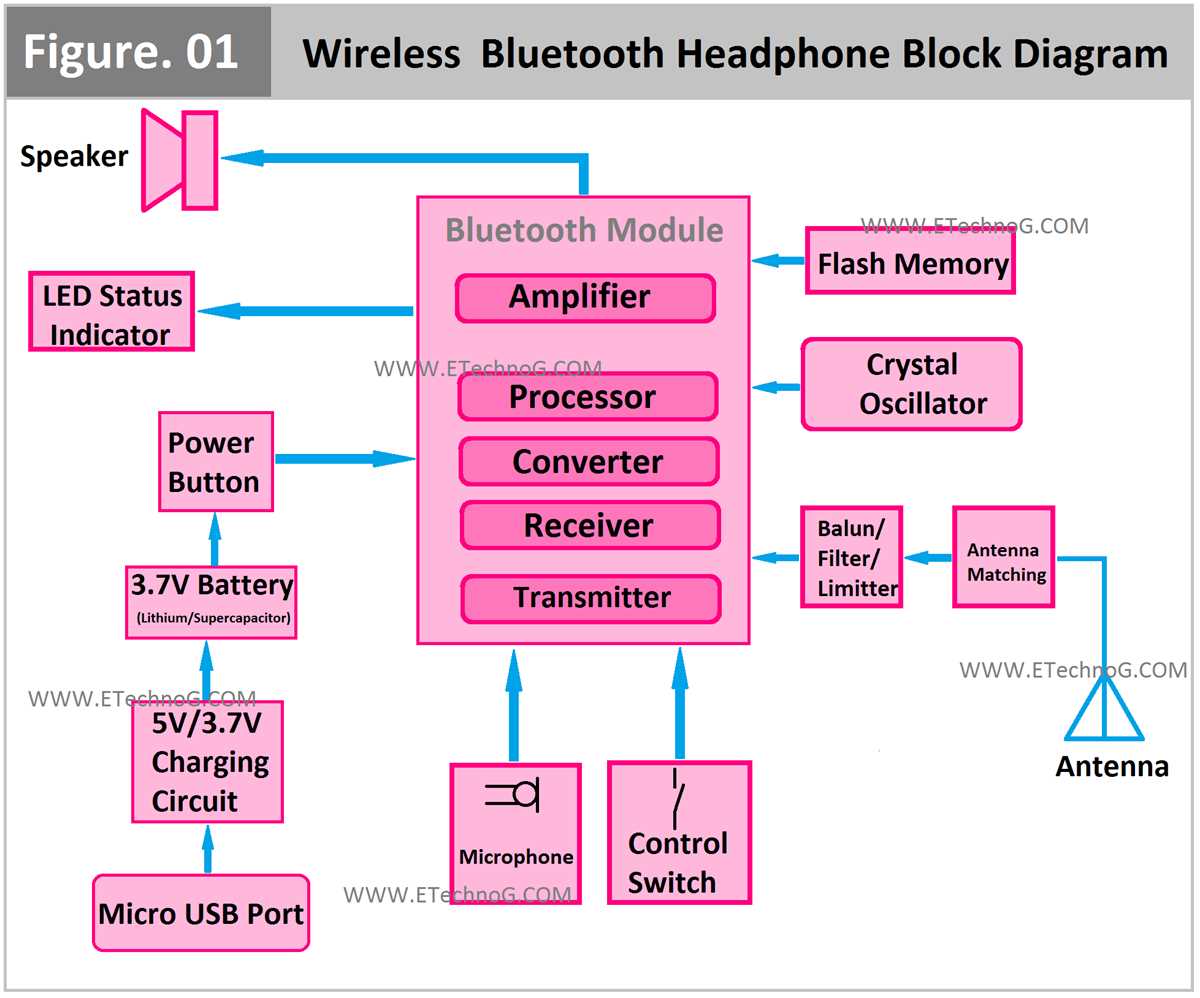

Step-by-Step Guide to Designing a Bluetooth Circuit with Schematics
Select a low-energy module like the nRF52832 or ESP32 for projects requiring minimal power consumption. These components handle both data transmission and protocol stacking internally, reducing external circuitry complexity. Pair the module with a PCB antenna optimized for 2.4 GHz frequencies, ensuring trace impedance matches 50 ohms to minimize signal reflection.
Integrate a matching network consisting of inductors and capacitors to fine-tune the module’s output. For the nRF52832, values of 1.5 pF and 2.7 nH typically suffice, but verify with a network analyzer during prototyping. Add a balun if using a differential antenna setup–this converts signals efficiently without requiring symmetrical traces.
Power supply stability is critical. Use a low-dropout regulator (e.g., AP2112K) to maintain 3.3V output from a 5V or 3.7V LiPo source. Bypass capacitors (0.1 µF and 10 µF) must be placed within 1 mm of the module’s power pins to suppress noise. Include a soft-start circuit if the load exceeds 200 mA to prevent voltage spikes during initialization.
Signal integrity depends on proper ground plane design. Dedicate a continuous copper pour beneath the wireless module, avoiding splits or slots. Connect the pour to the main ground via multiple vias to reduce loop inductance. For high-speed traces (e.g., SPI or UART), limit length to 25 mm and maintain 3W spacing from other signals to prevent crosstalk.
Test connectivity with a spectrum analyzer to confirm peak transmission at 2.402–2.480 GHz. Adjust the antenna’s feed point if the signal deviates more than ±10 MHz from the target. Debug firmware using logic analyzers or J-Link probes–enable RF calibration in the module’s SDK to compensate for manufacturing tolerances. For certification, include a filter network (e.g., Murata LFB182G45SG2D263) to suppress harmonics below -40 dBm.

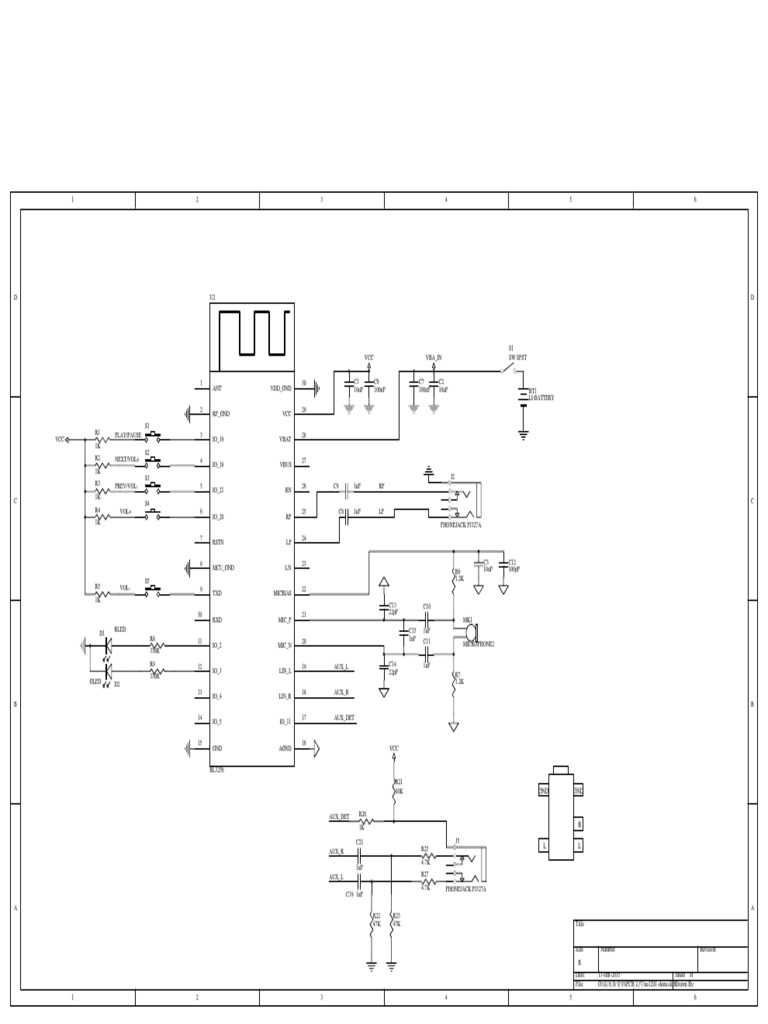

Wireless Module Schematic: Hands-On Assembly Guide
Select a certified RF transceiver module like the HC-05, RN4871, or ESP32 before soldering. Verify its voltage range–most operate at 3.3V, but some tolerate 5V logic–using the datasheet’s absolute maximum ratings. Exceeding these limits damages the silicon die.
- HC-05: 7 dBm output, 30-meter range, UART interface
- RN4871: +8 dBm, 100-meter range, dual-mode stack
- ESP32: +20 dBm, integrated antenna, Wi-Fi/LE multiprotocol
Arrange decoupling capacitors–10 μF bulk electrolytic and 0.1 μF ceramic–within 2 mm of the module’s power pins to suppress transients. Add a ferrite bead on the VCC line if conducted noise exceeds -80 dBc.
Route RF traces as 50 Ω microstrip lines if trace length exceeds 2 cm. Use a ground plane under the entire path, stitching it with vias spaced ≤λ/10 (≈6 mm at 2.4 GHz). Keep traces away from switching regulators and crystal oscillators to prevent harmonic mixing.
- Place the transceiver module at the board edge.
- Connect the antenna pad to a U.FL connector or PCB-printed inverted-F antenna.
- Add a 0 Ω resistor or jumper near the antenna feed for external antenna attachment during debugging.
- Include a 10 kΩ pull-up resistor on the module’s RESET pin to prevent floating during brownout.
- Interface logic levels–3.3V modules require logic shifters for 5V microcontrollers.

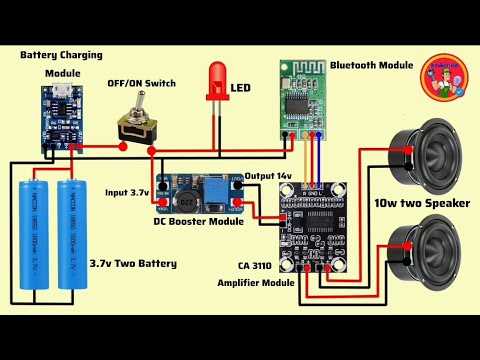

Essential Parts for a Wireless Communication Module Setup
Start with a Nordic nRF52832 or ESP32 microcontroller as the core processor–both offer integrated radio frequency (RF) capabilities, eliminating the need for a separate transceiver. The nRF52832 supports 2.4 GHz transmission with a power consumption of 5.3 mA in active receive mode, while the ESP32 provides dual-core processing and Wi-Fi compatibility, though it consumes ~80 mA under full load. Prioritize the chip’s antenna design: for the nRF52832, a printed inverted-F antenna (PIFA) or ceramic chip antenna (e.g., Johanson 2450AT18B100) ensures optimal signal strength with minimal board space. Match the antenna’s impedance to 50 ohms using a network analyzer to avoid signal reflections.
Power regulation demands a low-dropout (LDO) solution like the AP2112K (3.3V, 150 mA) or TPS62743 (adjustable, 300 mA) for battery-powered projects–buck converters introduce noise unsuitable for RF-sensitive applications. Include a 10 µF tantalum capacitor (e.g., Kemet T491) near the microcontroller’s VCC pin to stabilize voltage during transmission bursts. For pairing reliability, add a 100 nF decoupling capacitor across the crystal oscillator (32 MHz) to reduce frequency drift, and pair it with 18 pF loading capacitors for accurate clock synchronization. Avoid ceramic capacitors near sensitive traces, as they can introduce microphonic noise.
For interface stability, integrate pull-up resistors (10 kΩ) on I2C lines (SDA/SCL) to prevent floating signals, and keep trace lengths under 50 mm between the microcontroller and peripherals to minimize latency. If using an external flash memory (e.g., Winbond W25Q16JV), route SPI lines with matched impedances and separate grounds for analog and digital signals to reduce crosstalk. Test the setup with a network vector analyzer to verify the return loss stays below -10 dB across the 2.4–2.48 GHz band–critical for compliance with FCC/ETSI regulations.

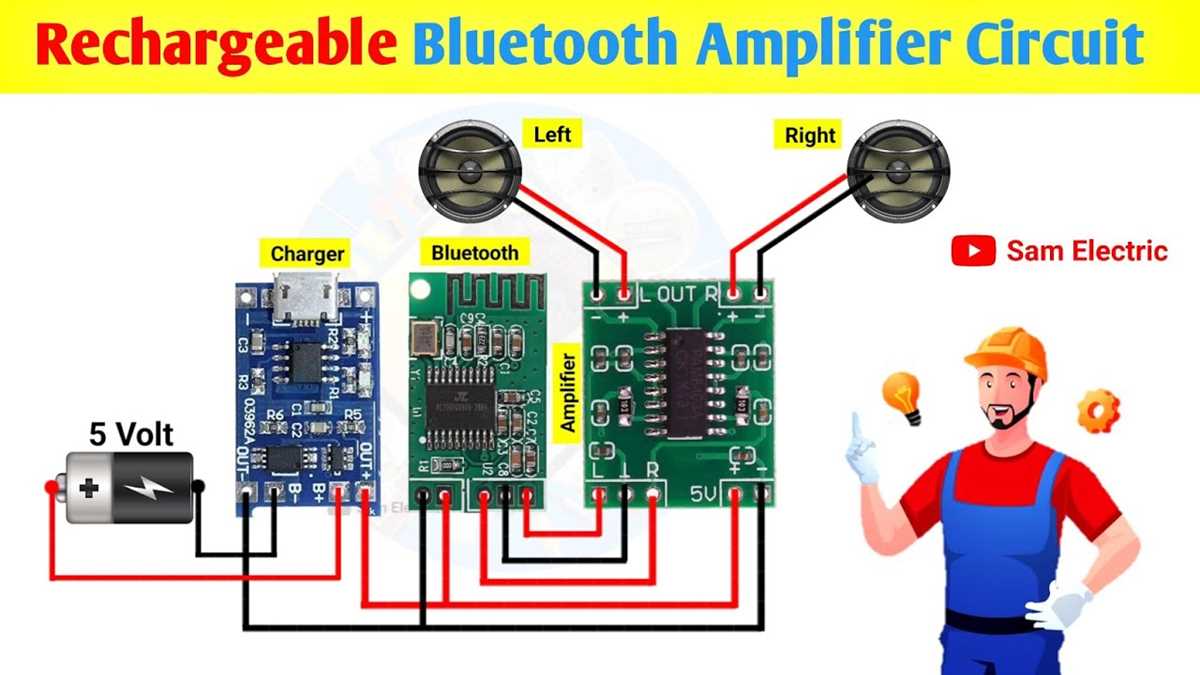

Connecting the Wireless Module to a Controller
Use a 3.3V logic level for the wireless transceiver (e.g., HC-05, RN42) to avoid damaging the microcontroller’s GPIO pins–most modern controllers (ESP32, STM32, ATmega328P) tolerate 3.3V, but verify the datasheet for absolute maximum ratings. Connect the module’s TX pin to the controller’s RX pin and vice versa, ensuring a common ground between both devices. For stable operation, add a 100nF decoupling capacitor between the transceiver’s VCC and GND, placed as close to the module as possible to filter noise.
For modules requiring hardware flow control (e.g., RTS/CTS), wire these pins to spare GPIOs unless the application runs simple serial communication (UART), where basic TX/RX suffices. Below are typical pin assignments for common controllers:
| Module Pin | ATmega328P (Arduino Uno) | ESP32 | STM32F103 |
|---|---|---|---|
| VCC | 3.3V (via regulator) | 3.3V | 3.3V |
| GND | GND | GND | GND |
| TX | RX (D0) | RX (GPIO16) | RX (PA10) |
| RX | TX (D1) | TX (GPIO17) | TX (PA9) |
Enable pull-up resistors on RX pins if the module lacks internal ones–most controllers (STM32, ESP32) include software-configurable pull-ups, but ATmega328P requires external 10kΩ resistors. For bidirectional communication, set identical baud rates (commonly 9600, 38400, or 115200) in both the transceiver’s firmware and the controller’s serial initialization code. Test connectivity with a simple loopback (short TX/RX momentarily) before integrating higher-layer protocols.
Power Delivery and Signal Integrity in Wireless Transmission Designs
Use a low-dropout regulator (LDO) with a dropout voltage below 200 mV for modules operating at 3.3 V to maintain stability under load transients. Linear regulators outperform switching converters in applications requiring noise levels under -80 dBc, though they dissipate more heat. Calculate thermal resistance: for a 500 mW load drawing 150 mA, expect a temperature rise of 25 °C on a standard 2-layer PCB without vias.
Position decoupling capacitors within 5 mm of the power pins. A 10 μF tantalum capacitor paired with a 0.1 μF ceramic (X7R dielectric) reduces voltage ripple to under 10 mV peak-to-peak during transmit bursts. Avoid capacitors exceeding 100 μF–self-resonance above 1 MHz can amplify noise rather than filtering it. Measure impedance with a network analyzer to confirm resonance frequencies align with the module’s transmit spectrum.
Separate analog and digital ground planes with a single point connection near the power source. A 1-mm gap between planes prevents high-frequency currents from contaminating sensitive paths. For mixed-signal designs, route the ground return for the RF front-end beneath its dedicated trace, avoiding loops that span more than 2 cm.
Switching regulators introduce spikes at harmonics of the switching frequency. For a 1 MHz converter, add a π-filter (22 μH inductor, two 22 μF capacitors) to attenuate spikes above 3.5 MHz. Ferrite beads (e.g., Murata BLM18PG121SN1) provide additional isolation–select a bead with impedance >800 Ω at 100 MHz to suppress conducted emissions.
Thermal and Load Considerations
Temperature derating curves for LDOs show a 0.5% voltage drop per °C above 85 °C. For outdoor deployments, use metal-film resistors rated for 150 °C and ceramics with NP0 dielectric to avoid drift. Measure load regulation: a 1% change in input (e.g., 3.6 V to 3.56 V) should not alter output by more than 0.2% for Class 2 modules.
Battery-powered devices benefit from a dual-stage supply: a buck converter for efficiency followed by an LDO to clean residual ripple. A TPS62743 (TI) buck converter at 2.2 MHz minimizes coil size, while a TLV70233 LDO ensures output noise stays below 30 μVrms. Validate with a spectrum analyzer–spurious emissions at 2.4 GHz must not exceed -40 dBm.
Trace inductance increases noise susceptibility. A 1-cm trace 0.25 mm wide adds ~7 nH inductance. For power rails, widen traces to 2 mm or use parallel paths. Avoid 90° bends–opt for 45° miters to reduce impedance discontinuities. Shield sensitive lines with ground pours on adjacent layers, keeping separation above 0.7 mm to prevent coupling.
ESD protection diodes (e.g., Onsemi ESD9X12) shunt transient voltages to ground but introduce capacitance (~0.5 pF per diode). Place diodes close to connector pins, not at the module, to prevent reflections. For medical-grade designs, add a transient voltage suppressor (TVS) like Littelfuse SLVU2.8-4 for 8 kV contact discharge compliance.
