Step-by-Step Boiler Zone Valve Wiring Diagrams and Connection Guide

Start by identifying the control board of your heating appliance–most residential units use a Honeywell RA89A, White-Rogers 50A55U, or Taco SR506-4. These boards expect a 24VAC supply from the transformer, which powers both the actuator motor and end switches. If the circuit lacks voltage at the board terminals during operation, check the transformer secondary winding resistance (typically 1.2–2.8 ohms) or replace a blown fuse rated at 3A.

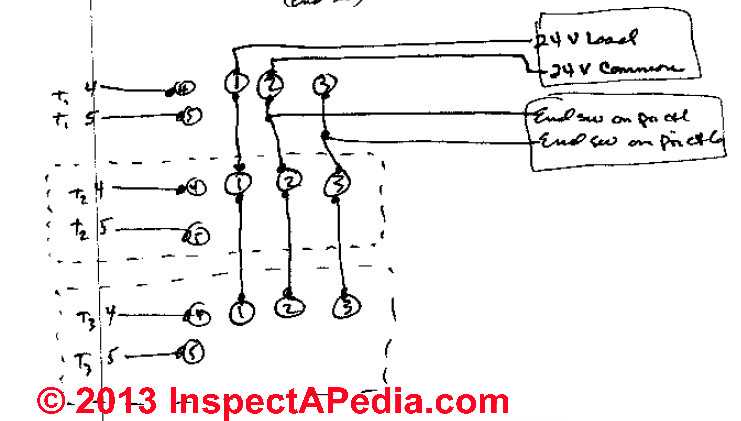

For series-connected actuators–common in multi-loop setups–each motor receives 24VAC in sequential activation. Wire the thermostat’s R terminal to the first actuator’s power input, then link its common output to the next actuator’s power input. The final actuator’s common output returns to the W terminal of the control board. Ensure each actuator’s end switch closes fully before engaging the next loop; failure causes erratic pump cycling or overheating. Verify continuity across the end switch contacts with a multimeter set to 200Ω–readings should drop below 0.5Ω when closed.

Parallel configurations require individual thermostat R-W circuits for each actuator. Assign one R wire from the transformer to each actuator’s power input, then route the common output to separate W wires from multiple thermostats. This isolates each loop but doubles transformer load–ensure the VA rating (minimum 40VA for two actuators) exceeds the sum of all connected loads. Use 18-gauge solid copper wire for runs under 50 feet; opt for 16-gauge stranded cable in longer circuits to prevent voltage drop exceeding 5%.

In systems with auxiliary pumps, wire the pump relay coil in parallel with the actuator. Connect the relay’s coil terminal to the actuator’s power input; the pump’s line terminal should attach to a dedicated circuit breaker (typically 15A). The relay contact’s load side links to the pump’s motor terminal. Test relay operation by measuring 24VAC across the coil when the actuator energizes–absence suggests a faulty relay or miswired circuit. Replace relays with burnt contacts or sticking armatures immediately to prevent pump run-on.

Color codes vary by manufacturer, but most use red (24VAC hot), white (thermostat signal return), green (actuator motor), and black/yellow (end switch common). Deviations in commercial setups–such as blue for neutral or orange for zone dampers–require cross-referencing installation manuals. Always label wires at both ends during installation and photograph connections before modifying. For three-wire actuators (e.g., Belimo LR24-SR), the third wire serves as a 24VAC feedback signal to confirm position–connect this to the board’s Z or ZC terminal if present.

Heating System Control Circuit Layouts

Begin by identifying the power supply terminals on your actuator–typically marked L (live) and N (neutral). Connect these directly to the corresponding mains leads, ensuring polarity matches to prevent short circuits. For 24V systems, use a dedicated transformer with isolated output to avoid interference with other low-voltage devices.

Most motorised flow regulators require three core connections: power, common, and switched live. Label each wire before disconnecting–red for power, black for common, and grey or orange for switched output. Verify colour coding against the manufacturer’s documentation, as variations exist between brands like Honeywell, Drayton, or Siemens.

• For single-port actuators, link the switched output to the circulation pump’s relay. This ensures the pump activates only when the circuit demands heat.
• Multi-port designs often need an additional end switch. Wire this to the heating appliance’s control board to confirm valve position before ignition.
• Thermistors or aquastats may integrate into the loop–attach these to the actuator’s auxiliary terminals using 0.5mm² cable.

Install a 3A fused spur for each circuit if local regulations demand individual protection. Position the fuse upstream of all connections to safeguard against overcurrent without disrupting neighbouring loops. Test continuity with a multimeter before energising–resistance should read near zero ohms between live and neutral when closed.

For time-controlled setups, wire the actuator’s switched output into a programmer or thermostat’s demand terminal. Use a three-port manifold system if blending multiple temperature zones–connect the bypass port to a balancing valve set at 0.3 bar differential pressure.

Isolate power before modifying any connections. Loose terminals cause arcing, which degrades contacts and voids warranties. Use crimped ferrules on stranded wire instead of bare ends to maintain conductivity and prevent fraying during vibrations.

1. Trace each lead back to its source before cutting or splicing–mistakes in Y-plan configurations can deadlock entire heating loops.
2. Check for voltage drop across long runs–keep runs under 20 metres for 24V systems to prevent signal degradation.
3. Seal unused terminals with silicone caps to prevent dust ingress, which increases contact resistance over time.

Retain a reference sketch of the layout before disassembly. Photograph existing connections if documentation is unclear–especially critical for W-plan hybrids where sequences involve four actuators. Match terminal indexing IDs (e.g., “2” for priority loop) across all components to avoid misalignment during startup.

Understanding Terminal Connections on Heating Control Actuators

Locate the labeled endpoints on any thermal flow regulator–typically marked as COM, NO, and NC–before proceeding. The COM (common) terminal serves as the reference point for switching, while NO (normally open) only completes the circuit when the device is energized. Conversely, NC (normally closed) maintains contact until power is applied, breaking the connection. Verify these assignments with a multimeter in continuity mode; activated switches should show near-zero resistance between COM and NO.

Some manufacturers integrate an end switch (often tagged as ES or SW) to signal full actuator travel. This auxiliary contact, usually rated for low-current signaling, confirms mechanical operation to the heating controller. When testing, manually rotate the actuator shaft to its limit–listen for a distinct click, indicating the switch has toggled. Failure to engage here suggests either misalignment or internal damage requiring replacement.

Interpreting Multi-Wire Configurations

Larger control devices may feature additional terminals like Power (24V), Signal (SG), and Feedback (FB). The Power input drives the motor or solenoid, while Signal receives control commands from thermostats or relays–confirm polarity if DC. The Feedback output, when present, relays real-time position data to monitoring systems. Check voltage levels with the actuator in different states: powered (24V at Power) versus idle (0V at Feedback unless externally sourced).

For units with three-position actuators, identify Open (O) and Close (C) terminals alongside COM. These require a reversing signal (e.g., +24V on O to extend, +24V on C to retract). Use a phase tester to trace wiring polarity–incorrect pairing risks short-circuiting the motor windings. Isolate these terminals during bench testing to avoid accidental reversal damage.

Safety interlock terminals (e.g., S1/S2) appear on select models, designed for external overrides or safety shutdowns. These bypass normal operation when connected, typically grounding the circuit to force a fail-safe state. Verify their function by bridging the terminals–observe whether the actuator refuses movement or defaults to a neutral position. Consult the specific product manual for exact behavior, as designs vary between brands.

Troubleshooting Unmarked or Worn Labels

When terminals lack clear markings, probe for continuity between pairs to deduce functionality. Start with the largest gauge wires–these usually carry motor current. Smaller wires often correspond to signaling or feedback. Note resistance values: motors typically show 20–200Ω across their windings, while switches should alternate between open (~∞Ω) and closed (~0Ω) when cycled. Burn marks or discoloration near terminals signify past overheating–inspect for loose connections or undersized wiring.

For damaged labels, cross-reference with technical documentation using the device’s model number–most manufacturers provide terminal maps as downloads. If unavailable, physically trace wires to control modules; thermostats usually connect to NO/NC via 18–22 AWG cable. Color codes like red (power), white (common), or blue (signal) follow industry conventions but always confirm with a meter. Avoid relying on visual inspection alone–corroded terminals may appear functional but drop voltage unpredictably.

Final validation requires observing the actuator’s response to simulated commands. Apply 24VAC (or as specified) to each terminal pair while monitoring movement, LED indicators, or audible feedback. Unresponsive units may need firmware resets or replacement if internal faults are confirmed. Document findings for future reference–misidentified terminals lead to cascading failures in multi-stage systems.

Installing Honeywell Multi-Port Actuators: A Precise Guide

Locate the thermostat cables first–these typically include red (power), white (load), and a common return (often blue or black). Honeywell VR8200 and V8043 models require 24VAC from a control transformer; verify voltage with a multimeter before connecting. Strip 6mm of insulation from each conductor, but avoid twisting strands–exposed copper increases resistance.

Attach the power lead to the “R” terminal on the actuator baseplate. The load wire connects to the “W” terminal, while the common return secures to “C.” For systems with end switches (e.g., VR8300), wire the auxiliary contacts in parallel to the pump relay coil–this ensures circulation starts before flow begins. Double-check polarity: reversed connections trigger error code E4 (Honeywell’s self-diagnostic fault).

Sequence for Series Connections

1. Identify the first actuator in the chain–this unit links directly to the transformer.
2. Use 18AWG solid wire for jumpers between actuators; stranded wire risks loose terminations.
3. Connect the “R” output of the first actuator to the “R” input of the second, repeating for all subsequent units.
4. Terminate the common return at the last actuator in the series–do not daisy-chain this lead.
5. For fail-safe operation, wire the “C” terminals in a star configuration back to the transformer.

Honeywell’s adapters include a manual override lever–test each actuator by rotating it 90° clockwise. If the motor hums but doesn’t engage, check for 24V at the terminals; voltage drops below 22V indicate undersized transformers or excessive cable runs. Use a 40VA transformer for systems with more than three actuators.

• VR8205 models: Require a separate 120V feed for the internal relay–do not confuse this with the 24V control circuit.
• Dual-port units (e.g., V8043FA): Wire the “H” terminal to the heating circuit and “C” to the chiller–reverse these and the actuator defaults to cooling mode only.
• Smart adapters (e.g., S8610): Pair via Honeywell’s “RedLINK” module–Ethernet connections are optional but mandatory for app-based monitoring.

After securing all connections, power on the system and observe the actuator’s LED: steady amber confirms standby, flashing green indicates active flow, and rapid red denotes a fault. If the motor stalls, inspect the gearbox–Honeywell recommends lithium grease (Molykote G-4500) for seasonal maintenance. Isolate the circuit before servicing: capacitors retain charge for up to 30 minutes even after power removal.
