How to Read and Interpret Automotive Air Conditioning Wiring Diagrams
Start by locating the compressor clutch relay–it’s typically fused at 10A and sits near the climate control module or under the dashboard, depending on the model. If the relay clicks but the clutch doesn’t engage, probe the relay’s output terminal with a multimeter: you should read battery voltage (12-14V) when the climate control is activated. No voltage? Inspect the pressure switch next–low refrigerant or a faulty sensor will cut power to the clutch circuit.
Trace the wiring harness from the blower motor resistor pack to the fan speed selector. Many systems use a series-parallel resistor network with values between 0.5Ω and 2Ω; corrosion here causes erratic fan speeds. For dual-zone layouts, identify the temperature blend door actuators–each draws around 200mA and communicates via a LIN bus or PWM signal (50-450Hz). Incorrect voltage here locks the door in place, leading to uneven cooling.
Examine the expansion valve’s sensor wiring: a 5V reference signal from the climate ECU should return 0.5-4.5V based on evaporator temperature. If readings stagnate, replace the NTC thermistor–it fails faster than the valve itself. For automatic systems, check the sunlight sensor’s connection: it alters fan speed and blend door positioning based on 0-5V input. Disconnect it to test; if cooling improves, clean or replace the sensor.
Ground connections degrade first. Verify all chassis grounds, especially near the firewall–resistance above 0.3Ω indicates corrosion. Use a 16-gauge jumper wire to bypass suspect grounds. For systems with auxiliary heaters (diesel vehicles), confirm the PTC heater’s control module receives a 12V enable signal before engaging. No signal? The coolant temp sender or ECU is likely faulty.
Digital climate units rely on CAN bus communication–use a scan tool to verify data stream integrity (baud rate 500kbps for most models). Missing data packets point to a wiring fault or failed control panel. For hybrid layouts, isolate high-voltage circuits (typically orange wiring) before probing: accidental contact risks arcing and permanent damage to the inverter.
Understanding Vehicle Climate Control Wiring Layouts
Start by locating the compressor clutch relay on the electrical blueprint–usually marked near the top left of the fuse box section. Trace its power feed back to the ignition switch (terminal 15) to verify the circuit isn’t interrupted by corroded connectors, a frequent failure point in systems older than 5 years. Ensure the thermal cutout switch, often positioned on the accumulator, shows continuity below 3°C (37°F); if readings exceed 0.5 ohms at idle, replace it before proceeding to refrigerant checks. The pressure cycle switch (typically 30-350 psi range) must be tested with a multimeter under load–values outside 0.1-0.3 ohms indicate internal wear requiring immediate servicing to prevent compressor damage.
Critical Pathways and Common Failure Points
Inspect the blower motor resistor block for heat discoloration–darkened solder joints mean imminent failure. The blend door actuator circuit (usually 3-5 wires) should toggle smoothly between 0.5V and 4.5V DC when adjusted via climate controls; erratic readings confirm gear stripping requiring actuator replacement. On automatic systems, the sunload sensor (mounted on the dashboard) must output 0.5-4.7V proportional to light intensity–any deviation suggests lens fogging or internal sensor degradation. For dual-zone setups, verify the left/right temperature potentiometers move jointly; a differential exceeding 0.2V indicates a faulty synchronization cable or failed stepper motor.

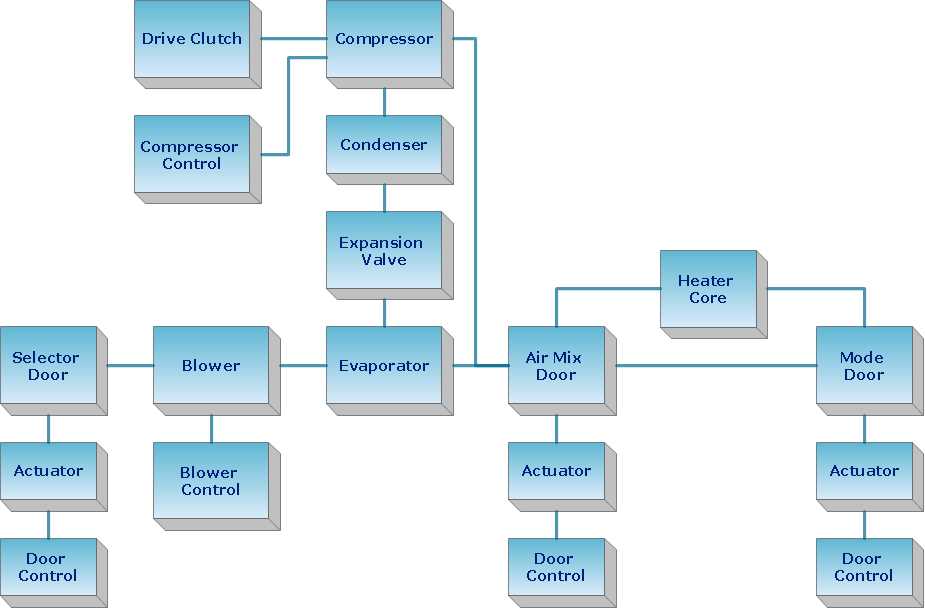

Critical Parts of Vehicle Climate Control Systems and Their Placement
Begin troubleshooting by locating the compressor–attached to the engine’s front, typically near the serpentine belt. This unit pressurizes refrigerant, converting it from gas to liquid before circulation. Verify its clutch engages audibly when climate controls activate; inconsistent engagement points to electrical faults or low refrigerant. If the system blows warm air, inspect the condenser, mounted ahead of the radiator. Debris buildup or bent fins restrict airflow, reducing cooling efficiency–flush or straighten fins with compressed air or specialized tools.
The receiver-drier (or accumulator in orifice-tube systems) sits between the condenser and expansion valve. Its dual role includes filtering contaminants and removing moisture–replace it immediately if refrigerant contamination is suspected, as neglected moisture degrades lubrication and corrodes internal components. For expansion-valve systems, locate the thermal expansion valve at the evaporator inlet; a faulty valve disrupts refrigerant flow, causing erratic cooling. Test by checking for frost buildup at the outlet, signaling blockage.
Identify the evaporator core inside the dashboard’s HVAC module–its coils must remain frost-free during operation. Clogged drain tubes cause condensate to pool, leading to mold growth and foul odors; clear blockages with a flexible wire or high-pressure air. Lastly, the pressure switches (high/low-side) mount along refrigerant lines near the compressor–triggered by abnormal pressures, they protect the system from damage. Bypass switches only temporarily for diagnosis; persistent activation requires professional servicing to avoid catastrophic compressor failure.

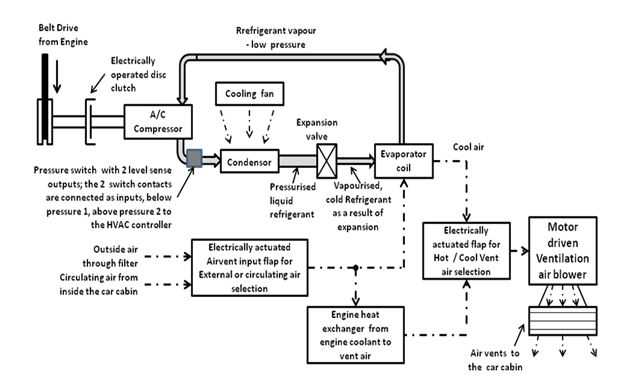

Interpreting Electrical Paths and Coolant Circulation in Climate Control Blueprints
Identify power sources first–look for the battery symbol or fuse links in the electrical layout. Trace the thickest lines: these typically represent high-current feeds to the compressor clutch, blower motor, and condenser fan. Thin lines often indicate signal wires for sensors like the pressure switch or thermostat.
Locate the compressor relay near the power distribution block. Its coil circuit usually receives a control signal from the climate control module, while the switched contacts deliver current to the magnetic clutch. Check for a dedicated fuse inline with this path–failure here cuts refrigerant circulation entirely.

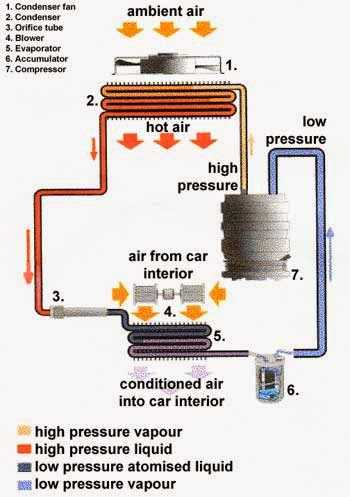

Follow coolant lines using color-coded tubes in the flow chart. High-pressure liquid leaves the condenser as a subcooled stream, marked red, and enters the expansion valve. Post-valve, the low-pressure vapor-iquid mix appears blue, heading to the evaporator. Cross-reference these colors with actual lines under the dash to verify routing.
Map sensor locations by their symbols: a thermistor icon sits near the evaporator outlet, while pressure transducers flank the receiver-drier. Each sensor connects to a distinct pin on the control module–match pin numbers to the wiring legend to confirm correct voltage ranges (typically 0-5V for analog signals).
Confirm cycling clutch operation by finding the dual-pressure switch cluster. The low-pressure cutoff typically triggers at 25-30 psi, while high-side protection engages near 350-400 psi. Both switches interrupt the compressor clutch circuit when thresholds are breached, preventing system damage.
Check for a condenser fan override path–some systems run the fan continuously when refrigerant pressure exceeds 220 psi, bypassing normal temperature-based control. This circuit often parallels the main fan relay but includes an independent pressure switch contact.
Verify ground points marked by downward triangles or “G” labels. Poor grounding causes intermittent operation; scrape paint from chassis mount points and torque to 10-12 Nm. Common ground locations include the compressor body, evaporator case, and near the blower housing.
Test component connectivity with a multimeter: probe clutch coil resistance (3-5 Ω), fan motor windings (1-3 Ω), and sensor output (0-5V sweep). Compare readings against the legend–values outside tolerance indicate failed parts or corroded connectors.
Key Symbols and Annotations in Vehicle Climate Control Blueprints
Begin interpretation by locating the compressor symbol–typically a circular element with diagonal lines or a shaded triangle, often marked “CMP” or “COMP.” This component is the heart of the thermal regulation loop, converting refrigerant from gas to high-pressure liquid. Adjacent labels like “CLUTCH” or “EL MAG” denote the electromagnetic engagement mechanism; verify its connection to the electrical harness via dashed lines.
Condensers appear as zigzag or serpentine shapes, frequently labeled “COND” or “RAD.” Expect sub-annotations like “FAN” for cooling fans–note their power source (usually 12V) and relay-controlled circuits. Expansion valves, drawn as small rectangles with a diagonal slash, are critical for pressure drop; check for annotations like “TXV” or “OT” (orifice tube) to confirm the metering device type.
Evaporators resemble compact coils, annotated “EVAP” or “HEAT EXCH.” Look for thermal sensors nearby (e.g., “TEMP SENSOR” or “THERMISTOR”), often wired to the climate control module. Drain tubes–small circles or bent lines exiting the evaporator housing–must be unobstructed to prevent moisture buildup. Inspect for labels like “HVAC BOX” indicating the integrated assembly.
Refrigerant Flow Path Annotations
| Symbol | Label Variations | Flow Direction Notes |
|---|---|---|
| Solid arrows | “HP” (high pressure), “LP” (low pressure) | Aligns with refrigerant movement; color-coding (red/blue) may denote pressure zones |
| Dashed lines | “SUCTION,” “DISCHARGE,” “LIQ LINE” | Connects primary components; verify diameter specs for pipe integrity |
| Dotted circles | “SERVICE PORT,” “SCHRADER VALVE” | Correlates to maintenance access points; ensure compatibility with recovery equipment |
Filter-driers–cylindrical symbols labeled “F/D” or “DESICCANT”–should be positioned between the condenser and expansion valve. Their orientation matters: inlet/outlet arrows must align with refrigerant flow. Electrical components like pressure switches (“HI/LO PRESS,” “PSW”) trigger at ~450 psi (high cutoff) and ~25 psi (low cutoff); cross-reference these values with manufacturer specs for the R-134a or R-1234yf systems.
Electrical and Sensor Notations
Relays appear as rectangles with internal switch symbols, labeled “A/C RELAY” or “FAN RELAY.” Trace their 85/86 pins to the fuse box and 30/87 pins to the compressor clutch or fan motor. Blower motor symbols–circular with radial lines–are often paired with resistor networks (“BLOWER RESISTOR”) for speed control; check for corrosion at the wiring harness connections.
Thermostats and ambient sensors (“AMB SENSOR,” “CABIN SENSOR”) use temperature-dependent resistors. Their resistance values–typically 10kΩ at 25°C–should be validated with a multimeter. Labels like “ACTUATOR” or “STEPPER MOTOR” denote flap control for air distribution; these require
Diagnostic connectors (“DLC” for OBD-II ports) may interface with the climate system via CAN bus. Look for labels like “CAN-H” and “CAN-L” near the control module; incorrect voltage levels (±2.5V) can cause fault codes related to “U0100” or “communication error.” Always cross-reference symbols with the specific OEM manual–Ford uses different notations than Toyota or VW for identical components.
Pressure relief valves–small triangles labeled “PRV” or “SAFETY VALVE”–are designed to vent at ~550 psi. Their placement on the compressor discharge line is non-negotiable; incorrect installation risks catastrophic system failure. For hybrid/electric vehicles, high-voltage warnings (orange cables) near the thermal management system require insulated tools and certified technicians for servicing.
