Step-by-Step Car Amplifier Wiring Guide with Clear Circuit Diagrams

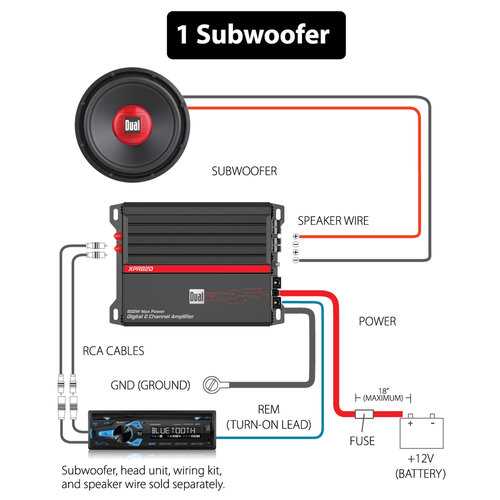

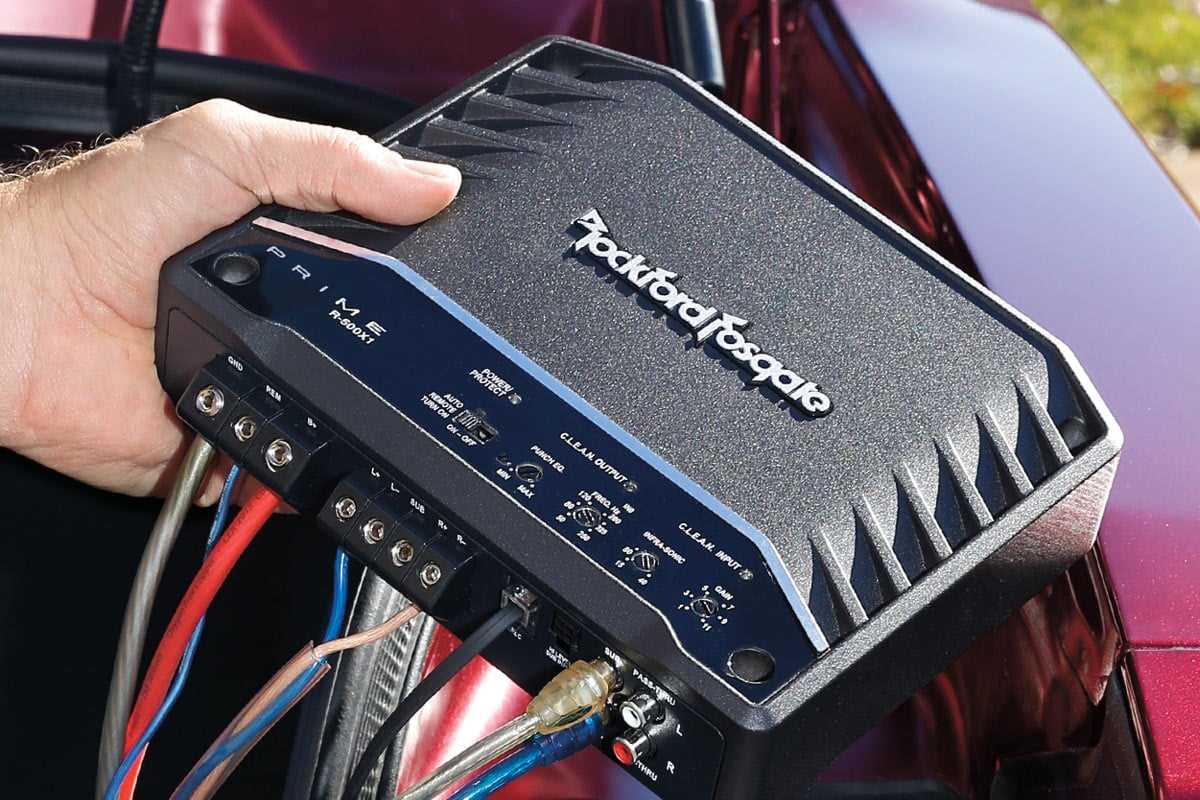

Begin by identifying power requirements for your aftermarket sound processor. Most 4-channel units demand 4-gauge cables for power and ground connections, while monoblock configurations may need 2-gauge or thicker. Verify current draw (amperage) from the manufacturer’s specs to select correct cable thickness–undersized wires risk overheating and potential fire hazards.

Mount the power source (battery terminal) first, ensuring a near-zero resistance ground. Use a ring terminal crimped securely to the chassis, avoiding painted surfaces where oxidation could disrupt connectivity. Ground cables should be no longer than 18 inches from the processor to prevent signal degradation.

Fuse placement matters more than wire length. Install an ANL or mini-ANL fuse within 18 inches of the battery to protect the system. Skip this step, and a short circuit could melt insulation or damage components before you identify the issue.

For signal cables, keep RCA interconnects away from power leads. Cross power and signal wires at 90-degree angles to minimize interference. If your setup includes a capacitor, wire it in parallel with the processor’s power input–this instantaneously stabilizes voltage during bass-heavy passages.

Test with a multimeter before finalizing connections. Check for 12.6V at the processor’s power terminal and 0.0 ohms between ground and any chassis point. If voltage drops below 12.2V under load, upgrade wire gauge or add a dedicated power distribution block.

Label all cables with heat-shrink tubing or adhesive tags. Color-code wires (red for power, black for ground, blue for remote turn-on) to simplify future troubleshooting. Adhesive-lined connectors ensure corrosion-free joints–tin-plated copper resists oxidation better than bare strands.

When routing cables beneath seats or through door gaskets, use grommets to prevent chafing. Avoid sharp edges in the vehicle’s frame; even slight abrasions can fray insulation over time. Secure cables every 18 inches with nylon clamps to prevent sagging, which can cause intermittent connections.

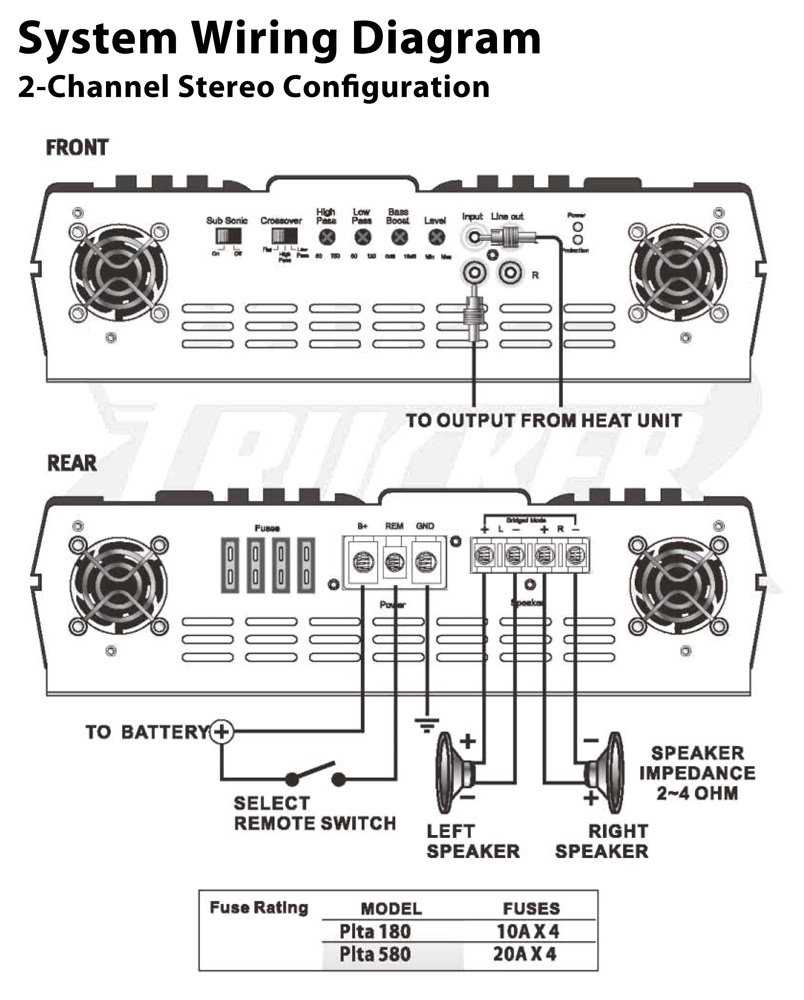

How to Connect Your Audio System Correctly

Begin by identifying the power cable gauge suitable for your setup – 4-gauge for systems under 500 watts RMS, 0-gauge for anything exceeding 1,000 watts. Secure the main power line directly to the vehicle’s battery, using a fuse within 18 inches of the terminal to prevent short circuits. Avoid grounding to painted or corroded surfaces; instead, attach the negative lead to a clean, bare metal section of the chassis near the installation site. Use crimp connectors with heat shrink tubing for all connections to ensure durability and prevent oxidation.

Signal Cables and Speaker Integration

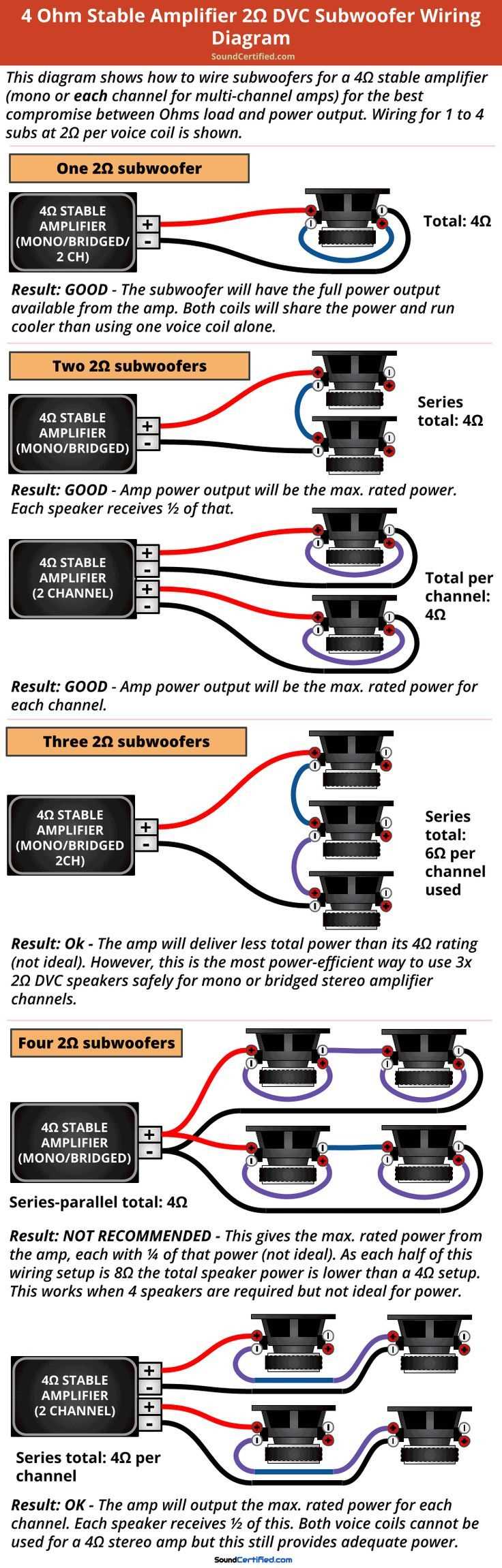

Route RCA cables away from power lines and ignition wires to minimize interference – maintain at least 12 inches of separation. If signal noise persists, consider shielded twisted-pair cables or grounding isolators. For multi-channel setups, match impedance between outputs and speakers: 2-ohm loads on amplifiers rated for low impedance, 4-ohm on standard units. Verify wiring polarity by testing with a 9-volt battery – the cone should move outward when positive meets positive.

Install a line output converter if integrating with factory radios lacking high-level outputs. Connect the converter between the head unit’s speaker wires and the amplifier’s inputs, adjusting the converter’s sensitivity to match the radio’s output voltage (typically 2-8 volts). For passive crossovers, place them between the amplifier and tweeters, setting slopes to 12 dB/octave for balanced high-frequency response. Avoid daisy-chaining crossovers, as this reduces efficiency and clarity.

Use a digital multimeter to verify all connections before powering the system. Check for 12-14 volts at the amplifier’s power terminal and near-zero resistance between the ground terminal and chassis. Test RCA cables for continuity and speakers for proper polarity by reversing leads if phase issues arise (sound cancellation). Secure all cables with zip ties every 12 inches, avoiding sharp edges or moving components. For high-current systems, consider a second battery or capacitor to prevent voltage drops during peak demand.

Selecting the Optimal Cable Thickness for Your Audio System Installation

For a 50-watt RMS unit powering a single 4-ohm speaker, use 16-gauge copper cables spanning up to 5 meters. This thickness balances minimal voltage drop (≤0.2V) while preventing excessive heat buildup. At 8 meters, switch to 12-gauge to maintain efficiency–anything thinner risks power loss exceeding 5%, compromising bass response and dynamic range. Avoid aluminum conductors; their higher resistivity demands thicker gauges for equivalent performance, increasing installation complexity.

Systems outputting 100 watts RMS or more require 10-gauge wiring at minimum. For dual-channel setups driving 4-ohm loads, 8-gauge becomes mandatory if cable runs exceed 3 meters. Bridged configurations, which effectively halve impedance, necessitate stepping up to 6-gauge to handle the increased current draw. Always verify manufacturer specifications–some high-efficiency Class D units permit slightly thinner cables due to lower idle current, but deviations beyond ±1 gauge void warranty coverage in most cases.

Fuse protection must match cable capacity: 20-amp for 16-gauge, 40-amp for 12-gauge, and 60-amp for 10-gauge. Position the fuse within 18 inches of the battery’s positive terminal to prevent fire hazards. For runs longer than 8 meters, consider upgrading to 4-gauge and adding a distribution block near the midpoint to reduce voltage sag. Oxygen-free copper (OFC) offers marginal improvements in conductivity over standard copper–only worth the premium for competitive sound systems where every 0.1V counts.

Environmental factors alter requirements. Engine bay installations expose cables to temperatures 20-30°C above cabin conditions, accelerating resistance increases–use one gauge thicker than calculated. Subwoofers in sealed enclosures tolerate minor power loss better than components; Dedicated sub feeds can occasionally use 14-gauge up to 4 meters if absolute maximum output isn’t critical. Never daisy-chain multiple channels off a single feed–parallel wiring halves current capacity per component, risking overheated cables and melted insulation.

How to Secure Main Power and Earth Lines for Your Audio System

Select an 8-gauge or thicker copper cable for the main power line to handle current draw without voltage drop. Route it directly from the battery’s positive terminal, avoiding sharp edges and moving parts. Use a fuse holder within 18 inches of the battery to prevent fire hazards–match the fuse rating to the device’s manual, typically 60-150 amps for high-output systems.

Attach the power line to the battery using a ring terminal crimped with a hydraulic crimper for maximum conductivity. Apply dielectric grease to the connection to prevent corrosion, especially in humid or salty environments. Secure the cable with plastic clamps every 12 inches to avoid sagging or contact with metal surfaces.

Choose a grounding point on the vehicle’s chassis near the audio unit, ensuring it’s bare, unpainted metal. Sand the area down to shiny steel for the best electrical contact. Use the same gauge for the ground line as the power cable to maintain consistency in current flow. Avoid bolts shared with other electronics to prevent interference.

Connect the ground cable using a star washer between the ring terminal and chassis to dig into the metal, ensuring a solid bond. Tighten the bolt to at least 15 ft-lbs of torque–loose connections cause noise and power loss. Test the resistance with a multimeter; readings over 0.5 ohms indicate a poor ground that needs rework.

For remote turn-on, splice a 18-gauge wire from the head unit’s control output to the audio device’s trigger terminal. Add a 1-amp inline fuse to protect the circuit. If the system lacks a remote wire, use a relay triggered by an accessory circuit, ensuring it draws minimal current to avoid draining the battery.

Insulate all exposed connections with heat-shrink tubing or electrical tape, overlapping each wrap by half to seal out moisture. Use grommets when passing cables through metal panels to prevent chafing. Label both ends of every wire with numbered tags to simplify troubleshooting later.

After installation, verify all connections by powering on the system at half volume. Listen for crackling or distortion–these signal loose grounds or power issues. Measure voltage at the audio device’s terminals; a drop below 12.5 volts under load means rerouting or upgrading the power line.

For final adjustments, twist signal and RCA cables together to reduce interference. Keep them at least 6 inches from power lines to avoid electromagnetic interference. Recheck all screws, clamps, and fuse tightness after 100 hours of use–vibration loosens connections over time.

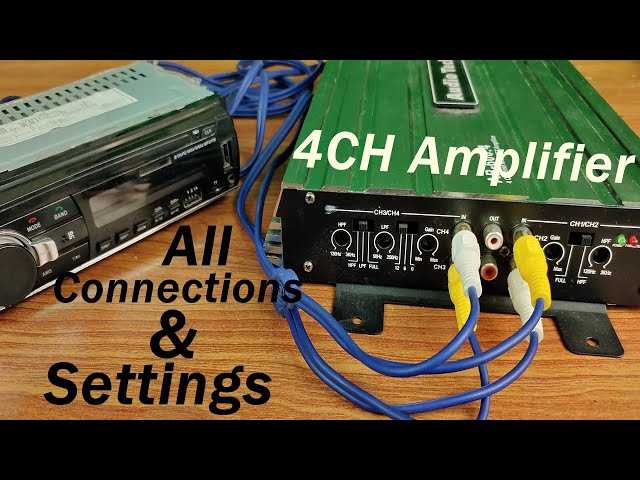

Proper RCA Cable Connection Between Audio Source and Power Booster

Select shielded RCA cables with at least 22 AWG copper conductors to minimize interference from alternator whine, ignition noise, or nearby electrical components. Avoid flat or unshielded cables when routing near power cables, as they pick up electromagnetic interference more easily. Measure the required length before cutting–excess cable creates signal degradation, while too short forces tight bends that stress connections.

Route RCA cables on the opposite side of the vehicle from power cables whenever possible. If crossing is unavoidable, maintain a perpendicular angle to reduce coupling. Secure cables with adhesive clips or zip ties every 8–12 inches, avoiding tight loops that act as antennas for noise. Never bundle RCA cables with power wires, even temporarily.

• Use gold-plated connectors for corrosion resistance and better conductivity.
• Inspect cable ends for damaged shielding or loose grounds before installation.
• Test cables with a signal generator before closing panels to ensure no shorts.

Before connecting, ensure both the audio source and power booster are powered down. Ground loop isolators or inline noise filters may be necessary if alternator noise persists after proper routing. For systems with multiple channels, label each RCA cable at both ends to avoid miswiring–crossed channels lead to phase cancellation or channel imbalance.

When inserting connectors, apply firm but even pressure–never force a connection. Loose or partially inserted RCAs cause intermittent audio or crackling. After installation, play a low-frequency test tone (e.g., 60Hz sine wave) and check for distortion before securing trim panels. If noise occurs, systematically disconnect and reconnect cables to isolate the issue.

Avoid routing RCA cables near spark plug wires, fuel pumps, or aftermarket ECU components, as these generate high-frequency interference. If the vehicle has a hybrid or electric drivetrain, consult specific grounding guidelines–some high-voltage systems require isolated signal paths to prevent damage to electronics.

1. Verify all connections with a multimeter in continuity mode before powering on.
2. Use split loom conduit for exposed cable runs in high-wear areas (e.g., under seats).
3. Replace any RCA cable showing signs of kinking, fraying, or oxidized connectors.
