Step-by-Step Guide to Wiring Fire Alarm Systems for Safety Compliance

Start with a centralized control unit positioned at least 1.5 meters above floor level in a dry, ventilated area. Use a 22 AWG minimum conductor size for signal loops, ensuring compliance with NFPA 72 for resistance limits–no more than 50 ohms per circuit path. Branch lines must split via an isolation module if serving more than 20 devices to prevent single-point failure.

Select heat-rated cables: 90°C-rated THHN for exposed runs or mineral-insulated types for high-hazard zones. Ground each shield at only one end using a 10 kΩ resistor to suppress noise. Label every junction box with identifier codes matching the schematic–use alphanumeric tags no longer than 12 characters.

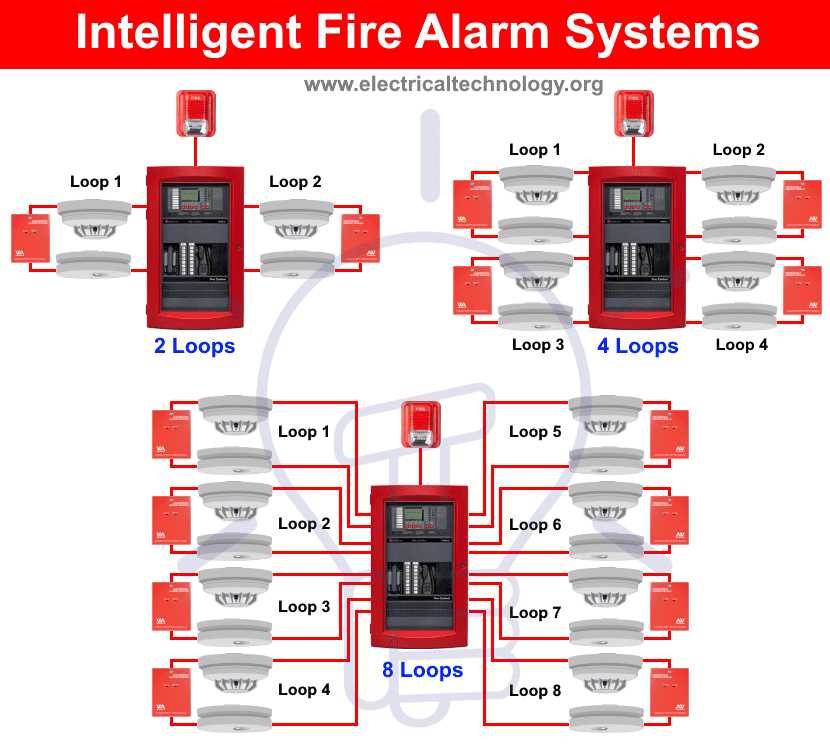

Install initiating loops in daisy-chain topology, limiting each loop to 50 devices with a 5 mA quiescent current draw. Verify voltage drop using Ohm’s law: ∆V = I × R × L, keeping drop below 10% of nominal. For notification loops, employ Class B wiring with end-of-line resistors (4.7 kΩ, ½ W) and test weekly via push-button simulation.

Map power distribution first: dedicated 24 VDC feed from a listed power expander with battery backup sized for 24-hour runtime. Color-code conductors: red for +24 V, black for return, yellow for supervised circuits, blue for auxiliary contacts. Keep runs under 300 meters–beyond that, insert a repeater panel every 250 meters.

Terminate all strands with compression ferrules; solder joints are prohibited. Use certified strain reliefs at every penetration–no gaps larger than 3 mm. Document every splice point with a photo and include it in the as-built drawings. Test continuity before energizing, then perform 100% sensitivity calibration within 5% tolerance.

Essential Safety Circuit Layouts for Emergency Detection

Use Class B ( Style 4) loops for initiating devices in smaller installations–under 10,000 sq ft–where conduit runs exceed 400 meters. This arrangement ensures that a single break in the circuit won’t disable the entire line, activating only devices beyond the fault point. Terminate each loop with an end-of-line resistor rated at 4.7 kΩ, 1/2 watt, to maintain supervision current between 2-10 mA.

For notification appliances, employ Class A (Style 7) loops when audible or visual signals must operate independently if a break occurs. Connect horns or strobes in parallel branches, with each branch containing no more than 15 devices to prevent voltage drop below 20VAC. Use 18 AWG solid copper conductors, shielded if running adjacent to power lines, with a 600V insulation rating.

Control Panel Integration

Wire detection loops to the main panel’s NAC (Notification Appliance Circuit) terminals, ensuring polarity matches the manufacturer’s labeling–typically red (+) and black (–). Separate zones should connect to dedicated inputs, each fused at 1.25x the circuit’s maximum load. For addressable units, insert shorting bars between terminals labeled “COM” and “IN” to enable loop communication.

Ground the panel chassis to a dedicated 3/4-inch copper rod driven at least 8 feet into the earth, bonded with a 6 AWG bare copper conductor. Avoid connecting to structural steel or water pipes, as transient voltages can interfere with signal integrity. Verify ground resistance below 5 ohms using a megohmmeter before energizing the setup.

Troubleshooting Common Errors

If devices fail to respond, first measure loop voltage at the panel–expected values range from 16-24V for conventional circuits and 19-28V for addressable ones. Check for reversed polarity on individual devices, a frequent cause of silent failures. Verify that all terminations use compression splices rather than wire nuts, which can loosen under thermal cycling.

Critical Elements for Your Emergency Signal Circuit Schematic

Integrate a main control panel as the primary node, clearly marking its power inputs, battery backup terminals, and output connections for detection loops. Specify voltage ratings (e.g., 24VDC) and include fuse ratings near each conductor path to prevent overload.

Designate initiating device circuits (IDCs) for manual pulls and automatic sensors, separating them into zones no larger than 20 devices per loop for easier troubleshooting. Label each zone with alphanumeric identifiers (e.g., “Z1-Smoke-Lvl1”) and show end-of-line resistors (typically 4.7kΩ) to enable supervision.

Include notification appliance circuits (NACs) for horns, strobes, and speakers, specifying current draw per device (commonly 30-100mA) and total circuit load. Add diode isolation for mixed notification modes (audible/visual) and mark conductive paths with wire gauge (18-12 AWG) based on voltage drop calculations.

Delineate power distribution from the primary source to secondary panels or remote modules, using dedicated lines for high-power devices like air horns. Indicate transformer ratings (e.g., 40VA) and conduit types (EMT vs. flexible) where applicable, especially in hazardous locations requiring conduit seals.

Detail interface connections for elevators, HVAC shutdown, and door releases, showing relay contacts and control voltages (e.g., dry contacts for 120VAC fail-safe relays). Include timing delays (typically 10-30 seconds) for shutdown sequences to allow verification before activation.

Supervisory and Auxiliary Additions

Incorporate proving loops for water flow switches and valve tamper contacts, using low-current signaling (20-50mA) to detect faults without triggering false positives. Note splice locations and supervision modules (e.g., addressable monitors) where loop resistance exceeds 100Ω.

Add grounding symbols at the main bonding point, equipment grounding conductors, and isolated grounds for sensitive components. Specify grounding electrode types (copper-clad steel vs. galvanized rod) and resistance targets (<5Ω) per NFPA requirements.

Provide legend annotations for abbreviations (e.g., “EOL” for end-of-line resistor, “FS” for flow switch) and color-coding conventions. Include a table of wire types (THHN, RHH) with temperature ratings and maximum conduit fill percentages. Cross-reference to local code sections (AHJ amendments) for derogations like conduit size exemptions.

Step-by-Step Guide to Drafting a Conventional Emergency Signal Circuit Outline

Begin by labeling the control panel as the central hub. Use a 22 AWG solid copper conductor for initiating device circuits, ensuring compliance with NFPA 72 Section 12.3.1 for spacing–maintain 10-foot intervals between detection elements along a single run. Sketch the loop in a Class B configuration if fault tolerance is optional; opt for Class A with redundant return paths if continuity is critical. Mark power supervision resistors (4.7 kΩ) at the loop’s end to signal open-circuit faults to the panel.

List required components before drawing: 16–24 VDC supply, 20–30 detectors per zone (thermal, optical, or multi-criteria), manual call points spaced ≤200 ft apart, and notification appliances (strobes, horns) wired in parallel with a maximum allowable voltage drop of 10%. Use red ink for positive conductors, blue for negative, and black for common returns in compliance with NEC Article 760. Verify loop resistance remains ≤100 Ω for proper fault detection; adjust conductor gauge if exceeding limits. Terminate all splices in listed junction boxes with 600V-rated insulation.

Common Mistakes When Connecting Initiating Devices in Circuit Layouts

Avoid mixing incompatible loop protocols. Devices from different manufacturers often use proprietary communication methods–confusing an analog addressable pull station with a conventional heat detector can cause false triggers or silent failures. Verify specifications before pairing: a 2-wire smoke sensor won’t work on a 4-wire loop, and resistors meant for one brand may not match another’s impedance requirements.

Ignoring Environmental Factors

• Placing thermal detectors near vents or heat sources leads to nuisance activations.
• Moisture ingress from improper gland seals corrodes terminal connections within weeks.
• Exceeding cable run lengths (typically 2,000 ft for Class B circuits) weakens signal integrity.
• Failing to shield conductors in high-EMI areas like elevator shafts or near industrial machinery.

Use twisted-pair cables with proper grounding and maintain at least 6 inches of clearance from power lines.

Incorrect polarity on supervised loops creates critical undetected faults. Reversing the positive and negative leads on a manual call point breaks the end-of-line resistor path, leaving the circuit perpetually in trouble condition without triggering alerts. Label wires before stripping, and test continuity with a multimeter before energizing the panel–mistakes here are invisible until an emergency occurs.

Overlooking End-of-Line Device Requirements

1. Skipping the EOL resistor invalidates circuit monitoring–most panels expect 4.7kΩ for supervised loops.
2. Using wire nuts instead of crimp connectors increases resistance over time.
3. Daisy-chaining too many devices (typically max 25 per branch) strains power budgets.
4. Neglecting to install isolating modules where required causes entire zones to fail during faults.

Consult the panel’s manual for exact EOL values and never substitute generic resistors–precision matters for reliable fault detection.

How to Label Cables and Connection Points for Fast Diagnostics

Use color-coded sleeves matched to a legend printed on rigid plastic sheets mounted near control panels. Standardize colors across all loops: red for power feeds, blue for sensor circuits, yellow for output relays, and green for supervisory lines.

Attach metal or durable polyester tags to each conductor termination. Engrave or print the tag with three elements: unique loop identifier (e.g., “L1”), device type abbreviation (e.g., “SD” for smoke detector), and sequential terminal number (e.g., “T4”). Example: L1-SD-T4.

Device	Abbreviation	Common Terminals
Heat sensor	HT	PWR, SIG, SUP
Manual call point	MCP	P+, P-, R
Notification appliance	NA	V+, V-, AUX
Control module	CM	IN1, IN2, OUT

Print identical labels on both ends of every run; verify consistency before energizing circuits. For multi-conductor cables, label each pair sequentially from the outer sheath inward and note pair color next to the identifier (e.g., L3-HT-PWR-WHT/BLU).

Secure labels with heat-shrink tubing over terminal blocks; avoid paper or adhesive tags that trap moisture or peel in high-temperature environments. Use UV-resistant polyimide labels for outdoor exposures. Replace faded or illegible tags immediately; date-stamp maintenance logs.

Place a laminated schematic next to each junction box listing every connection, including spare conductors. Note wire gauge, voltage rating, and insulation type for quick verification. Update schematics whenever a change is made–even temporary jumpers.

Adopt alphanumeric uniformity: zone numbers in ascending order clockwise from the main panel, devices numbered left to right on each zone. Example: Zone 3, Device 7 becomes Z3-D7-CM-T1. Keep a master spreadsheet cross-referencing every label with physical location coordinates.

Test all labels under low-light conditions using only the illumination tool approved for the site–flashlights with matching color temperatures to avoid misreading hues. Replace reflective sleeves if glare obscures printing.

Train technicians to photograph each labeled terminal before disconnecting for repairs. Include label, wire nut or terminal screw, and surrounding conductors in the frame. Archive images with timestamp ties to work orders.
