Step-by-Step Car Radio Wiring Guide with Color Codes and Connections

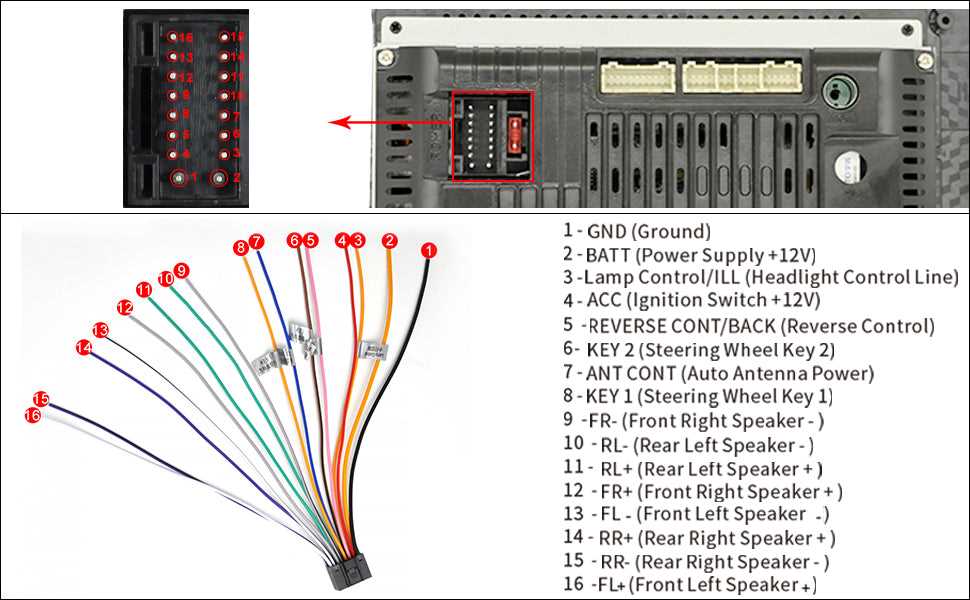

Begin by identifying the harness behind the factory stereo–most modern automotive audio setups use a standard 16-pin ISO connector. If your new head unit lacks compatibility, purchase an adapter harness matching your vehicle’s make and model. Avoid splicing wires directly; mismatched connections risk shorts, speaker damage, or blown fuses. Check the color-coding: yellow (constant power, typically 12V), red (switched power, activates with ignition), black (ground). Confirm continuity with a multimeter before proceeding.
Wire gauges matter–standard speaker cables range from 18 to 16 AWG, while power leads (especially for amplifiers) may require 12 to 10 AWG. Thinner wires overheat; thicker wires add unnecessary bulk. For aftermarket units with higher current demands, fuse the constant power line within 12 inches of the battery using a 20A fuse for most applications. Ground the connection to bare metal, scraping away paint or corrosion for a solid contact.
Speaker polarity follows a pattern: white/gray (front left/right +/–), green/purple (rear left/right +/–). Swap wires to test phase–distorted bass indicates incorrect polarity. For steering wheel controls, use an interface module specific to your head unit’s brand. Crimp connectors properly; soldering reduces signal loss but requires heat-shrink tubing to prevent shorts.
Verify all connections before securing the stereo. Turn the ignition to accessory mode and test each function: volume, balance, fader, Bluetooth pairing, USB charging. If speakers produce static, recheck ground connections and power line isolation from signal wires. Use a wiring loom to bundle cables neatly, avoiding sharp edges or moving parts like gearshift mechanisms. Secure the harness with zip ties every 6–8 inches to prevent interference.

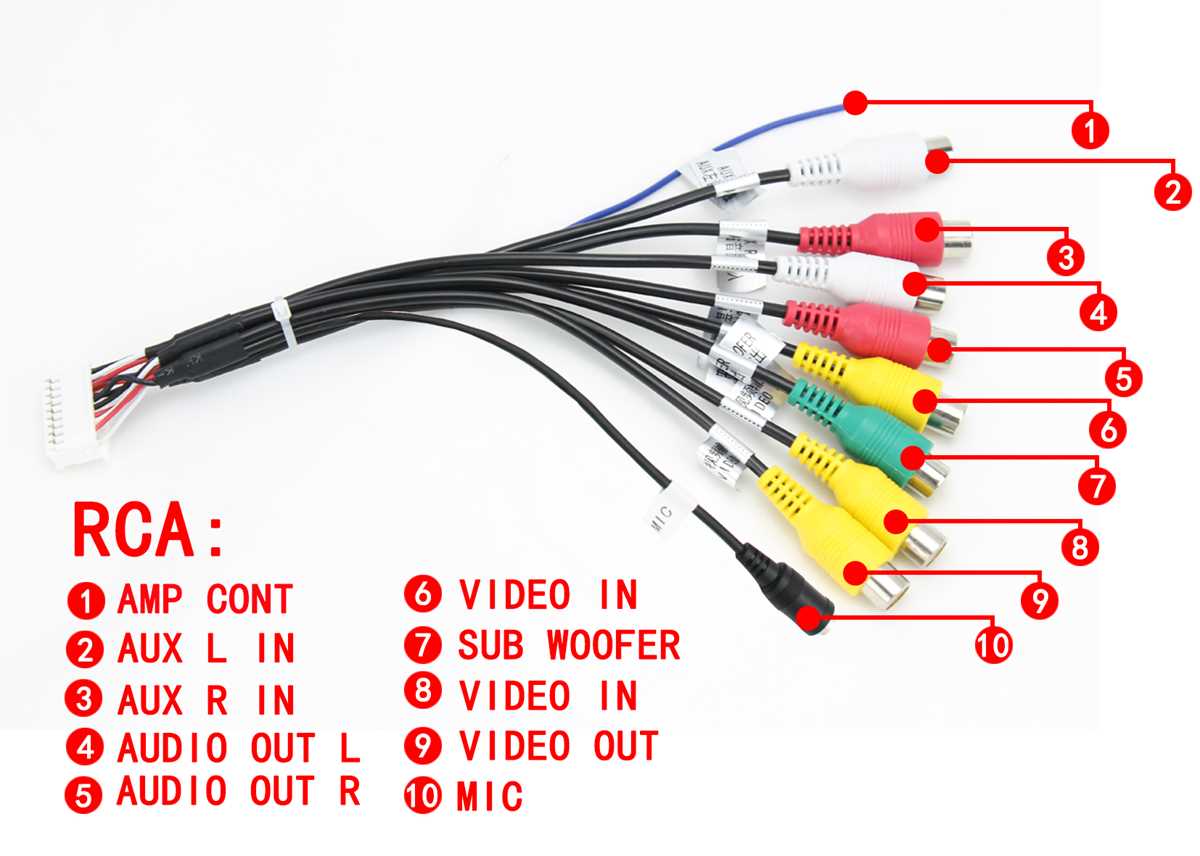

For vehicles with premium factory systems, confirm whether the amplifier is integrated or external. External amps require additional signal cables–RCA or high-level inputs–and a remote turn-on lead (usually blue/white). Failure to connect this wire keeps the amp off, silencing outputs. If the display dims when headlights are on, locate the dimmer wire (often orange/white) and connect it to the vehicle’s lighting circuit.
Automotive Audio System Connection Guide
Always disconnect the vehicle’s battery negative terminal before handling any electrical components to prevent short circuits or damage to sensitive modules. Modern head units often require a stable power supply; use a multimeter to verify a constant 12V at the ignition wire (typically red) and ground (black) before proceeding. Mismatched voltages can fry circuit boards–double-check your model’s specifications against the harness adapter.

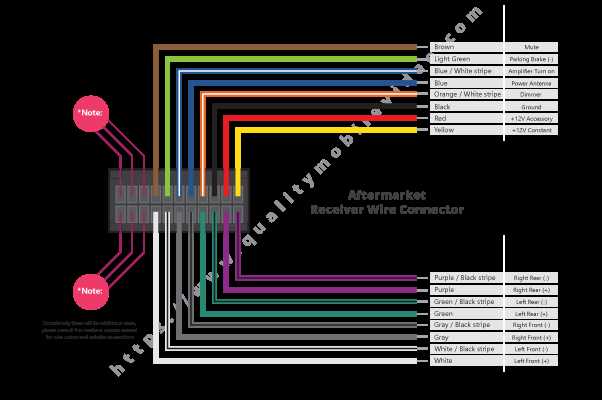

Identify the aftermarket harness color codes against the factory plug layout using a reference table specific to your vehicle’s make and year. Generic diagrams often omit critical variations–always cross-reference with the manufacturer’s pinout for connectors like ISO, Metra, or Scosche. Below are common wire functions for universal adapters:
| Wire Color | Standard Function | Potential Variations |
|---|---|---|
| Yellow | Battery constant +12V | May be fused at 10A; some vehicles use orange |
| Red | Ignition-switched +12V | Can be purple in Japanese models |
| Black | Ground/chassis | Must be bolted to bare metal; avoid painted surfaces |
| Blue/white stripe | Remote turn-on for amplifier | Voltage must match amp’s trigger threshold (usually 5V+) |
| Green | Rear left speaker (+) | Can be light green in GM vehicles |
| Gray | Front right speaker (+) | Check for twisted pairs to minimize noise |
Speaker wires carry both signal and power–never connect them directly to the battery or ground. Polarity matters for phase coherence; reversing left and right channels can degrade stereo imaging. Test each speaker with a 9V battery (briefly touching wires) to confirm correct polarity–audible pops indicate proper connection, while weak or absent sound suggests reversed terminals.
For vehicles with amplified systems (e.g., Bose, JBL, Harman Kardon), bypassing the factory amplifier requires bridging the head unit’s outputs to the correct speaker wires or installing a line-output converter (LOC). Amplifiers expect 2-4V signals; factory systems often use 10-12V, risking distortion or damage. Match impedance: if the aftermarket unit is 4Ω, ensure speakers are 4Ω–mismatches cause overheating and premature failure.
Antennas require both power and ground–verify the pink or purple wire (varies by brand) delivers 12V when the ignition is on. Passive antennas need no power, but active models (common in SUVs and trucks) may use a dedicated amplifier requiring 5-7V. If reception drops after swapping units, check antenna adapter compatibility (e.g., Motorola to ISO) or add an inline signal booster.
Data buses (e.g., CAN, MOST) should never be connected to aftermarket harnesses. Some luxury vehicles integrate the audio system with climate controls or navigation–tapping into these wires can trigger error codes or disable entire modules. Use a bypass module like PAC RP4-CH11 for seamless integration without triggering warning lights.
Decoding Head Unit Harness Colors and Purposes
Begin by locating the constant power (B+) wire–typically solid yellow or orange with a fuse label nearby. Verify with a multimeter (12V+ when ignition is off) to confirm, as factory manuals sometimes mislabel accessory wires. Mistaking this for switched power causes draining batteries or erratic unit behavior.
Critical Outputs for Speakers and Amplification
Front left speaker wires split into positive (gray or light green stripe) and negative (matching base color, solid or black stripe). Rear channels follow the same logic but use purple or dark blue pairs–crossing these reverses audio phase, canceling bass. For amplified systems, the remote turn-on lead (thin blue/white) must trigger the amp separately; splicing it directly to speaker wires risks damage.
Ground connections (black, brown, or bare copper) demand direct chassis contact–sand paint or corrosion, then secure with a dedicated bolt. Using factory screws risks intermittent loss; star washers prevent loosening over time. For vehicles pre-1995, confirm polarity–some Japanese models used reverse standards (negative as “hot”).
Illumination wires (orange or gray with white stripe) dim the display in sync with dash lights–hookups vary: some require a 100-ohm resistor, others simply tap the dimmer circuit. Navigation units add a speed signal wire (pink or purple) for GPS calibration; bypassing this may disable safety alerts. Always cross-reference the harness plug with the unit’s pinout–aftermarket adapters often omit or mislabel pins, so manual testing takes priority.
Step-by-Step Power and Ground Connections for Audio Systems
Identify the vehicle’s main power source–typically the battery’s positive terminal. Use a 10-gauge or thicker wire for the primary power line to handle current loads without voltage drop. Strip 1/2 inch of insulation from the wire end, then crimp a ring terminal sized for the battery post (usually 8mm). Secure it with a washer and nut, ensuring no bare strands touch adjacent metal. Apply dielectric grease to the connection to prevent corrosion.
Securing the Ground Connection
Locate a bare metal surface near the audio unit’s mounting position–door hinges or seat bolts work if no dedicated ground point exists. Sand the surface to remove paint or oxidation until shiny metal appears. Attach a 10-gauge wire with a ring terminal, tightening the screw or bolt firmly. A loose ground causes intermittent power loss and noise interference; torque specifications for most vehicles range between 12-15 Nm.
Route the power wire through the vehicle’s firewall using an existing grommet to avoid chafing. If none exists, drill a hole and install a rubber grommet to protect the wire. Keep the wire away from moving parts, hot surfaces, and electronic modules to prevent shorts. Use zip ties every 8-12 inches to secure the wire, ensuring no sagging that could contact sharp edges.
Connect the power wire to the audio unit’s harness using a 12V constant input (marked “B+” or red). For switched power (accessory), splice into the ignition wire (yellow or pink, depending on make). Use heat-shrink butt connectors for splices, applying heat until adhesive seals the connection. Test voltage with a multimeter–constant power should read 12-14V, accessory power only when the ignition is on.
Connecting Speaker Outlets Safely to Avoid Equipment Harm
Start by verifying the amplifier’s RMS power output matches the speaker impedance. Most head units deliver 15-22 watts RMS per channel into 4-ohm loads. Exceeding these values with mismatched impedances risks overheating or blowing internal fuses. Check the manual for exact specifications–some aftermarket devices tolerate 2-ohm loads, but factory systems rarely do.
Use oxygen-free copper wire (OFC) with a gauge appropriate for the run length. For runs under 12 feet, 16-gauge OFC suffices; 12-18 feet requires 14-gauge, and anything longer demands 12-gauge. Solid-core wire introduces signal distortion over time, so stranded wire is non-negotiable. Twist the positive and negative leads together to minimize interference.
Insulate connections with heat-shrink tubing or high-quality electrical tape–never PVC or duct tape. Exposed terminals corrode within weeks, especially in humid climates, leading to intermittent sound dropouts or short circuits. Crimp connectors securely and solder them for longevity; loose connections arc under power surges, damaging the unit’s internal circuitry.
Grounding is critical. Attach the negative terminal to a bare metal chassis point, not a painted or coated surface. Scrape away paint or primer with sandpaper to ensure direct metal contact. Avoid attaching to bolt heads shared by other electronics–dedicated grounding prevents ground loops, which manifest as buzzing or whining at higher volumes.
Add an inline fuse within 18 inches of the battery connection. The fuse rating should exceed the system’s peak current draw by 10-15%. A 20-amp fuse protects a 15-amp circuit; exceeding this risks melting wire insulation before the fuse blows. Place the fuse holder in an accessible location, not buried under dash panels.
Never bridge channels without a dedicated amplifier. Head units lack the thermal capacity to drive multiple speakers per channel. Bridging overloads the internal power supply, causing thermal shutdown or permanent damage. If additional power is needed, use a separate amp with proper line-level inputs.
Test connections with a multimeter before finalizing. Measure resistance between the speaker terminal and ground–values below 0.5 ohms indicate a short. Verify DC offset (should be under 100mV) to prevent tweeter burnouts. If the unit has a built-in crossover, ensure frequencies align with the speaker’s capabilities; high-pass filters on midrange drivers prevent cone overexcursion.
Secure wires away from moving parts, sharp edges, and heat sources. Route signal cables separately from power wires to avoid electromagnetic interference. Use wire loom or split tubing to bundle wires–exposed strands chafe against metal, creating shorts over time. Label both ends of each wire for future diagnostics.
