Complete Car Stereo Wiring Blueprint for DIY Installation

Start by sourcing a 12V power distribution block with at least four terminals to handle amplifier, head unit, and auxiliary components without voltage drops. A 4-gauge oxygen-free copper (OFC) wire is non-negotiable for the main power lead–anything thinner risks overheating under sustained wattage above 150W RMS. Ground connections demand equal attention: use a 3/8-inch bolt secured directly to bare metal chassis points, sanded clean of paint or rust to ensure near-zero resistance. Skipping this step introduces ground loops, manifesting as audible hum or erratic amplifier behavior.

For signal integrity, shielded RCA cables with 90%+ copper braiding minimize interference from alternator whine or ignition noise. Route these cables away from power wires by at least 12 inches, ideally along opposite sides of the vehicle’s interior. If noise persists, add a ground loop isolator–but choose one with ferrite cores, not the cheap resistive types that degrade audio fidelity.

Head units outputting preamp signals (2–4V) require matching inputs on your amplifier to avoid clipping. Verify the amplifier’s input sensitivity settings–typically adjustable via a small dial–aligning it with the head unit’s output voltage. For passive crossovers, use air-core inductors for tweeters and iron-core for midrange drivers; mismatched components roll off frequencies unevenly, muddying vocal clarity.

Fuses must be placed within 7 inches of the battery, using ANL or MIDI fuses rated 20–30% above the system’s peak draw. A single 100A fuse won’t suffice for a 1,200W system; distribute current via a fuse block with individual circuits for each amplifier. Neglecting this risks catastrophic fire from overheated wiring, especially in enclosed spaces like dashboards or trunk compartments.

Speaker impedance should match the amplifier’s stable range–4Ω for most aftermarket amplifiers, though some support 2Ω for subwoofers. Bridging amplifiers demands stricter adherence: Exceeding the stable impedance causes thermal shutdown or permanent damage to output transistors. Use a multimeter to verify continuity before powering up, checking for shorts between positive/negative terminals and chassis ground.

Wiring Schematics for Vehicle Audio Systems

Begin by identifying power sources–typically a 12V lead-acid battery and a constant +12V line fused at 10–20A. Connect the red wire (switched power) to the ignition harness to prevent parasitic drain, ensuring the system powers off when the engine stops. Ground connections must terminate in a bare metal chassis point, sanded free of paint or corrosion, with a minimum 12-gauge wire for stable reference voltage. For aftermarket amplifiers, route RCA cables away from power leads and ignition wires to minimize interference; shielded twisted-pair cables (75-ohm impedance) reduce noise by 40% compared to basic RCA.

Speaker impedance affects output–match 4-ohm components to amplifiers rated for equivalent load to avoid thermal shutdown. High-pass crossovers (typically 80–120Hz) on tweeters prevent cone damage from low-frequency signals, while subwoofers benefit from low-pass settings (50–100Hz) to isolate rumble. Use oxygen-free copper wiring for all audio paths; cheaper alternatives introduce resistance, degrading signal clarity by up to 15%. When integrating DSP units, prioritize settings with time alignment–adjusting delay between front and rear channels (±2–4ms) corrects phase cancellation in confined cabins.

Solder all connections and insulate with heat-shrink tubing; crimped terminals corrode within 18 months in humid environments. Test continuity with a multimeter before reassembly–open circuits in harnesses cause intermittent failures. For OEM integration, bypass factory amplifiers by tapping into pre-amp signals (often 2–4V) at the head unit’s output; directly splicing into speaker wires risks voltage spikes (up to 40V) that damage aftermarket gear.

Key Elements in Vehicle Audio System Wiring

Begin by identifying the head unit’s power requirements–typically 12V from the battery via a fused red wire and a yellow wire for memory retention. The ground (black wire) must connect directly to the chassis using a minimum 16-gauge wire with a clean, bare-metal point to prevent interference. Avoid daisy-chaining grounds; each component should have its own dedicated path to the chassis.

Wire Color	Function	Recommended Gauge	Critical Notes
Red	Ignition-switched power	18-16 AWG	Fuse within 12″ of battery
Yellow	Constant 12V (memory)	18-16 AWG	Use relay if head unit draws >10A
Black	Ground	16-14 AWG	Scrape paint; star washer for secure contact
Blue/White	Amplifier remote turn-on	18 AWG	Connect directly to amp; not through splices

Signal wires (RCA or fiber optic) must run separately from power cables–crossing at 90° angles minimizes noise. For analog connections, use shielded twisted pairs; for digital, opt for Toslink or coaxial. Amplifiers require a 4-gauge power wire fused at 80A for systems exceeding 200W RMS. Always verify wiring diagrams for factory-installed units, as wire colors may deviate in luxury or hybrid models.

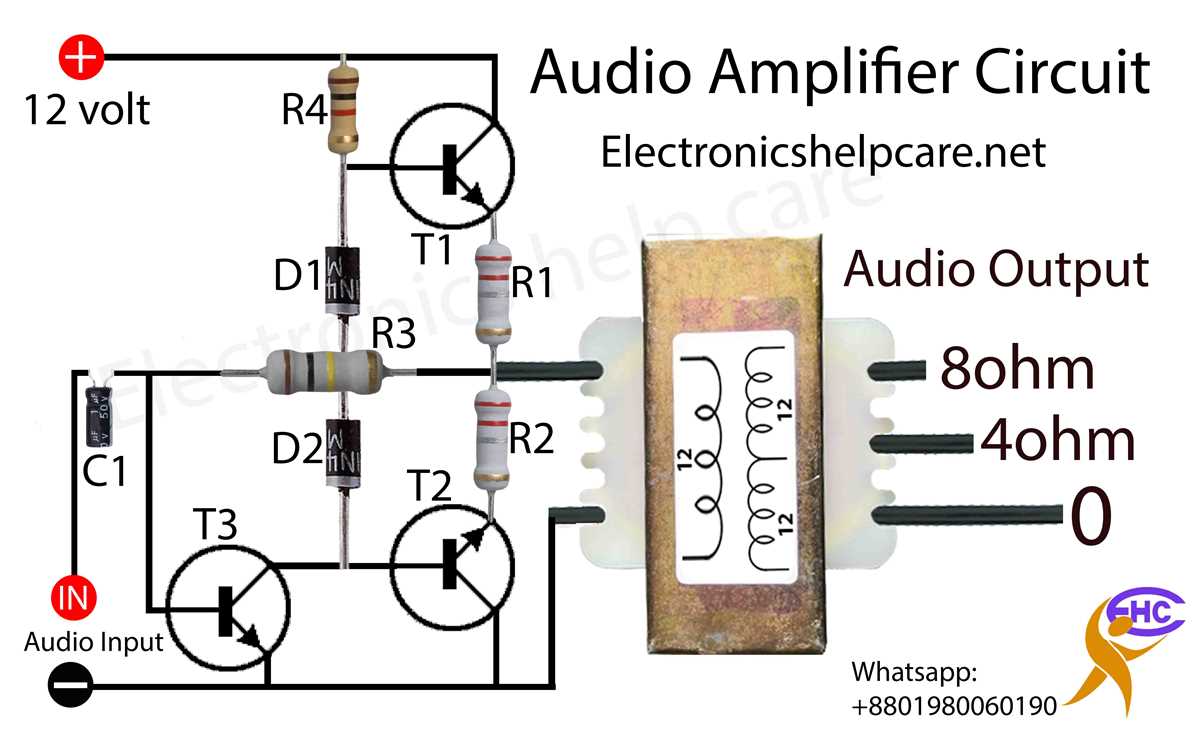

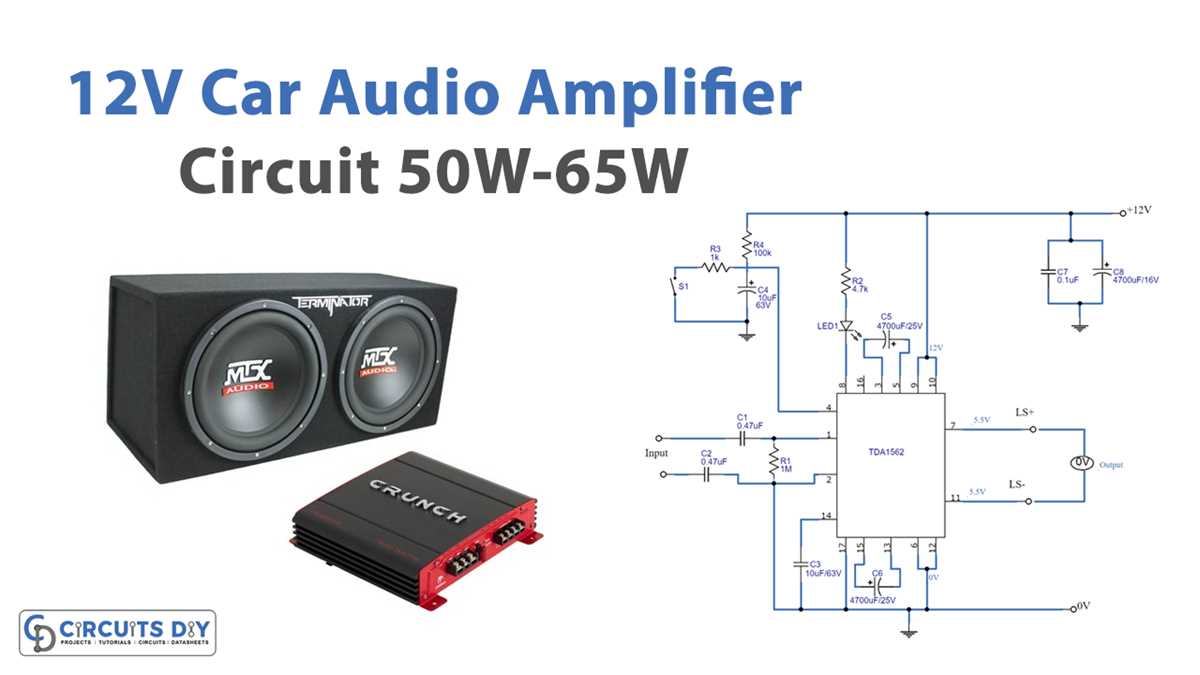

Step-by-Step Guide to Designing an Automotive Audio Power Booster

Begin by selecting a printed board layout software with library components for audio transistors (TIP31C, TIP32C), capacitors (2200µF for power smoothing, 0.1µF for input coupling), and resistors (10kΩ for biasing, 1Ω for output stabilization). Trace a star-ground topology from the central power input to each stage–preamp, power stage, and protection–to minimize noise coupling. Use a dual-rail supply (±12V to ±18V) for balanced amplification, with thick traces (minimum 2mm width) for high-current paths to reduce voltage drop. Label each component with its value and function (e.g., C1 - 0.1µF - Input Coupling) to streamline troubleshooting.

Critical Assembly Sequence

1. Place the power transistors (TO-220 package) on a heatsink with thermal paste, securing them with non-conductive washers to avoid shorts.
2. Solder input capacitors (0.1µF) directly to the RCA jacks, followed by 10kΩ biasing resistors and 22µF coupling caps to the preamp stage (NE5532 op-amp).
3. Connect the preamp output to the power stage via a 1kΩ resistor, then wire the emitter resistors (0.22Ω) for current limiting. Bypass these with 0.1µF caps to suppress high-frequency oscillations.
4. Attach a 1N4007 diode across the speaker terminals (cathode to positive) to clamp back EMF from inductive loads, and add a 100µF electrolytic cap parallel to the power rails for transient response.
5. Verify all connections with a multimeter (continuity test for shorts, ~0.5V DC offset at outputs) before applying power.

• For bridged operation, split the signal into inverted/non-inverted paths using TL072 op-amps, doubling the output voltage swing.
• Include a 2A fuse between the battery and amplifier to prevent overloads during clipping.
• Test with a 1kHz sine wave at -30dBV input; waveform distortion should remain below 0.1% THD+N.

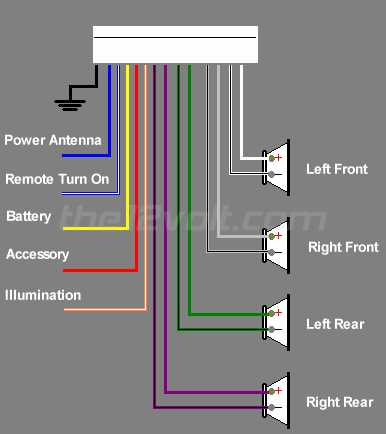

Key Connector Types and Wire Color Standards in Audio Systems

Start by locating the ISO 10487 connector–the dominant standard in European and most Asian vehicles. Pinouts divide into two 12-pin blocks: the upper carries power, illumination, and antenna control, while the lower handles speaker outputs. Verify pin assignments with a multimeter: pin 4 (constant +12V), pin 7 (+12V ignition-switched), and pin 5 (ground) must show correct voltage. Factory harnesses often reuse these pins but may add vehicle-specific signals like CAN bus data on adjacent contacts.

Power wiring follows consistent colors across brands: red (ignition-switched), yellow (battery constant), and black (chassis ground). Speaker leads traditionally pair solid colors with striped variants: white/white-black (front left positive/negative), gray/gray-black (front right), green/green-black (rear left), and violet/violet-black (rear right). Aftermarket units occasionally swap green and violet for rear outputs–confirm with a tone generator before connecting. Rare exceptions include Ford’s use of dark green for rear right positive and Hyundai’s light blue for subwoofer pre-outs.

Metra’s plastic T-harnesses simplify installation, but OEM connectors like Chrysler’s 16-way round plug or GM’s 24-pin rectangular harness require precise crimping. For Bose or JBL premium systems, identify amplifier turn-on leads–usually purple or orange–and pre-out low-level signals (sub 2V RMS). Ground loops create whine; route all grounds to a single chassis point, avoiding proximity to fuel pump modules or ABS controllers. Twist power and speaker wires every 12 inches to reduce RF interference.

High-current accessories demand 18-16 AWG wire: red for switched circuits, yellow for direct battery feeds, fused within 7 inches of the source. Mini ANL fuses (25-40A) protect the main power cable, while smaller ATO fuses (10-15A) safeguard accessory circuits. For parking brake detection, locate the pink wire (varies by model–check service manuals) and connect it to the head unit’s security input to enable video playback functions.

Diagnosing Power Surges in Vehicle Audio Installations

Start by disconnecting the head unit from the wiring harness entirely. Use a multimeter set to continuity mode to check each wire from the harness to the chassis ground–any beep indicates a short. Focus on the power cables (constant 12V, accessory, and ground) first, as these are the most frequent failure points. If the harness itself is damaged, replace it rather than attempting to splice repaired wires; factory crimp connections withstand vibrations better than soldered joints in mobile environments.

Inspect fuse holders for corrosion or melted plastic near the contacts. A blown fuse often leaves residue–blackened metal or cracked ceramic–visible under magnification. Test the fuse socket’s voltage with the ignition off; if reading exceeds 0.5V between the input and output terminals, the holder itself may be faulty. Upgrade to gold-plated holders if the original shows signs of oxidation; these handle current spikes more reliably in high-amp setups like amplifiers or subwoofer outputs.

Check for pinched wires behind the dashboard or along door sill plates. Rubber grommets at firewall penetrations often degrade, exposing copper strands to bare metal. Probe suspect areas with the multimeter while gently flexing wires–intermittent shorts will manifest as fluctuating resistance (below 0.1 ohms). Route new wiring away from sharp edges and secure with nylon ties every 15 cm to prevent chafing from engine vibrations.

For systems with aftermarket additions: disconnect external devices (USB adapters, Bluetooth modules) one at a time. A parasitic drain test reveals hidden shorts–clip the ammeter in series with the positive battery terminal, then remove each module sequentially. A drop exceeding 50mA per device suggests internal failure. Replace or bypass the offending component; never ignore even minor deviations, as they accelerate battery degradation during long periods of inactivity.
