Complete Wiring Guide for Car Stereo Installation and Repair

Begin by identifying the head unit’s power connections. Most modern setups use a 12V constant (yellow wire) for memory retention and a switched 12V (red wire) for accessory power. Ground the black wire directly to the chassis–any corrosion or loose connection will introduce noise. For RCA outputs, ensure the left and right channels (white and red) are separated from power cables to prevent interference.

If integrating an amplifier, locate the remote turn-on wire (usually blue) from the factory setup or aftermarket head unit. This triggers the amp’s power relay when the system activates. Use a dedicated 4-gauge power cable for high-wattage amplifiers, routed away from signal wires to avoid electromagnetic coupling. Fuse the power cable within 18 inches of the battery terminal–skip this step and risk fire hazards.

Speaker wiring follows a consistent color code: front left (+ gray, – gray/black), front right (+ white, – white/black), rear left (+ green, – green/black), rear right (+ purple, – purple/black). Verify impedance ratings–most factory speakers are 4 ohms, while aftermarket ones may vary. Bridge connections incorrectly, and you’ll overload the amp or head unit.

For pre-amp outputs, connect RCA cables to the corresponding inputs on the amplifier. Use high-quality shielded cables to minimize signal degradation. If the system includes a subwoofer, route the low-level (sub-out) or high-level (speaker-level) signal to the amp’s dedicated input. Adjust the crossovers on both the head unit and amplifier–typical settings for subwoofers range between 50Hz–80Hz.

Test each connection with a multimeter before finalizing. Set the meter to DC voltage and probe the power and ground connections–expect 12V–14V at the constant power wire when the ignition is off. Switched power should drop to 0V when the system is inactive. Speaker outputs should show low resistance (near 0 ohms) when properly connected.

Understanding Vehicle Audio Wiring Layouts

Begin by locating the head unit’s power harness connector–typically an 8 to 20-pin plug with color-coded wires. The yellow wire (constant 12V) must connect directly to the battery through a fuse no larger than 15A. Red (switched 12V) attaches to an ignition-controlled source. Ground cables (black) require a clean, unpainted surface; bolt them to the chassis near the unit for stability. Illumination wires (orange) sync with dash brightness; verify polarity before soldering. Speaker outputs (white/gray, green/purple) demand careful pair matching to prevent phase cancellation–use an ohmmeter to confirm continuity before final connections.

Signal Amplification Pathways

Aftermarket amplifiers introduce additional wiring complexity. RCA cables (red/white) link the head unit’s pre-outs to the amp’s inputs–shielded cables prevent RF interference. Power wires (blue) activate remote turn-on; these must mirror the head unit’s ignition signal to avoid parasitic drain. Ground loops create audible hum; run all grounds to a single point, avoiding daisy-chaining. High-pass filters on door speakers (cut below 80Hz) direct bass to subwoofers while protecting tweeters. For OEM integration, adapter kits (Metra AX-TOCA or similar) simplify harness splicing–compare color codes against manufacturer datasheets.

Test each stage sequentially. Power on the unit first–verify display without accessory load. Then connect illumination and ground. Add speaker wires last; play a 1kHz sine wave at low volume and check for distortion. If clipping occurs, reduce gain settings before tracing amplifier inputs. For noise issues, isolate sources by disconnecting RCAs one at a time. Label all wires at both ends during installation to streamline future diagnostics.

Critical Elements in Vehicle Audio Wiring Blueprints

Identify the head unit harness first–pins 12V constant, accessory, ground, and illumination must align with ISO 10487 standards. Mismatched connections risk overheating or amplifier shutdown. Use a multimeter to verify continuity between the harness and speaker outputs (front/rear, left/right) before soldering; resistance should read 4-8 ohms for standard installations. Bypass passive crossovers if amplifying signals directly to component speakers to prevent frequency roll-off.

Fuse ratings demand precision: 10A for radios, 20A for amplifiers, and 30A for subwoofer circuits. Locate fuses within 18cm of the battery terminal to meet SAE J1128 guidelines. Antenna triggers require a 1kΩ resistor to ground if no power antenna is present. Daisy-chaining ground wires degrades performance; dedicate a single star-ground point near the chassis.

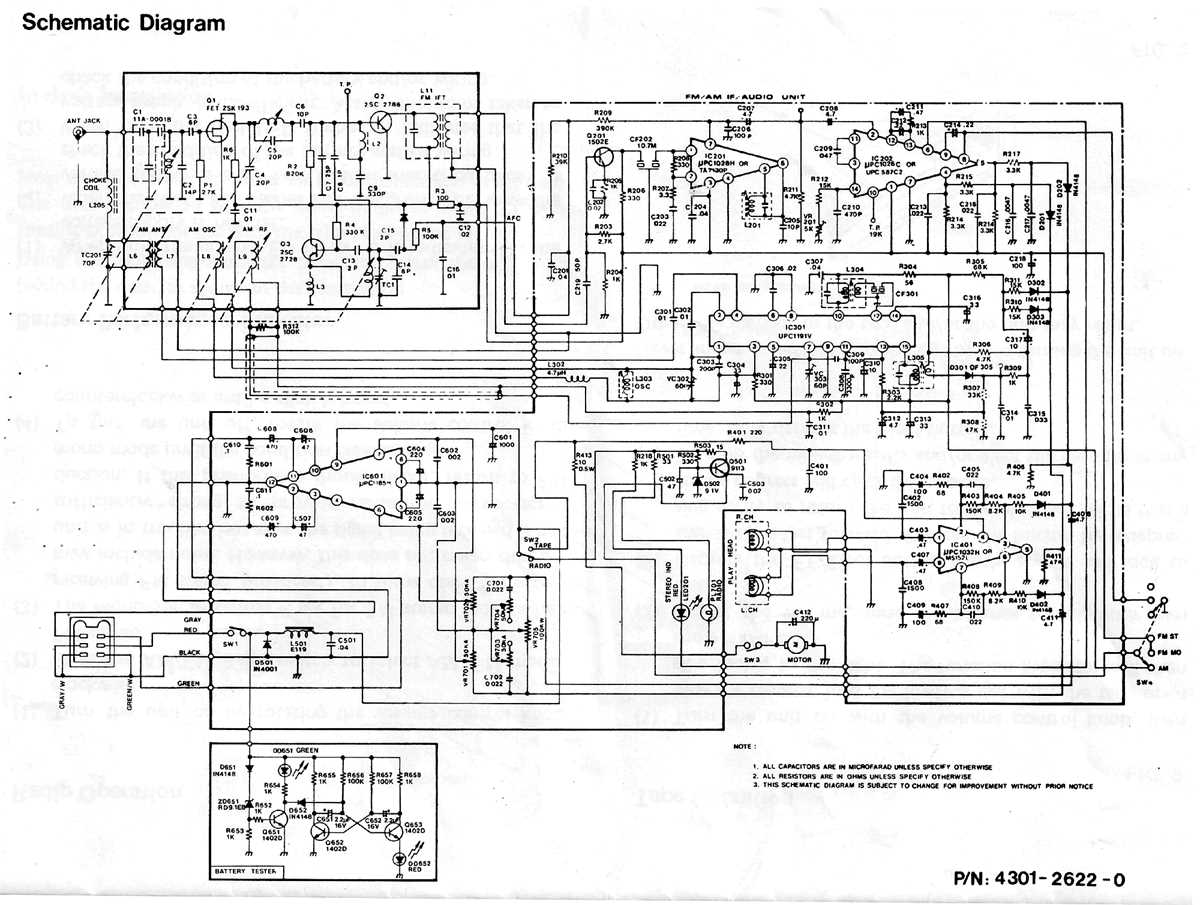

Step-by-Step Guide to Reading a Head Unit Wiring Diagram

Locate the color-coded legend first–this key decodes wire functions and matches them to connector pins. Most manuals group these by power, ground, speakers, and auxiliary inputs. Verify the legend’s accuracy by cross-checking with the physical harness, as mismatches can damage components during installation.

Identify the main power wire, typically red or yellow, supplying 12V from the battery. Trace it to the fuse holder–this prevents electrical fires. Adjacent wires (purple, orange, or blue) often control memory retention or remote turn-on for amplifiers. Confirm their gauge matches the system’s current draw to avoid voltage drops.

Decoding Speaker Wires

• Front left (+): White or grey
• Front left (-): White with stripe or grey with stripe
• Front right (+): Grey or violet
• Front right (-): Grey with stripe or violet with stripe
• Rear connections follow similar patterns with green/blue hues

Label each wire with masking tape during disassembly to prevent misconnections. Use a multimeter in continuity mode to test polarity–reverse polarity causes phase cancellation and muffled audio.

Examine antenna control signals (usually blue) and illumination wires (pink or brown). The antenna wire triggers automatic power-up when the unit turns on, while illumination wires sync dashboard brightness with the display. Ignoring these leads to dim screens or non-functional power antennas.

Final Checks Before Connection

1. Ensure all ground wires (black) terminate at a common chassis point to prevent noise.
2. Isolate RCA cables (often white/red pairs) from power wires to avoid interference.
3. Verify USB/auxiliary wires (green, purple, or yellow) match the manual’s pinout if upgrading.
4. Test with a 12V source before full installation–briefly touching wires prevents short circuits.

Document any deviations from the diagram; aftermarket harnesses often vary from OEM standards. Keep a notebook or photo record of splices for future troubleshooting.

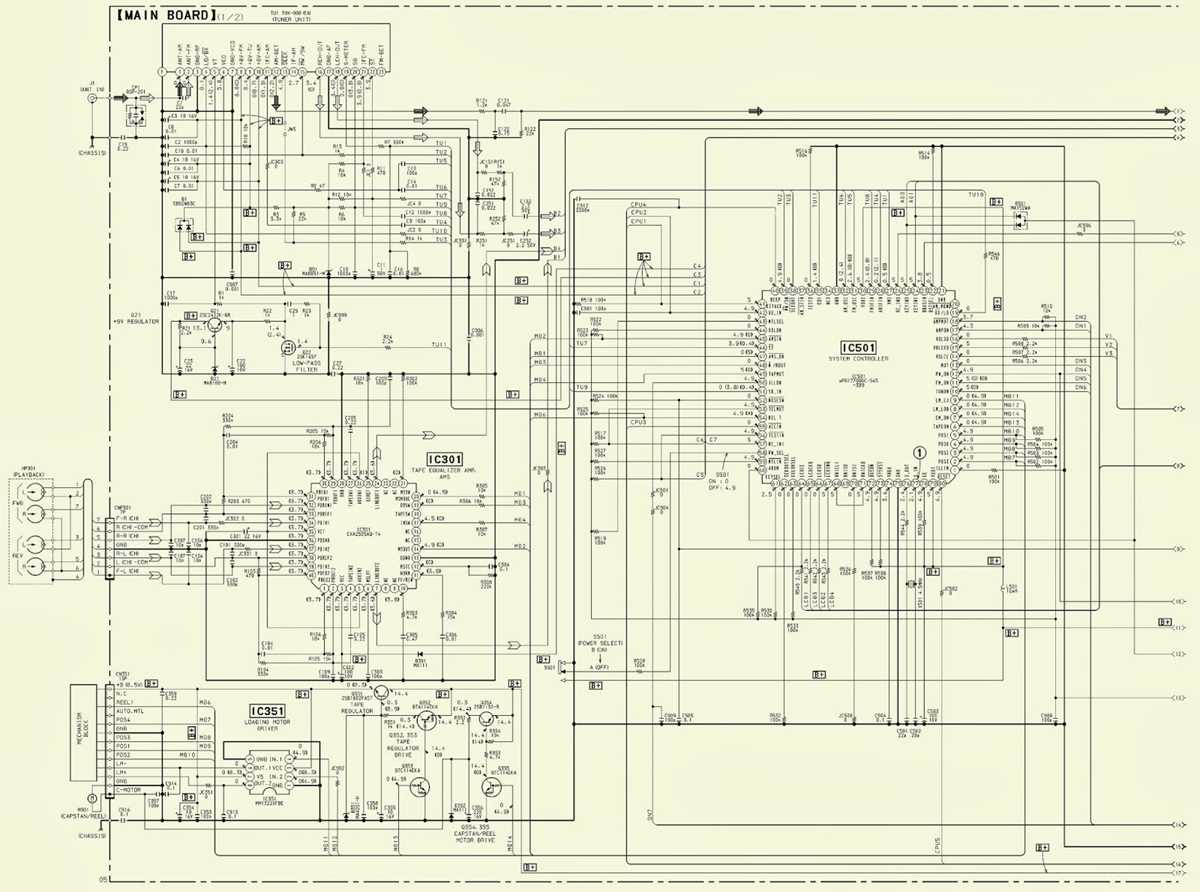

Locating Power and Ground Points in Audio Wiring Blueprints

Begin by scanning the blueprint for thick lines–these typically denote primary power feeds. Look for labels like +12V, BATT, IGN, or ACC. The thickest line usually connects to the battery terminal, while thinner branches split toward accessories or ignition-controlled circuits.

Identify the ground symbol–a horizontal line with downward spikes or a simple GND label. In most layouts, multiple components share a single ground bus. Trace wires from amps, receivers, or processors back to this point to confirm continuity. If不明確, use a multimeter in continuity mode: probe between the suspected ground and the vehicle’s chassis near the connection.

Check for fuses near power entry points. Fuse ratings (e.g., 10A, 15A) hint at circuit purpose:

• 10A–15A: Radio or small modules.
• 20A+: Amplifiers or high-draw equipment.
• Fuse blocks often group ignition (IGN) and constant (BATT) power lines separately.

Distinguish between constant (B+) and switched (ACC/IGN) power by color codes:

• Red: Switched (ignition key required).
• Yellow: Constant (always live).
• Orange: Illumination or dimmer-controlled.
• Black: Ground (may have a white stripe in some OEM standards).

Use the ISO 10487 connector pinout as a reference if the layout lacks labels. Pins 4 (BATT), 7 (IGN), and 16 (GND) are standard across most harnesses. Cross-reference any unfamiliar pin assignments with a manufacturer datasheet.

For aftermarket installations, locate the main harness block where power wires cluster. Solder or crimp connections here rather than branching from thinner wires downstream. Strip 8–10mm of insulation, twist strands tightly, and apply heat-shrink tubing to prevent corrosion.

If the blueprint shows relays:

1. Pin 30: Battery power input.
2. Pin 87: Output to device.
3. Pin 85: Ground-side coil trigger (often tied to IGN).
4. Pin 86: Power-side coil trigger (+12V after switch).

Measure voltage at these pins to verify relay operation–30 to 87 should close when 85 and 86 are energized.

Avoiding Common Errors

Never splice power wires to speaker outputs–this risks shorting amplifier channels or blowing fuses. Confirm ground connections to bare metal (not painted surfaces) using a star washer for better conductivity. For dual-battery systems, isolate accessory circuits from the starter circuit to prevent voltage drops during cranking.

Diagnosing Speaker Wire Issues with a Wiring Guide

Begin by isolating the channel with the problem. Disconnect the head unit from power and remove the amplifier or receiver’s rear panel. Locate the speaker terminals–positive (+) wires are typically marked with a stripe or solid color (red, yellow), while negative (–) wires are black, brown, or stripped of insulation. Use a digital multimeter set to continuity or resistance mode (200 ohms range). Probe each wire pair: a reading near 0 ohms confirms intact wiring, while infinite resistance indicates an open circuit.

Inspect the wire harness for brittle insulation or corrosion. Oxidized copper appears dull green or white, reducing conductivity. If corrosion is present, strip the wire 1 cm beyond the damaged section and apply dielectric grease before reconnecting. For severed wires, splice using a crimp connector (size 16-18 AWG) or solder for a permanent fix. Avoid twisting wires together–this creates intermittent connections under vibration.

Verify polarity mismatches with a 9V battery. Briefly touch the positive terminal to the speaker’s red wire and the negative terminal to the black wire. A correct connection produces an audible “pop” from the speaker; reversed polarity yields silence or a weak click. Repeat for all channels. Common mismatches occur when aftermarket harnesses swap front and rear outputs–a wiring reference helps identify correct pin assignments.

Symptom	Cause	Solution
No sound from one channel	Broken wire or loose connection	Check harness terminals; resolder if needed
Distorted audio at high volume	Shorted wires touching chassis	Wrap exposed wire in heat-shrink tubing
Intermittent audio	Corroded connector pins	Clean with contact cleaner; apply anti-oxidant compound
Phase cancellation (weak bass)	Reversed speaker polarity	Swap positive/negative wires at terminals

Use a tone generator for complex setups. Connect the device to the head unit’s RCA outputs and tune to 1 kHz. Probe each speaker wire with the multimeter’s AC voltage setting (2V range). A reading of 0.5–1.5V confirms signal flow; absence suggests a wiring break or incorrect harness mapping. For systems with crossovers, ensure high-pass and low-pass wires match the component’s impedance (typically 2–8 ohms).

Check for ground loops by measuring voltage between the speaker’s negative terminal and vehicle chassis. A reading above 50mV indicates interference–reroute grounds to a single point near the amp. Subwoofer cables require thicker gauge (12-14 AWG) due to higher current draw; undersized wires cause overheating and clipped audio. Replace any wire showing melted insulation immediately.

Document changes during testing. Label wires with masking tape to track modifications, preventing further issues during reassembly. If problems persist, compare the wiring guide to the OEM harness–aftermarket adapters may omit or relocate power antenna, illumination, or mute functions. For vehicles with factory integration (e.g., steering wheel controls), confirm the data bus wires (usually purple/white) remain uncut to preserve functionality.
