Designing PCB Layouts with Eagle Schematic Editor Step-by-Step Guide

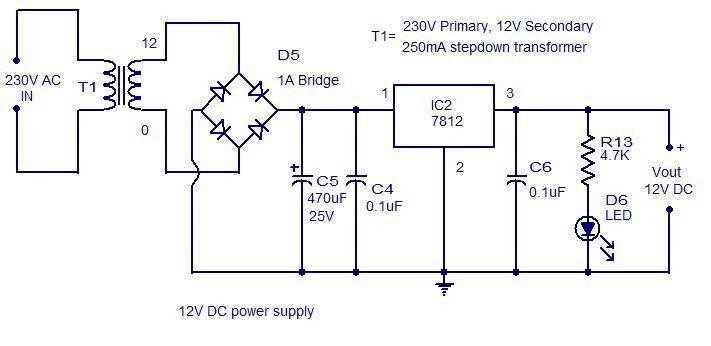

Begin by organizing schematic components into logical groups. Place power delivery elements (LDOs, DC-DC converters) near the edge, digital cores (MCUs, FPGAs) centrally, and high-speed interfaces (SERDES, DDR) spaced with ground pours. Autodesk’s suite enforces a 20-mil default trace width for signals–adjust to 8 mils for compact layouts or 50+ mils for high-current paths (1A per 50 mils of 1 oz copper). Forget generic net classes: create custom rules for differential pairs (100Ω impedance) and controlled impedance lines (50Ω single-ended) before routing.

Use polygons strategically. Flood the bottom layer with a solid ground plane, but split it only where necessary–avoid splitting under sensitive analog sections. For mixed-signal designs, separate analog and digital grounds with a single bridging point near the power source. Via stitching every 100 mils along the polygon edge reduces loop inductance. When placing decoupling capacitors, prioritize 0402 or 0603 packages for high-frequency response (0.01µF ceramics mounted

Leverage the DRC bot aggressively. Set custom clearance rules: 12 mils for high-voltage nodes (48V), 8 mils for standard signals, and 6 mils for fine-pitch BGA escape routes. Export gerbers in RS-274X format and validate them with a third-party viewer–don’t trust the preview tool. For panelization, use V-grooves (1mm depth) for straight cuts and mouse bites (0.8mm diameter, 0.5mm pitch) for curved outlines. Always generate a drill file (.xln) with separate hits for plated and non-plated holes.

Optimize silkscreen for assembly. Replace default pin-1 markers with crosshair targets for automated optical inspection. Use 0.5mm text height minimum; avoid placing text on pads or high-density SMD areas. For complex boards, generate separate fab and assembly drawings–fab for stackup and tolerances, assembly for component centroids (X/Y rotation in CSV format). When ordering prototypes, specify HASL lead-free for general use and ENIG (Electroless Nickel Immersion Gold) for fine-pitch BGAs or edge connectors.

Practical PCB Design with Autodesk’s Toolkit

Set grid spacing to 0.05 inches for component placement to align standard through-hole parts like resistors and capacitors without manual adjustments. Traces narrower than 10 mils (0.254 mm) risk fabrication errors on budget boards–stick to 12 mils minimum for signal paths, doubling to 24 mils for power rails to prevent overheating. Always assign signal ground and power ground to separate nets before routing, merging them only at a single star point near the regulator to suppress noise.

Group related components–op-amps, pull-ups, decoupling caps–into clusters using hierarchical blocks to simplify reuse across projects. Label footprint pads and silkscreen markings with part values (e.g., “C1_10uF_25V_X7R”) to speed up assembly and debugging; omit generic “R1” tags. Export Gerber layers individually for each fabrication house–omit FAB layers unless the vendor explicitly requests them–then validate with a free third-party viewer to catch missing copper, overlaps, or misaligned drill holes.

Optimizing Library Management

Build a dedicated library file for each project rather than relying on default templates: copy symbols and packages into the project-specific file, then lock the library to prevent accidental edits. Store custom footprints for non-standard connectors–like Molex PicoBlade or JST PH–with precise pin numbering matching the datasheet pinout, not the physical arrangement, to avoid wiring errors. Run a design rule check immediately after creating or modifying any footprint; flag inconsistencies like silkscreen overlapping pads or annular rings smaller than 0.2 mm before they propagate.

Setting Up Electronic Design Automation Tools for PCB Projects

Download the software directly from the official vendor website using the Autodesk account portal. Select the version matching your OS–Windows (x64), macOS (10.15+), or Linux (Ubuntu 20.04 LTS/Red Hat Enterprise 8)–and avoid third-party mirrors. Installation requires 2.5 GB disk space, 4 GB RAM, and a 64-bit processor; older 32-bit systems are unsupported. Run the installer as administrator to prevent permission conflicts during library extraction.

• Disable antivirus real-time scanning before installation to avoid blocking file operations.
• Use the default installation directory (C:Program FilesAutodeskEDA or /opt/autodesk/eda/) unless custom paths are necessary for network storage.
• Activate the software via license server for network licenses or standalone serial number for individual use.

Configuring Workspace Parameters

Modify schematic grid settings immediately after first launch: set Alternate to 0.05 inches for precise component alignment, and enable Visible grid at 0.1 inches. Adjust board layout grid to 0.025 inches for trace routing, with polygon pour clearance set to 0.015 inches. Save these settings as default.cfg in the user directory to avoid manual reconfiguration.

1. Import component libraries: Navigate to Library Manager, add lbr/ directory from the installation path, then enable Update for missing footprints.
2. Set default units to metric (mm) or imperial (inch) via Options → User Interface, depending on manufacturer datasheet conventions.
3. Configure design rule check (DRC) presets: Minimum trace width to 0.254 mm, via diameter to 0.8 mm, and restrict maximum copper layers to 4 for prototype boards.

Optimize file handling by enabling Auto Backup every 15 minutes with a maximum of 10 backup files. Store project files in a dedicated directory (e.g., D:ProjectsPCB) with subfolders for schematics, layouts, and fabrication outputs. Use Version Control integration by linking to a Git repository with .sch, .brd, and .cam files tracked, while excluding binary .b$1 backup files.

For multi-monitor setups, detach editing panels by dragging the Control Bar to secondary displays. Enable Real-time DRC under Tools → DRC to highlight violations during routing. Customize keyboard shortcuts: Assign Ctrl+Shift+T to Trace (Net) and Ctrl+G to Group for faster workflows. Export final Gerber files with CAM Processor, selecting RS-274X format and verifying layer assignments before sending to manufacturers.

Building Your Electronic Blueprint: Initiating a Project and Choosing Parts

Launch the design environment and execute File > New > Schematic to establish a workspace. Assign a descriptive name immediately–avoid default labels like “untitled” to prevent version conflicts later. The grid defaults to 0.1 inch; adjust to 0.05 inch for tighter component placement in dense layouts, but revert if precision isn’t critical, as finer grids slow workflow.

Select components from the library manager by activating Library > Use for relevant presets. Filter categories by vendor (e.g., Texas Instruments, Microchip) to avoid sifting through irrelevant entries. For custom footprints, create a dedicated library via File > New > Library and populate it with parts not found in default collections–prioritize connectors, microcontrollers, and passive elements in descending order of frequency.

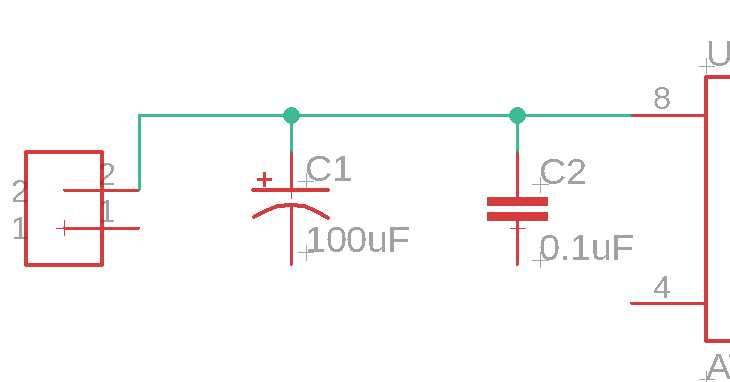

Place parts methodically: group related elements (e.g., power regulation, signal processing) and arrange them in logical flow–input on the left, output on the right. Use Add tool or keyboard shortcut A for rapid insertion. Rotate components with Ctrl+R before placement to avoid post-placement coordination errors. For repeated elements (e.g., resistors in a bank), copy Ctrl+C and paste Ctrl+V to maintain consistency.

Component Type	Recommended Libraries	Critical Attributes
Resistors	resistor, rcl	Power rating (0.25W default), tolerance (±1% for precision)
Capacitors	capacitor, rcl	Voltage rating (2x circuit voltage), dielectric (X7R for stability)
ICs (MCUs)	microchip, atmel	Package (TQFP for hand soldering), pin pitch (0.5mm for density)
Connectors	connector, pinhead	Pitch (2.54mm standard), gender (male/female for mating)

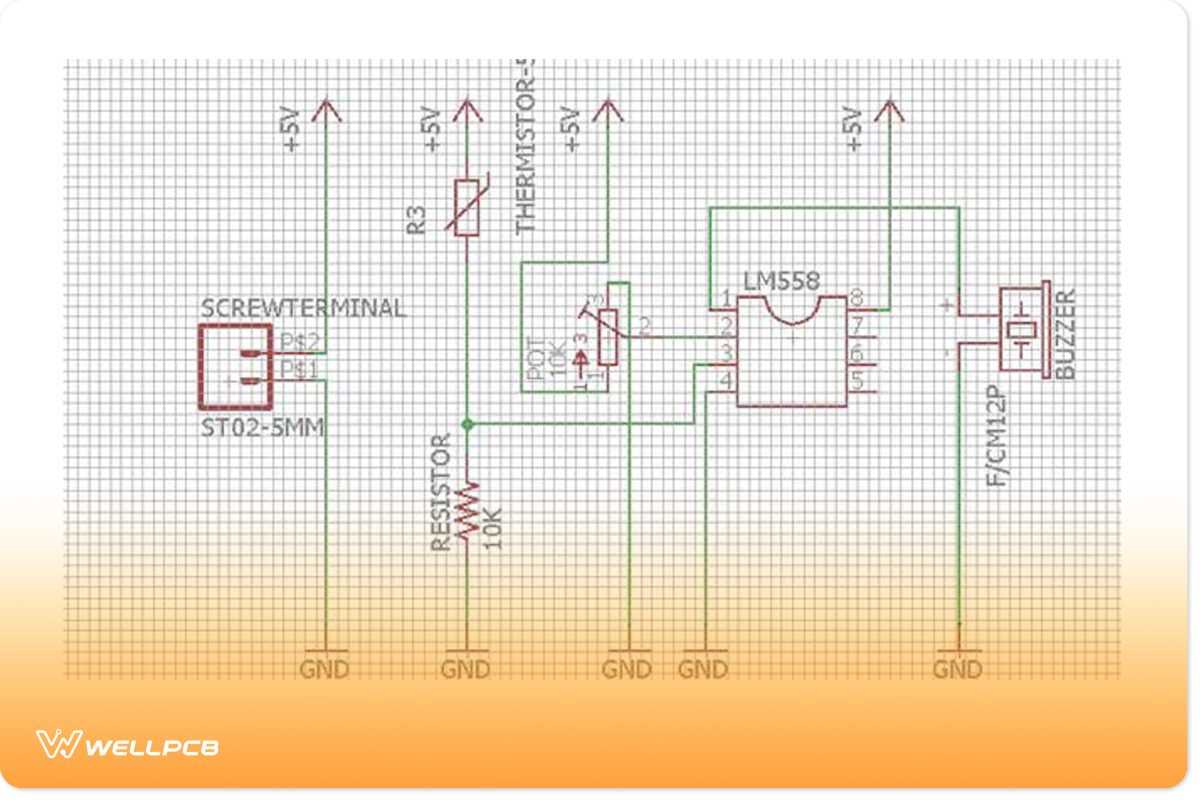

Label nets immediately after placement using Net tool or N shortcut. Prefix power lines with VCC_ or GND_ and signal paths with SIG_ to simplify debugging–avoid generic labels like “net1”. For bus structures, group related lines under a common prefix (e.g., DATA[0..7]) and use Bus tool to visually bundle them. Validate connections by running ERC (Electrical Rule Check) before advancing to layout to catch floating pins or shorted supplies.

Optimize component selection by cross-referencing datasheets with project requirements. For high-speed designs, prioritize parts with low parasitic inductance (e.g., 0402 package capacitors over 0805). For cost-sensitive projects, substitute pin-compatible alternatives but verify specifications–an ATmega328P-PU may replace an ATmega328P-AU, but the latter’s TQFP package requires a different footprint. Document substitutions in the schematic notes to prevent assembly errors.

Leverage manufacturer-provided CAD models when available. Many vendors offer downloadable libraries (e.g., Molex for connectors, Analog Devices for amplifiers) that include 3D models for mechanical validation. Import these via Library > Import and verify footprint accuracy against datasheet dimensions–errors here propagate to fabrication. For unsupported parts, manually create symbols and footprints, adhering to IPC-7351 standards for pad spacing and silkscreen clarity.

Use designators consistently: resistors as R1, R2, capacitors as C_ prefix, ICs as U_. Group elements by function (e.g., R_PULLUP1, C_DECOUPLE_3V3) to aid readability. For complex assemblies, split the schematic into sheets by subsystem–power, control, I/O–using hierarchical sheets via Sheet tool. Limit sheets to 10 components per page to maintain clarity; dense sheets increase cognitive load and error risk.
