Complete Guide to Wiring a Cat 5 Ethernet Cable Step by Step

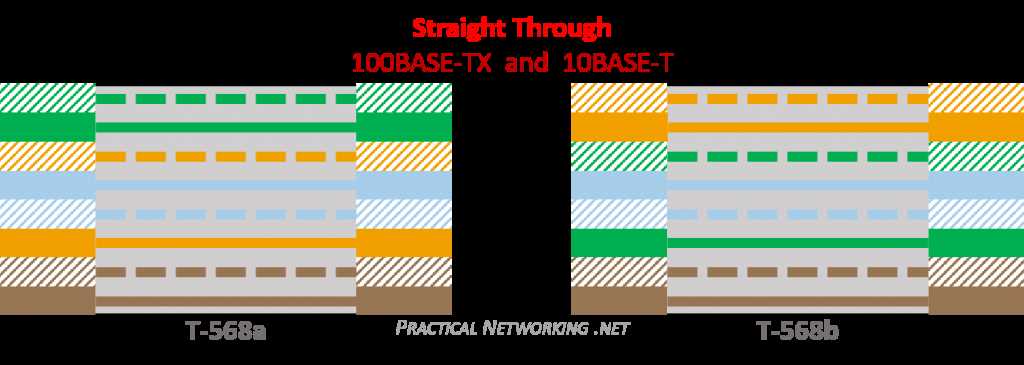

Use the T568B standard for most Ethernet connections–it reduces interference and ensures compatibility with existing infrastructure. Both ends of the twisted-pair link should follow the same pinout arrangement: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Deviations from this order introduce cross-talk or signal degradation, particularly in Gigabit implementations where all eight conductors actively carry data.

Strip the outer jacket back exactly 1.5 inches to expose the inner wire pairs. Avoid nicking the insulation on individual conductors, as even minor cuts compromise impedance and increase susceptibility to electrical noise. Untwist only the length necessary to terminate the pins–typically less than half an inch–to preserve the twisting effect that cancels radiated interference.

Insert each conductor fully into the RJ45 plug until it bottoms out against the front faceplate. The copper tip should be visible through the clear plastic housing; if not, trim uneven wires and re-insert. Crimp firmly with a ratchet tool–insufficient pressure leaves loose connections that fail during stress tests or prolonged usage. Verify continuity with a tester: miscrimped leads frequently pass initial visual inspection yet fail under real-world load.

For PoE applications, ensure solid copper cores–stranded variants increase resistance and generate heat. The AWG gauge should match the switch specifications, typically 24-26 AWG. Exceeding 100 meters between endpoints degrades signal integrity; if longer runs are unavoidable, employ a mid-span repeater at the midpoint rather than extending beyond recommended distances.

Shielded variants (FTP or STP) demand proper grounding on at least one end. Attach the drain wire to the chassis directly; omitting this step creates an antenna that amplifies ambient interference. Label both ends immediately after termination–identification errors during troubleshooting waste hours diagnosing correctable faults.

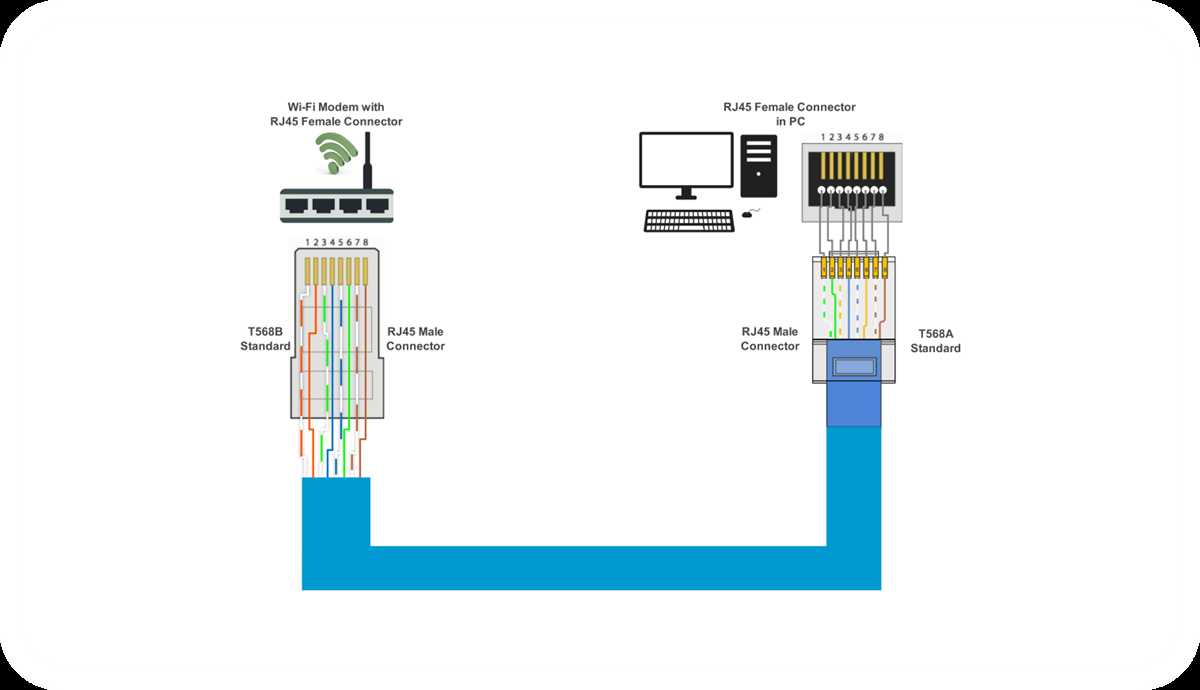

Standard Ethernet Pair Configuration for T568A and T568B

Use T568B pinout for most commercial networks–it aligns with North American conventions and reduces misalignment errors. Connect pin 1 to the white-orange conductor, pin 2 to solid orange, pin 3 to white-green, and pin 6 to solid green. The remaining pairs (pins 4/5 and 7/8) handle power-over-Ethernet or secondary channels; wire them blue-white/blue and brown-white/brown respectively.

For residential or legacy telecom setups, apply T568A: swap the orange and green pairs. Pin 1 connects white-green, pin 2 solid green, pin 3 white-orange, and pin 6 solid orange. Validate continuity with a multimeter–each conductor should register under 10 ohms across the full channel length at 20°C.

Terminate connectors with a precision crimper rated for 24AWG solid copper. Apply 9–12 lbs of force to ensure all eight conductors seat fully into the IDC slots; partial insertion causes cross-talk exceeding -32dB at 100MHz. Test insertion loss immediately–acceptable values range between -0.1dB and -0.4dB per 100 meters.

Avoid untwisting more than 13mm of any pair; excessive exposure degrades impedance to 90Ω ±15%, risking signal reflection. Trim conductors flush after termination–protruding strands create intermittent shorts under vibration testing (IEC 60512-11). Confirm polarity with a network tester–miswired pairs generate near-end crosstalk surpassing -18dB, violating IEEE 802.3at thresholds.

Label both ends with permanent ink–designate pairs 1–2, 3–6, 4–5, and 7–8. Use color-coded sleeves or flags for faster troubleshooting. Log termination timestamps; oxidation begins within 72 hours if connections aren’t sealed with dielectric grease in humid environments (RH > 60%).

For Power over Ethernet, verify conductor gauge–24AWG supports 30W (PoE++ Type 3), while 26AWG limits delivery to 15W (PoE Type 1). Apply shielded plugs only if adjacent cables exceed 5A current draw; unshielded plugs suffice for standard 1Gbps transmission under 30 meters.

Replace any patch cord exhibiting outer jacket abrasion–exposed inner insulation accelerates attenuation by 0.5dB per year at 250MHz. Store spare reels in static-shielded bags at temperatures below 35°C to prevent jacket embrittlement. Rotate stock every 36 months; aged insulation reduces dielectric strength to 80V/mil, increasing susceptibility to electrostatic discharge.

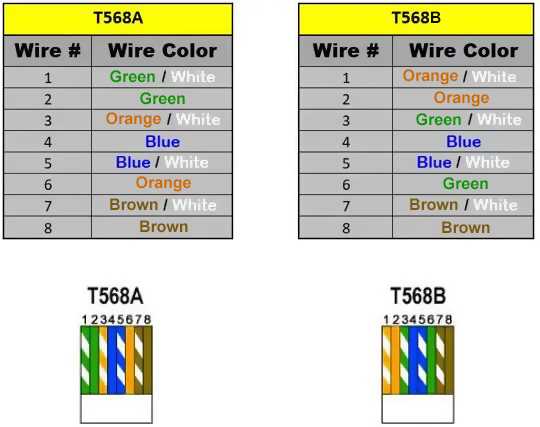

Step-by-Step Guide to T568A and T568B Color Coding Standards

Begin by stripping the outer sheath 1.5 inches from the connector end to expose the twisted pairs. Untwist each pair no more than 0.5 inches to maintain signal integrity–excessive untwisting increases crosstalk. Arrange the conductors in the correct sequence for your chosen standard before trimming them to a uniform length of 0.5 inches from the sheath cutoff. Use sharp scissors or a precision cutter to avoid frayed ends, which can disrupt connection quality.

For T568A, align the wires in this order from left to right (with the tab facing downward):

Pin	Color	Wire Function
1	White/Green	Transmit +
2	Green	Transmit –
3	White/Orange	Receive +
4	Blue	Unused (PoE optional)
5	White/Blue	Unused (PoE optional)
6	Orange	Receive –
7	White/Brown	Unused (PoE optional)
8	Brown	Unused (PoE optional)

T568B swaps the green and orange pairs, resulting in this configuration:

Pin	Color	Wire Function
1	White/Orange	Transmit +
2	Orange	Transmit –
3	White/Green	Receive +
4	Blue	Unused (PoE optional)
5	White/Blue	Unused (PoE optional)
6	Green	Receive –
7	White/Brown	Unused (PoE optional)
8	Brown	Unused (PoE optional)

Insert the aligned wires into the RJ45 connector with the copper contacts facing upward. Ensure each conductor reaches the tip of the connector–use a crimping tool with transparent head to verify placement before securing. Apply firm, even pressure during crimping to avoid weak contacts, which can cause intermittent connectivity. Test the link with a network analyzer to confirm proper pairing and signal strength before deployment.

Essential Gear and Supplies for Proper Ethernet Connector Termination

Begin with a high-quality RJ45 crimping tool rated for solid core conductors–avoid cheap models that deform contacts or fail to cut insulation cleanly. Look for tools with hardened steel dies, a built-in wire cutter, and a ratcheting mechanism to ensure consistent pressure. Brands like Klein, Ideal, and Paladin offer durable options that last through hundreds of terminations without losing precision.

Select stranded patch leads for patch panels and solid core twisted pairs for in-wall runs. Stranded wires flex better but carry slightly higher signal loss; solid core handles bandwidth better over long distances. AWG 24 is standard, but AWG 23 or 22 improves power-over-ethernet performance if your network carries both data and voltage.

Modules and plugs must match the conductor type–mixing stranded connectors with solid wire causes poor contact and intermittent failures. Check the plastic housing: clear connectors let you verify wires are fully seated, while shielded versions reduce electromagnetic interference in high-noise environments like data centers. Avoid “universal” plugs labeled for both types; they compromise reliability.

Use a cable stripper calibrated for outer jacket removal without nicking the inner pairs. A single nick can degrade signal integrity, especially at gigabit speeds. Adjustable strippers work best, allowing you to remove exactly 1.5 inches of jacket for proper termination. Cheap fixed-depth models often cut too deep, risking shorts between pairs.

Test continuity with a dedicated network analyzer rather than a multimeter–simple probes can’t detect split pairs, crossed wires, or reversed polarity. Entry-level certifiers like Fluke LinkIQ verify transmission performance and pinpoint faults to the centimeter, while cheaper alternatives provide basic pass/fail results. Always test both ends; impedance mismatches mid-run can appear as clean connections on one side only.

Keep a punch-down tool with a 110 blade for terminating to keystone jacks or patch panels. Non-impact models require precise force to drive contacts fully without damaging wires, while spring-loaded versions reduce hand fatigue during large jobs. Replace blades when they start leaving partial cuts or frayed ends, typically after 200-300 terminations.

• Precision screwdriver set for securing jacks and wall plates
• Fish tape or rods for pulling through conduit and walls
• Velcro straps for bundling excess length (avoid zip ties–compression deforms conductors)
• Label printer and permanent marker for identifying ports and runs
• Isopropyl alcohol (90%+) and lint-free cloth for cleaning connectors

For outdoor runs, use gel-filled or UV-resistant outer sheaths rated for direct burial. Standard indoor segments lack waterproofing and degrade quickly in sunlight, even in conduit. If running through attics or crawl spaces, choose plenum-rated segments to meet fire safety codes–riser-rated sheaths emit toxic smoke when burned, violating building regulations.

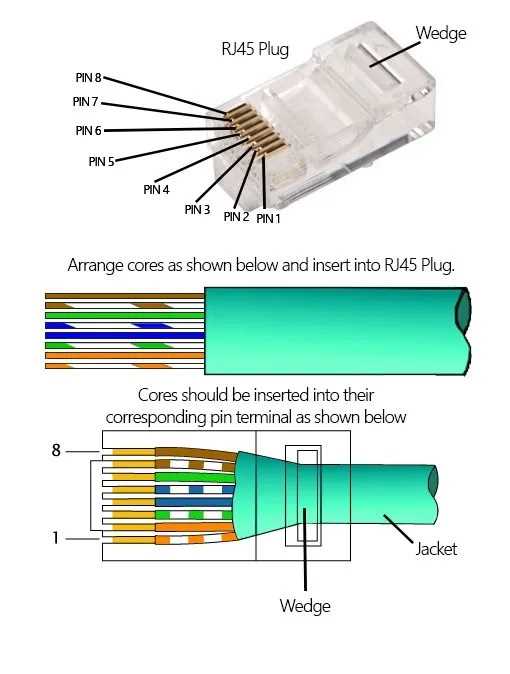

How to Strip, Arrange, and Terminate Conductors in an RJ45 Plug

Measure 1.5 inches from the end of the twisted pairs and score the outer jacket lightly with a precision stripping tool–avoid cutting into the internal conductors. Rotate the tool once around and pull the severed jacket away in one smooth motion. For stranded wires, leave the jacket slightly loose to prevent individual strands from breaking during manipulation.

Untwist each pair only as far back as necessary–no more than 0.5 inches–to minimize crosstalk. Arrange the wires in the T568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Hold them between thumb and forefinger, applying steady pressure to keep alignment precise.

Trim the exposed conductors to 0.5 inches with flush-cut pliers, ensuring a straight edge perpendicular to the wires. Even a slight diagonal cut can prevent proper insertion into the connector. Check for stray copper filaments; one misplaced strand can short adjacent pins.

Insertion and Crimping Steps

• Slide the wires into the RJ45 plug, pushing firmly until each conductor touches the front of the connector. Verify alignment by looking through the clear plastic housing–misplaced wires appear as uneven gaps.
• Use a crimping tool with 8P8C dies. Position the plug in the tool, align the dies with the connector’s contacts, and apply firm pressure in one continuous motion. Listen for a single, distinct click; multiple clicks indicate incomplete termination.
• Inspect the termination by gently pulling each wire–properly crimped conductors resist separation. Use a multimeter on continuity mode to test pin-to-pin conductivity, probing the underside of each contact.

For shielded twisted pairs, fold the metallic foil back over the jacket before stripping to maintain grounding integrity. Connect the drain wire to the RJ45 plug’s metal shield or an external bonding point, depending on connector type. Failure to ground properly increases susceptibility to EMI.

Store excess length in a small service loop–never coil tightly–to avoid signal degradation. Label both ends with identical identifiers within 12 inches of the plug for future maintenance. Use solid-core probes when testing stranded terminations to prevent false negatives from loose connections.

Common Pitfalls and Verification

1. Skip generic stripping tools; use a dedicated twisted-pair stripper with depth guides calibrated for 24-22 AWG wires. Standard wire strippers nick conductors, weakening signal integrity.
2. Avoid untwisting pairs beyond the connector’s rear–excessive untwisting increases NEXT (Near-End Crosstalk) by 3-5 dB per inch.
3. Press wires fully into the plug’s channels; partial insertion causes intermittent connections. The connector’s latch should audibly snap when seated correctly.
4. After crimping, check for “whiskers”–fine copper strands bridging adjacent pins. Remove with a micro-file or razor blade, then retest continuity.
5. For PoE applications, verify current handling capacity: 22 AWG conductors support up to 15W; 24 AWG may require derating to 10W per pair.
