How to Wire a Cat 5 Ethernet Plug Step-by-Step Guide for Network Setup

Straight-through cables follow the T568B standard for both ends to ensure compatibility with modern network devices. Pin assignments must adhere to this sequence: pin 1 (white/orange), pin 2 (solid orange), pin 3 (white/green), pin 4 (solid blue), pin 5 (white/blue), pin 6 (solid green), pin 7 (white/brown), pin 8 (solid brown). Deviations from this order will result in signal disruption or device miscommunication.

For crossover configurations–used when connecting similar devices directly–swap pairs 2 and 3 (pins 1, 2 with 3, 6). The correct mapping is: pins 1 ↔ 3, pins 2 ↔ 6, pins 4 ↔ 4, pins 5 ↔ 5, pins 7 ↔ 7, pins 8 ↔ 8. Miswiring these pairs introduces crosstalk exceeding 40dB thresholds, leading to packet loss in gigabit links.

Shielded variants require proper grounding of the drain wire to the connector’s metal shell. Strip the outer jacket 25–30mm, untwist pairs no more than 12.5mm, and maintain pair twists up to the termination point. Excessive untwisting increases susceptibility to electromagnetic interference, violating IEEE 802.3ab specifications for 1000BASE-T transmission.

Verify continuity with a certified tester before deployment. A single reversed pair or open circuit reduces throughput by 50% or more in full-duplex mode. Use solid-core conductors for permanent installations and stranded for patch cables to balance durability and flexibility. Replace connectors showing signs of oxidation–visible as darkening near the contact points–to prevent incremental signal degradation.

RJ45 Connector Pinout Guide for Network Cables

Begin by stripping the outer jacket of the twisted pair cable–expose approximately 1.5 inches of the internal conductors. Untwist the pairs just enough to straighten them; excessive untwisting degrades signal integrity.

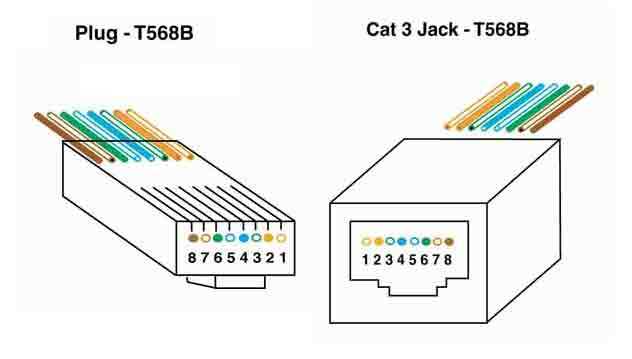

Arrange the wires in the T568B standard sequence for standard Ethernet connections:

• Pin 1: White/Orange
• Pin 2: Orange
• Pin 3: White/Green
• Pin 4: Blue
• Pin 5: White/Blue
• Pin 6: Green
• Pin 7: White/Brown
• Pin 8: Brown

The T568A standard reverses the green and orange pairs but is rarely used in modern installations. For cross-over connections, swap pins 1-2 with 3-6 on one end.

Trim the wires evenly to 0.5 inches from the jacket edge–this ensures proper seating in the connector crimp. Insert the aligned wires fully until each conductor touches the inner face of the connector; verify correct positioning before crimping.

Use a ratcheted crimping tool for consistent pressure–deficient crimps cause intermittent faults. Test continuity with a dedicated cable analyzer before network deployment; visual inspection alone misses nearly 40% of defects.

For Power over Ethernet (PoE) configurations, pair 4-5 and 7-8 must remain intact as they carry DC current. Damage to these pairs risks equipment failure or fire hazards in high-power applications.

Shielded twisted pair (STP) demands additional grounding–attach the drain wire to the connector’s metal shield only on one end to prevent ground loops. Unshielded variants tolerate minor manufacturing inconsistencies but degrade above 100 MHz.

Replace damaged terminations immediately–corrosion on contact surfaces increases resistance beyond acceptable IEEE thresholds, causing CRC errors and retransmissions.

Step-by-Step Guide to Assembling an RJ45 Connector

Strip 1.5 inches of the outer insulation from the twisted-pair cable using a dedicated stripper or precision knife, avoiding cuts to the internal conductors. Fan out the eight colored wires in the correct T568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Maintain the twists as close to the end as possible to reduce interference.

Preparing the Conductors

Trim the wires to a uniform length of 0.5 inches using sharp diagonal cutters, ensuring a clean, straight cut. Verify the sequence once more–swapping even two positions will disrupt data transmission. Slide the connector onto the cable with the gold contacts facing upward to align with the internal pinout.

Insert the wires fully into the connector until each conductor touches the front wall. The outer jacket must sit just inside the rear entry–failure to do so risks incomplete crimping and intermittent connectivity. Use a magnifying glass if necessary to confirm proper seating before proceeding.

Securing the Connection

Place the loaded connector into the crimping tool’s RJ45 slot, ensuring it is aligned squarely. Squeeze the handles firmly until the ratchet releases–weak crimps lead to signal loss. Test continuity with a network tester: each of the eight LEDs should illuminate in sequence; flickering or missing lights indicate miswiring.

If rework is needed, cut the connector 0.25 inches below the boot and repeat the process. Do not attempt to reuse a failed connector–latch damage or bent pins compromise performance. For stranded cables, avoid excessive stripping; the thinner insulation requires precise alignment to avoid shorts.

Shielded installations demand additional steps: fold the drain wire along the jacket and tuck it under the connector’s strain relief. Maintain 360-degree contact between the foil shield and the connector body using conductive adhesive or mechanical grounding. Test impedance with a TDR meter to detect reflective anomalies.

For PoE applications, confirm conductor gauges meet IEEE 802.3af standards (minimum 24 AWG for 30W). Overheating at terminations signals undersized wires–replace with thicker conductors or distribute power across multiple pairs. Label both ends with cable identifiers to simplify troubleshooting.

Store excess cable in loose coils no smaller than 4 inches in diameter to prevent kinking. Avoid sharp bends near connectors–stress fractures develop over time, degrading signal integrity. Periodically inspect connections in harsh environments; oxidation on gold contacts can be cleaned with a fiberglass pen, not abrasive pads.

T568A vs T568B: Selecting the Right Ethernet Termination Standard

Choose T568B unless existing infrastructure mandates otherwise. The vast majority of modern installations default to T568B, making it the practical choice for consistency and compatibility. T568A remains relevant only in specific scenarios like legacy telecommunications systems or when matching pre-wired cabling in older buildings. Decision-making should prioritize reducing variability in large-scale deployments.

The critical distinction lies in the pin assignments: T568A pairs green/white-green with pins 1 and 2, while T568B swaps these with orange/white-orange. This swap affects only pairs 2 and 3, leaving pairs 1 (blue) and 4 (brown) unchanged. Cross-compatibility exists between standards for straight-through cables, but mixing them in patch panels or keystone jacks causes miswiring. Document the chosen standard systematically during installation to prevent future troubleshooting.

North American commercial installations overwhelmingly favor T568B, with telecommunications industry association standards (ANSI/TIA-568) recognizing both but recommending T568B for new cabling. European installations occasionally default to T568A, particularly in countries with historical ties to certain infrastructure providers. Network performance remains identical between standards–provided consistency is maintained across terminations. Swapping standards mid-installation introduces latency issues due to improper signal pairing.

For Power over Ethernet (PoE) implementations, T568B’s prevalence simplifies device compatibility, as most PoE-enabled switches and injectors align with this arrangement. T568A’s persistence stems primarily from backward compatibility requirements, not technical superiority. When retrofitting older networks, audit existing terminations first–reterminating all endpoints to T568B may prove costlier than sustaining the legacy standard.

Testing becomes imperative when mixing standards. Use a cable certifier to verify correct pinouts and pair assignments. Miswired connections often manifest as intermittent connectivity or crosstalk, particularly on gigabit networks where all four pairs carry data. If faced with an environment using both standards, label connections meticulously and, where possible, reterminate to a single standard to eliminate ambiguity.

VoIP and analog telephone systems historically utilized T568A due to its alignment with older USOC wiring schemes. Modern IP telephony, however, adapts equally well to either standard, provided the physical layer adheres to gigabit Ethernet requirements. For voice/data convergence, T568B’s dominance reduces the risk of confusion during port configurations or switch upgrades.

Patch cord selection should mirror the chosen standard–vendor-preterminated cables typically follow T568B unless specified otherwise. Field-terminated connectors require strict adherence to the selected standard, with visual confirmation of wire sequence during punch-down or crimping. Deviations here often result in non-functional pairs or suboptimal performance, especially on longer cable runs where crosstalk becomes more pronounced.

In data centers or enterprise environments, standardizing on T568B simplifies troubleshooting and reduces documentation complexity. The marginal operational differences between standards vanish when consistency is enforced. For new installations, default to T568B unless contractual obligations, building codes, or existing network components dictate T568A.
