Complete Circuit Guide for Building a Conductivity Probe Sensor
Begin with a two-electrode configuration spaced 1 cm apart for measuring dissolved solids in low-conductivity liquids like deionized water. Use 316 stainless steel for electrodes to resist corrosion in most aqueous solutions, but switch to platinum for high-temperature applications exceeding 85°C or acidic environments below pH 3. Size electrodes at 5 mm diameter × 20 mm length to balance surface area and structural integrity.
Connect electrodes to a Wheatstone bridge using shielded twisted pair wiring to minimize interference. Apply a 1 kHz AC excitation signal at 1 V RMS to prevent polarization of the measurement interface. Include a 0.1 µF polyester capacitor in parallel with each electrode lead to filter high-frequency noise above 10 kHz.
Amplify the bridge output with an instrumentation amplifier (INA125), configured for a gain of 1000. Power the amplifier from a dual ±5 V supply to accommodate bipolar signal swings. Insert a 100 kΩ trimpot between the amplifier output and ground to adjust zero offset, compensating for baseline drift.
For temperature compensation, place a 10 kΩ NTC thermistor adjacent to the electrodes, wired to the same circuit board. Use a second-order polynomial correction algorithm in firmware to adjust raw readings, accounting for viscosity changes in the liquid. Calibrate the system in 0.01 M KCl solution at 25°C (±0.1°C) for consistent reference values.
Route signal traces on a four-layer PCB with dedicated ground and power planes. Keep high-impedance traces shorter than 5 cm to reduce capacitive coupling. Add a ferrite bead (BLM18PG121SN1) to the power input to suppress conducted EMI. Enclose the electronics in a 3D-printed ABS housing with a 2.5 mm wall thickness, sealing cable entries with epoxy to meet IP67 standards.
Designing a Measurement Cell Circuit Layout
For optimal signal fidelity, position the sensing electrodes at a fixed distance of 10–20 mm apart, ensuring the geometry forms a precise 1:2 width-to-gap ratio. Use a four-terminal configuration–two outer plates for excitation and two inner plates for pickup–to minimize polarization errors. Excitation should be a 1 kHz square wave with ±500 mV amplitude, generated via a dedicated oscillator IC (e.g., TI LM555) fed through a 1:1 isolation transformer to eliminate DC offset. Ground the reference electrode directly to the analog ground plane of your PCB, keeping high-impedance traces under 2 cm in length and shielding them with a copper pour tied to chassis ground.
Component Selection & Noise Mitigation
Select 0.1 % tolerance resistors for the Wheatstone bridge network to maintain

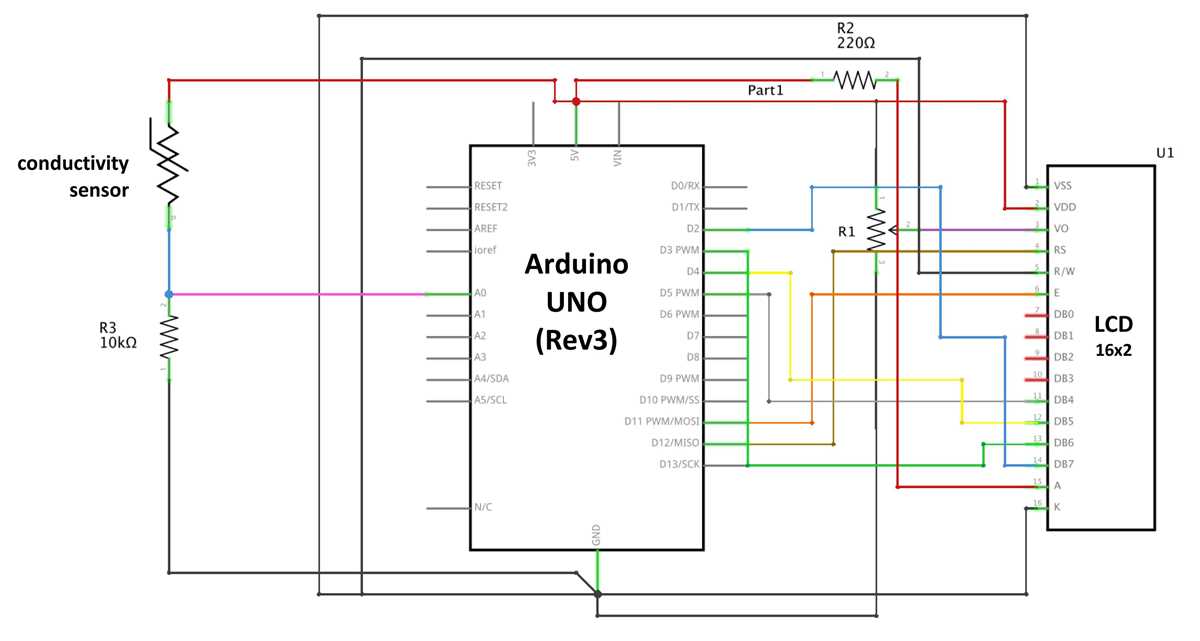

Core Elements of a Basic Ion Measurement Sensor Setup
Use two parallel electrodes made of inert materials like platinum or graphite to avoid chemical reactions. Ensure they are spaced 1–5 mm apart for optimal signal strength without excessive resistance. Surface area and spacing directly affect sensitivity–smaller gaps increase resolution but narrow the measurable range.
Integrate a precision resistor in series with the electrodes, typically between 100 Ω and 1 kΩ, to form a voltage divider. This resistor converts current changes into measurable voltage shifts. Select its value based on expected solution resistance; lower values suit high-conductance fluids, while higher resistances work better for dilute samples.
Apply an AC signal, not DC, to prevent electrode polarization. A square or sine wave between 50 Hz and 10 kHz at 0.1–1 V amplitude works best. Frequencies below 1 kHz minimize capacitive effects, while higher frequencies reduce noise but may introduce parasitic inductance in wiring.
Add a differential amplifier with a gain of 10–100 to isolate the sensor signal from ground interference. An op-amp like the LM358 or AD8221 provides sufficient input impedance (>1 GΩ) to avoid loading the circuit. Include a 0.1 µF bypass capacitor across the op-amp’s power pins to stabilize performance.
Shield all wiring between the electrodes and amplifier to block electromagnetic interference. Use twisted pair cables for analog signals and keep leads under 30 cm to reduce stray capacitance. Ground the shield at one end only–connecting it at both ends creates ground loops.
Calibrate the setup with known standards like 0.01 M KCl (1.413 mS/cm at 25°C) or distilled water (1–5 µS/cm). Adjust the series resistor or amplifier gain to align readings with the target range. For ambient temperature variations, incorporate a thermistor (e.g., 10 kΩ NTC) near the electrodes to correct for thermal drift in the final output.
Step-by-Step Wiring of Sensor Electrodes to Signal Processing
Begin by ensuring the sensor plates are free of oxidation or debris–use 1200-grit wet sandpaper followed by deionized water rinse. Secure the leads to the plates using high-purity (99.9%) silver solder with a 0.5 mm rosin-core flux; avoid acid-based fluxes to prevent corrosion. Route wires through a shielded twisted pair (minimum 24 AWG, 100 Ω impedance) with the shield grounded at the conditioning circuit’s ground plane only. Maintain a consistent 1.5 mm spacing between conductors to minimize capacitive coupling.
Critical Connections
- Attach the positive lead to the non-inverting terminal of a differential amplifier (e.g., AD620) with a 1% metal film resistor (RG=499 Ω) for 10x gain. Verify solder joints with a 10x loupe for voids.
- Connect the negative lead to the amplifier’s inverting terminal via a matched resistor within ±0.1% tolerance to ensure thermal stability.
- Integrate a 10 nF film capacitor across the sensor plates to suppress RF interference–position it
- Terminate the shield at the circuit’s star ground point, not the sensor housing, to prevent ground loops. Use a 3-mm ring terminal crimped with a ratcheting tool for reliability.
Validate wiring by measuring DC resistance between sensor plates (
Selecting the Optimal Signal Conditioner for Ionic Detection Systems
For precise liquid analysis, prioritize instrumentation amplifiers with input impedance exceeding 1012 Ω when interfacing with electrode-based sensors. This specification prevents signal loading, a common issue in low-ion-concentration samples down to 1 µS/cm. The AD8221 exemplifies this requirement, offering 120 dB CMRR at 60 Hz noise rejection–critical for industrial environments where power line interference dominates. Pair it with a driven guard ring circuit to eliminate parasitic capacitance effects that distort phase response during high-frequency AC excitation methods.
Low-noise JFET input stages like the OPA140 outperform bipolar alternatives in applications requiring sub-nA leakage currents. Its 5.1 nV/√Hz noise density at 1 kHz ensures fidelity for microvolt-level signals, particularly when measuring distilled water or ultra-pure reagents. For solutions with nonlinear temperature coefficients (e.g., >2%/°C), integrate a Pt1000 RTD sensor alongside the amplifier; the OPA333’s zero-drift topology maintains 0.05 µV/°C offset stability over -40°C to 125°C, eliminating the need for frequent recalibration in thermal chambers.
AC vs. DC Excitation Tradeoffs
AC excitation at 1–10 kHz minimizes electrode polarization, but requires a lock-in amplifier for phase-sensitive demodulation. The SR830 delivers 0.01° phase resolution, necessary for separating resistive (bulk) and reactive (double-layer) components in samples with >10 Ω·cm resistivity. For simplicity in portable systems, the MAX410 provides single-chip 50/60 Hz notch filtering with 80 dB attenuation–adequate for conductivity ranges from tap water to seawater (0.005–50 S/m). DC methods, while avoiding frequency-dependent errors, demand reversible electrodes (e.g., Ag/AgCl) and are limited to short measurement intervals to prevent surface fouling.
Grounded signal paths introduce errors when referenced to earth potential; use the INA114’s differential topology with >110 dB PSRR to reject common-mode voltages up to ±10 V. For remote sensors, opt for isolated amplifiers like the ISO124, which provides 1500 Vrms continuous isolation, preventing ground loops in flow-through cells deployed in hazardous areas. Multiplexed systems benefit from the ADG1606 analog switch, handling up to 33 V peak-to-peak signals with 0.5 Ω on-resistance–crucial for sequential analysis of multiple sample streams without cross-talk.
Resolution vs. Range: Matching Gain to Application
A 12-bit ADC suffices for industrial quality control (e.g., boiler feedwater at 0.05–1 S/m), but biological samples (e.g., cell cultures at 0.001–0.1 S/m) demand 16-bit resolution. The LMP7721’s rail-to-rail output swing enables ±2.5 V full-scale measurements without saturation, while its 20 MHz GBW prevents roll-off below 100 kHz–essential for pulsed waveforms used in fouling detection. For battery-powered devices, the TLV2771 consumes 1.7 mA at 5 V yet delivers 2.5 MHz bandwidth, balancing power budget with dynamic response.
Post-amplification filtering requires matched time constants to avoid aliasing; a 4-pole Bessel filter at 10× the excitation frequency preserves transient details during TDS fluctuations. The LTC1064 achieves 0.1 Hz–100 kHz corner frequencies with
For aggressive chemical environments (e.g., sulfuric acid at pH
Calibration Methods for Accurate Electrolyte Measurement
Use standard reference solutions with certified values to validate sensor performance. Pre-mixed samples of potassium chloride (KCl) at 0.01 M, 0.1 M, and 1 M concentrations provide stable benchmarks across typical ranges. Store these solutions at 25°C (±0.1°C) for 24 hours before use to eliminate temperature-induced errors. Record the expected values from the table below and compare them against actual readings to identify deviations:
| Solution | Expected Value (mS/cm) | Tolerance (±%) |
|---|---|---|
| 0.01 M KCl | 1.413 | 0.5 |
| 0.1 M KCl | 12.88 | 0.3 |
| 1 M KCl | 111.8 | 0.2 |
Perform a two-point calibration for sensors operating across multiple ranges. Adjust the offset at the lowest standard (0.01 M KCl) first, then correct the slope using the highest standard (1 M KCl). This method minimizes non-linearity errors in devices with analog signal conditioning. Ensure the sensor remains fully submerged during calibration to avoid air bubbles disrupting the signal path.
Clean the sensing element with 0.1 M nitric acid for 30 seconds before calibration to remove organic deposits or scaling. Rinse thoroughly with deionized water (resistivity >18 MΩ·cm) to prevent cross-contamination. For fouled sensors in industrial applications, ultrasonicate in a 1% detergent solution for 5 minutes at 40 kHz. Document weight change before and after cleaning–mass loss >0.2 mg indicates irreversible damage.
Compensate for temperature effects using either automatic temperature compensation (ATC) or manual adjustment. ATC relies on a built-in thermistor with a temperature coefficient of 2% per °C for most electrolytes. For manual correction, apply the formula: Rcorrected = Rmeasured / [1 + α(T – 25)], where α for KCl is 0.0191. Verify ATC accuracy by comparing readings at 20°C and 30°C–discrepancies >0.8% require recalibration of the temperature circuit.
Check sensor linearity by measuring intermediate standards (e.g., 0.05 M KCl) after two-point calibration. Plot the values on a graph with the reference points; deviations from a straight line suggest electrode degradation or drift in the signal converter. Replace sensors if linearity error exceeds 0.7% over the operational range. For high-purity water applications, use a 5 μS/cm standard and extend calibration cycles to 6 months due to slow contamination rates.
Log calibration data in a controlled environment with humidity
Validate calibration by testing known samples immediately before and after adjustments. A 0.5 M sodium chloride (NaCl) solution should yield 43.5 mS/cm (±0.4%) at 25°C. Discrepancies between KCl and NaCl readings reveal errors in the sensor’s cell constant; recalculate it using K = Rstandard × Cstandard, where K is the cell constant, Rstandard is the measured resistance, and Cstandard is the known conductance.
