Complete Guide to Cat-5 Ethernet Cable Wiring and Color Codes
Use the T568B standard for most structured cabling applications to ensure compatibility with existing networks. Connect the orange-white stripe to pin 1, orange solid to pin 2, green-white to pin 3, and blue solid to pin 4. Follow with blue-white on pin 5, green solid on pin 6, brown-white on pin 7, and brown solid on pin 8. This sequence minimizes crosstalk and maintains signal integrity over distances up to 100 meters at 100 Mbps.
Avoid twisting pairs excessively when terminating–tight bends increase attenuation by up to 20% beyond 5 mm radius. Use a crimping tool with a ratchet mechanism to apply consistent pressure; improper connections degrade performance by introducing impedance mismatches. For PoE applications, verify wire gauge (24 AWG minimum) supports current requirements without voltage drop exceeding 0.1V per meter.
Test each conductor with a dedicated cable analyzer before deployment. Check for continuity, shorts, and split pairs–miswirings cause intermittent faults undetectable without proper tools. Replace connectors exhibiting signs of corrosion or deformation; contact resistance above 0.5Ω disrupts Gigabit signaling. For outdoor installations, use shielded variants to reduce EMI from power lines or fluorescent lighting.
Label both ends of every cable legibly during installation to streamline troubleshooting. Document patch panel ports and switch interfaces in an inventory system–unmarked cables slow down diagnostics by 60% in enterprise environments. When routing, maintain separation from power cables: 15 cm minimum for AC lines up to 240V, increasing to 30 cm for 480V circuits.
For PoE-powered devices like IP cameras, ensure the power sourcing equipment (PSE) delivers sufficient wattage. Class 0 devices require 15.4W, while Class 4 (PoE+) needs 30W per port. Calculate total load before connecting multiple high-power devices to a single switch–exceeding specifications risks overheating or shutdown. Use inline couplers only for temporary fixes; permanent installations demand direct terminations to maintain transmission quality.
Standard Pinout Configuration for Ethernet Cable Termination
Begin by stripping 2 cm of outer jacket from the cable using a precision stripper, ensuring no damage to the twisted pairs inside. Arrange the conductors in the T568B order–white-orange, orange, white-green, blue, white-blue, green, white-brown, brown–before trimming them evenly to 12-13 mm. This sequence minimizes crosstalk and adheres to most network deployment standards, including ANSI/TIA-568-C.2. Use a crimping tool with 8P8C modular plugs, applying firm pressure for 3-5 seconds to ensure proper termination.
Avoid untwisting pairs beyond 13 mm, as excessive separation increases signal degradation, particularly at frequencies above 10 MHz. For patch cords under 5 meters, T568A ordering may be used if legacy compatibility is required, but T568B is preferred for new installations. Test continuity with a cable analyzer set to “TDR mode” to detect impedance mismatches, which should not exceed ±5 Ω. Replace any connector showing attenuation beyond 20 dB at 100 MHz.
Alternative Pinouts for Specific Applications
| Application | Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|---|
| PoE (IEEE 802.3af Mode A) | TX+ | TX- | RX+ | DC+ | DC+ | RX- | ||
| Gigabit Ethernet (Crossover) | TX_D1+ | TX_D1- | RX_D2+ | BI_D3+ | BI_D3- | RX_D2- | BI_D4+ | BI_D4- |
| RS-232 (DTE-DCE) | TD | RD | RTS | CTS | DTR | DSR | GND |
For Power over Ethernet (PoE) applications, pairs 4-5 and 7-8 must carry DC voltage; avoid mixing data and power on the same conductors. Gigabit crossover cables swap all four pairs, unlike 10/100 Mbps cables which only require pairs 1-2 and 3-6. When terminating for RS-232, ensure proper shielding–use an external drain wire connected to pin 8 for ground reference.
Inspect terminated ends under a magnifier for bent pins or incomplete crimps before deployment. Replace any cable exhibiting odd-mode return loss above -15 dB at 1-100 MHz, as this indicates poor termination quality. For outdoor use, seal connectors with heat-shrink tubing or gel-filled boots to prevent moisture ingress, which causes impedance fluctuation. Always verify performance against IEEE 802.3 specifications before integrating into critical infrastructure.
Tools and Validation Metrics
Use a handheld certification tester with “channel” or “permanent link” testing capability–Fluke DTX or Ideal Networks LanTEK II are industry-standard. Key metrics include:
- Insertion Loss: Max 21.0 dB @ 100 MHz
- NEXT: Min 32.3 dB @ 100 MHz
- PSNEXT: Min 29.3 dB @ 100 MHz
- Return Loss: Min 12.0 dB @ 20-100 MHz
- Delay Skew: Max 45 ns
Failure to meet these thresholds results in packet loss and retransmission errors, particularly in PoE devices. For installations exceeding 80 meters, use intermediate patch panels with proper bonding to the ground bus to reduce alien crosstalk. Document test reports for each link, including cable length, impedance, and NEXT values, to maintain compliance with ANSI/TIA-606-B labeling standards.

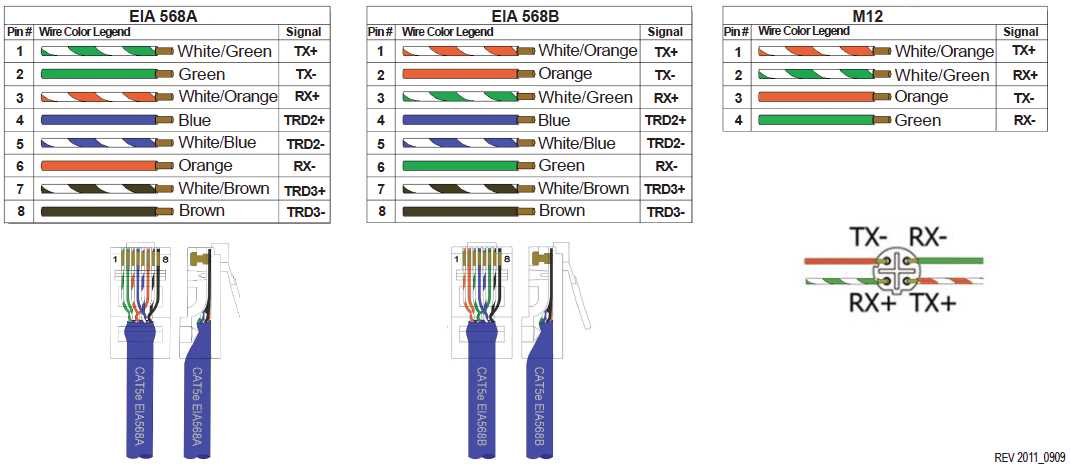

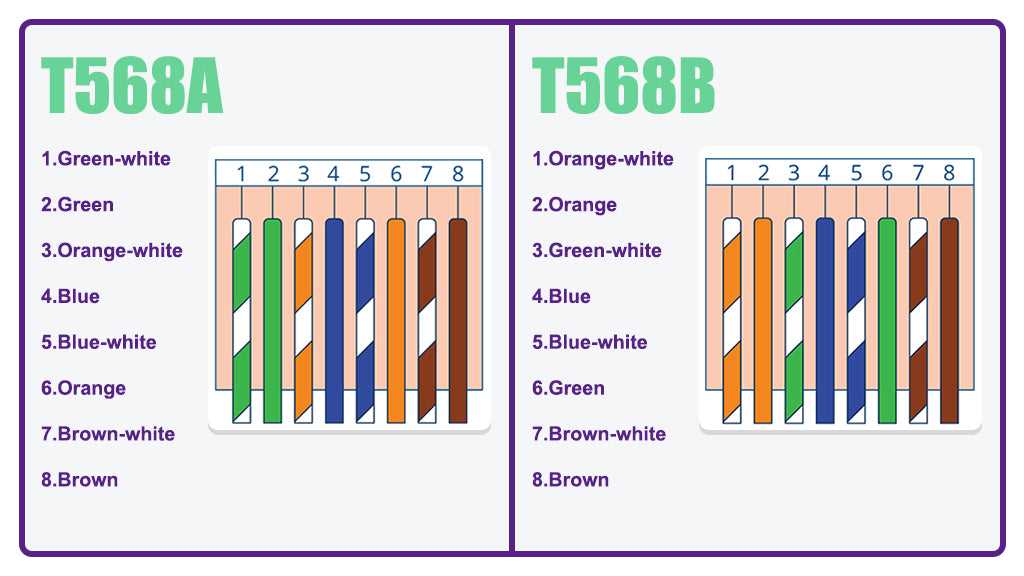

T568A and T568B Pinout Standards: Critical Differences and Best Practices
For most Ethernet installations, use T568B–it dominates industry adoption (over 90% of deployments) due to backward compatibility with legacy networks and alignment with common equipment defaults. T568B arranges pairs as follows: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. This sequence minimizes crosstalk between adjacent pairs, particularly between pins 3-6 (critical for gigabit speeds), and reduces interference when terminating RJ45 connectors. If existing infrastructure follows T568A–where pairs are white/green, green, white/orange, blue, white/blue, orange, white/brown, brown–stick with it to avoid signal degradation, but never mix schemes in the same cable run.
- Performance impact: Both schemes support 10/100/1000 Mbps, but T568B’s pin 3-6 swap enhances reliability in PoE (Power over Ethernet) applications by distributing DC load across non-adjacent pairs.
- Regional preferences: North America overwhelmingly uses T568B; Europe and some Asian markets show equal T568A adoption–check local codes before termination.
- Patch cables: For straight-through links (device-to-switch), use identical schemes on both ends. For crossover cables (switch-to-switch), combine T568A on one end with T568B on the other.
Avoid deviating from these layouts–custom pinouts disrupt auto-MDI/MDIX negotiation, cause link failures, and may require manual port configuration. Test every terminated connection with a cable certifier; even minor reversals (e.g., swapping green and orange pairs) degrade throughput below 100 Mbps. For structured cabling systems, document the chosen standard in schematics and labeling to prevent maintenance errors.
Step-by-Step Color Coding for Straight-Through Ethernet Connections
Use the T568B standard as the default for all straight-through network cords. This ensures compatibility with most modern devices and avoids configuration conflicts. Align the colored pairs in this exact order for both ends: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown.
Strip 1.5 inches of outer insulation from each end, exposing the twisted conductor pairs. Avoid nicking the individual wires–use sharp scissors or a dedicated cable stripper with a 24 AWG setting. Separate the pairs without untwisting more than 0.5 inches to maintain signal integrity.
Lay the wires flat against the connector, retaining their sequence. Trim the ends evenly to 0.5 inches, ensuring they extend just beyond the gold contacts but don’t protrude past the connector’s edge. Double-check alignment before crimping; misordered wires cause transmission errors and require retermination.
Insert the prepared ends into an RJ45 plug with the clip facing downward. Press firmly until each wire touches the plug’s interior stop–the white-orange wire should sit in the leftmost position (pin 1). Apply even pressure during crimping to secure the contacts without damaging the copper cores.
Test the connection with a cable analyzer immediately after termination. Verify continuity on all eight pins and check for split pairs or shorts. If errors appear, reterminate the faulty end–do not attempt temporary fixes, as intermittent faults degrade performance over time.
Label both ends with the termination standard used (e.g., “T568B”) and the cable length. Store excess cable in coils no tighter than 4 inches in diameter to prevent signal distortion. For installations longer than 100 meters, add a repeater or switch to avoid attenuation and packet loss.
Terminating Ethernet Cables with 8P8C Modular Plugs
Strip 2.5–3 cm of the outer jacket from the cable using a precision cutter–avoid nicking the twisted pairs. Unwind each pair only enough to separate the conductors, keeping untwist to to maintain signal integrity. Arrange wires in the T568B sequence (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown) for standard compatibility; press them firmly into the plug’s channels so each conductor reaches the tip.
Insert the plug into a crimping tool’s 8P8C die, ensuring the jacket extends 5–6 mm inside the connector for strain relief. Apply even pressure until the ratchet releases–listen for the audible click confirming termination. Tug each wire gently to verify engagement; a properly seated connection withstands 2–3 lbs of pull force. Repeat for the opposite end, matching pin assignments precisely to avoid cross-talk or miswiring.
Test continuity with a cable analyzer, checking for shorts, opens, or mis-pairs across all eight pins. Validate performance at 100 MHz for Fast Ethernet or 250 MHz if repurposing for higher bandwidth. Trim excess jacket flush with the plug’s rear to prevent snags, and secure both ends with boots or heat-shrink tubing where flexing occurs, reducing stress on the crimp joints.
