Wiring Guide for Cat5 Ethernet Cable with Step-by-Step Diagram

Begin by stripping 2 cm of the outer jacket from both ends of a 4-pair unshielded twisted line. Use a staggered cut so each conductor can lie flat without crossing; this preserves the natural twist and reduces crosstalk. Pair colors follow the T568B standard: orange-white (pin 1), solid orange (pin 2), green-white (pin 3), solid blue (pin 4), blue-white (pin 5), solid green (pin 6), brown-white (pin 7), solid brown (pin 8). Maintain the twists up to 12 mm of each conductor–any longer degrades 100 MHz performance.

Crimp connectors with an RJ45 tool rated for UTP: align pins facing upwards, confirm all eight conductors seat fully, then squeeze once with 10 kg of force. Test continuity with a cable analyzer set to 100 MHz; acceptable signal loss is less than 20 dB at 100 m. For temporary links under 50 m, T568A also works, but match both ends to avoid mixed pairs that cap speeds at 10 Mbps.

Terminate solid-core lines only on punch-down blocks or jacks; stranded ends are for patch cords up to 10 m. Keep bend radius above 4× the jacket diameter (≈ mm) to prevent structural return loss. Label every plug with heat-shrink tubing showing length and date–prevents confusion during future tracing.

For PoE applications, use 24 AWG or thicker cores; 26 AWG suffers excessive voltage drop beyond 50 m. Separate power and data pairs by at least 20 mm or employ a dedicated splitter at the powered device end to avoid interference. Always shield patch panels and switches with metallic cabinets connected to the building ground bus for reliable operation under 2 A load.

Standard Twisted Pair Connection Guide

For reliable network performance, use the T568B pinout layout when terminating conduits. Arrange strands in this sequence from left to right (pin 1 to pin 8): white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This configuration ensures backward compatibility with most existing infrastructure and minimizes signal interference. RJ45 connectors should be crimped with 110-punchdown tools or modular plugs, applying 10-12 lbs of pressure for secure termination.

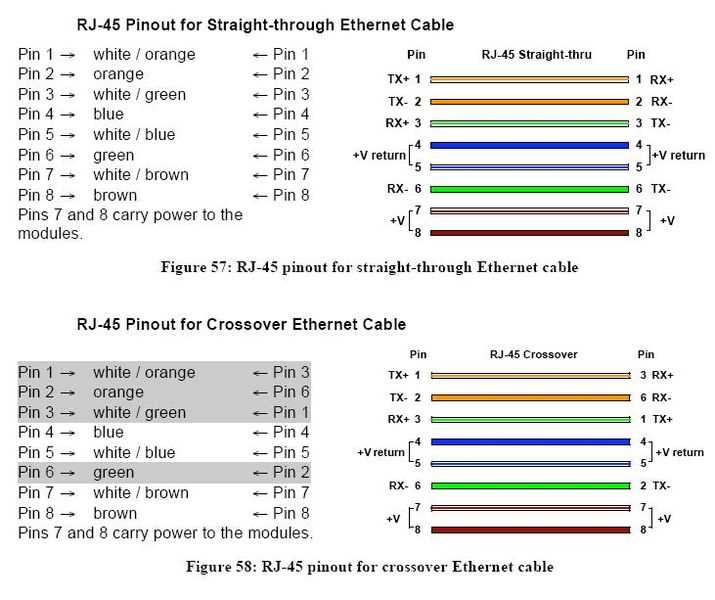

Color-coding deviations between T568A and T568B affect only pairs 2 and 3 (green/orange). While both schemes work for straight-through links, T568B dominates commercial installations. For crossovers, swap pins 1↔3 and 2↔6 between ends. Verify continuity with a multimeter or cable tester before sheathing:

• Test each conductor for continuity (resistance < 0.5 Ω)
• Check for shorts between adjacent wires (> 100 MΩ)
• Measure pair twists: 16-20 twists per meter
• Strip length: 13±1 mm from jacket edge

Termination Best Practices

When attaching connectors, maintain consistent pair untwisting – never exceed 12.7 mm. Excessive untwisting degrades NEXT (Near-End Crosstalk) by up to 6 dB. For bulk installations:

1. Pre-label both ends before pulling through conduits
2. Use TIA/EIA-568-C.2 category-specified gauge (24 AWG)
3. Apply strain relief boots or snapon clips post-termination
4. Document with patch panel labels matching port IDs

For PoE applications, ensure all four pairs make contact; phantom power flows through pins 1-2/3-6 (mode A) or 4-5/7-8 (mode B). Daisy-chained segments should not exceed 100 meters total length including patch cords. Use shielded variants (F/UTP) in EMI-prone environments, bonding the drain wire to network ground at both ends.

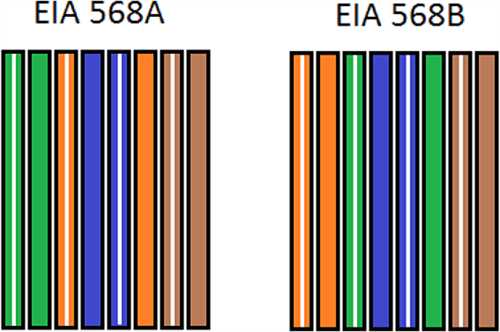

Understanding T568A and T568B Connection Schemes

Prioritize the T568B scheme for new installations–it dominates commercial networks due to backward compatibility with most hardware. Use T568A only if mandated by legacy equipment or regional regulations (common in residential projects outside North America). Both follow an 8-pin, 4-pair arrangement but differ in pin assignments for pairs 2 and 3:

• T568B: Orange stripe → pin 1; solid orange → pin 2; green stripe → pin 3; solid blue → pin 4; blue stripe → pin 5; solid green → pin 6; brown stripe → pin 7; solid brown → pin 8
• T568A: Swaps orange/green pairs: green stripe → pin 1; solid green → pin 2; orange stripe → pin 3; solid blue → pin 4 (unchanged); remaining pins match T568B

Mixing schemes in a single link causes split pairs, degrading performance–test with a cable analyzer if reterminating existing runs. Patch panels and jacks from major vendors (Leviton, Panduit) default to T568B; label all ports clearly to prevent miswiring.

Key Differences and Practical Impact

1. Noise immunity: T568B’s pair layout reduces crosstalk in 100Base-TX networks, though 1000Base-T requires all four pairs regardless of scheme.
2. Power over Data Lines (PoDL): Both schemes support IEEE 802.3af/at, but T568B aligns with the polarity of most PoE injectors–verify injector specs before deployment.
3. Data integrity: Miswired T568A/B creates impedance mismatches; expect ≤1% packet loss at 100MHz if pairs are split, escalating to 10% at gigabit speeds.

For cross-connects, adhere strictly to one scheme–T568A on both ends or T568B on both; interlocking conflicting schemes forms a crossover, historically used for direct device-to-device links but now obsolete with auto-MDI/MDIX in modern hardware.

Step-by-Step Guide to Terminating Twisted-Pair Connections

Begin by stripping 1.5 inches of the outer jacket with a precision cutter, avoiding damage to the inner pairs. Expose the individual conductors–orange-white, orange, green-white, blue, blue-white, green, brown-white, brown–and untwist them no further than 0.5 inches from the jacket to preserve signal integrity. Arrange the wires in either T568A (green-white, green, orange-white, blue, blue-white, orange, brown-white, brown) or T568B (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown) sequence, depending on network requirements. Flatten the conductors between thumb and forefinger to remove bends before trimming evenly to 0.5 inches, ensuring none extend beyond the connector pins.

Insert the aligned conductors into an RJ45 plug, pushing firmly until the jacket sits just behind the connector’s retention clip. Verify wire positions through the transparent housing–misaligned pairs disrupt transmission. Use a ratchet crimping tool with 1000 psi force to secure the plug; squeeze until the tool releases automatically, then test pull the connection to confirm retention. For gigabit networks, maintain strict pair grouping: avoid splitting blue-white and blue, green-white and green, etc. Junk connectors after one failed termination; inconsistent pressure weakens contacts.

Test each link with a certification tester, not just a basic continuity checker. Verify near-end crosstalk (NEXT) measurements meet -32 dB at 100 MHz; failures indicate improper untwisting or jacket damage. Record pass/fail results for each pair, noting deviations beyond 3 dB. For patch panels, label both ends immediately–unmarked ports waste troubleshooting time. Replace connectors if NEXT drops below -23 dB, as marginal links degrade under load.

Use stranded copper for patch leads (24–28 AWG) and solid copper for horizontal runs (22–24 AWG); mix only when unavoidable. For outdoor runs, swap PVC jackets for polyurethane (UF or CMX-rated) to resist moisture absorption–even minor swelling increases attenuation. Trim ends square after installation; ragged cuts invite shorts. If re-terminating, strip an extra 0.2 inches to expose fresh conductor; tarnish degrades conductivity. Store excess lengths coiled, not kinked, to prevent permanent impedance shifts.

Tools Required for Termination and Testing

Start with a crimping tool rated for 8P8C connectors–cheap models warp contacts under pressure, leading to intermittent failures. Look for units with hardened steel dies and ergonomic grips; brands like Klein Tools and Paladin offer models with replaceable blades to extend lifespan. Avoid “universal” crimpers claiming compatibility with telephone jacks; they deform pin alignment by up to 0.3mm, exceeding TIA-568 tolerance.

A high-quality wire stripper with a precision-ground blade prevents nicks in the conductor insulation–even a 0.2mm nick reduces cross-sectional area by 12%, risking signal degradation. Choose strippers with adjustable depth stops; IDEAL Industries’ 45-188 maintains a consistent 22–24 AWG stripping window without damaging copper strands. Avoid tools with plastic guides; they wear after 50 terminations, causing inconsistent jacket removal.

The punch-down tool must match the blade type to the keystone jack or patch panel–110-type blades for IDC termination, 66-style for legacy systems. Models with impact mechanisms (like Fluke’s DSX-PUNCH) deliver 12kgf of force, ensuring full conductor seating without manual effort. Always verify blade orientation: a reversed blade shears conductors instead of seating them, creating continuity errors detectable only with a TDR tester.

Use a dedicated continuity tester with a tone generator and probe–avoid multimeter-only setups, as they fail to detect split pairs or crosstalk. Fluke’s Pro3000 emits a 33kHz warble tone detectable through drywall and flooring, while budget models lose signal at 2 meters. Pair it with a network analyzer (e.g., Fluke DTX-1800) to measure insertion loss below -20dB at 100MHz; anything higher indicates impedance mismatches or poorly terminated shields.

Tool	Critical Specification	Failure Impact
Crimping pliers	0.45kg/mm² die hardness	Contact deformation, -4dB signal loss
Punch-down blade	Spring-loaded 12kgf impact	Incomplete seating, -15dB near-end crosstalk
Tone generator	33kHz pulse modulation	Undetectable through conduit, 4hr troubleshooting delay

Thermal imaging cameras reveal junction hotspots where resistance exceeds 0.05Ω–flir E4 models detect temperature deltas as small as 0.05°C, identifying poorly terminated shields or oxidized contacts before they fail. Pair with a micro-ohmmeter for baseline measurements; expect less than 0.02Ω between pin pairs in a properly seated connector. Avoid infrared thermometers; their 12° field of view misses localized heating in dense bundles.

For final validation, employ a cable certifier with real-time TDR reflections–Tektronix’s MCA3000 displays impedance discontinuities as small as 0.5Ω over 90-meter links. Configure the device for TIA-568 standards, not ISO/IEC 11801; the latter allows -23dB crosstalk at 100MHz, risking errors in PoE deployments. Record test reports as PDFs with geotagging; Fluke LinkWare attaches GPS coordinates to pinpoint faulty terminations within multi-floor installations.
