Step-by-Step Guide to Wiring a Cat5e Keystone Jack Correctly
Use the T568B standard for reliability in most installations. Pin assignments go as follows: orange-white (1), orange (2), green-white (3), blue (4), blue-white (5), green (6), brown-white (7), brown (8). This sequence minimizes crosstalk and ensures compatibility with PoE. For PoE applications, verify conductor gauge–24 AWG supports up to 15W, while 23 AWG handles 30W.

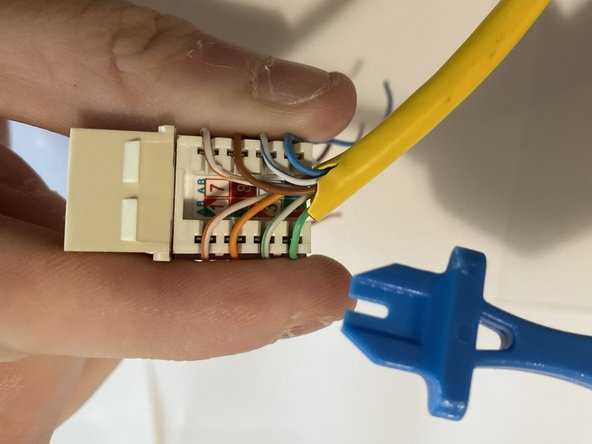

Strip the cable jacket 30–35mm from the end, leaving the twist intact within 12mm of the termination point. Untwist each pair no further than necessary–excessive untwisting degrades signal integrity. Insert wires fully into the IDC slots until you hear a sharp *click*; incomplete seating causes intermittent faults. Use a punch-down tool with 650g force for consistent termination without damaging conductors.
Color-coded labels on the connector correspond to the T568B scheme, but double-check with a continuity tester before securing the wall plate. Common errors include reversed pairs (green/blue swaps) and split pairs (missed white striped conductors). Both create near-end crosstalk detectable with a cable analyzer (e.g., Fluke DTX-1800). For shielded variants, terminate the drain wire to the metallic housing to maintain shielding effectiveness.
Grounding requirements depend on the environment: in office settings, bond the shield to the patch panel’s ground bus; in industrial areas, connect to the building’s equipotential grid. Miswired ports often pass basic link tests but fail under traffic load–always verify with a Gigabit Ethernet stress test (e.g., iperf3) before deployment. Keep patch cords under 5m when possible; longer runs demand higher-quality stranded conductors to prevent attenuation.
Retest after environmental exposure–temperature fluctuations cause insulation displacement creep, leading to cold joints. Maintain a log of termination points with test results and pair maps; this simplifies troubleshooting when issues arise years later. For outdoor installations, use gel-filled connectors with IP68 ratings to prevent moisture ingress, even if the primary shield is unbroken.

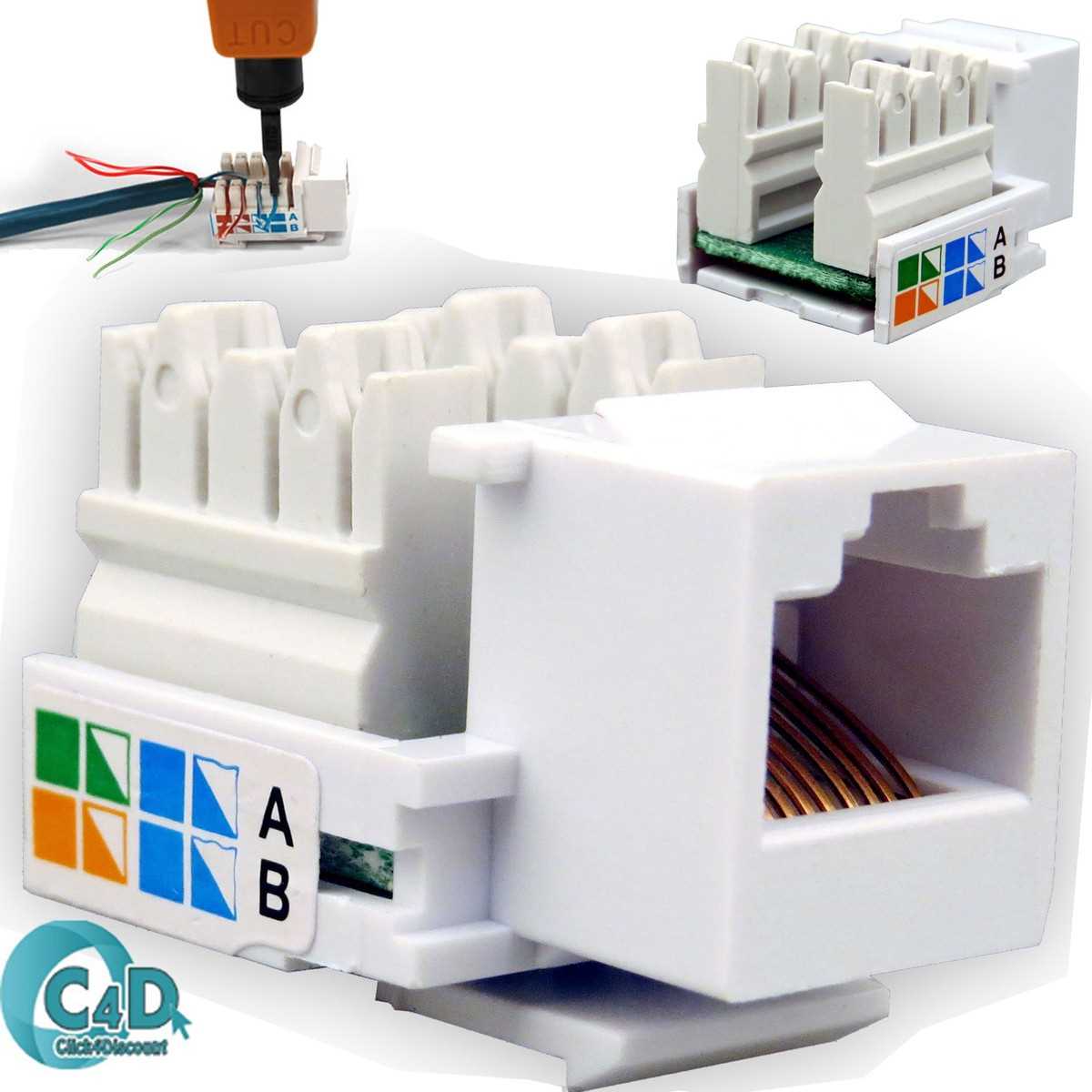

Standard Connection Schemes for RJ45 Snap-In Ports
Use the T568A or T568B termination scheme–never mix them in a single installation. T568B (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown) dominates commercial deployments due to backward compatibility with older PBX systems and PoE optimization. Verify cable pairs match the pinout sequence printed on the connector housing; misalignment by a single position causes crosstalk at gigabit speeds.
Strip the outer jacket exactly 1.5 inches from the end to expose twisted pairs–longer exposure risks untwisting beyond the 0.5-inch maximum specified by ANSI/TIA-568-C.2. Maintain twists as close to the terminating point as possible; untwist only the final 0.375 inches required to seat conductors into insulation displacement contacts (IDCs). Over-twisting weakens signal integrity, particularly on pins 3-6 carrying differential pairs.
Insert conductors into the snap-in port with firm, even pressure using a 110-punch tool–apply 10-12 lbs of force per contact to ensure proper copper severance and gas-tight connection. Avoid re-terminating the same contact; IDCs degrade after one punch, increasing resistance by up to 0.2 ohms. Test continuity with a dedicated cable analyzer immediately after termination; impedance mismatches above 5% indicate improper seating or damaged conductors.
Label both ends of the patch cord with the termination standard (e.g., “B”) and unique identifier (e.g., “A1-16”) using heat-shrink tubing or pre-printed sleeves. Document the layout in a spreadsheet tracking port number, cable run length, and shielding configuration. Store spare connectors in static-shielded bags at temperatures between 15°C and 25°C to prevent moisture absorption that degrades IDC performance.
For PoE applications, ensure the snap-in port’s contacts meet IEEE 802.3af/at specifications–minimum 0.5 µm gold plating on pins 4-5 (power pair) and 7-8 (return). Non-compliant terminals risk overheating under sustained 30W loads; monitor voltage drop across the link with a PoE load tester before deploying active devices. Replace connectors exhibiting >0.1V drop under load.

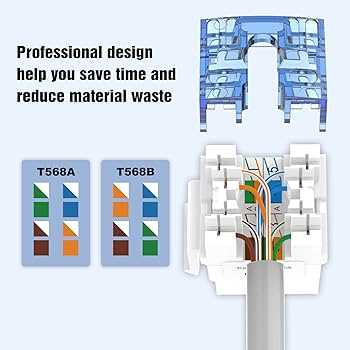

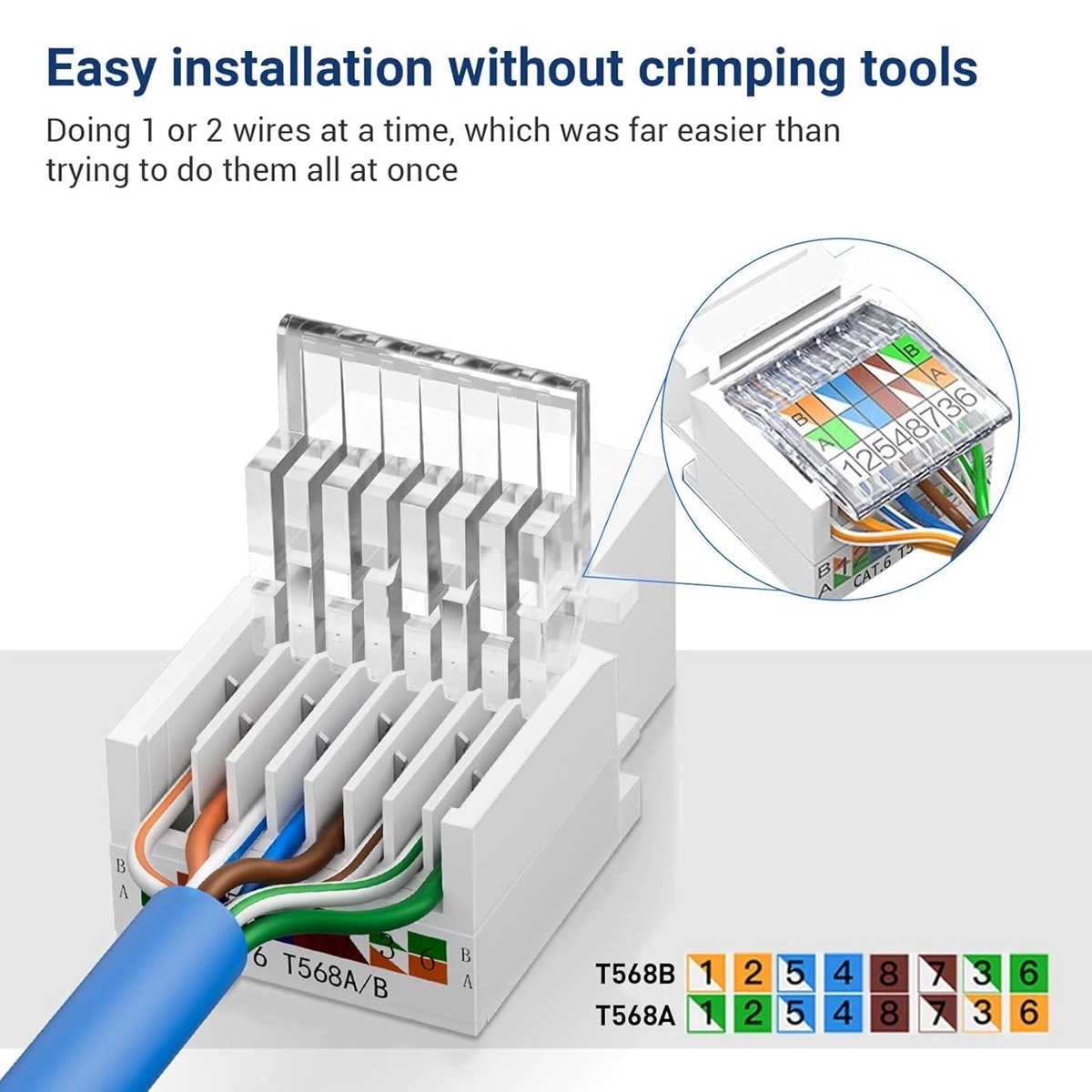

Step-by-Step Color Code Matching for T568A and T568B Standards
Begin by aligning the 8P8C connector pinout with the twisted pair termination scheme. For T568A, pin 1 corresponds to the white-green stripe; pin 2 to solid green; pin 3 to white-orange stripe; and pin 6 to solid orange. Ensure the remaining pairs (blue and brown) follow sequentially: white-blue (pin 4), blue (pin 5), white-brown (pin 7), and brown (pin 8). Misalignment here introduces crosstalk, degrading signal integrity.
T568B swaps the critical orange and green pairs but retains identical positioning for blue and brown. Pin 1 uses white-orange; pin 2, solid orange; pin 3, white-green; and pin 6, solid green. Verify connections with a continuity tester–polarity reversal within a pair (e.g., swapping solid and striped wires) violates gigabit Ethernet requirements. Always maintain pair twists up to 12.7mm from the termination point to preserve impedance.
- T568A: W-G, G, W-O, B, W-B, O, W-Br, Br
- T568B: W-O, O, W-G, B, W-B, G, W-Br, Br
Strip only 25mm of outer sheath to expose conductors; excess untwisting weakens signal strength. Secure each wire in the terminal slot using a punch-down tool with 250g force–under-crimping risks intermittent contact, while over-crimping severs the conductor. For shielded variants, ground the drain wire separately; failure to bond ground correctly introduces electromagnetic interference.
After termination, measure insertion loss across all pairs. Acceptable values typically range -0.4dB to -0.8dB at 100MHz for 90-meter links. Deviations exceeding -1.0dB indicate improper impedance matching or excessive untwisting. Replace the connector if testing reveals faults–reusing compromised terminals compromises network reliability.

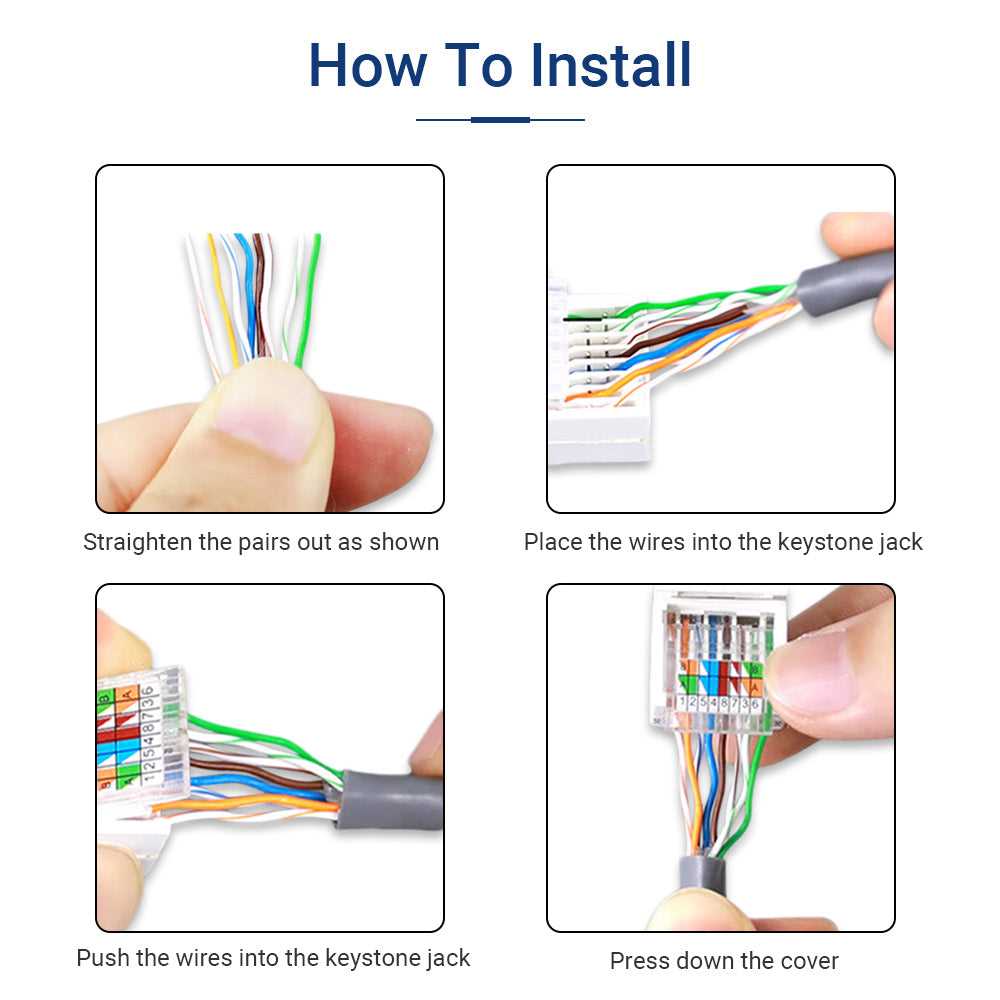

Essential Tools and Precision Cable Stripping Methods
Begin termination with a high-quality crimping tool featuring an integrated wire cutter and stripper calibrated for 24-26 AWG conductors. Avoid generic strippers–opt for models with adjustable depth settings to prevent nicking copper strands, which degrades signal integrity. A precision punch-down tool with a 110-type blade is non-negotiable for clean insulation displacement connections; blade dullness causes poor contact, leading to intermittent faults. Include a magnifying lens with LED illumination to inspect stripped conductors for fraying or inconsistency.
For cable preparation, use a dedicated cable jacket stripper–not a utility knife–to remove the outer sheath. Set the blade depth to 1.5–2 inches from the end to expose the twisted pairs without damaging their individual insulation. Rotate the stripper 360° around the cable while applying light pressure; pulling too hard risks cutting into the pairs. Maintain a clean workspace with a static-dissipative mat to prevent electrostatic damage to conductors, which can corrupt high-frequency signals. Verify the stripped length against the connector’s specifications–typically 0.5 inches of exposed pair.
- Pair separation: Untwist only the necessary length (max 0.5 inches) to preserve impedance matching. Excessive untwisting increases crosstalk; keep untwisted pairs adjacent to their pair color code.
- Insulation integrity: Check for nicks or partial cuts in the pair insulation under magnification. Discard compromised cables–minor damage escalates into signal loss over distance.
- Wire alignment: Insert conductors into the connector in one smooth motion. Hesitation or partial insertion causes misalignment, leading to shorted or open circuits.
Test stripped cables immediately using a certification tester with NEXT (Near-End Crosstalk) and return loss measurements. Skip basic continuity testers–they won’t detect subtle impedance mismatches or pair untwisting errors. For stranded conductors, use connectors with gold-plated contacts (minimum 50 microinches) to resist corrosion, and secure the strain relief boot to prevent conductor fatigue at the termination point. Document each step with timestamped images for troubleshooting; inconsistencies in stripping length are a primary cause of failed certifications.

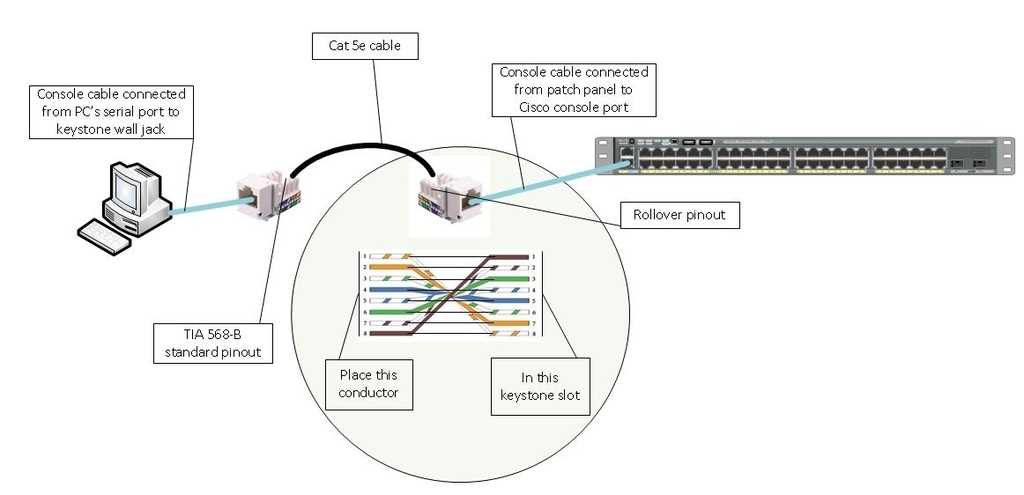

Common Connection Errors and Validation Methods
Use a multimeter in continuity mode to confirm each conductor path before finalizing the termination. Set one probe on the exposed copper strand at the connector end and the other on the corresponding pin of the patch panel. A solid beep confirms correct pairing; silence or erratic readings indicate shorts, opens, or crossed pairs. Repeat for all eight positions to ensure no misroutes occurred during assembly.
Crossed pairs often remain undetected until performance testing reveals intermittent latency. The T568A and T568B standards define strict pairing: orange-white/orange (pins 1-2), green-white/blue (pins 3-6), blue-white/green (pins 4-5), brown-white/brown (pins 7-8). Swap any conductor violating this order; verify with a cable tester emitting sequential tonality across each lane.
Excessive untwisting degrades signal integrity. Maintain twists within 12 mm of the termination point–measure with calipers. Over-stretching during crimping causes copper strands to separate; apply even pressure with pliers to avoid nicking or thinning the conductors. Check under magnification for severed strands, especially on smaller gauge variants like 26 AWG.
| Error Type | Detection Method | Correction |
|---|---|---|
| Split pairs | TDR traces showing impedance spikes | Reterminate per standard pairing |
| Reversed polarity | LED indicators on certification tool | Swap conductors at source |
| Shield discontinuity | Continuity test between drain wire and ground plane | Reattach foil with copper tape |
Field termination tools leave burrs on cut edges. Deburr each conductor with a fine file immediately after stripping; jagged edges pierce adjacent insulation causing shorts under mechanical stress. Verify clearance under 50× magnification–small nicks may only manifest during PoE load testing where current heats compromised points. Re-cut if necessary.
