Step-by-Step Guide to Designing an SPI Circuit with Detailed Schematics
Begin with a master device clock line running at 4 MHz for most microcontrollers–this ensures stable data transfer without signal degradation. Use a ground plane beneath all traces to minimize noise, especially for lines longer than 10 cm. Terminate the slave select line with a 10 kΩ pull-up resistor to prevent floating states during transitions.
Separate data in (MOSI) and data out (MISO) lines by at least 0.5 mm to avoid crosstalk in high-speed applications. For devices operating above 10 MHz, add 33 Ω series resistors on each data line to reduce ringing. Keep trace lengths uniform–mismatches beyond 1 cm introduce timing errors.
Power the peripheral from a regulated 3.3V source–avoid direct connection to unfiltered rails. Add a 0.1 µF decoupling capacitor within 5 mm of the device’s power pin. If using multiple slaves, route slave select lines as star topology rather than daisy-chaining to prevent signal skew.
Test the setup with an oscilloscope before deployment. Verify clock edges are sharp (sub-20 ns rise/fall times) and slave select pulses are at least 50 ns wide. If signals appear distorted, reduce trace impedance by widening traces to 0.25 mm or increasing copper weight.
Designing a Synchronous Serial Interface Layout: Key Schematics
Begin with a four-wire configuration: clock line, data input, data output, and chip select. Place the master controller at the top of your schematic sheet, dedicating separate pins for each signal path. Use 10 kΩ pull-up resistors on the select lines if operating in noisy environments or when interfacing with multiple peripherals–this prevents floating states during power transitions.
Route the clock signal as a straight, unbroken trace with minimal branching. Maintain consistent trace lengths for data lines to minimize skew; a variance exceeding 5 mm between parallel lines can degrade signal integrity at speeds above 10 MHz. If daisy-chaining devices, ensure the end-of-chain device’s output returns to the controller–omit pull-down resistors as they attenuate the signal unnecessarily.
Decouple the power supply at each node with a 0.1 µF ceramic capacitor positioned within 2 mm of the device’s power pin. For devices with built-in regulators, add a 10 µF tantalum capacitor in parallel to handle transient current spikes. Avoid shared ground planes for analog and digital sections of mixed-signal devices–isolate them with a star ground near the controller’s reference point.

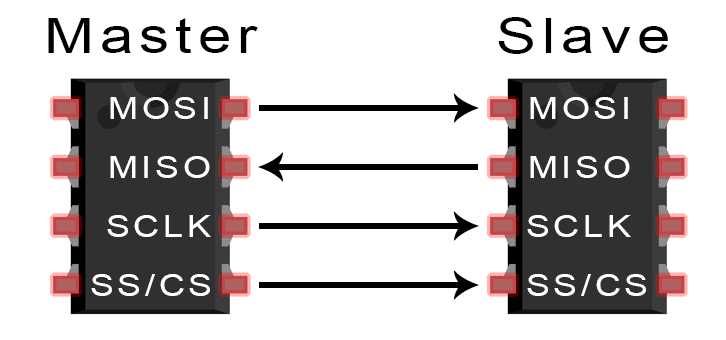

Label all connections explicitly: use “SCK” for clock, “MOSI” for data from master, “MISO” for data to master, and “CSn” for select (where n denotes the peripheral number). Include a identifier for each peripheral’s operating voltage directly adjacent to its symbol–this avoids confusion when routing power domains. For dual-voltage systems (e.g., 3.3 V and 5 V), insert level shifters between incompatible nodes immediately after the controller’s output stage.
Test point placement matters: add vias for oscilloscope probes on clock and data lines near the master and each peripheral. Use test points with 0.8 mm drill holes to ensure compatibility with standard probe hooks. Simulate the layout with a SPICE tool before fabrication–focus on rise/fall times and signal reflections at the farthest peripheral. If reflections exceed 10% of the signal amplitude, shorten the trace or insert series termination resistors of 22–47 Ω at the controller’s output.
For high-speed applications (above 20 MHz), replace ribbon cables with twisted-pair wiring: pair clock with ground, data input with ground, and data output with ground. Shield each pair with a braided sleeve connected to a dedicated ground plane–this reduces crosstalk by 40%. In PCB designs, keep the clock trace on an internal layer sandwiched between two ground planes to contain electromagnetic emissions.
Document every modification. Record trace widths (typically 6 mils for signal, 20 mils for power), via sizes (0.4 mm drill, 0.8 mm pad), and the exact value of every passive component used for decoupling or termination. Annotate the schematic with measured propagation delays for each node–this aids troubleshooting during board bring-up. Store the master design file in a version-controlled repository, including a Gerber export and a bill of materials with vendor part numbers.
Choosing Optimal Pull-Up Resistors for Serial Peripheral Interface Lines
Use 1.5 kΩ resistors for standard 3.3 V logic when connecting fast devices with trace lengths under 10 cm. This value balances rise time and power consumption, ensuring signals stabilize within 20 ns while drawing under 2.2 mA per line. For 5 V logic, increase resistance to 4.7 kΩ to prevent excessive current through protection diodes, particularly on open-drain configurations.
For high-speed applications exceeding 10 MHz or trace lengths beyond 30 cm, reduce resistance to 470 Ω. This minimizes voltage drops across longer traces while maintaining signal integrity. Verify timing margins with an oscilloscope–ringing at the 90% threshold should not exceed 5 ns. If overshoot exceeds 10% of VCC, add series damping resistors (22 Ω to 100 Ω) at the driver output instead of further lowering pull-up values.
In noisy environments (e.g., motor drivers or switching regulators nearby), combine pull-ups with termination capacitors (10 pF to 47 pF) to filter high-frequency noise without degrading edge rates. Place capacitors within 5 mm of the pin to avoid transmission line effects. Avoid values above 100 pF, as they introduce parasitic delays and violate timing specifications for clocked transfers.
| Logic Voltage (VCC) | Trace Length (cm) | Recommended Resistor (Ω) | Max Current (mA) | Rise Time (ns) |
|---|---|---|---|---|
| 1.8 | <10 | 3.3 k | 0.55 | 30 |
| 3.3 | <10 | 1.5 k | 2.2 | 18 |
| 3.3 | 10–30 | 1 k | 3.3 | 12 |
| 5.0 | <10 | 4.7 k | 1.06 | 45 |
| 5.0 | 30+ | 470 | 10.6 | 5 |
For multi-drop configurations, ensure pull-up resistors account for cumulative leakage current. A 5-node bus with 3.3 V logic requires 680 Ω pull-ups to sustain 5 mA aggregate leakage without dropping below 2.7 V. Test with worst-case leakage (e.g., all devices in high-impedance state) using a high-side current meter. If voltage droops exceed 10%, reduce resistance or limit the number of connected devices.
Active termination can replace passive pull-ups for critical timing or power-sensitive designs. Use a dedicated N-channel MOSFET with a gate tied to VCC and source to the bus line–this clamps the line to VCC only during idle states, reducing standby current to microamperes. Implement a 1 ms delay before enabling the pull-up to avoid contention during power sequencing.
Always validate resistor choices against the maximum sink current of the driver. A microcontroller with 8 mA sink capability leaves 2.5 mA margin for 1.5 kΩ pull-ups at 3.3 V. Exceeding this margin risks incomplete logic transitions or thermal damage. Use manufacturer datasheets to confirm sink current ratings, as values vary between families (e.g., STM32: 8–20 mA; AVR: 3–10 mA).
For low-power designs, use the highest possible pull-up resistance that meets timing requirements. A 10 kΩ resistor at 3.3 V draws just 0.33 mA but may require trace lengths under 5 cm to avoid signal degradation. Combine with software-based bus idle detection to disable pull-ups when not in use, extending battery life in portable devices.
Wiring Master and Slave Devices with Minimum Signal Interference
Route data lines (MOSI, MISO, clock, and select) as differential pairs with controlled impedance–50Ω single-ended or 100Ω differential–matching trace widths to PCB stackup specs. Keep parallel runs under 5 cm for high-speed signals above 10 MHz; if longer, introduce serpentine delays to synchronize edges. Ground planes should intervene between adjacent signal layers to prevent crosstalk, particularly where signal vias transition.
Termination and Decoupling
Add series resistors (22–47Ω) at the driver end to dampen reflections on unterminated stubs shorter than 3 cm. For longer stubs, place a parallel RC network (100Ω + 100 pF) at the far end. Decouple power pins with 0.1 µF ceramics placed within 2 mm of each IC; use 10 µF tantalum caps at board entry points to suppress low-frequency ripple.
Shield critical traces with a continuous copper strip tied to ground at both ends–avoid floating islands. Separate analog and digital grounds at the power source, reuniting them only at the lowest-impedance common point, typically beneath the master device’s power regulator. Route return paths directly beneath signal traces to minimize loop area and magnetic coupling.
Optimal Conductor Lengths and Interference Mitigation for Serial Peripheral Interconnects
Keep signal conductors under 15 cm for clock rates above 10 MHz to prevent skew and reflections. For configurations using push-pull drivers, shorten to 10 cm when operating at 20 MHz or higher. Multidrop arrangements demand stricter limits–8 cm per branch when daisy-chaining three or more devices. Measure trace or cable length from the controller’s output pin to the furthest peripheral input, including vias and connectors.
Shielding Techniques for Stable Data Exchange
Use twisted pair with grounded foil shielding for unidirectional lines like clock and chip select. Twist rate should exceed 2 turns/cm for runs over 3 cm. Differential pairs–data in/out–require individually shielded twisted pairs with the shield tied to the ground plane at both ends, but only after confirming no ground loops exist. Avoid shield termination at intermediate points to prevent reflections.
For ribbon cables, alternate signal and ground conductors (3:1 ratio) when length exceeds 5 cm. Ground every third wire to create a return path with impedance below 50 Ω. Larger setups benefit from separate ground returns for clock and high-speed data lines to isolate noise. Terminate shields only at the controller side for single-ended lines to eliminate potential antenna effects.
Below 1 MHz, unshielded conductors tolerate up to 50 cm, but introduce series resistors (33 Ω) near the driver to dampen ringing. Verify signal integrity with a ≥200 MHz bandwidth oscilloscope–rise times should remain under 1.5 ns for 20 MHz operation. Capacitance between conductors should not exceed 15 pF/cm in shielded cables; for flat cables, aim for 10 pF/cm or less by increasing spacing or reducing dielectric thickness.
