Step-by-Step Guide to Wiring Your Ceiling Fan Remote Control

Begin by identifying the receiver module installed in the appliance housing. Most units use a low-voltage 5-12V DC circuit, though some may integrate directly with AC lines. Locate the printed circuit board (PCB) terminals marked RF, signal, or control–these correspond to the handheld transmitter’s frequency channels. If no labels exist, reference the model’s technical sheet for pin assignments.

For standard setups, connect the red (positive) and black (negative) wires from the wall adapter to the receiver’s power input. Use a multimeter set to DC voltage to confirm polarity if color coding is unclear. Incorrect connections risk frying the circuit or triggering a short. For battery-powered remotes, solder a 3V coin cell holder directly to the PCB, ensuring stable voltage delivery.

Match the motor’s speed wires to the receiver’s output terminals. Most configurations use three-speed setups with separate leads for high, medium, and low settings. Cross-reference the motor’s wiring diagram–common sequences include blue (high), white (medium), and yellow (low), but variations exist. Secure connections with twist caps or solder, then insulate with heat-shrink tubing to prevent interference.

Test the circuit with the handheld unit before final assembly. If the appliance fails to respond, verify the receiver’s antenna–typically a coiled wire or PCB trace extending near the unit’s edge. Weak signals often result from poor antenna positioning or obstructions. Replace batteries if the remote’s LED flickers dimly or inconsistently. For AC-powered receivers, check for voltage drops using a non-contact tester.

For integrated lighting kits, isolate the neutral (white) and load (colored) wires from the speed circuit. Most kits use a separate circuit breaker rated for 15-20 amps. If the bulb flickers during operation, the receiver may share the speed circuit–reconfigure wiring to split the power feed or install a dedicated line for lighting. Always cap unused wires with wire nuts to avoid accidental shorts.

Understanding Your Air Circulator Control Connection Layout

Begin by separating the unit’s power feed cables into three distinct groups: motor leads, regulator outputs, and wall switch inputs. Typically, you’ll find two brown conductors (primary coil), one green/yellow (ground), and multiple colored wires (speed selection). Match each motor lead to its corresponding control terminal–high-speed often pairs with black, medium with blue, and low with red. Verify this alignment with the included schematic sheet; incorrect pairing risks overheating or erratic spin cycles.

• Black input wire → high torque terminal
• Blue input wire → mid-range torque terminal
• Red input wire → low torque terminal
• Green/yellow → grounding post

Install a double-pole breaker if linking directly to household mains; residential AC circuits usually handle 120-240V loads, yet circulator motors frequently demand dedicated 15A protection. Attach the signal receiver’s antenna coil horizontally beneath the canopy cover to ensure unobstructed wireless transmission–vertical placement weakens reception, causing intermittent failures. For dimmer-compatible models, insert a non-inductive resistor (10W minimum) between the light kit’s neutral and ground to prevent flickering.

Troubleshooting Common Issues

If the paddles rotate but the regulator fails to respond, inspect the handheld transmitter’s 12V battery and solder joints for corrosion–oxidized contacts disrupt signal strength. Reset the dongle by pressing both the “up” and “down” buttons simultaneously for 10 seconds; this action restores factory default channel sync and eliminates phantom command interference from adjacent devices. Replace any cracked or discolored capacitor in the control module (rated 10µF/50V) to resolve sporadic speed fluctuations.

1. Remove canopy cover screws
2. Detach motor housing clips
3. Locate control module (central PCB)
4. Desolder faulty capacitor
5. Solder new capacitor (observe polarity)
6. Reassemble housing

When integrating with existing wall switches, avoid mixing AC phases through shared neutrals; neutral-to-neutral connections create dangerous loop currents. Use a multimeter to confirm each conductor’s voltage (red probe on ground, black on test point) before final fastening. Secure all terminals with insulated wire nuts and wrap exposed connections in heat-shrink tubing–standard electrical tape degrades under constant temperature swings from motor operation.

Guide to Connecting Your Air Circulator Control Unit

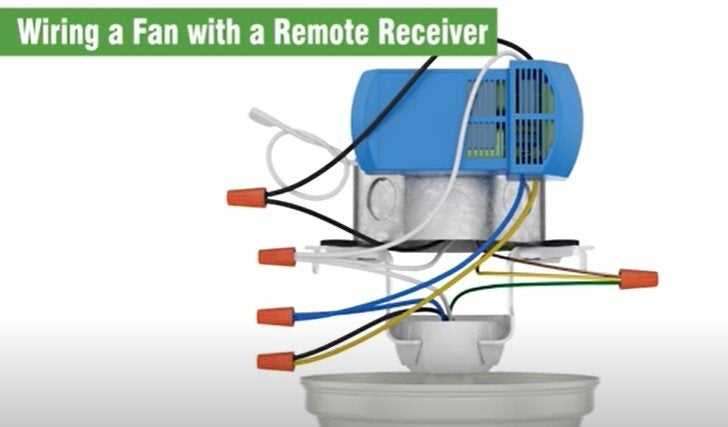

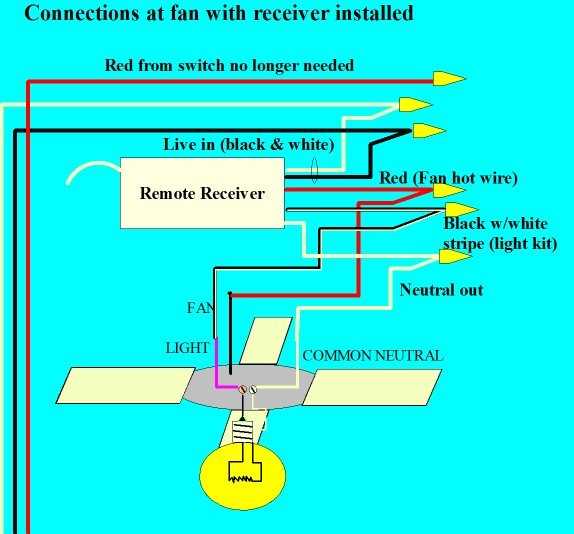

Begin by identifying the receiver module inside the mounting bracket. Most universal controllers include a labeled board with terminals marked L, N, and 1-3 or Light/Kick. Confirm compatibility: standard units use 120V AC input, while some high-speed models may require 220V. Always verify voltage ratings on the module’s label before proceeding.

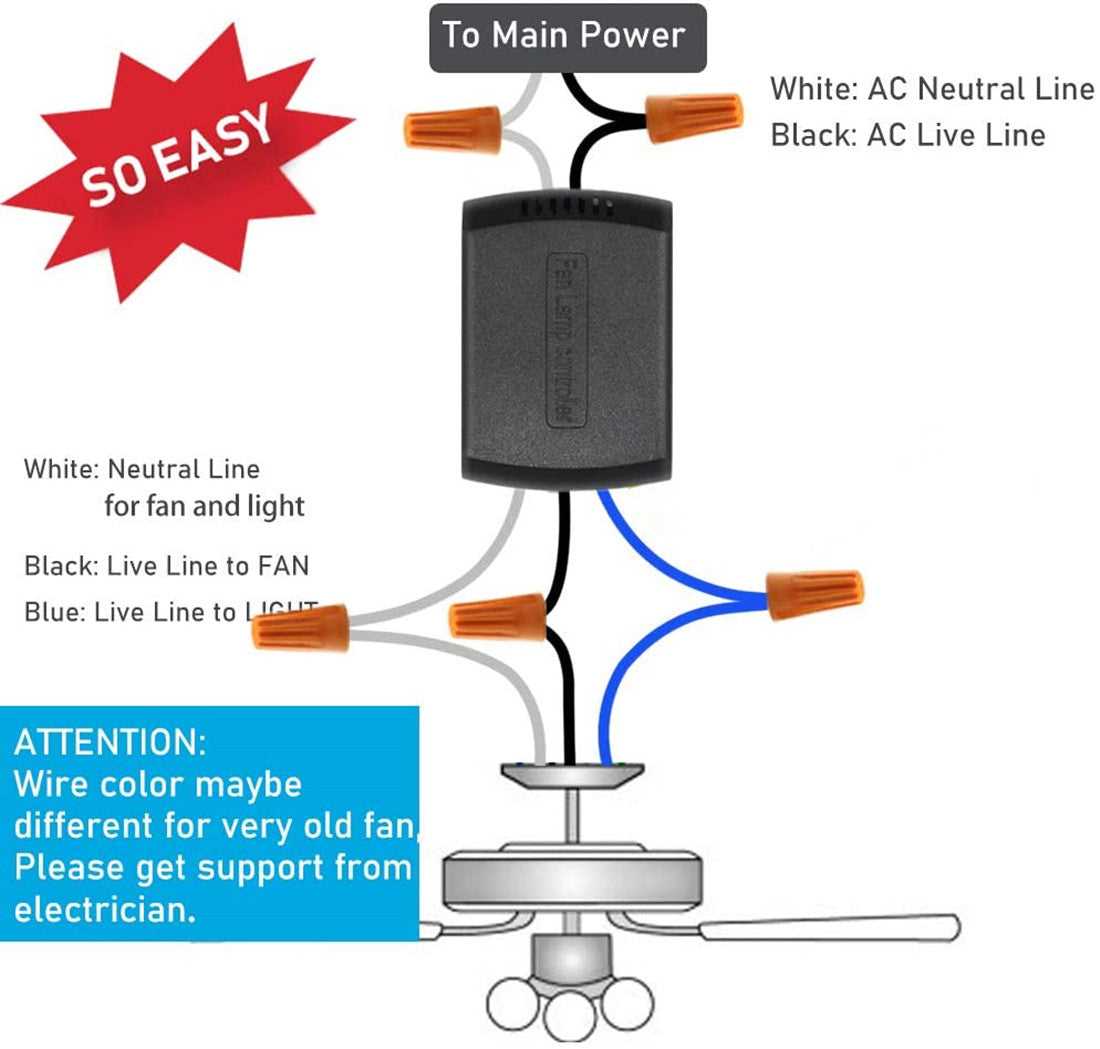

Attach the supply wires to the L (hot) and N (neutral) terminals. Use wire nuts or lever connectors rated for 14-12 AWG copper conductors. If the circuit includes a wall switch, bypass it by connecting the hot wire directly to the receiver–retaining the switch will disrupt wireless operation. Ground the module to the mounting bracket or electrical box using a green or bare conductor.

• Single-speed oscillating unit: Connect the black motor lead (typically marked M) to output terminal 1. Cap unused outputs.
• Variable-speed spinner: Map the colored motor wires (usually blue, red, and black) to terminals 1-3 in ascending order for low-medium-high settings. Verify the sequence matches the control’s toggle function.
• Integrated illumination: Link the bulb fixture wires to the Light or Kick terminal–ensure dimmable LEDs are paired with compatible receivers.

Secure all connections with insulated caps, then tuck the module into the canopy. Align the antenna wire (if present) perpendicular to metal surfaces for optimal signal range–avoid coiling it against conductive housing. Restore power and test each function: speed increments, oscillation, and lighting should respond within 2 seconds of input.

If the device fails to initialize, check for reversed polarity on L/N inputs or loose wire nuts; a non-contact voltage tester helps isolate faults without disassembly. For RF interference, relocate the receiver closer to the wall transmitter or install a secondary antenna boosted above the drywall. Some controllers require a learning sequence: press and hold the module’s SET button while toggling the handheld switch until confirmation blinks appear.

Finalize installation by affixing the decorative cover and verifying no exposed conductors extend beyond the bracket. For three-way switching setups, replace the traditional switch with a compatible relay–consult the controller’s manual for specific part numbers. Store extra wire lengths in the canopy using zip ties, avoiding sharp bends that could fatigue copper strands over time.

Identifying Conductor Hues and Purposes in Receiver Units

Begin by isolating the power inlet leads: a black (live), white (neutral), and bare/green (ground) trio aligns with standard household circuits. In receiver assemblies, manufacturers often repurpose these hues–verify with a multimeter set to AC voltage (120V/230V expected) at the module’s input terminals before proceeding. Some brands deviate: brown replaces black (Europe/Asia), blue substitutes white (IEC standards), while yellow-green striped denotes earth globally. Label each wire with masking tape to prevent cross-connections during testing.

Common Receiver Terminal Configurations

Module Terminal Label	Typical Wire Color	Function	Voltage (AC/DC)
L (Line)	Black, Brown, Red	Main supply input	120-240V AC
N (Neutral)	White, Blue, Gray	Return path	0V AC reference
⏚ (Ground)	Green, Bare Copper, Yellow-Green	Safety bond	0V AC
Light	Yellow, Pink, Violet	Luminaire load output	12-24V AC/DC (varies)
Speed 1/2/3	Red, Orange, Purple	Motor winding taps	30-50V AC (capacitor start)
Reverse	Gray, Tan	Polarity switch (DC motors only)	N/A

For integrated LED drivers, expect gray or striped wires carrying 5-12V DC–confirm polarity with a diode test mode on a multimeter. Temporary splices (using lever nuts or Wago clamps) allow functional testing without permanent crimps. If the module lacks labeled terminals, trace the thickest gauge conductors back to the motor stator coils (usually red/black or orange/brown pairs). Low-voltage control wires (thin purple or solid gray–these connect directly to the handheld transmitter’s RF receiver board and should not be energized at mains voltage.

Solving Handheld Controller Circuit Problems Independently

Check the battery contacts in the transmitter for oxidation or misalignment. Use a multimeter to verify voltage output–standard coin-cell units should read between 2.8V and 3.3V under load. If voltage drops below 2.5V, replace the battery even if it appears functional. Clean corrosion with isopropyl alcohol and a soft brush, ensuring no residue remains. Test the unit after reassembly; intermittent signals often stem from poor conductivity at these points.

Inspect the receiver module’s antenna alignment if the device responds inconsistently. Most wall-mounted receivers use a coiled or straight wire antenna embedded along the housing–ensure it’s fully extended and not coiled tightly, as this reduces signal range. If the issue persists, bypass the antenna by soldering a 17.3cm (6.8in) length of 22-gauge copper wire directly to the antenna pad on the PCB; this matches the 315MHz frequency commonly used in these systems. Verify operation by standing 3 meters away while pressing each button–delays or missed inputs indicate interference or a faulty transponder chip, which requires replacement.
