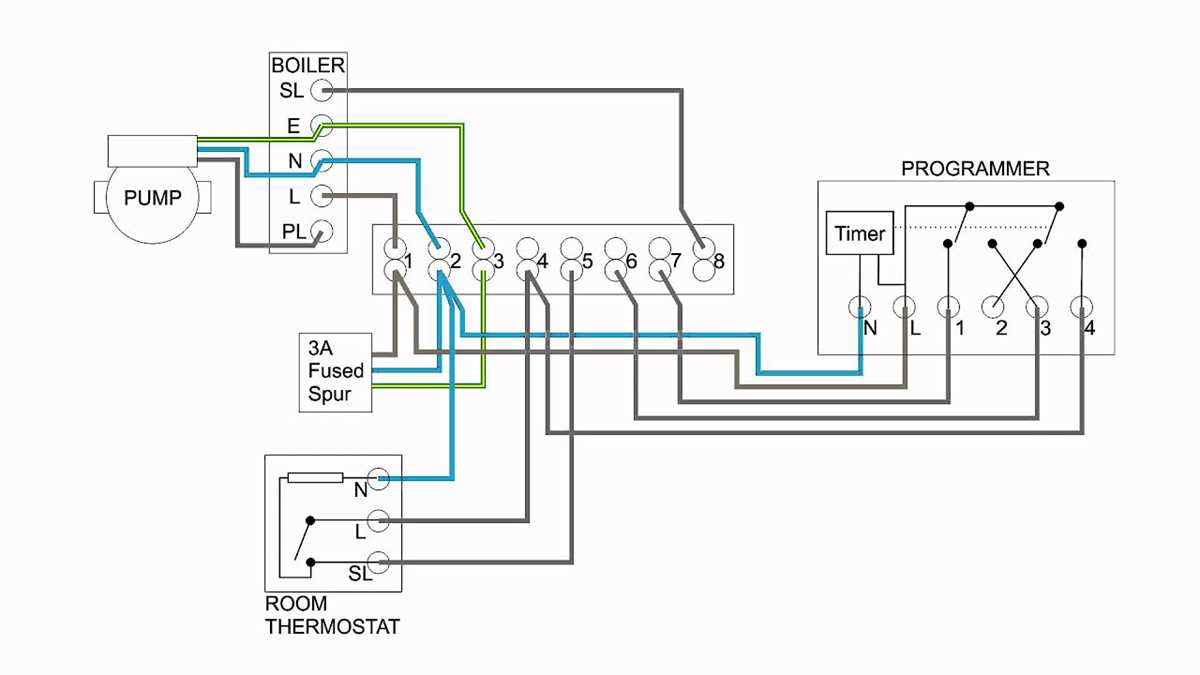

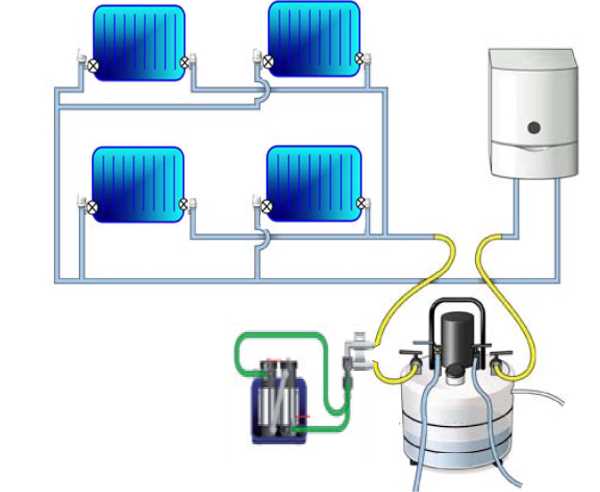

How to Design and Read a Central Heating System Wiring Plan

Begin by sketching a closed-loop layout with distinct supply and return lines to ensure balanced flow. Use 22mm copper piping for primary feeds and 15mm branches to radiators, maintaining consistent pressure across all zones. A combi boiler or system unit rated at 24–30kW will suffice for a 3-bedroom home; oversizing leads to inefficiency and short cycling.

Install a hydraulic separator (minimum 1″ diameter) between the heat generator and manifold to decouple flow dynamics. This prevents pump interference and stabilises delta-T across circuits. For underfloor segments, lay 16mm PEX-Al-PEX in a serpentine pattern with 150mm spacing; avoid loops tighter than 200mm radius to prevent pipe collapse under thermal expansion.

Integrate a buffer tank (sized at 25L/kW boiler output) if incorporating renewable sources–this mitigates temperature fluctuations and extends appliance lifespan by 30%. Position thermostatic valves on each radiator with 0.3–0.5K hysteresis to prevent hunting. For multi-zone control, deploy motorised actuators linked to a 24V DC zone manager, avoiding AC current near water-bearing components.

Label all junctions with flow direction arrows and pipe diameters to simplify maintenance. Use 3-port mixing valves at high-temperature circuits (e.g., DHW) to blend return water, reducing scaling in hard-water areas. Test system pressure at 1.5 bar (cold) and bleed air via automatic vents placed at the highest points–trapped gas reduces efficiency by up to 15%.

Optimal System Layout for Residential Thermal Distribution

Install a primary loop with a buffer tank (80–200 litres) between the boiler and main supply lines to prevent shortcutting and ensure consistent flow rates. Position the pump on the return side of the loop–never on the supply–to avoid cavitation and extend pump lifespan. Use 22 mm copper piping for main branches and reduce to 15 mm only for terminal radiators under 1.5 kW; this balances pressure drop and heat output. Fit a mixer valve on circuits serving underfloor coils to maintain 40–50 °C supply, preventing floor overheating while keeping condensing boilers at peak efficiency (90%+).

Key Component Placement and Pipe Sizing

Component	Location	Pipe Diameter (mm)	Pressure Drop (mbar/m)	Max Branch Length (m)
Boiler outlet	Top rear flange	28	0.3	N/A
Primary pump	Return, 30 cm from boiler	22	0.4	30
Thermostatic radiator valve	Below lockshield, 2 cm gap	15	0.6	12
Zone manifold	Central, 1.2 m above floor	22 input, 15 output	0.45	20

Isolate every zone with full-ported ball valves rated for 10 bar and equip each loop with a micro-bubble deaerator placed at the highest point–typically within 1 m of the pump–to eliminate air locks within 48 hours of fill. Use PTFE tape on threaded joints; seal compression fittings with silicone-free jointing compound to prevent galvanic corrosion in mixed-metal systems. Calibrate circulating pumps to 50% of maximum speed during commissioning; this reduces energy draw by 30% while maintaining a 12 °C ΔT across radiators.

Essential Elements of a Domestic Warmth Distribution Network

Install a high-efficiency boiler with modulating burners to optimize fuel consumption–models like condensing gas or biomass units reduce energy waste by 10–15% compared to standard boilers. Position temperature sensors at critical points: return flow, radiators in colder zones, and near heat exchangers. Accuracy matters; ±0.5°C deviation from setpoints doubles pump runtime in underfloor loops. Use weather-compensated controls to adjust output dynamically–link outdoor sensors to the boiler’s modulation curve for real-time efficiency.

• Circulators: Choose variable-speed pumps with ECM motors–consumption drops to 10W at low loads vs. 60W for fixed-speed models. Size for 3.5 kPa resistance per 10m pipe length; undersizing causes noise, oversizing wastes electricity.
• Radiators: Panel types with convector fins distribute heat 30% faster than flat designs. Prioritize aluminum-core radiators–thermal conductivity of 205 W/m·K outperforms steel’s 50 W/m·K.
• Pipework: PEX-Al-PEX tubing reduces expansion noise; 16mm diameter suits branches, 25mm for main lines. Insulate with 13mm thick closed-cell foam–prevents 4°C heat loss per 10m uninsulated run.
• Thermostatic valves: Use liquid-filled heads–respond within 3 minutes vs. wax-based valves’ 15-minute lag. Set at 18°C for bedrooms, 21°C for living spaces.
• Expansion vessel: Pre-charge to 0.5 bar below system pressure; 12-liter vessels suffice for 50kW systems, scale proportionally. Test membrane integrity annually–failure causes pressure relief valve drips.
• Buffer tanks: Add only for biomass boilers–stratify layers via top/bottom connections to separate 60°C return flow from 85°C supply. 50-liter tank per 3 kW output balances heat spikes.

Step-by-Step Guide to Sketching Your Hydronic System Layout

Gather all key components first: label the boiler, radiators, pump, expansion tank, and pipe routes with their nominal diameters (e.g., 15 mm for branches, 22 mm for main runs) on a gridded sheet. Use distinct symbols–solid rectangles for radiators, arrows for flow direction, and dotted lines for return paths–ensuring every joint, valve, and sensor (pressure gauge, thermostat) has a consistent icon. Measure exact distances between each element with a tape; mark these in millimeters directly on the sketch.

Start the draft at the heat source, trace the supply line to each terminal unit, then map the return back, adding balancing valves and isolation valves where splits occur. Double-check calculations: pipe volume (π × r² × length) must match the pump’s flow rate, typically 1–1.5 m³/h for residential setups. Label every segment with pipe type (copper, PEX) and diameter; highlight the highest point for the air vent and the lowest for the drain valve.

Critical Errors in Thermal System Designs

Placing pumps on the return side without accounting for airlock risks disrupts flow dynamics. Air trapped in pipes forms bubbles that halt liquid movement, forcing pumps to cavitate. Install automatic air vents at highest points and ensure a minimum 3% slope toward vents in horizontal runs to prevent accumulation. Vertical rises should include manual bleed valves at peaks.

Undersizing pipe diameters by even 10% increases friction loss exponentially, reducing system efficiency by 40-60%. Use the Darcy-Weisbach equation to calculate exact diameters based on fluid type, viscosity (0.00101 Pa·s for water at 20°C), and desired velocity (0.5-1.5 m/s). Soft copper tubing requires thicker walls (0.7mm) than rigid alternatives to avoid kinking under pressure fluctuations.

Mixing incompatible metals triggers galvanic corrosion, with zinc and copper creating a 0.9V potential difference. Isolate dissimilar metals using dielectric unions or nylon washers; never rely on thread sealant alone. Verify material compatibility charts–brass fittings with aluminum radiators accelerate pitting within months, while stainless steel resists corrosion in 98% of cases.

Skipping pressure tests leads to undetected leaks under operational loads. Pressure-test at 1.5× working pressure (minimum 10 bar for residential) for 30 minutes; drops exceeding 0.2 bar indicate faults. Apply soapy water to joints during testing to spot micro-leaks invisible to the naked eye. Polyethylene pipes require electrostatic discharge checks before fusion welding to avoid weak bonds.

Ignoring thermal expansion causes pipe bowing and fitting failure. Linear expansion of copper is 16.5×10^-6/°C; a 10m run exposed to 50°C ΔT elongates by 8.25mm. Install expansion loops (radius ≥ 5× pipe diameter) or sliding supports every 3m in rigid installations. PEX tubing expands 4-5× more than copper–allow 80mm clearance per 10m run in manifold systems.

Incorrect valve placement blocks maintenance access. Zone valves must sit upstream of pumps with 30cm clearance for actuator removal. Balancing valves require unobstructed access to flow meters; position them on straight runs (minimum 6× pipe diameter) to avoid turbulence skew. Thermostatic radiator valves placed on supply lines (not returns) prevent overheating during pump circulation pauses.

How to Size Pipes and Radiators for Optimal Flow

Select pipes with a diameter that matches the system’s demand–typically 15mm for branches under 3kW and 22mm for mains up to 10kW. Undersized pipes create excessive resistance, reducing flow by up to 30% at velocities above 0.8 m/s. Use the formula:

• Pipe diameter (mm) = √(4 × flow rate (l/s) × 1000 / (π × velocity (m/s)))
• Target velocity: 0.4–0.7 m/s for minimal noise and corrosion.

Radiators should be sized based on room heat loss, not floor area. Calculate wattage required per room:

• Multiplier for well-insulated homes: 50W/m²
• Multiplier for older builds: 70–100W/m²
• Example: 20m² × 80W/m² = 1600W radiator.

Oversizing by 10–15% compensates for temperature drops in poorly insulated spaces, but avoid exceeding 20% to prevent short-cycling pumps.

Balance the system by ensuring pressure drop across branches differs by no more than 10%. Install lockshield valves on returns to fine-tune flow–start with valves 50% open, then adjust based on surface temperature differentials (target: 10–12°C ΔT at design conditions). For combi boilers, keep the primary loop

Use microbore (8–10mm) piping only for runs under 5m–longer stretches risk flow starvation. For multi-floor setups, feed upper floors via separate risers (22mm minimum) to prevent lower floors from dominating flow. Install automatic bypass valves where thermostatic valves could close fully, sized at 30% of pump capacity to protect the boiler.

Check manufacturer data for radiator outputs–steel panel types deliver 10–15% less heat than aluminium at the same ΔT. For low-temperature systems (e.g., heat pumps), increase panel count by 30–40% to maintain output. Always verify pump head (metres) against cumulative resistance at design flow–underestimating by even 1m can reduce output by 15%.
