Chevy Front Axle Actuator Wiring Guide with Color Code Details
To service the 4WD engagement mechanism on GM vehicles with electronic control, begin by locating the solenoid harness near the transfer case motor. The connector typically features a six-pin plug–verify wire colors before disassembly. Pinout configuration follows this sequence:
- Pin A (Orange) – Ignition-switched power, fused at 20A.
- Pin B (Dark Green/White) – Ground return circuit.
- Pin C (Pink/Black) – Output to the locking motor when commanded.
- Pin D (Light Blue/White) – Input from transmission range sensor.
- Pin E (Brown) – Data bus communication (Class 2 serial).
- Pin F (Yellow) – 4WD mode indicator signal to the instrument cluster.
Critical note: Do not substitute generic connectors–the OEM Delphi component (Part #12203417) uses gold-plated terminals to prevent voltage drop. Clean corrosion with a fiberglass brush–avoid abrasives that remove base metal.
For voltage testing, set the multimeter to 20VDC scale. Probe Pin A (key on, engine off)–readings below 11.5V indicate a bad 20A fuse (SB12) or corroded connection at the under-hood junction block. If voltage checks out but the system fails to engage, swap the module (#24232754)–no programming required.
When splicing repair wires, use heat-shrink crimp connectors (18-22 AWG) and seal with silicone dielectric grease. Avoid solder-only repairs–the vibration from the drivetrain will fatigue joints. Label all connections before separating harness clamps–GM uses a tang-and-slot locking mechanism that can be damaged by improper removal.
For software-related faults, force a transfer case reset by disconnecting the negative battery terminal for 15 minutes while bridging the positive and ground cables briefly. Reconnect and perform a mode selection sequence (2WD→4HI→4LO→2WD) within 10 seconds to recalibrate the encoder motor (#24235002) position sensor.
GM 4WD Engagement System Circuit Guide
Locate the transfer case control module (TCCM) behind the instrument panel near the steering column–pin #3 outputs a 12V signal to the engagement solenoid when commanded. Verify continuity between TCCM pin #3 and the solenoid’s violet/black wire using a multimeter; resistance should read 20-30 ohms. If readings exceed 50 ohms, inspect the harness for chafing near the frame rail or corrosion at the connector terminals.
Trace the ground circuit from the engagement motor back to chassis ground–often secured to the frame near the driver-side kick panel. Clean the grounding point with a wire brush and apply dielectric grease to prevent oxidation. A faulty ground can cause intermittent engagement or simultaneous operation of the motor in both directions, risking damage to the planetary gearset.
Critical Connection Points
The ignition-switched power feed (typically a pink wire) enters the TCCM at pin #16. Check for 12V at this pin with the key in the RUN position–if voltage is absent, examine the fuse block under the hood (fuse #32, 10A) and relay contacts. Many failures stem from a cracked relay socket or melted trace on the fuse block’s circuit board.
When testing the motor windings, expect two distinct resistance values: one coil at 8-12 ohms for shift control, the other at 3-6 ohms for clutch engagement. Reversing these values during bench testing confirms internal wire misrouting and necessitates component replacement. Always disconnect the battery before probing motor terminals to avoid energizing the clutch pack unintentionally.
In vehicles with electronic stability control (ESC), the antilock brake module may override the engagement signal during traction events. Monitor the serial data line (pin #13 on the TCCM) with a scan tool–if communication errors appear, reflash the module using GM’s latest calibration file (TIS2Web procedure #J43799). Post-reflash, clear all learned values in the transfer case adaptation menu to prevent false engagement faults.
Locating Critical Conductors in GM 4WD Engagement Systems
Begin by tracing the ignition-fed power lead–typically a 10-gauge orange wire–that delivers 12V constant from the underhood fuse block (position F3-F5, 25A). This conductor splits at connector C1 (AWD module side) into two branches: one routes to pin 11 (activation coil), the other loops through pin 16 (temperature sensor). Probe continuity between these endpoints and chassis ground; expected resistance falls between 2.3–3.1Ω cold, rising to 4.2–5.0Ω when warm–deviations signal internal corrosion or broken strands, especially at the frame-mounted splice near the differential.
Pinout Validation Table
| Connector | Pin | Wire Color | Function | Voltage (Key ON, Eng Off) |
|---|---|---|---|---|
| C1 | 3 | Pink/Black | Speed Signal Input | 0–5V PWM Square Wave |
| 8 | Tan/White | Ground Return | 0V ±0.2V | |
| C2 | 2 | Gray | CAN High | 2.3–3.5V DC |
| 4 | Dark Green/White | CAN Low | 1.5–2.4V DC |
Isolate the transfer case control module by disconnecting harness plug C2; probe pin 2 (CAN High) against pin 4 (CAN Low)–a steady 0.8–1.2V differential confirms proper communication. If readings fluctuate outside this range, inspect the twisted pair shielding integrity; frayed insulation near the torque tube often causes intermittent faults. Replace degraded sections with OEM-spec 18-gauge SAE J1128 wire, maintaining original twist rate (
Step-by-Step Guide to Tracing 4WD Engagement Circuit Paths
Locate the transfer case control module beneath the dashboard near the steering column–its connector will have 12-16 terminals, typically labeled A1 through C4 on GM platforms. Disconnect the battery negative terminal before probing to prevent transient voltage spikes. Use a multimeter set to 20V DC and backprobe terminal B3 (often a yellow/black stripe wire) while an assistant cycles the dash switch. No voltage change indicates an open circuit or faulty ground–check the chassis ground at the frame rail under the driver’s door for corrosion or loose bolts.
Component-Specific Checks
- Encoder Motor: Trace the thick tan/brown wire from the transfer case to the encoder motor–resistance should read 20-40 ohms. Deviations above 50Ω suggest internal winding failure or a frayed lead inside the housing.
- HVAC Harness Interference: The circuits often share a harness bundle with climate control wiring. Inspect the firewall grommet where wires pass into the cabin–look for chafe marks or melted insulation where green/white (AWD request) and purple (switch feedback) wires cross.
- Fuse Block: Pull fuse #34 (30A) in the under-hood box–if the system fails to disengage, the relay coil is likely shorted. Swap with a known-good relay to confirm.
- Label each wire with masking tape during disassembly–note terminal positions before separating connectors.
- Use a tone generator on suspected open circuits–attach the probe to the wire’s end at the transfer case, then trace toward the cab, listening for signal dropout.
- For intermittent faults, heat affected areas with a hairdryer while monitoring voltage–cold solder joints often fail under thermal stress.
Key Fixes for 4WD Engagement Electrical Connectivity Problems
Inspect the transfer case shift motor connector for corrosion or bent pins. GM vehicles from 2007–2013 often develop greenish oxidation on terminals, causing intermittent failures. Use a multimeter to verify continuity between pins A (12V reference) and B (ground control) while cycling the mode switch–readings should fluctuate between 0Ω and 12Ω. If resistance exceeds 50Ω, clean contacts with electrical contact cleaner and a wired brush, then apply dielectric grease to prevent recurrence.
Trace the orange/black power feed wire from the transfer case motor to the fuse block. On Silverado/Sierra models, this circuit routes through the underhood fuse box (labelled “4WD 1”)–replace blown fuses with identical 30A rating. Verify voltage at the motor connector with key ON; absence of 12V suggests chafed wires near the frame rail or a faulty ignition relay. Probe the harness every 12 inches where it exits the cab, focusing on areas with abrasion guards missing.
Check the two-position mode switch’s resistance values. With switch in “2HI,” pins 2-4 should show 50–70Ω; in “4HI,” 500–700Ω; “4LO” requires 1100–1300Ω. Deviations indicate internal switch wear–replace the switch if readings stabilize outside ranges or flicker during testing. Ensure the switch ground (black wire) maintains continuity to chassis; poor grounding mimics solenoid failure.
Examine the vacuum hose connector on the shift motor housing. Cracked or dislodged hoses on pre-2010 models disrupt engagement logic by allowing unmetered air into the system. Detach the connector and verify the diaphragm’s integrity by applying 15 psi of regulated vacuum–the plunger should retract fully without leaks. Replace degraded hoses with OEM-style braided silicone to withstand temperature fluctuations.
Test the transfer case control module’s CAN bus communication. Connect a scan tool to the OBD-II port and monitor PIDs “TCM Current Gear” and “4WD Command Status”–stuck or erratic values point to corrupted module firmware. Reset the module by disconnecting the negative battery terminal for 10 minutes, then clear codes. If issues persist, reflash the module using GM’s TIS2Web with the latest calibration files, ensuring the battery charger maintains 13.2V during the process.

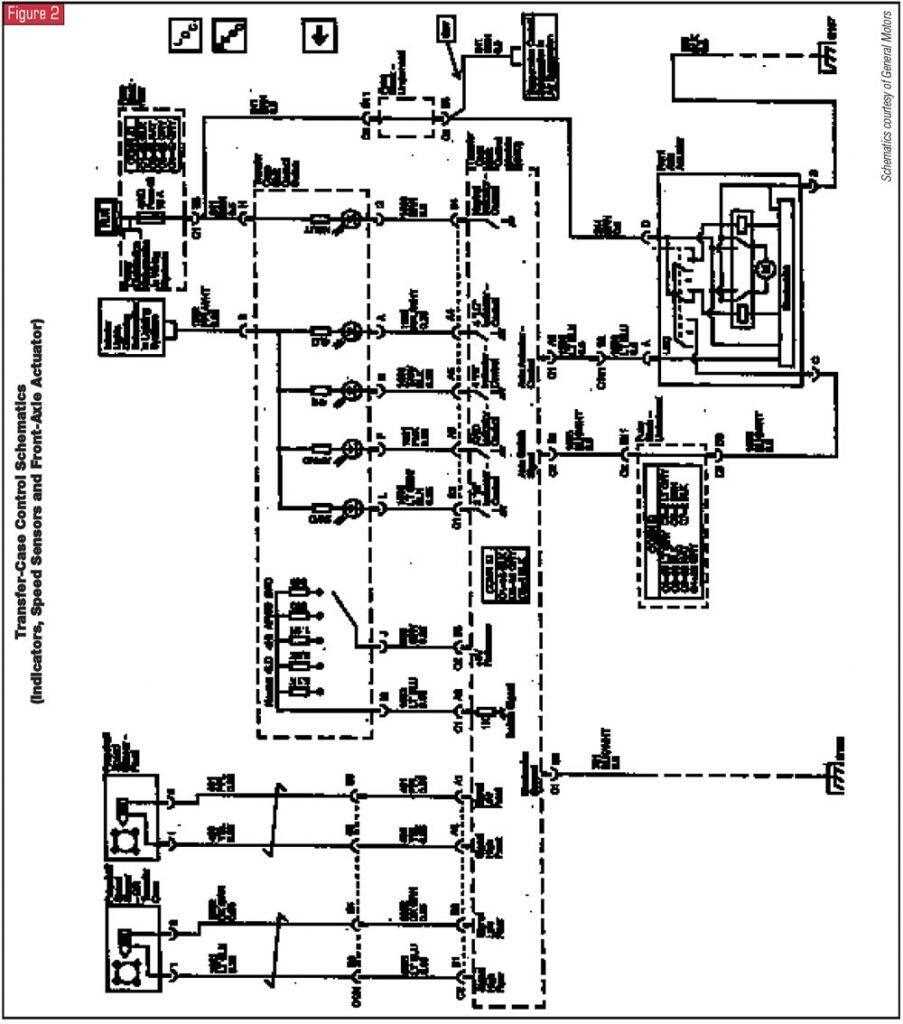

Decoding the GM 4WD Engagement Schematic
Locate the color-coded leads on the harness near the transfer case solenoid cluster. The orange wire carries switched 12V from the ignition feed–verify continuity with a multimeter set to 200Ω scale, expecting 0.3–0.7Ω resistance across clean terminals. Purple leads signify ground returns; probe both ends for below 0.2Ω to detect corroded splices often hidden behind the skid plate. Identify the tan/black stripe conductor responsible for relay activation–trace it back to the TCCM (transfer case control module), ensuring no voltage drop exceeds 0.4V under load.
Examine connector C3 at the differential engagement motor. Pin 6 delivers PWM signal (pulse-width modulation) from the PCM–on oscilloscope, expect 3.3V peak square waves at 125Hz when engagement is commanded. Blue/white striped cable on pin 8 serves as feedback sensor input; measure 2.5V–3.8V with engine running and front hubs locked. Reference the schematic’s dotted lines marking temperature sensor circuits–discrepancies here trigger code C0327; replace frayed wires before condemning the sensor itself.
Cross-reference harness connectors with the torque-on-demand relay panel behind the driver’s kick panel. Black box terminals labeled 30, 85, 86, 87 correspond to standard Bosch relay pinout: verify coil resistance between 85 and 86 at 50–120Ω, and contact continuity from 30 to 87 with infinite resistance when de-energized. Any divergence indicates internal arcing; replace relay if resistance falls below 20Ω or smoke residue is visible.
