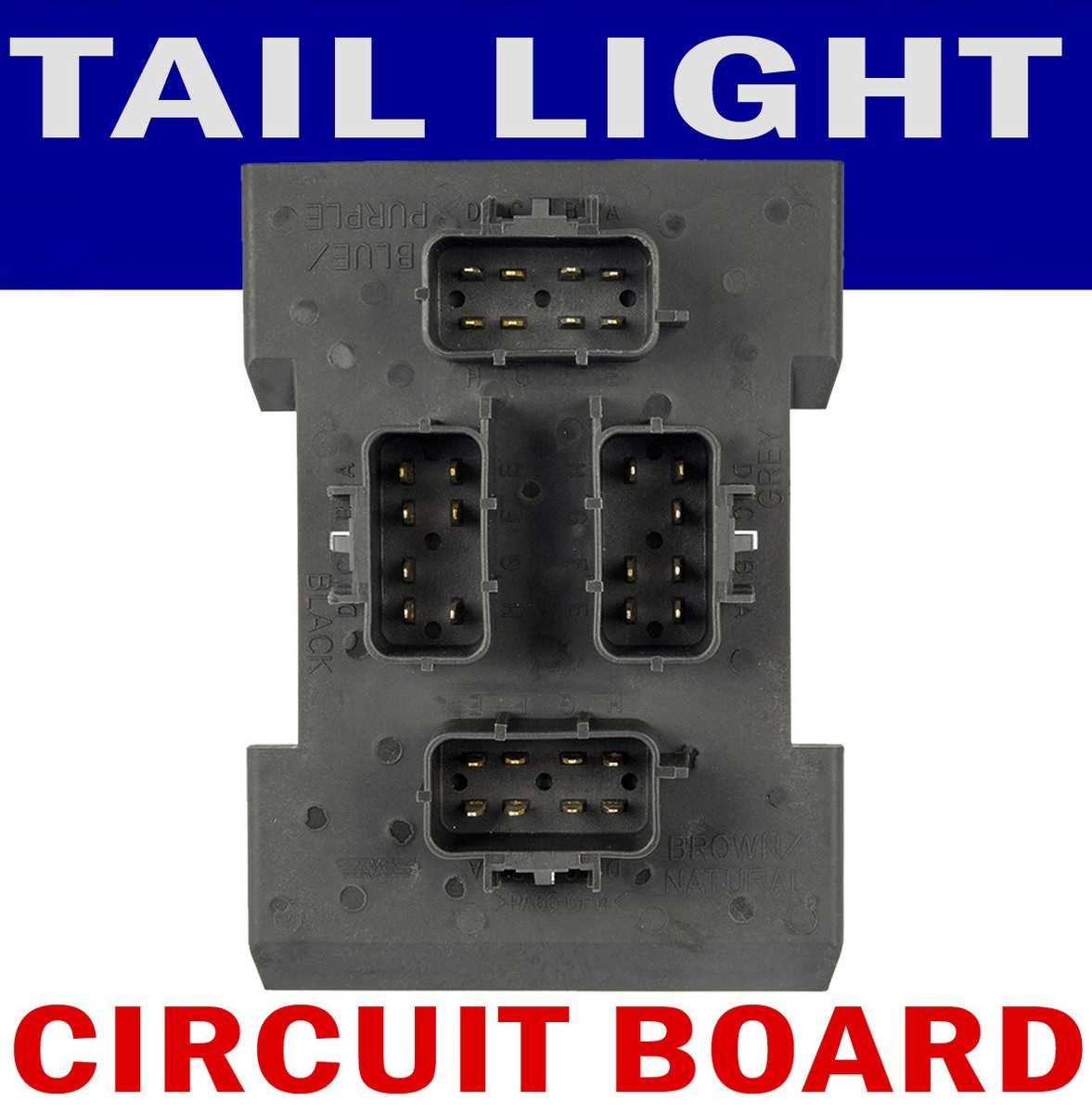

How to Wire a Chevy Tail Light Junction Block Step-by-Step Guide

Locate pinouts for the harness connection behind the vehicle’s rear fascia using this exact reference. The primary harness on General Motors trucks and SUVs from 2007–2014 links the lamp assembly to the main body control module. Pin 1 carries brake voltage (red), pin 2 is ground (black), and pin 3 delivers turn signal current (yellow). Ensure the 16-gauge wires are properly seated in the weather-resistant socket; corrosion on these terminals is the leading cause of intermittent failure.

For vehicles manufactured after 2015, the socket shifts to a smaller twelve-pin layout. Brake voltage moves to pin 5, ground to pin 8, and turn signal to pin 3–swap any previous assumptions. Use a multimeter set to 20V DC to test each terminal; brake voltage should read 12.6V when depressed, turn signal voltage pulses between 0V and 12V at 1–2 Hz, and ground must show continuity to chassis ground at less than 0.5 ohms. Voltage drop across any circuit above 0.3V indicates resistance–inspect crimps or replace the socket.

Trace circuits back to the central fuse panel. Brake lamp feed originates from fuse position 24 (15A), turn signal from position 4 (10A) on RH models, and mirror LH on opposite side. If both rear indicators flash simultaneously, the turn signal relay (K4) has failed–replace RPO cocde AU3 relay module rather than individual fuses. Disconnect battery before servicing; residual capacitor current can arc and damage the body control module.

Install nylon wire ties every 12 cm to prevent chafing against the frame rail–factory harnesses route directly over the fuel tank sender and can abrade through the insulation within 80,000 km. Use dielectric grease on terminals to block moisture ingress; silicone-based products outlast petroleum-based alternatives in vibration-heavy environments. If retrofitting LED assemblies, confirm resistor packs (50W, 6Ω) are installed inline with turn and brake circuits–otherwise hyperflash or bulb-out error codes will trigger.

Understanding the Rear Signal Connector Layout for GM Vehicles

Locate fuse #17 in the under-dash panel–it feeds the right rear lamp assembly with constant 12V. Use a multimeter set to 20V DC to verify voltage at the pink wire’s termination point.

Trace the brown wire from the main harness to terminal C on the connector plate. This wire carries the brake signal; splice a 14-gauge jumper if corrosion is detected. Replace the entire pigtail if resistance exceeds 0.5 ohms.

• Terminal A: Clear lens element (left) – amber turn signal
• Terminal B: Dark gray (right) – ground return for parking lamps
• Terminal D: Yellow – reverse lamp activation
• Terminal E: Black/white stripe – fused ignition-switched power

For models produced between 2014–2019, the left assembly uses a sealed six-way connector. Early builds (2007–2013) employ a four-way plug–verify harness type before attempting repair.

Remove the trunk liner to expose the wiring harness. Disconnect the battery’s negative terminal; failure to do so risks blowing fuse #22 during ground splice operations.

1. Strip ¼ inch insulation from the green wire (turn signal)
2. Crimp a female spade terminal onto the exposed strand
3. Insert into the designated slot on the back of the housing
4. Secure with dielectric grease to prevent oxidation

Inspect the bulb sockets for melted plastic–common failure point on vehicles equipped with LED assemblies. If damage is present, replace the entire socket cluster; patching with silicon tape results in intermittent failures.

How to Pinpoint the Right Electrical Connector for Your GM Vehicle by Model Year

Locate the RPO (Regular Production Option) code on your GM’s service parts label, typically found inside the glovebox, trunk lid, or under the hood. This alphanumeric stamp–often a three-digit sequence–directly correlates to the exact rear lamp harness configuration installed at the factory. For example, RPO T96 indicates a specific terminal layout for 2014-2019 Silverado 1500 models, while RPO T3L corresponds to the 2020+ redesign.

Consult the vehicle’s build sheet, accessible via GM’s Vehicle Inquiry portal using your VIN. Enter the 17-digit identifier to retrieve a detailed manifest showing all electrical components, including the rear lamp socket assembly part numbers. Cross-reference these numbers with the OEM parts catalog–look for prefixes like 22848470 (2017 Sierra) or 13596237 (2007-2013 Avalanche)–to confirm compatibility before ordering replacements.

Examine the connector’s pin count and shape. Pre-2007 GM trucks often use an 8-pin round socket, while 2008-2019 models transitioned to a rectangular 12-pin design with polarized slots. Post-2020 variants introduced a hybrid 14-pin layout with integrated resistor networks for LED circuitry. Count the pins and note the arrangement: mismatched connections risk short circuits or non-functional brake signals.

• 2003-2006 GMT800 platform: Oval 8-pin (e.g., Tahoe, Suburban)
• 2007-2013 GMT900: 10-pin trapezoid (e.g., Silverado Classic)
• 2014-2019 K2XX: 12-pin rectangle (e.g., Colorado, Canyon)
• 2020-present T1XX: 14-pin with secondary ground pin (e.g., Trailblazer)

Use a multimeter to test for continuity between the connector’s terminals and the lamp assembly’s wires. Set the meter to ohms (Ω) and probe each pin while activating the corresponding circuit (e.g., turn signal, reverse lamp). A reading below 0.5Ω confirms a valid connection; higher resistance or infinite values indicate corrosion or broken wires, necessitating harness replacement rather than just the socket.

Avoid universal “plug-and-play” adapters from aftermarket sources unless they explicitly list your VIN’s RPO code. GM’s wiring harnesses vary not only by pinout but also by wire gauge–20-22 AWG for older models versus 18-20 AWG for newer ones–affecting current capacity. Incorrect gauge risks overheating the terminal block, leading to melted plastic or intermittent failures.

Reference the GM Service Information subscription (si.gm.com) for schematics under “Lighting Systems > Exterior > Lamp Assembly”. Filter by model year and trim level (e.g., LT vs. Z71), then download the PDF for the exact color-coded wiring sequence. For instance, the 2015 Sierra’s socket uses:

1. DK GRN: Brake lamp (+)
2. YEL: Running lamp (+)
3. GRY: Ground (-)
4. PNK: Turn signal (+)
5. WHT: Reverse lamp (+)

Swapping any leads without verification will trigger error codes (DTC B257A) in the BCM.

How to Pinpoint the Rear Signal Connector Assembly in Your Car

Begin by lowering the trunk floor mat or removing the cargo liner if your model has a concealed access panel. On most sedan variants manufactured after 2010, the rear signal harness interface sits directly behind the inner wheel well trim, secured by two 10mm bolts and a plastic snap clip. Use a trim removal tool to pry the panel loose–apply steady pressure near the clip anchors to avoid cracking the plastic. If working on a truck or SUV, check the forward side of the spare tire well; the connector is often routed beneath a thin metal shield held by T25 Torx screws.

Refer to the harness color codes specific to your trim level–standard configurations include:

Wire Color	Function	Pin Location (Typical)
Brown/Yellow Stripe	Running lamps	Pin 3 (Outer Lower)
Dark Green/White	Brake signal	Pin 5 (Center)
Light Blue/White	Turn indicator	Pin 2 (Outer Upper)
Black/White	Ground	Pin 6 (Corner)

Trace the loom from the assembly toward the body harness grommet–this reduces guesswork if corrosion obscures the connector. For models with trailer wiring provisions, disconnect the auxiliary plug first; tugging the main harness without separation risks damaging the locking tabs. Tug-test each wire while observing the corresponding bulb–if the running lamp flickers with a gentle pull on the brown/yellow lead, you’ve isolated the correct circuit.

Inspect the connector housing for moisture intrusion signs–a milky white residue on the terminals indicates active oxidation. If present, use a stainless steel brush to clean the pins, followed by dielectric grease application to prevent recurrence. Avoid sandpaper; it removes protective plating. On vehicles with LED upgrades, verify voltage at the interface with a multimeter–expected readings should match the table above (±0.5V). If values deviate, trace the harness back 12–18 inches to rule out chafed insulation near the frame rails.

Reassembly requires aligning the connector’s keyway notch with the socket to prevent misalignment–cross-threading damages the plastic guides. Press until an audible click confirms full engagement. Before securing the trim, wiggle the harness while monitoring bulb function; intermittent flickering suggests a loose pin that must be reseated. For trucks with bed-mounted assemblies, ensure the seal gasket sits flush against the body to prevent water ingress. Store removed components in labeled bags–mixing fasteners risks improper torque during reinstallation.

Decoding Color-Specified Conductors in GM Rear Illumination Systems

Prioritize identifying the brown conductor–this is the constant power feed for brake lamps and standard rear markers. Verify voltage at the harness connector using a multimeter set to DC before proceeding; expect 12-14 volts with ignition off, dropping slightly under load. If readings deviate, inspect the fuse link (typically 20A) and ground path at G101 or chassis point near the rear fascia. Corrosion here mimics bulb failure, so clean contacts with a stainless brush and apply dielectric grease.

The red/yellow stripe powers turn signals and hazard flashers, with the yellow stripe acting as a splice indicator for vehicles with integrated alarm systems. For models post-2015, expect this conductor to share a circuit with the trailer harness adapter–tapping here requires a relay to prevent voltage drop under load. Use a thermal fuse (5A) inline if extending this line for auxiliary lighting to prevent overheating at the bulb socket base.

Purple is the reverse lamp activator, typically paired with a pink tracer for easy differentiation. Trace this back to the transmission range sensor on automatic models or the manual switch on older variants–misrouted purple wires risk engaging reverse lamps during normal driving. For fog lamp retrofits, use orange as the trigger wire (not purple), ensuring compatibility with CAN bus systems by adding a 1kΩ resistor across relay terminals to prevent error codes.
