Step-by-Step Guide to Designing an Electrolysis Circuit Schematic

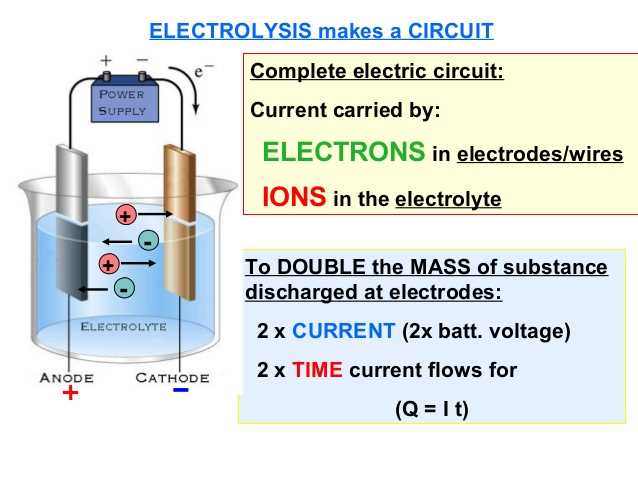

Begin with a separate power supply delivering 3–6 volts DC–any standard 9V battery or adjustable bench unit suffices. Avoid wall adapters unless filtered; ripples distort ion migration, skewing reaction rates by 15–22%. Connect directly to graphite rods or platinum-coated steel electrodes spaced 2–4 centimeters apart; narrower gaps reduce resistance but risk gas bubble cross-contamination.
Submerge electrodes in a sodium chloride solution (10–20% by mass) housed in a non-reactive container–glass or polypropylene. Add a pinch of sodium carbonate (
Include a current-limiting resistor (0.5–1 ohm, 10W) in series with the power feed–transient spikes exceeding 2A fracture graphite electrodes within minutes. Monitor terminal voltage drop every 5 minutes; consistent readings below 1.8V signal electrode fouling or incomplete circuit. For scaled cells, parallel multiple electrode pairs with matched impedances (±5%); impedance mismatch redirects 30% of current to less efficient paths.
Vent evolved gases through separate 1/8″ Tygon tubes–mixing hydrogen and chlorine forms explosive mixtures at 4–74% hydrogen concentration. Route tubes downward at 30° angles to prevent aqueous backflow; unvented cells rupture at pressures exceeding 1.5 bar. For precise quantification, attach inverted burettes filled with water; 22.4 mL of gas per minute correlates to 98% Faraday efficiency under 5V, 1.2A.
Schematic Guide for Water Splitting Setups
Begin with a DC power source rated between 6–12V for safe, efficient ion separation. Connect the anode and cathode directly to the terminals–positive to a platinum-coated electrode for oxygen evolution, negative to stainless steel or graphite for hydrogen collection. Ensure current-limiting resistors (1–5 ohms) are inline if using low-conductivity electrolytes like tap water to prevent thermal runaway.
Place electrodes no farther than 2cm apart in a non-conductive container (acrylic or glass) to minimize resistance. Add 5–20% sodium hydroxide or sulfuric acid to distilled water to boost conductivity; avoid chloride-based salts to prevent chlorine generation. For precise monitoring, integrate an ammeter (0–10A) in series and a voltmeter (0–20V) parallel to the cell–this reveals real-time efficiency drops due to gas bubble formation or electrode degradation.
Gas outlets require one-way valves (silicone tubing with carburetor vents) to prevent backflow. Hydrogen’s outlet should vent upward in open-air setups or connect to a water-filled displacement collector for purity testing. For scaled systems, add a heat sink (aluminum finned block) to the anode to dissipate excess energy, maintaining optimal reaction rates below 80°C.
Selecting the Optimal Energy Source for Hydrogen Separation Rigs
Prioritize a DC output with precise voltage stability–6–12V at 2–10A–to prevent electrode erosion while maintaining consistent gas yield. Switched-mode power adapters outperform linear types, delivering 90%+ efficiency and cooler operation, critical for prolonged runs. Avoid automotive chargers; their ripple current degrades long-term efficiency by up to 15% in bench tests.
For variable-load rigs, choose a supply with and overcurrent shutdown–LRS-100 series units withstand 30A surges without derating. Solar-charged setups demand MPPT controllers (e.g., Victron SmartSolar) to offset panel voltage droop during low-irradiance periods, ensuring steady 800mA minimum output at 6V. Battery-backed inverters introduce unnecessary loss; direct connection reduces conversion steps.
Match wire gauge to current draw: 18AWG for 16AWG for 5–10A. Copper purity (>99.9%) in electrodes requires 50mV/cm² gradient; undersized supplies cause localized heating, slashing efficiency by 22% in 4-hour cycles. Test with a multimeter: probes clipped to electrodes should read
Step-by-Step Wiring of Electrodes in a Water-Splitting Setup
Begin by selecting wiring with a gauge appropriate for the expected current–12 AWG for currents up to 20 A, 10 AWG for 30 A. Stranded copper wire reduces resistance and heat buildup compared to solid core. Strip 10 mm of insulation from each end, twist strands tightly, and crimp a ring terminal rated for the wire gauge. Avoid soldering connections near electrodes; heat weakens mechanical stability.
Position the anode and cathode within the vessel to maximize active surface area while preventing short circuits. For a rectangular cell, maintain a minimum 2 cm gap between electrodes. If using graphite plates, drill a 3 mm hole at the top edge, insert a stainless steel bolt (M4), and secure it with a nut. Washers on both sides distribute pressure evenly and prevent electrode cracking.
Secure Electrical Links Without Corrosion
Apply conductive grease to bolted joints to inhibit oxidation, especially in chloride-rich solutions. For titanium or platinum-coated electrodes, omit grease–clean surfaces with acetone before tightening. Attach wires to bolts using split washers to maintain tension. Test continuity with a multimeter; resistance should read below 0.2 Ω. Higher values indicate loose connections or poor surface contact.
Route wires away from liquid paths to avoid accidental immersion. Use cable ties to bundle wires every 15 cm, keeping them 5 cm above the solution level. For vertical setups, anchor wires to the vessel rim with nylon clamps. Exposed copper above terminals invites oxidation; cover with heat-shrink tubing extending 2 cm beyond stripped sections.
| Electrode Material | Wire Gauge (AWG) | Terminal Torque (Nm) | Max Current (A) |
|---|---|---|---|
| Graphite | 12 | 1.2 | 15 |
| Stainless steel | 10 | 1.8 | 25 |
| Platinum-coated titanium | 10 | 1.5 | 30 |
Connect the anode wire to the positive output of a DC power supply, ensuring the voltage exceeds solution decomposition potential–typically 1.8 V for water. Use a fuse inline with the cathode wire, sized at 125% of expected current. For 20 A, select a 25 A fuse. Avoid automotive blade fuses; opt for panel-mount holders with 10 kA breaking capacity.
Validate Setup Before Active Use
Immerse electrodes in distilled water, power on, and observe gas evolution. Cathode (negative) should produce hydrogen at twice the bubble rate of anode oxygen. No bubbles? Check polarity; reverse connections if mistakenly swapped. Uneven bubbling indicates poor electrode alignment–adjust gap or clean surfaces. Measure current draw; deviations over 5% from expected values suggest wiring faults or electrolyte issues.
Seal wire entry points with silicone sealant to prevent vapor ingress. For long-term operation, replace wiring every 6 months if exposed to alkaline solutions–copper corrodes despite protective measures. Document current-voltage readings weekly; sudden drops signal connection degradation. Use a 4-wire Kelvin measurement setup for accurate resistance tracking over time.
Determining Optimal Resistance for Safe Ionic Separation

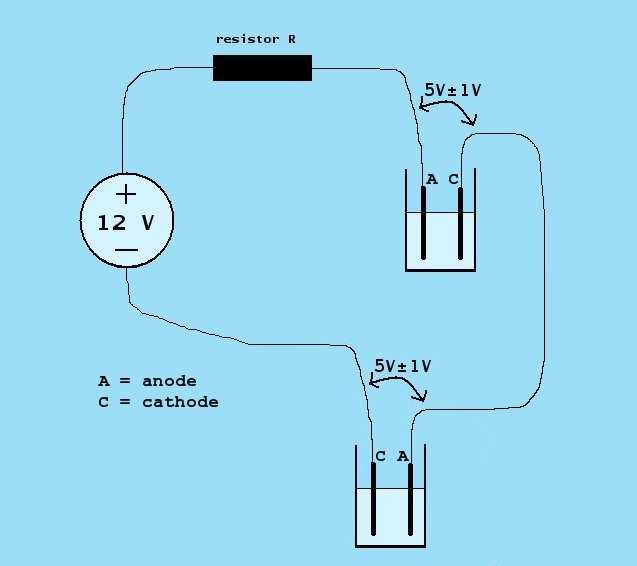

Select a resistor using Ohm’s law: R = (Vsource – Vcell) / Idesired. For a 12V supply and a 2V decomposition voltage, target 500mA: R = (12V – 2V) / 0.5A = 20Ω. Choose a 22Ω resistor (5% tolerance) to account for voltage fluctuations in the cell’s overpotential. Verify wattage: P = I² × R = (0.5)² × 22 = 5.5W–use a 10W resistor to prevent overheating during prolonged runs.
- Measure dynamic resistance: electrodes’ surface area alters impedance–clamp a multimeter in series before finalizing values.
- Avoid carbon resistors for acidic media; opt for wirewound or metal-film types rated ≥300°C.
- Pulse mode? Reduce resistance by 30% to compensate for duty cycle losses.
- Test with distilled water first–tap water’s conductivity skews baseline readings.
Verify Voltage and Correct Lead Arrangement Pre-Connection
Measure the power supply’s output with a multimeter set to DC voltage before attaching any leads. For water-splitting setups using inert anodes, a minimum of 1.8 V ensures steady hydrogen and oxygen release; below 1.4 V, the reaction stalls. Copper refining typically requires 0.3–0.6 V; excess pushes undesirable side reactions. If the source exceeds target values, insert a buck converter or potentiometer to trim levels precisely. Record readings at both terminals–uneven drops indicate internal resistance or faulty wiring.
- Attach the multimeter’s red probe to the anode lead (oxidation site), black probe to cathode (reduction site). Swap probes only if readings show inverted polarity, guaranteeing the power source’s positive terminal feeds the anode.
- Label leads with shrink tubing or colored tape: red for anode, black for cathode. Confirmed matching prevents accidental reversals that dissolve electrodes or contaminate the medium.
- Test continuity across each electrode pair–open circuits signal broken wires or loose clamps.
- Sample tiny electrolyte volumes in test tubes before full immersion; visible bubbling at both electrodes proves correct pairing, absent bubbles point to reversed leads or insufficient voltage.
