How to Wire a 3-Way Switch Complete Circuit Diagram Guide
Install a three-point control system by connecting two common terminals to traveler wires, ensuring each terminal at the intermediate points links to both travelers. Use 14-gauge wire for standard residential loads up to 15 amps, or 12-gauge for 20-amp circuits–mismatched wire thickness risks overheating. Label traveler terminals red and black at each box to prevent crossed connections, which can create short circuits.
Ground all metal boxes and switches using a bare copper wire tied to the grounding screw–omit this step in plastic enclosures, which only require a ground wire connected to the switch’s green terminal. Test continuity with a multimeter between travelers after installation; readings should toggle between zero and infinite ohms when toggling any control point. Replace any switch showing inconsistent resistance to avoid flickering lights or intermittent failures.
For stairwells or long halls, position the power source at the midpoint box to reduce voltage drop across the traveler wires–exceeding 5% drop from source to farthest light fixture causes dimming. Use LED-compatible dimmers if controlling LED bulbs; standard switches may cause buzzing or premature failure. Avoid daisy-chaining more than three control points without a relay–additional switches introduce resistance and degrade performance.
Mark the common terminal on each switch with white tape after disconnecting power; miswiring here reverses control logic, requiring toggling opposite switches to operate lights. Cap unused wires with wire nuts and wrap them in electrical tape–exposed conductors increase shock risk and can trigger arc faults. Verify all connections with a non-contact voltage tester before restoring power; residual current can damage sensitive electronic components.
Wiring a Three-Position Electrical Control System
Begin by identifying the power source and the two remote terminals that will toggle the load. Label each conductor with tape or markers to avoid confusion during installation: black for common (line), red and white for travelers, and green or bare copper for ground. Connect the common terminal of the first control unit to the live wire (typically 120V or 230V depending on regional standards) using a wire nut rated for the amperage–15A for residential lighting, 20A for heavier loads like ceiling fans or larger fixtures.
- Use 14 AWG copper wire for 15A circuits or 12 AWG for 20A systems; undersized conductors risk overheating.
- Secure all connections with UL-listed wire nuts, twisting clockwise before capping to ensure proper contact.
- Route traveler wires between the two units through ½-inch conduit or electrical boxes spaced no more than 6 feet apart for code compliance.
Attach the load (e.g., a light fixture) to the common terminal of the second unit. Ensure the ground wire bonds to the metal box if present, using a pigtail and ground screw for uninterrupted safety. Test the setup with a multimeter before energizing: verify continuity between travelers when toggling positions and confirm no voltage leaks to ground–leakage above 3V indicates faulty insulation or miswiring.
For multi-level applications (e.g., stairwells), add a third unit by extending the traveler wires in sequence, maintaining consistent wire gauge. Use deep junction boxes (minimum 3.5-inch depth) to accommodate splices without crimping conductors. If integrating smart controls, select compatible modules (e.g., Lutron Caséta or Zooz) that support three-position configurations, replacing one mechanical unit while retaining the existing traveler wiring.
Basic Wiring Configuration for a Triple-Control Electrical Arrangement

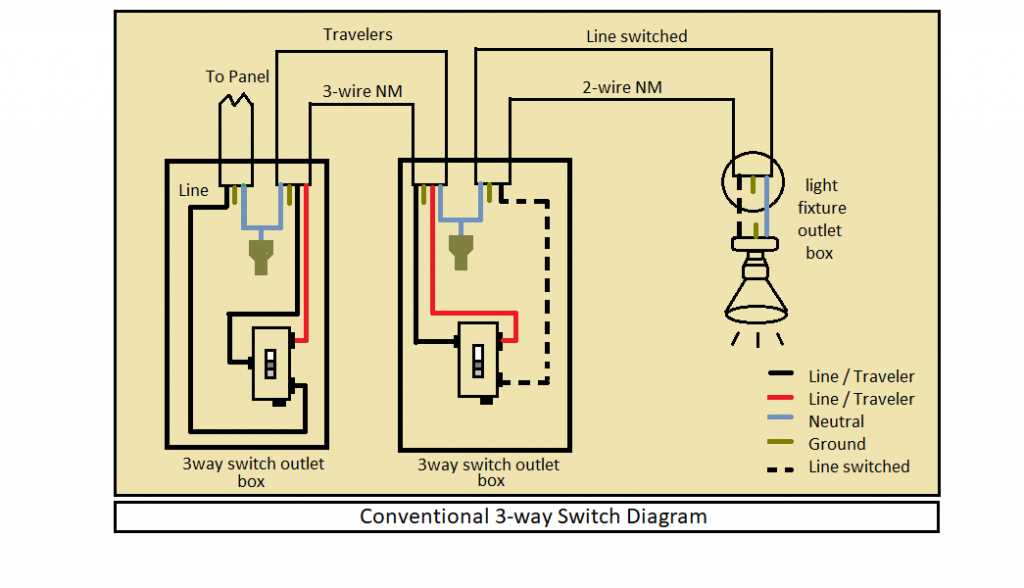

Start by connecting the power source’s hot wire to the common terminal of the first control device–this is the brass-colored screw. Use 12-gauge copper wire for 20-amp circuits or 14-gauge for 15-amp systems. Secure the connection with a wire nut, ensuring no exposed strands remain. Label this wire as *LINE* to differentiate it from traveler wires.

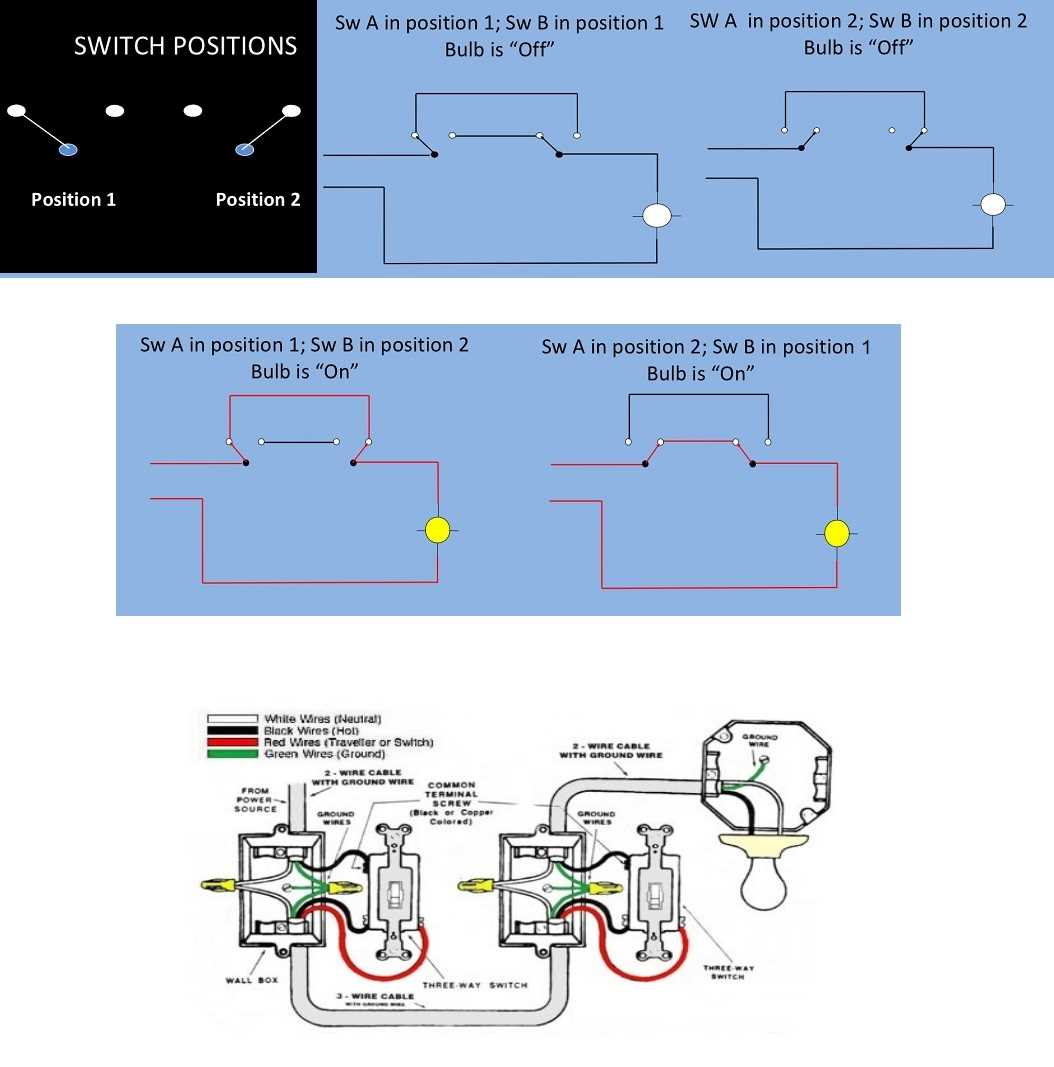

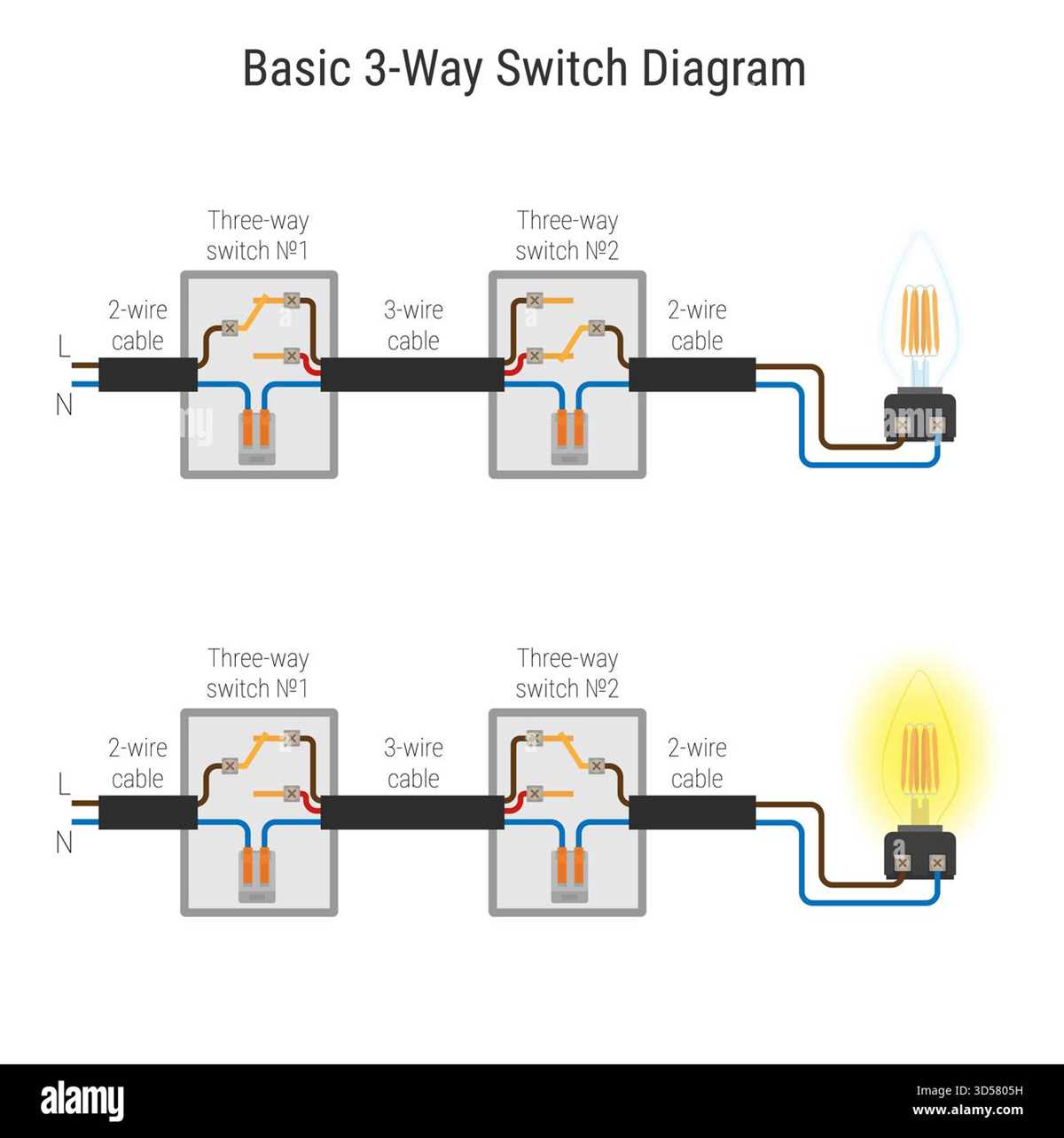

Attach the traveler wires (typically red and black) to the remaining terminals on both control devices. These wires must run between the two switches without splicing. Each traveler connects to a brass terminal on the opposing device–red pairs with black, and vice versa–to maintain continuity. Incorrect pairing will cause flickering or failure of the connected fixture.
The neutral wire (white) from the power source should bypass both switches entirely, connecting directly to the light fixture’s corresponding terminal. If the power source enters at the fixture, reverse this: run the neutral to the first switch, then splice it to the fixture. Never interrupt neutral wires with a switching mechanism.
Grounding and Safety Checks
Bond all grounding wires (bare or green) from the power source, switches, and fixture using a dedicated grounding pigtail. Attach the pigtail to the green terminal on each switch housing. For metal junction boxes, ensure the grounding wire also connects to the box’s grounding screw. Test continuity with a multimeter before energizing the system.
After installation, toggle both switches to verify the fixture responds to each position. If the light fails to turn on from one switch, recheck traveler wire connections–miswired travelers are the most common fault. Use a non-contact voltage tester to confirm power is absent before adjusting any wires.
For installations with multiple fixtures controlled by the same setup, daisy-chain the hot and neutral wires from the first light to subsequent ones. Keep traveler wires exclusive to the switching mechanism–splicing them to additional loads will disrupt functionality. Encase all connections in UL-listed wire nuts and secure them within approved electrical boxes.
Step-by-Step Guide to Connecting Traveler Conductors
Begin by identifying the two brass terminals on each control device–these are the traveler contacts. Mark them with colored tape (red and blue) to avoid confusion during installation. Ensure the power source is disconnected before handling any exposed wiring.
Align the first traveler conductor from the common contact of the initial control to the corresponding brass terminal on the second device. Repeat this for the second traveler conductor, maintaining consistency in terminal pairs. Secure connections with wire nuts rated for the circuit’s amperage–typically 12 AWG for 20A systems. Verify tightness with a tug test.
| Step | Action | Tool/Material |
|---|---|---|
| 1 | Identify brass terminals on both controls | Color-coded tape |
| 2 | Attach first traveler conductor between matching terminals | Wire strippers, 12 AWG wire |
| 3 | Repeat for second traveler conductor | Wire nuts (UL-listed) |
| 4 | Test continuity before restoring power | Multimeter |
After securing both travelers, connect the common wire (black or copper) from the power source to the dark-colored terminal of the first control. Ground all devices using green or bare wire, bonding them to the metal housing or grounding screw. Double-check each connection against the table above before energizing the system–incorrect pairing will cause misoperation.
Mastering Common and Ground Terminals in Multi-Position Toggle Configurations
Locate the common terminal first–it’s the pivot point connecting the toggle to the power source or load. In most snap-action mechanisms, this terminal is marked with a distinct color (often brass or copper) or labeled “COM,” “C,” or “P.” On a terminal block, it’s positioned centrally or offset from the traveler screws, ensuring consistent electrical continuity regardless of toggle position. Verify its identity by checking manufacturer datasheets or etching patterns on the device housing–some models emboss a small arrow or dot near the common terminal.
Ground terminals demand zero tolerance for ambiguity. They must connect only to the equipment chassis, bonding conductor, or designated grounding busbar–not to neutral terminals or any live conductors. Confirm proper grounding by measuring continuity between the ground screw and the enclosure with a multimeter set to ohms (Ω); readings should approach 0.0Ω. In three-position selectors, grounding screws are typically green or uncoated metal, often hexagonal-shaped to prevent accidental use as live terminals. Never bridge ground and common terminals–this creates a potential shock hazard and violates NEC 250.142(B).
Traveler terminals carry interchangeable current paths between toggle positions, but never confuse them with the common or ground. Identify travelers by process of elimination: energize the selector, toggle between positions, and probe with a non-contact voltage detector–traveler screws will emit a signal in both alternate states. In North American installations, these terminals may be black or red, color-coded to match corresponding wires. Always terminate travelers with loose-fill wire nuts containing antioxidant paste if exposed to moisture-prone environments, as corrosion increases resistance and creates intermittent failures.
Test terminal assignments before final connections: use a continuity tester to trace the current path in each toggle state. For instance, in the “up” position, continuity should exist between common and one traveler; in the “down” position, the same continues to the second traveler. Ground must remain isolated in all states except during fault conditions. Reversing common and ground risks energizing the enclosure, turning safety protection into a lethal hazard. Document terminal assignments directly on the device cover with indelible marker–future maintenance will rely on this reference.
Integrate surge suppression at the common terminal if the selector feeds inductive loads like motors or transformers. Install a bidirectional TVS diode or varistor rated for 120–277VAC across common and ground to clamp voltage spikes during state transitions. For high-voltage systems, torque terminal screws to manufacturer specifications (usually 12–15 in-lbs) using a calibrated screwdriver–under-tightening causes overheating, over-tightening strips threads. After installation, conduct a final insulation resistance test at 500VDC, validating values exceed 1MΩ between all conductive parts and ground.
