How to Build and Understand a JK Flip Flop Circuit Schematic
Build your JK bistable stage with dual cross-coupled NAND gates–this arrangement prevents indeterminate states while maintaining predictable toggling. Use two 74LS00 ICs or equivalent quad NAND gates, connecting each gate’s output to the opposite input through 4.7 kΩ pull-up resistors. Ground both unused inputs to avoid floating nodes that could introduce noise. This configuration ensures the bistable latches cleanly on clock edges.
Apply a 100 nF decoupling capacitor across the power pins of each IC; position them within 2 mm of the VCC and GND pins to suppress transient voltage spikes. Clock pulses should transition cleanly with rise and fall times under 50 ns–use a Schmitt trigger input stage if your signal source has slow edges. Connect the J and K inputs through 1 kΩ series resistors directly to logic HIGH or LOW; avoid leaving inputs open, as it invites metastability.
Test the bistable with a 1 Hz clock signal–observe the Q and Q̅ outputs on an oscilloscope. Q should toggle crisply on each rising edge while Q̅ mirrors it without glitches. If unpredictable behavior occurs, verify ground integrity; a single shared GND plane across the entire assembly eliminates ground bounce. For higher-frequency operation above 10 MHz, decrease resistor values to 220 Ω and ensure traces between gates are under 3 cm to prevent signal degradation.
Building a JK Bistable Element: Schematic Insights

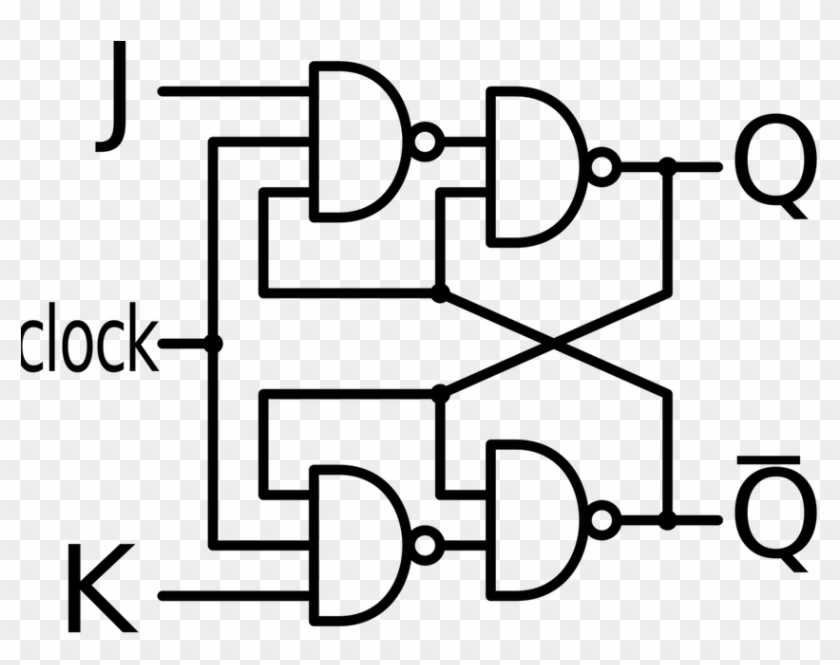

Begin with a dual-input bistable configuration using NAND gates for Q and Q̅ outputs. Connect the J and K inputs to separate 3-input NAND gates–one tied to the preset path, the other to the clear path–ensuring synchronous toggling when both inputs are high. Use two cross-coupled NAND gates to form the core memory element, feeding back Q and Q̅ to opposing gates to maintain stable states.
The clock signal must trigger on the falling edge to prevent race conditions. Insert a 2-input NAND gate at each input path, combining J/K with the clock before routing to the bistable core. Delay propagation by adding a 47 pF capacitor between the clock input and ground to sharpen edge sensitivity–this prevents false triggering during voltage transitions.
| Component | Quantity | Value/Type |
|---|---|---|
| NAND Gates | 4 | 74HC00 |
| Capacitors | 2 | 47 pF |
| Resistors | 2 | 1 kΩ |
| Diode | 1 | 1N4148 |
Isolate preset (PR) and clear (CLR) inputs with diodes to prevent backflow when inactive. Route PR to the upper NAND gate via a 1 kΩ resistor, pulling Q high while forcing Q̅ low–repeat this configuration for CLR on the opposite gate. Ground unused inputs to avoid floating nodes, which introduce metastability.
For edge-triggered designs, replace the simple clock gate with a pulse-shortener network: pair a capacitor (33 pF) with a Schmitt-trigger inverter (74HC14) to create a
Power the schematic at 5V, decoupling each IC with 0.1 μF capacitors near VCC pins to suppress noise. Breadboard prototypes require 10 kΩ pull-up resistors on Q/Q̅ outputs to stabilize readings during debugging–remove once connected to downstream logic. Verify operation by monitoring outputs with LEDs: Q (anode to output, cathode to 220 Ω resistor) will illuminate in set state; Q̅ remains dark.
Core Parts Needed to Assemble a JK Bistable Logic Element
Begin with a pair of cross-coupled NAND gates–SN74LS00 or CD4011 ICs work reliably. Ensure each gate has at least two inputs; four-input variants like SN74LS20 introduce unnecessary complexity. Power the ICs with a regulated 5V DC supply, bypassing noise with a 0.1µF ceramic capacitor between VCC and ground near the pins.
Integrate two pull-up resistors (4.7kΩ) on the J and K inputs if using mechanical switches or open-collector outputs. For clock synchronization, a 74LS109 edge-triggered toggle provides clean transitions; avoid simple debounce circuits–spikes disrupt timing. Add a 1kΩ series resistor to the clock line if signal ringing occurs.
Storage and Feedback Essentials
Include a pair of 1N4148 diodes across the feedback paths to suppress transient spikes exceeding 0.7V. Output buffering requires a 74LS04 inverter or any non-inverting buffer (e.g., SN74LS244) to drive loads exceeding 8mA. For state retention during power drops, incorporate a 22pF capacitor between the Q and Q outputs and ground.
Precision timing hinges on a stable clock source–use a 555 timer in astable mode (1kHz–100kHz) or a crystal oscillator (4MHz) with a 74LS322 Johnson counter for error-free pulses. Avoid RC circuits below 1kΩ; leakage currents alter thresholds. Label all connections clearly: J, K, CLK, PRE, CLR, Q, Q–mismatches cause unpredictable toggling.
Optional Enhancements for Robust Operation
Shield the configuration from EMI by enclosing it in a grounded metal box or wrapping with copper tape. For noisy environments, add a 100nF decoupling capacitor per IC; place them within 2mm of the power pins. If metastability arises, insert a 74LS14 Schmitt trigger between the clock and bistable logic to harden transitions.
Test each stage incrementally–start with direct inputs (J=1, K=0), then simulate clock pulses before integrating full feedback. Record propagation delays (typically 15–30ns for LS-TTL) to ensure compliance with downstream logic. Use a 10MHz oscilloscope with ×10 probes to observe edges; filtering artifacts below 50MHz obscures critical glitches.
Step-by-Step Wiring Guide for a NAND Gate-Based JK Bistable Multivibrator
Begin by gathering four 74LS00 NAND ICs–each houses four gates, but only two per IC are required. Pin 7 (GND) and pin 14 (VCC) must connect to a regulated 5V supply; bypass these with a 0.1µF ceramic capacitor near the IC body to suppress transients. Wire the J and K inputs to separate SPDT switches or pull-down resistors (10kΩ) to ensure clean logic levels.
- Connect the first NAND gate’s output (pin 3 of IC1) to one input of the second NAND gate (pin 5 of IC2).
- Wire the second gate’s output (pin 6 of IC2) to the clock input (pin 1 of IC3) through a 1kΩ resistor for edge triggering.
- Tie the feedback loop: run a jumper from IC2’s output (pin 6) back to the remaining input of IC1 (pin 2). Repeat mirror steps for the complementary half using IC3 and IC4.
- Attach the clock line to a debounced push button or 555 timer oscillating at 1Hz for visible toggling.
- Observe outputs Q and Q̅ on LEDs with 330Ω current-limiting resistors–Q should invert on each clock pulse when J=K=1.
Verify all connections with a logic probe before powering; floating inputs falsely trigger metastable states.
Common Mistakes to Avoid When Sketching a JK Element Layout
Omitting the power connections on gate symbols leads to ambiguous or non-functional schematics. Both the VCC and ground pins must be clearly marked–even if the symbol library omits them. A missing ground on a NAND gate in the master stage can prevent the entire element from toggling. Always verify every gate instance receives explicit voltage references.
Incorrect clock edge indication undermines logic behavior. The JK block relies on a specific edge–positive or negative–to sample inputs. Drawing a simple arrow without the sharp edge marker confuses readers and can cause simulation errors. Use a small triangle at the clock input to denote the active edge; an absent or misaligned marker shifts the sample moment by half a cycle.
Mixing asynchronous and synchronous clear/preset lines produces unpredictable resets. These inputs should bypass the clock, yet many designers route them through the same logic paths as the J and K signals. Label the lines with “CLR” or “PRE” and route them directly to the gate transistors–never merge them with the clock-dependent logic paths.
Failing to separate the master and slave sections visually fuses their functionality. Each half must be distinct; overlapping gate clusters obscure signal flow. Divide the sketch into two halves, placing the master gates on the left and slave gates on the right, with explicit arrows showing the transfer path upon the clock edge.
Overlooking pin numbering on multi-gate symbols distorts debugging. A single symbol may represent four NAND gates with shared inputs. Clearly annotate each gate instance–PIN1, PIN2, etc.–otherwise, connecting feedback loops becomes guesswork, and PCB layout may swap critical signals.
How to Test the JK Bistable Logic Unit for Reliable Operation
Connect a stable clock signal generator to the toggle input. Set the frequency between 1 Hz and 10 Hz to observe real-time state transitions without needing an oscilloscope. Higher frequencies risk masking metastability or propagation delays.
Verify reset and preset controls using a pushbutton or logic switch. Activate preset first: the output should settle to logic high immediately, ignoring any pending toggle commands. Then reset–expect an immediate low state, overriding all other inputs. Repeat this sequence three times to confirm consistency.
Test the asynchronous inputs with the following procedure:
- Disable clock by tying its input low.
- Toggle preset while monitoring both outputs. Q must flip to high, Q̅ to low.
- Switch to reset while preset remains high. Q should instantly drop, Q̅ rise.
- Release both controls–outputs must retain last state.
Any deviation indicates faulty latching behavior or incorrect pin wiring.

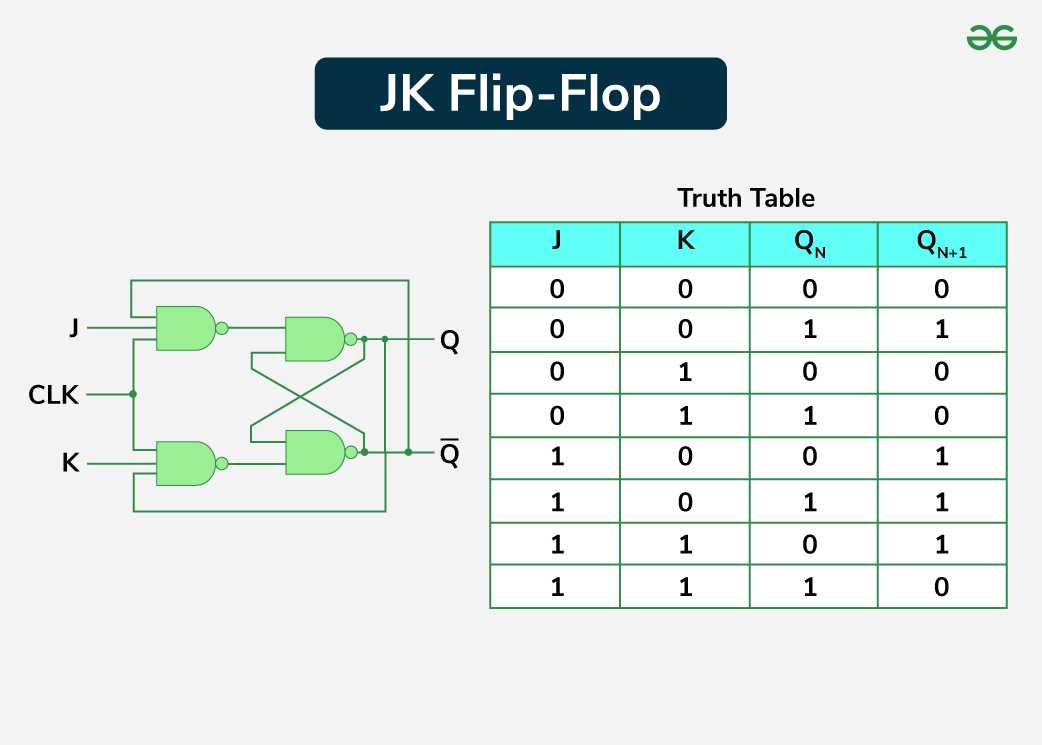

Load truth-table conditions using two SPDT switches for J and K inputs. Configure all four combinations–00, 01, 10, 11–while pulsing the toggle line once per setting. Document outputs after each pulse.
Check edge sensitivity by replacing the steady clock with a one-shot pulse generator. Trigger single pulses while cycling through J/K states. Observe any spurious toggles or missed transitions–these signal noise susceptibility or insufficient setup-hold margins.
Diagnosing Common Failure Modes
Measure quiescent current draw; exceeding 5 mA in CMOS variants suggests internal latch-up or shorted outputs. Probe each output pin with a logic probe–floating high-Z states indicate open connections or failed internal transistors.
Examine propagation delay using a dual-trace oscilloscope. Connect channel one to the toggle input, channel two to Q output. Trigger on the rising edge–normal delay should not exceed 50 ns for TTL, 20 ns for fast CMOS derivatives. Deviations point to degraded ICs or excessive capacitive loading.
Final validation requires stress testing. Increase ambient temperature to 70 °C using a heat gun while cycling through all truth-table conditions. Drop below 0 °C with freeze spray and repeat. Monitor for sporadic errors–these reveal temperature-dependent flaws invisible during benchtop tests.
