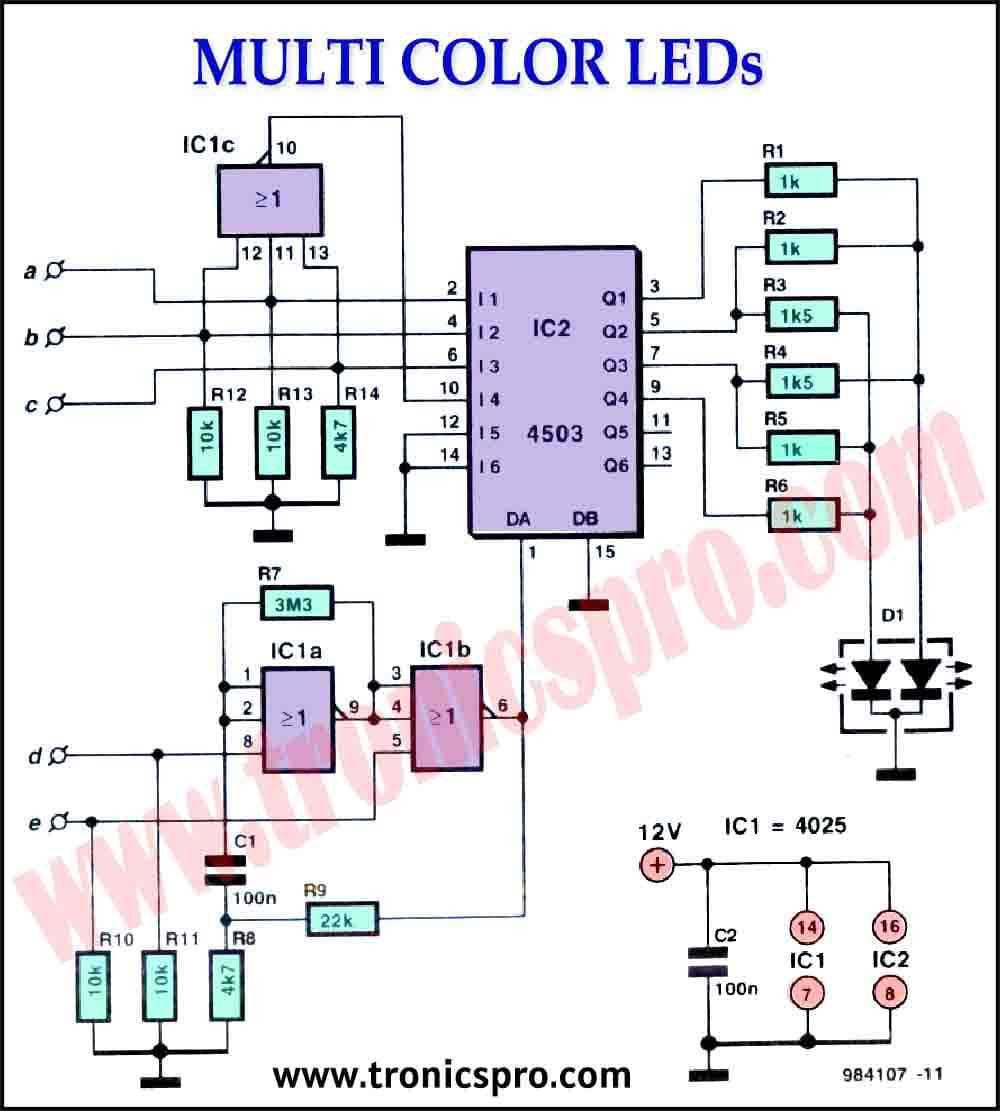

How to Build a Simple LED Circuit Diagram Step-by-Step Guide
Start with a single resistor and a 5mm diode rated for 20mA at 2.1V. Place the resistor on the anode side to limit current–470Ω works for 5V sources, while 220Ω suits 3.3V rails. Avoid bypassing the resistor: direct connection risks overheating and premature failure. For precision, use Ohm’s law (R = (Vsource – Vdiode) / Itarget) to calculate exact values.
Connect three diodes in series across 9V–each 2.1V drop totals 6.3V, leaving 2.7V for the resistor. A 120Ω resistor keeps current stable. Parallel arrangements demand individual resistors per branch to prevent uneven brightness. Measure voltage at each node with a multimeter; expect ~1.8V if the diode runs warm, requiring cooler conditions or a higher-value resistor.
PWM dimming works best at 500Hz–2kHz frequencies. An N-channel MOSFET (e.g., 2N7000) handles up to 200mA; gate voltage must exceed 2V for full conduction. Avoid exceeding the diode’s pulsed rating–most 5mm types tolerate 100mA briefly but degrade above 30mA sustained. For high-power arrays, add active cooling and a 100nF decoupling capacitor across the supply rails to filter voltage spikes.
Use a 74HC595 shift register for cascading control without microcontrollers. Clock pulses cascade data through eight outputs at 5V logic levels; each output drives a small-signal transistor (e.g., BC547) with a 1kΩ base resistor. Isolate logic circuits from power rails with optocouplers when interfacing with inductive loads to prevent back-EMF damage.
Building a Simple Illumination Setup
Choose a 220Ω resistor for a 5V source with a standard 20mA red light emitter; values scale inversely with voltage: 330Ω for 9V, 470Ω for 12V. White or blue emitters require 10-15% higher resistance due to their 3.2-3.6V forward drop. Bypass calculations entirely for quick prototyping: grab a 1kΩ resistor–it’ll dim the emitter but prevent burnout during initial tests.
Connect the anode to the positive rail through the current-limiting component and ground the cathode directly. Reverse these connections and the emitter remains dark–use this polarity-check trick before permanent soldering. For arrays, wire emitters in series to share voltage, but limit chain length: four 3V emitters max on a 12V rail. Parallel connections demand individual resistance–never split a single resistor across multiple emitters.
Power Supply Pitfalls
- Linear regulators like the LM7805 introduce 500mV dropout; wire emitters downstream, not upstream.
- Switching supplies (e.g., buck converters) tolerate wider input ranges but require input/output capacitors (10µF ceramic) to suppress voltage spikes.
- Battery-powered setups: alkaline 9V cells sag under load–opt for three AA cells (4.5V) for consistent brightness.
- USB ports deliver 500mA max; two emitters per port need 2.1mm barrel plugs to tap higher currents safely.
Pulse-width modulation (PWM) dimming via microcontrollers demands low-side switching: connect the cathode to the transistor collector and ground the emitter. Flyback diodes become critical when driving emitters with relays; a 1N4007 suffices for 1A inductive loads. For high-power emitters (1W+), thermal management trumps all–mount the emitter on a heatsink and pair it with a constant-current driver, not a resistor.
Troubleshooting Checklist
- Verify emitter polarity with a multimeter diode test–a lit emitter confirms correct orientation.
- Swap suspect resistors with a known-good 560Ω unit to rule out overcurrent failures.
- Measure rail voltage at the emitter terminals; a 0.2V sag suggests loose connections.
- Inspect for cold solder joints under a magnifier–reflow joints with flux to restore contact.
- Test emitters individually in a breadboard setup to isolate dead units; replace rather than troubleshoot low-output emitters.

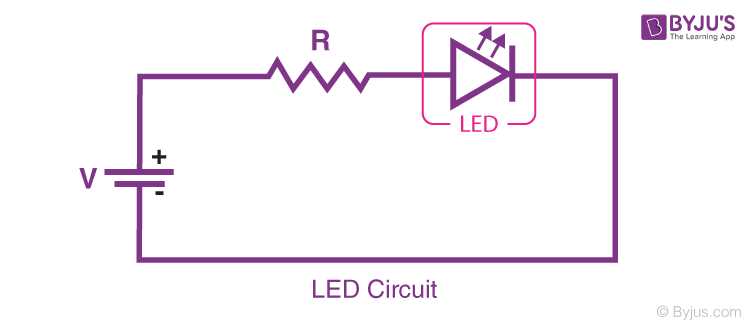

Powering a Single Illumination Element with Correct Current Limiting
Choose a series drop resistor based on your supply voltage and the forward voltage of your semiconductor emitter. For a typical 5mm red unit, assume 1.8V across the die at 20mA. If running from a 5V rail, subtract the forward drop: 5V – 1.8V = 3.2V. Apply Ohm’s law: 3.2V ÷ 0.02A = 160Ω. Select the nearest standard value, commonly 150Ω or 180Ω.
- White or blue emitters: use 3.0–3.5V forward drop
- Green: 2.1–2.3V
- Infrared: 1.3–1.5V
Over-sizing the resistor by 10–20% ensures thermal headroom; under-sizing risks runaway heating in high-ambient conditions.
Resistor Power Rating Quick Guide
- ¼W sufficient for single low-current (
- ½W mandatory if supply exceeds 12V or current draws above 40mA
- Precision: use ±5% or tighter tolerance for consistent brightness
Supplying Current to a Lone Illuminator from Varied Supply Levels
For a single 20 mA indicator with a 2.1 V forward drop, match the resistor directly to the source: 12 V → 470 Ω, 9 V → 330 Ω, 5 V → 150 Ω, 3.3 V → 68 Ω. These values assume ±5 % tolerance parts and ambient temperatures under 40 °C; exceed either limit and derate current by 10 %.
Resistor Calculation Quick Reference
| Input Potential (V) | Fixed Resistance (Ω) | Minimum Power Rating (mW) | Typical Part Number |
|---|---|---|---|
| 24 | 1100 | 250 | ERJ-14ZYJ1K1V |
| 15 | 620 | 125 | CRG12J620J |
| 7.2 | 270 | 125 | Yageo ASR04J270R |
| 1.8 | None – use constant-current driver | – | MIC2860YFL |
Higher potential sources (>12 V) benefit from a small series transistor (BC547) to offload heat; at 24 V the base resistor of 10 kΩ keeps collector current around 20 mA without exceeding the transistor’s 625 mW dissipation.
Parallel vs. Series Light Source Arrangements: Key Differences
Opt for series connections when uniform current flow is critical, as all elements share identical amperage. This setup eliminates brightness disparities but risks complete failure if one component malfunctions. Use it for single-brightness applications like indicator arrays or linear displays where precision outweighs redundancy needs. Calculate total voltage drop by summing forward voltages of each unit–exceeding supply voltage renders the assembly inoperable.
Parallel groupings excel in redundancy, distributing equal voltage across each branch while permitting independent current paths. Brightness remains consistent even if one path opens, though current divider effects may cause slight variations. Ideal for multi-segment displays or safety-critical illuminations, this method demands precise resistor matching per branch to prevent uneven intensity. Total current consumption scales linearly with added paths, challenging power delivery systems.
Voltage and Brightness Behavior
Series chains amplify voltage requirements proportionally to the component count, while maintaining constant current. A three-element chain with 2V forward drops each needs at least 6V supply; adding a fourth mandates 8V. Brightness inversely correlates with ambient temperature–heat reduces luminous output, necessitating cooling for high-power implementations. Parallel branches, conversely, maintain supply voltage across each segment, though minor brightness inconsistencies emerge from manufacturing tolerances.
For dynamic lighting scenarios, series-parallel hybrids offer balanced compromises. Group strings of series segments in parallel to optimize voltage efficiency while retaining partial redundancy. Example: Three series pairs (each 4V forward total) in parallel run on 5V with moderate power loss through current-limiting resistors. This configuration suits automotive tail lamps or modular installations where both brightness consistency and fault tolerance matter.
Practical Selection Criteria
Prioritize series for low-power, precision tasks–think single-digit counters or backlit labels where 1-2mA sufficiency avoids excessive driver complexity. Parallel dominates high-current scenarios like RGB panels or emergency exits; each segment requires identical voltage but may draw variable current. Heat dissipation demands differ: series setups concentrate thermal loads unless actively cooled, while parallel spreads heat across multiple entry points.
Power supply constraints dictate configuration choice. Series chains demand higher-voltage sources but lower current capability. Parallel arrays require high-current regulators but operate on standard voltages. Noise sensitivity varies: series chains suffer from cumulative noise, while parallel setups exhibit differential noise between branches, necessitating individual filtering. For battery-powered devices, parallel extends runtime via staggered discharge per branch.
Failure mode analysis reveals critical trade-offs. Series breakages cause total darkness, whereas parallel faults create subtle dimming. Recovery strategies diverge: series chains mandate backup paths, while parallel setups permit isolated segment replacement. Long-term reliability favors parallel for hazardous applications like aviation warning lights, where redundancy outweighs design complexity. Series prevails in cost-sensitive, low-risk displays where single-point failure is acceptable.
Assembly complexity scales differently. Series wiring demands fewer conductive paths but stricter voltage compliance. Parallel implementations involve multi-layer routing and thermal vias to handle variable currents. Automated production prefers parallel for modular soldering, while series better suits manual prototyping due to simpler trace layouts. Component matching becomes critical in parallel–for a 24V rail with 3V units, each branch requires 700mA handling capability to avoid catastrophic mismatches.
