Understanding and Drawing Accurately Labelled Electrical Circuit Diagrams

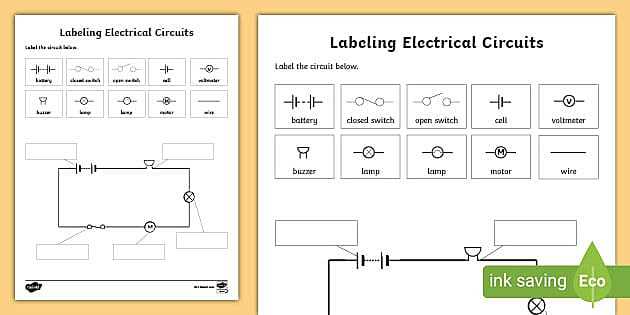

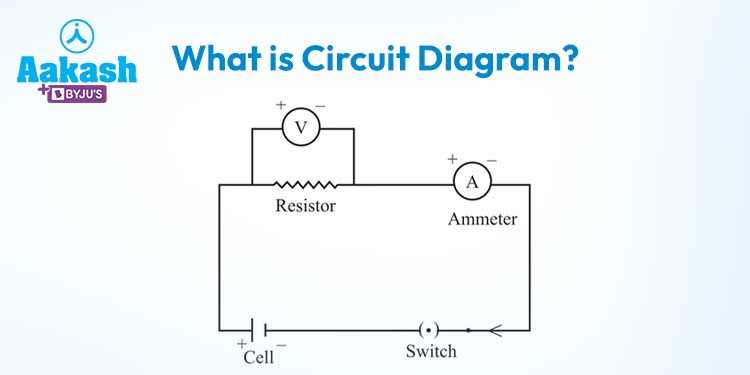

Begin by grouping components logically before adding identifiers–power sources on the left, resistive loads centrally, and output nodes to the right. This spatial arrangement reduces crossovers and simplifies troubleshooting later. Assign alphanumeric codes with prefixes that reflect function: R for resistors, C for capacitors, VCC for supply rails, and GND for ground points. Use subscripts for variants–R1a, R1b–to indicate parallel or series relationships without cluttering the layout.
Highlight critical paths with thicker lines or color differentiation to guide attention to high-current or high-frequency segments. Annotate values in engineering notation (e.g., 10k, 470n) adjacent to symbols, rotated for readability if space is limited. Avoid overlapping text; if necessary, employ leader lines terminated with dots to maintain clarity. For integrated circuits, list pin numbers externally along the perimeter of the symbol, aligning them with physical package markings.
Document unconventional elements immediately–optocouplers labeled U, diodes marked D with forward voltage drop specified–so diagnostic tools reference accurate parameters. Include test points (TP1, TP2) on nets prone to signal degradation, positioning them near expected measurement locations. Validate identifiers against a bill of materials to eliminate mismatches before prototyping. Consistency between the schematic and physical board accelerates debugging and calibration.
For multi-layer designs, separate annotation layers by signal type: analog, digital, and power. Number each layer distinctly–top copper L1, inner signal L2, bottom ground L3–to prevent ambiguity during fabrication. Use net naming conventions that reflect purpose–CLK for clock lines, DATA0-DATA7 for parallel buses–to streamline netlist exports. Cross-reference identifiers with firmware registers to ensure software alignment.
Key Components in Electrical Schematics: Naming Conventions
Begin by assigning identifiers to each element using a consistent alphanumeric system. Resistors should follow *R1, R2…Rn*, capacitors *C1, C2…Cn*, and inductors *L1, L2…Ln*. Power sources split into DC (Vcc, Vdd for positive; Vss, Vee for negative) and AC (Vin, Vout). Semiconductors require unique prefixes: transistors *Q1, Q2…Qn*, diodes *D1, D2…Dn*, ICs *U1, U2…Un*. Ground symbols must be labeled *GND* (main), *AGND* (analog), or *DGND* (digital) to avoid signal crosstalk. Use *TP1, TP2…TPn* for test points, ensuring they align with PCB layout probes.
Standard Annotation Practices
| Element Type | Recommended Label | Example Values |
|---|---|---|
| Fixed Resistor | R*[n]* | R1 (1kΩ), R2 (470Ω) |
| Polarized Capacitor | C*[n]* | C3 (10µF), C4 (220µF) |
| NPN Transistor | Q*[n]* | Q5 (2N3904) |
| Voltage Regulator | U*[n]* | U7 (LM7805) |
| Connections (Board-to-Wire) | J*[n]* or P*[n]* | J1 (Header 2×5), P3 (USB-B) |
Avoid vague labels like “Input” or “Output.” Instead, specify functions: *Vbat* (battery voltage), *CLK* (clock signal), *MOSI* (SPI line). Separate high-voltage zones with *HV_IN* and *HV_OUT* and low-voltage paths as *LV_IN* and *LV_OUT*. Tool-specific annotations (KiCad, Altium) differ–KiCad uses *~* for active-low signals (*EN~*), while Altium prefers *#* (*RESET#*).
Critical Elements to Spot on Electrical Schematics
Start by locating the power sources–batteries, voltage rails, or AC inputs–since they dictate the entire flow. Examine their values (e.g., 5V, 12V) and polarity markings (+/-) to verify compatibility with downstream components. Mismatches here can damage sensitive parts or cause unexpected behavior. For AC inputs, look for transformer symbols or rectifier bridges to understand how raw power is conditioned.
Passive and Active Device Identification
- Resistors: Note resistance values (ohms) and power ratings (watts) to prevent overheating in high-current paths.
- Capacitors: Differentiate between electrolytic (polarized) and ceramic types; check microfarad values to predict timing or ripple smoothing effects.
- Inductors: Identify coils or chokes by their henry ratings, especially in filter or switching regulator designs.
- Semiconductors: Transistors, diodes, and ICs often lack labels–cross-reference pinout datasheets if reference designators (e.g., Q1, U2) are unclear.
Trace signal paths by following conductor lines from inputs to outputs. Prioritize thick traces, which typically carry higher currents, and thin lines for control signals. Watch for junctions where multiple branches split–these often require pull-up/down resistors or buffering. Ground symbols (⏚) should converge at a single point to avoid noise; verify this isn’t violated in mixed-signal layouts.
- Annotate unmarked items immediately–custom designs may omit labels for switches, connectors, or test points.
- Check for thermal considerations: heat sinks on power transistors or voltage regulators may not be drawn but are critical.
- Inspect oscillation circuits: crystals or resonators must connect to IC pins labeled XTAL or OSC.
Step-by-Step Guide for Clearly Marking Electrical Schematic Symbols
Use standardized reference designators for every component–they eliminate ambiguity. Resistors start with R (e.g., R1, R2), capacitors with C, transistors with Q, and integrated chips with U. Number sequentially from the upper-left corner of the layout, moving left to right, top to bottom. Avoid reusing numbers even if parts are removed later.
Place text directly adjacent to the symbol, never overlapping lines or other markings. Horizontal orientation works best for short identifiers; rotate vertical text 90 degrees clockwise if space constraints demand it. Keep a minimum 2 mm clearance between label edges and component edges to prevent visual clutter.
Differentiate power rails and ground points with distinct prefixes. Use VCC for positive supply, VEE for negative, and GND for ground. Suffix each with a consistent numeric qualifier (VCC1, GND3) if multiple rails exist. Hide these labels behind auxiliary lines when possible to reduce schematic noise.
Annotate critical values inline–resistance, capacitance, or voltage ratings–but omit units if context is clear. 10k suffices for a 10 kΩ resistor; 10μF covers a 10 microfarad capacitor. For polarized parts (LEDs, electrolytics), mark anode (+) and cathode (-) explicitly, not just the part number.
Group functionally related parts with dashed bounding boxes. Label the group at the top-left corner (e.g., AMP_STAGE). Inside, maintain consistent numbering: amplifier subparts use A1_R1, A1_Q1, preserving hierarchy across revisions.
Leverage net labels for connections spanning multiple sheets. Prefix them with sheet number (S1_TX, S2_RX) to avoid orphaned traces. Color-code net labels in red for power, blue for signals, and green for grounds–this speeds up debugging during prototype bring-up.
Add revision suffixes only when necessary. Initial schematic uses plain R7; first revision becomes R7_R1. Higher revisions append sequentially (R7_R2), but never exceed a single underscore to keep parsers happy.
Cross-check every identifier in a bill of materials (BOM) tool before final export. Ensure schematic symbols, silkscreen values, and BOM entries match exactly–discrepancies here cause assembly errors. Use spreadsheet filters to flag duplicates or missing labels in under ten seconds.
Common Mistakes When Naming Schematic Components
Assign identical prefixes to components performing similar functions–R1, R2, R3 for resistors, but avoid mixing them with capacitors as C1, C2, R4. Inconsistent grouping forces engineers to cross-reference multiple sections, adding unnecessary time to troubleshooting. For complex designs, predefine a legend: IC1-IC4 for integrated chips, SW1-SW3 for switches, and LED1-LED2 for indicators. Deviations from this structure, like labeling a resistor as “RES_AMP” or “FEEDBACK_R,” create confusion, especially when automated tools or scripts fail to parse non-standard formats.
Vague or Overly Generic Labels
Terms like “Input,” “Output,” or “Sensor” lack specificity. Replace them with “VBAT_IN” (battery input), “CLK_OUT” (clock output), or “NTC_TEMP” (negative temperature coefficient sensor). Avoid abbreviations that aren’t universally recognized–for example, “VREG” is clear (voltage regulator), but “REG” alone could mean anything. If a schematic spans multiple pages, include a prefix indicating the subsection: “PWR_R5” for a resistor on the power board, “CTRL_Q2” for a transistor on the control board. Ambiguous labels waste hours during revisions when locating faults.
Excessive length or special characters in IDs slow down both manual and automated processes. “MOSFET_DRIVER_STAGE_1_GATE_RESISTOR” should be shortened to “DRV1_G_R,” retaining clarity while cutting redundancy. Avoid symbols like #, /, or spaces–use underscores or camelCase (e.g., “R_Load” instead of “R-Load”). Tools like SPICE simulators or PCB layout software may reject improper formats, forcing manual corrections. Test labels in the context of the entire design: if “D1” appears in three places, rethink the naming scheme to include unique identifiers like “D_BRIDGE,” “D_PROT,” and “D_LED.”
Best Applications for Designing Precise Schematic Representations
KiCad stands out for engineers needing an open-source solution that handles complex layouts with precision. Version 7.0 introduced a native schematic editor with hierarchical sheets, allowing nested designs without clutter. The built-in symbol library includes over 3,500 components, each modifiable via a parametric editor. For clarity, KiCad’s “Annotate” feature auto-assigns unique identifiers to parts, reducing manual errors in multi-page blueprints. Paired with its PCB layout tool, it ensures alignment between symbolic logic and physical traces–critical for prototypes with tight tolerances.
Altium Designer excels in professional workflows where native support for industry standards like IPC-2581 matters. Its real-time annotation synchronizes component labels across schematic views, BOM reports, and PCB footprints, eliminating inconsistencies in team collaborations. The tool’s ActiveBOM feature cross-references supplier data, flagging obsolete parts before manufacturing. For large-scale designs, Altium’s “Multi-Channel Design” duplicates schematic blocks while automatically adjusting reference designators (e.g., R1, R1_1, R1_2), streamlining repetitive sections in motor drivers or sensor arrays.
DipTrace offers an affordable midpoint for mid-sized projects, combining a schematic editor with a 3D PCB preview. Its “Component Editor” simplifies custom symbol creation with drag-and-drop pin manipulation, useful for non-standard ICs or connectors. DipTrace’s “Compare ERC” tool audits electrical rule conflicts–like floating pins or mismatched net labels–before exporting gerber files. The software exports in DXF, allowing seamless handoff to mechanical teams using SolidWorks or Fusion 360 for enclosure adjustments.
For quick conceptual sketches, Fritzing’s breadboard view converts hand-drawn ideas into electronic schematics with minimal setup. While less suited for production-grade work, its open format (.fzz) stores component metadata like resistance values or datasheet links directly in the file. Students and hobbyists use it to prototype Arduino layouts, where silkscreen labels update dynamically when components are moved. The downside? Limited hierarchical design support, so complex systems require export to KiCad or Altium for refinement.
