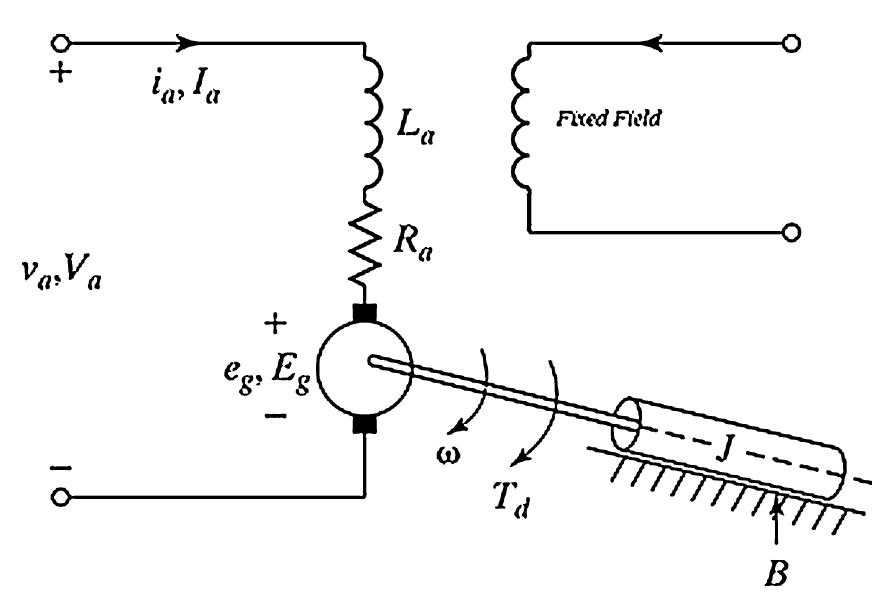

Understanding the Circuit Layout of a Separately Excited DC Motor Explained

Begin by isolating the armature and field windings in your design–this separation eliminates mutual induction and delivers precise torque control across a broad speed range. Use a dual power supply configuration: one source for the rotor (typically 12–48V DC) and a second for the stator coils (voltage matched to field strength requirements, often 50–220V DC). Ensure the field current regulator has a response time under 20ms to prevent flux instability during dynamic loads.

Critical connection sequence: Wire the field circuit first, verifying polarity with a multimeter–reversed polarity will invert rotational direction. Connect armature terminals next, but leave one side disconnected until final testing to avoid accidental start-up. Install a freewheeling diode across each winding to suppress voltage spikes (peak inverse voltage must exceed supply by at least 30%). For 1kW+ drives, add RC snubbers across the armature to dampen commutation transients (values: 0.1μF + 10Ω for 24V systems, scaled linearly for higher voltages).

Implement a tachometer feedback loop with a resolution under 0.1% FS – magnetic encoders outperform optical types in dust-prone environments. Use a PI controller (proportional gain: 0.5–2× field time constant, integral gain: 5–10× dead time) to govern speed; anti-windup protection is mandatory for frequent start-stop cycles. For torque-mode applications, insert a Hall-effect current sensor (bidirectional, ±50A minimum) in series with the armature–its bandwidth must exceed the drive’s switching frequency by 5×.

Thermal protection: Embed a 10kΩ NTC thermistor in the stator winding slot before potting. Trip threshold: 140°C for Class F insulation, 160°C for Class H. Include a crowbar circuit (SCR + zener, 1.2× nominal voltage) to clamp supply-side faults–response time

Failure modes to preempt: Field loss (>30% reduction) causes uncontrolled acceleration–use a latch-relay to cut power if field voltage drops below 70% nominal. Armature open-circuit triggers destructive arcing at brushes–monitor voltage drop across commutator (threshold: 1.2× no-load voltage). Short-circuit in field winding (rare but catastrophic) demands fusing or electronic shutdown within 10ms.

Wiring Layout for Independent Field DC Machines

Connect the armature winding to a dedicated power source with adjustable voltage output–0–240V DC for standard industrial units–while ensuring the field coil receives a stable, isolated supply of 120–180V DC. Use a variable resistor (10–50Ω, 10A rating) in series with the field winding to fine-tune excitation current without exceeding 5% of the armature voltage at full load. For dynamic braking, wire a resistive load bank (resistance equal to 120% of armature resistance) across the armature terminals and engage via a normally open contactor during deceleration.

Critical Components and Placement

Position the field supply rectifier within 0.5 meters of the stator coils to minimize voltage drop, opting for a bridge configuration with a 600V PIV rating for 480V AC input lines. Include snubber circuits (0.1μF capacitor + 100Ω resistor) across all switching devices–Solid-state relays or IGBTs–to suppress transient spikes above 1.2 kV. Mount current sensors (Hall-effect or shunt type) on both armature and field leads, calibrated to 1.5× nominal current, interfacing with a PLC or dedicated controller for real-time monitoring. Ground the frame through a low-impedance path (

For high-performance torque control, integrate a PWM driver with 20 kHz switching frequency into the armature feed–use insulated-gate bipolar transistors (IGBTs) with 800V/150A ratings for 40 HP machines. Isolate control signals with optocouplers (CTR 100–200%) and separate 12V DC rails for logic circuits from power stages. Install thermal sensors (PT100 or K-type) on both windings and cooling fins; set alarm thresholds at 120°C for the armature and 140°C for the field. Ensure all connectors use crimped lugs with heat-shrink insulation, rated for 1.5× continuous current, and verify tightness with a torque wrench (10 Nm for M8 terminals).

Core Elements and Their Functions in the Electromechanical System

Prioritize a high-quality armature winding with low resistance–ideally under 0.1 ohms for a 5 kW unit–to minimize power losses and prevent excessive heat buildup during operation. Specify copper wire with a cross-sectional area of at least 2.5 mm² for 24V systems to handle sustained currents without voltage drops degrading performance. Verify winding insulation class (Class F or H) to withstand thermal stress, especially in pulsating load applications like cranes or conveyor belts.

The field coil demands precise current regulation; use a dedicated 0.5–2A DC supply with tight tolerance (±2%) to maintain consistent magnetic flux. Select ferrite or laminated silicon steel cores for the stator to reduce eddy current losses–expect 10–15% higher efficiency compared to solid iron cores. Ensure pole shoes cover 60–70% of the rotor circumference to optimize torque uniformity and prevent cogging at low speeds.

Commutation and Control Hardware

Equip the commutator with hard-drawn copper segments (99.9% purity) and silver-impregnated brushes graded for 10,000+ hours of service. Brush spring pressure should target 150–200 g/cm² to prevent arcing while avoiding excessive wear–adjust empirically based on dust accumulation and humidity. Implement a 4-pole configuration for 1-5 kW units to balance commutation stability and cost; larger systems may require 6 poles to distribute current density.

Integrate a flyback diode (e.g., Schottky for fast recovery) directly across the armature terminals to clamp voltage spikes during switching–standard PN diodes introduce unacceptable delays in high-frequency PWM scenarios. For regenerative braking, add a bidirectional MOSFET or IGBT module rated for 1.5× the peak armature current, paired with a snubber circuit (RC network, 10Ω + 0.1µF) to dampen oscillations. Calibrate the braking resistor to dissipate 90% of kinetic energy within 2 seconds for 3000 RPM loads.

Voltage sensing should employ Kelvin connections–dual wires to the armature terminals–to eliminate measurement errors from lead resistance. Use a hall-effect sensor for current monitoring, isolating the signal with an optocoupler (CTR > 50%) to protect microcontroller inputs from transients. Log data at 1 kHz sampling rate to detect commutation sparking or armature reaction anomalies; store waveforms for post-analysis if torque ripple exceeds 5%.

Thermal and Mechanical Safeguards

Mount thermistors (NTC 10kΩ) on both armature and field windings, threshold-tripping at 120°C to activate cooling fans or shutdown protocols. For enclosed systems, size heat sinks to maintain case temperatures below 60°C in ambient 40°C conditions–expect 40% derating for passive cooling alone. Lubricate bearings with high-temperature grease (MIL-G-23827) if operating near 3000 RPM; reapply every 2000 hours to prevent seizing under axial loads exceeding 200 N.

Proper Connection of Armature and Stator Coils in a Direct-Current Drive

Ensure the field coil power supply voltage matches the manufacturer’s rating–typically 110V, 220V, or 440V–before energizing. Mismatched voltages risk overheating or insufficient torque. Use a multimeter to verify resistance across the windings; deviations beyond ±5% indicate potential faults or insulation breakdown.

Connect the armature terminals to the main power source via a starter resistor or H-bridge if speed control is needed. Avoid applying full voltage instantly–gradual ramp-up prevents inrush current spikes exceeding 250% of rated amps, which can damage brushes and commutator segments.

Polarity alignment dictates rotational direction. Swap either the stator or rotor leads to reverse spin, but never both–this cancels the effect. Label all connections with heat-shrink tubing or permanent markers to prevent accidental miswiring during maintenance.

For parallel-wound machines, balance current flow across multiple stator coils using equal-length, identical-gauge wires. Uneven distribution creates hotspots; thermal imaging can identify imbalances exceeding 10°C between coil segments.

Grounding and Isolation Checks

Insulate the frame from both windings using megohmmeter tests at 500V DC. Resistance below 1 MΩ signals compromised insulation–replace before operation. Bond the frame to a dedicated earth ground; floating frames risk lethal voltages during faults.

Coolant or humidity ingress degrades winding integrity. Install moisture sensors near terminals if operating in damp environments, and reapply corrosion-resistant grease on brush holders quarterly. Partial discharge monitoring can detect early-stage degradation in high-voltage (440V+) setups.

Performance Verification

Measure no-load speed at 80% of rated voltage–significant deviation from expected RPM (e.g., 1750 vs. 1500) suggests incorrect connections or magnetic core damage. Torque verification under load requires a dynamometer; match output to nameplate values within ±2% tolerance.

Step-by-Step Wiring for External Power Supplies

Isolate the armature and field windings before connecting any power supply. Label the terminal pairs–A1/A2 for the rotor and F1/F2 for the stator–to prevent reversed polarity. Measure resistance across each winding with a multimeter: armature resistance typically ranges from 0.1Ω to 2Ω, while field winding resistance may exceed 50Ω, depending on machine size.

Connect the field winding directly to a stable DC source first. Apply voltage gradually–start at 20% of the rated value and monitor current draw. For a 220V-rated stator, begin with 44V; expect 1-3A for small units or 5-10A for industrial models. If current exceeds specifications, reduce voltage immediately to avoid overheating.

1. Wire a variable bench supply to the field terminals, set current limit to 120% of expected rating.
2. Attach fuse or circuit breaker rated 10% above maximum anticipated current.
3. Use stranded 14-12AWG copper wire for field connections, ensuring 3x safety margin.

Prepare the rotor power supply separately. Use a regulated DC source with output ripple under 0.5% to prevent torque fluctuations. For a 10HP machine, set voltage to 80% of nameplate rating during initial tests (e.g., 176V for 220V-rated). Verify absence of load before energizing; start with rotor locked to confirm torque production without rotation.

Interconnect supplies only after confirming both windings operate within tolerances. Parallel small units directly; for high-power setups, incorporate contactors with auxiliary interlocks to prevent field collapse during faults. Size conductors for 75°C ambient–use Table 310.16 NEC for reference. Ground all housings through 8AWG minimum conductors; attach to earth ground rod with

• Field supply: 60VDC minimum, 300VDC maximum for typical 5-20HP frames
• Rotor supply: 90-250VDC range, adjusted per speed requirements
• Add freewheeling diodes across windings for inductive load suppression
