Step-by-Step Guide for Installing Electric Blinds Wiring System

Begin by verifying the power source matches the motor’s voltage–most units operate on 12V or 24V DC. If using an AC adapter, confirm polarity before attaching wires. A multimeter is critical here; reverse connections can damage components. For battery-powered setups, ensure rechargeables have sufficient capacity–lithium-ion cells last longer than NiMH under frequent cycling.

Map out control methods first. A direct switch requires simple two-wire connections: live to the motor’s positive terminal, neutral to negative. For remote or smart integration, a relay or microcontroller (like Arduino or Shelly) bridges the motor and Wi-Fi module. Use twisted pair cables to reduce interference–shielded wires are better for lengths over 5 meters.

Mount the motor before wiring to avoid strain on connections. Secure the drive tube fully; misalignment causes uneven movement or jamming. Test the system in short bursts: extend halfway, retract, then fully. If motion is sluggish, check for voltage drops–long runs may need thicker gauges (18 AWG minimum).

Harden the setup against surges. A fuse rated at 125% of the motor’s max current protects against shorts. For permanent installations, use soldered joints or crimp connectors–tape-isolated splices corrode over time. Label wires at both ends to simplify troubleshooting.

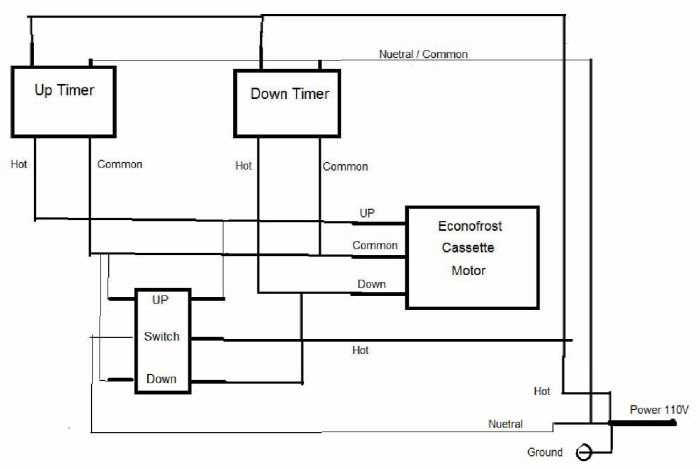

Sync multiple units by wiring them in parallel, not series. Each motor needs its own power feed; shared circuits cause uneven operation. For timer-controlled systems, pair a 24-hour relay with a low-voltage transformer–this avoids draining backup batteries. Always isolate power during maintenance to prevent accidental activation.

Automated Window Coverings Connection Guide

Begin by identifying the power source for your motorized shades–most require a 12V or 24V DC transformer. Match the voltage to the motor’s specifications to avoid overheating or failure. Check the transformer’s amperage rating; it should exceed the motor’s current draw by at least 20% for reliable operation.

Use shielded, twisted-pair cables for signal lines to minimize interference, especially if proximity to power wires is unavoidable. For runs longer than 15 meters, consider a relay or amplifier to maintain signal strength. Avoid bundling signal and power cables together unless properly shielded.

Connect the motor’s terminals in the following sequence: positive (+) to the corresponding transformer lead, negative (-) to ground, and control wires (if applicable) to the switch or hub. Label each wire at both ends before stripping to prevent misconnections.

For battery-powered units, use low-resistance connectors to maximize battery life. Solder joints should be heat-shrunk to prevent corrosion, particularly in humid environments. Lithium-ion batteries require a protection circuit to prevent overcharging.

Common Pitfalls in Installation

• Ignoring polarity–reversing positive and negative leads will damage the motor.
• Overloading circuits by connecting multiple motors to an undersized transformer.
• Skipping continuity tests–always verify connections with a multimeter before powering up.
• Using solid-core wire for movable parts–stranded wire flexes better without breaking.

For smart integration, ensure the control module supports your ecosystem (e.g., Z-Wave, Zigbee, or Wi-Fi). Most modules require a neutral wire; confirm its availability at the switch location before purchasing. Verify firmware compatibility with your home automation software to avoid pairing issues.

1. Mount the transformer at least 30 cm from sensitive electronics to reduce EMI.
2. Secure all cables with clips or conduit to prevent sagging or pinching over time.
3. Program limits for travel distance before finalizing installation–failure risks mechanical stress.
4. Test emergency stop functions if included in your system’s design.

For outdoor installations, use UV-resistant cables and waterproof enclosures rated for your climate zone. IP65 or higher is recommended for coastal or high-rainfall areas. Ground the motor frame if near conductive materials to prevent static buildup.

Selecting an Optimal Power Source for Automated Window Coverings

Prioritize DC power supplies matching the motor’s voltage rating–typically 12V or 24V–with a current output exceeding the motor’s draw by at least 20%. Undersized units risk overheating, while oversized ones waste energy and increase cost.

For single-roller systems, a 1A power source suffices; multi-motor setups demand 3A to 5A depending on concurrent operation. Check the manufacturer’s specs–some motors require 4.5A for simultaneous startup, even if steady-state consumption is lower.

Wall adapters with detachable cords simplify installation, but hardwired transformers offer better long-term stability in high-traffic areas. Avoid cheap adapters with thin gauge wire; 18AWG minimum is critical for reducing voltage drop over 10-foot cable runs.

Motor Count	Min. Current (12V)	Min. Current (24V)	Recommended Wire (AWG)
1	1.2A	0.6A	20
2–3	3A	1.5A	18
4+	5A	2.5A	16

Choose switch-mode transformers with galvanic isolation if noise-sensitive devices share the circuit. Linear power sources may hum, though they have lower electromagnetic interference.

For outdoor applications, opt for weatherproof units rated IP65 or higher. Standard indoor adapters fail within months when exposed to humidity, even in semi-enclosed spaces like conservatories.

Verify the compatibility with control systems–Zigbee or Z-Wave modules often require strict voltage stability (±5% tolerance), while simpler wall switches tolerate ±10%. Test under load before finalizing connections.

Backup power via rechargeable batteries or UPS units prevents mid-operation shutdowns during outages. Lithium-ion packs offer 1.5x runtime per weight compared to lead-acid, though they degrade faster in high temperatures.

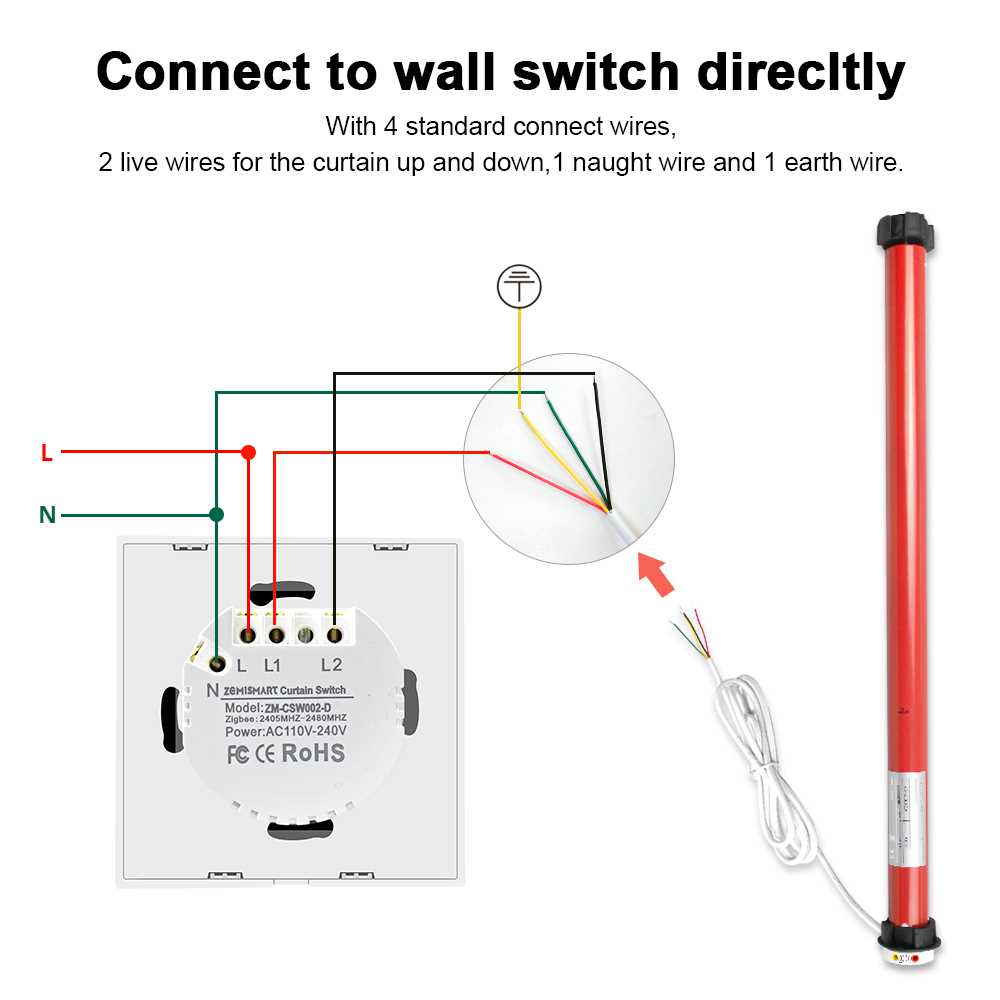

Step-by-Step Guide to Linking a Tubular Drive to a Manual Control

Shut off the circuit breaker powering the intended circuit before handling any cables. Verify the absence of current using a non-contact voltage tester on all conductors, including neutral and ground lines if applicable. For a standard 230V tubular drive, you’ll typically work with three wires: live (brown or black), neutral (blue), and ground (green/yellow). Confirm wire gauge compatibility–most drives require a minimum of 1.5mm² for safe operation under load.

Mount the wall control in the desired location, ensuring the backbox is deep enough to accommodate the switch and cable loops. For a momentary rocker switch (recommended for precise positioning), connect the live wire from the mains to the switch’s common terminal. Run a separate conductor from the switch’s output terminal to the drive’s live input–use crimp connectors or insulated terminals for secure joints. Keep the neutral and ground wires uninterrupted: link them directly from the supply to the drive, maintaining polarity.

Identify the drive’s internal wiring before finalizing connections. Tubular drives often include built-in limit switches or a capacitor for soft starts; consult the manual to locate the correct terminals. If the drive requires a 4-core cable (for dual-direction control), pair the second switch terminal with the drive’s reverse input. Label each conductor at both ends–mistakes here can cause unintended rotation or motor damage. For installations exceeding 10 meters, consider adding a relay to prevent voltage drop.

Secure all connections with terminal screws, ensuring no bare wire is exposed. Wrap electrical tape around each joint for added insulation, especially in humid environments. Restore power at the breaker, then test the switch: short presses should rotate the drive incrementally, while longer holds trigger full travel. Adjust internal limit switches if the drive overshoots–most require a 3-second hold in the desired direction to set endpoints.

For safety, add a 10A fuse in line with the live wire, or replace the circuit breaker with a 6A MCB if the drive’s current draw exceeds standard lighting circuits. Document the setup with a simple sketch, noting wire colors and switch functions. Avoid daisy-chaining multiple drives to a single control unless using a bus-based system–parallel wiring simplifies troubleshooting and ensures consistent torque delivery.

Configuring Dual Motor Assemblies for Standalone or Coordinated Control

Begin by selecting a compatible power supply rated for the combined current draw of both actuators. A 24V DC source with at least 5A capacity ensures stable operation for typical setups. Connect the positive and negative leads directly to a dual-channel relay module–each relay controls one motor independently while allowing shared power distribution.

For synchronized movement, use a single-channel remote or wall switch wired to both relays in parallel. This forces simultaneous activation, eliminating phase lag between units. Verify travel limits match by testing with manual controls before finalizing connections. Mismatched stroke lengths risk mechanical binding.

Key Components for Reliable Deployment

• DPDT relays (10A minimum per channel)
• Twisted pair cables (18AWG or thicker) for signal lines
• Diode suppression across relay coils (1N4007)
• Inline fuses (3A per motor)

Isolate feedback mechanisms if using Hall-effect sensors. Wire each sensor’s output to a separate microcontroller input, then program conditional logic to halt one motor if its counterpart stalls. This prevents desynchronization during obstacle encounters. For purely mechanical setups, a DIP switch bank lets operators toggle between linked and independent modes without rewiring.

Ground all shielding and chassis points to a single star configuration near the power source. Floating grounds introduce interference, causing erratic behavior in dual configurations. Label every conductor–misconnected polarity risks immediate motor failure. Test with a multimeter before full power application.

Common Pitfalls to Avoid

1. Omitting flyback diodes on relay coils leads to voltage spikes damaging controllers.
2. Overloading 12V systems with 24V motors–always check nameplate ratings.
3. Parallel paths without current-limiting resistors can cause uneven load distribution.
4. Skipping travel calibration shortens motor lifespan and disrupts alignment.
