How to Calculate Resistance Using a Circuit Diagram Step by Step
To determine the impedance of a component in a printed wiring layout, start by isolating the segment containing the target element. Label all known potentials–whether they are voltage drops or current flows–using consistent notation. If the network includes both series and parallel arrangements, reduce each branch systematically. Begin with the farthest node from the power source, merging parallel loads first, then proceed toward the input terminals.
For precise measurements, ensure all interconnecting traces are accounted for in the equivalent model. Include stray inductance and parasitic capacitance where relevant, especially in high-frequency applications. A multimeter set to ohms mode can verify calculated results if the physical prototype is available, but note that ambient temperature and test lead resistance may introduce minor deviations. For purely theoretical analysis, substitute known values into Ohm’s law or apply Kirchhoff’s voltage and current rules to solve for unknowns.
When dealing with non-linear elements, such as diodes or thermistors, substitute linear approximations or refer to manufacturer datasheets for characteristic curves. Break complex configurations into simpler sub-networks and solve each sequentially. Record intermediate results to avoid propagation errors. If simulation software is used, cross-check outputs against hand calculations to validate accuracy.
For branched paths, apply the current divider principle to determine the proportion of total amperage through each leg. In resistive dividers, the ratio of component values directly dictates the voltage split across each segment. Ensure all connections are ideal–ignore switch contact resistance unless specified otherwise. Document each step clearly to replicate the process for similar configurations later.
Measuring Component Impedance with Schematic Layouts
Assemble a Wheatstone bridge configuration using precise resistor values for accurate readings–use 1%, 0.1%, or 0.01% tolerance components to minimize error propagation during voltage division. Connect the unknown element between two known resistances (R1 and R2) and a calibrated variable resistor (R3); adjust R3 until the null detector shows zero voltage across the midpoint. For high-precision work, employ a decade resistance box with 6-digit resolution and verify balance at multiple test currents to detect thermal drift or parasitic effects. Avoid grounding issues by isolating the setup with differential amplifiers if working above 1 MHz.
- For inductive components, swap the DC supply for an AC signal generator at the measured frequency–use LCR meters only as a secondary verification due to phase shift inaccuracies.
- Low-impedance elements (<1 Ω) require Kelvin (4-wire) connections to eliminate lead resistance; solder all joints directly to avoid contact noise.
- Shielded twisted-pair wiring reduces EMI pickup in high-sensitivity measurements; keep signal paths <10 cm where possible.
- Log results at known temperatures and humidity levels–ambient changes alter material properties by ±0.3%/°C for common carbon-film resistors.
Key Elements for Precise Impedance Evaluation
Select a multimeter with a dedicated ohm measurement mode to ensure accurate readings. Analog meters may introduce parallax errors, while digital multimeters (DMMs) offer clearer resolution. Prioritize models with auto-ranging capabilities to eliminate manual range selection errors, particularly for unknown load values.
Verify the test leads’ integrity before use–frayed wires or corroded tips distort measurements. Replace damaged leads immediately; even minor resistance in connectors skews results. Banana plugs or alligator clips improve contact stability, especially on uneven or oxidized surfaces.
Use a known-value resistor (e.g., 1kΩ, 10kΩ, or 100kΩ) as a reference to validate the meter’s calibration. If readings deviate by more than 1%, recalibrate the device or check for environmental interference like electromagnetic fields or temperature fluctuations.
Isolate the target component from the rest of the network to prevent parallel pathways from influencing results. Desolder one terminal if necessary, or lift a leg from a breadboard. For PCB-mounted parts, ensure no residual current flows through adjacent traces.
Handling Non-Linear and Sensitive Components
Varistors, thermistors, and diodes require specialized approaches. For varistors, apply a low-voltage test (below their clamping threshold) to avoid non-linear behavior. Thermistors need temperature-controlled environments–measure at 25°C for consistency. Diodes should be tested in forward and reverse bias to confirm conductivity.
Electrolytic capacitors introduce impedance that can mislead measurements. Discharge them fully before testing, and account for dielectric absorption if high precision is needed. Film and ceramic caps typically show near-infinite impedance but may exhibit microfarad leakage in faulty units.
For wound components like inductors or transformers, high-frequency probing (1kHz–1MHz) reveals AC impedance, not just DC resistance. Use an LCR meter for these; standard multimeters only capture the resistive portion, missing reactive elements entirely.
Document each step, including test conditions (voltage, temperature, humidity) and equipment settings. This baseline ensures repeatability and helps diagnose anomalies later. Store data digitally or in a lab notebook–handwritten notes on adhesive paper degrade over time.

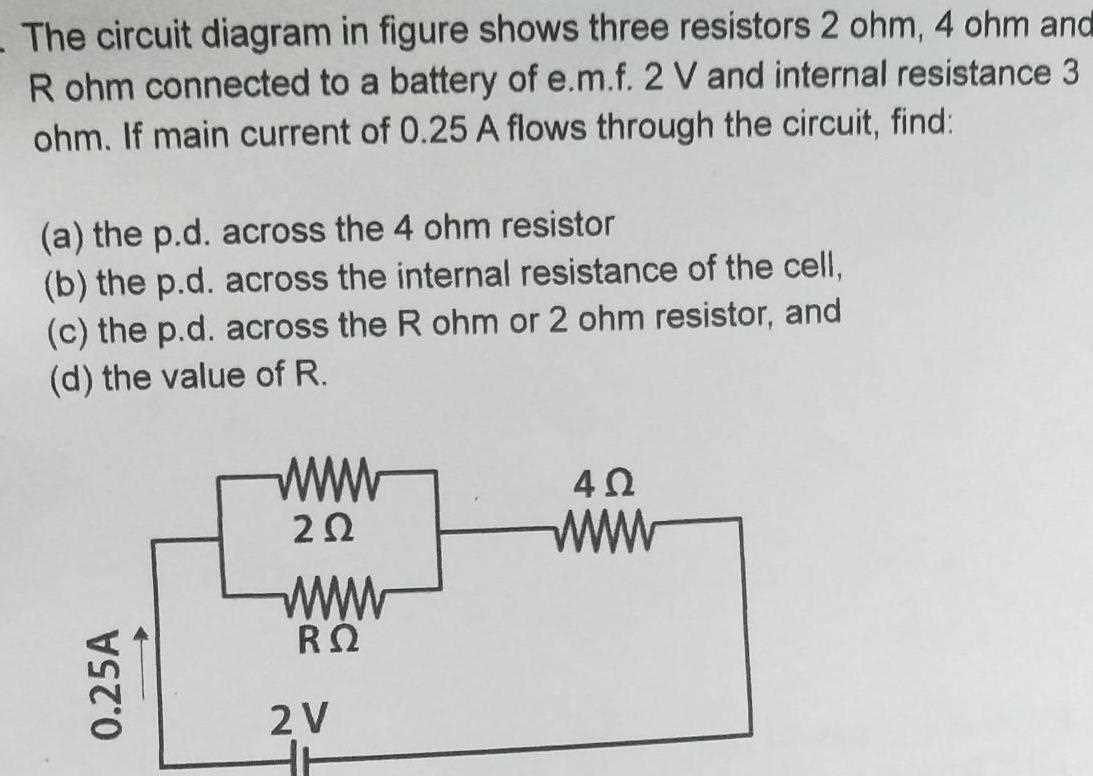

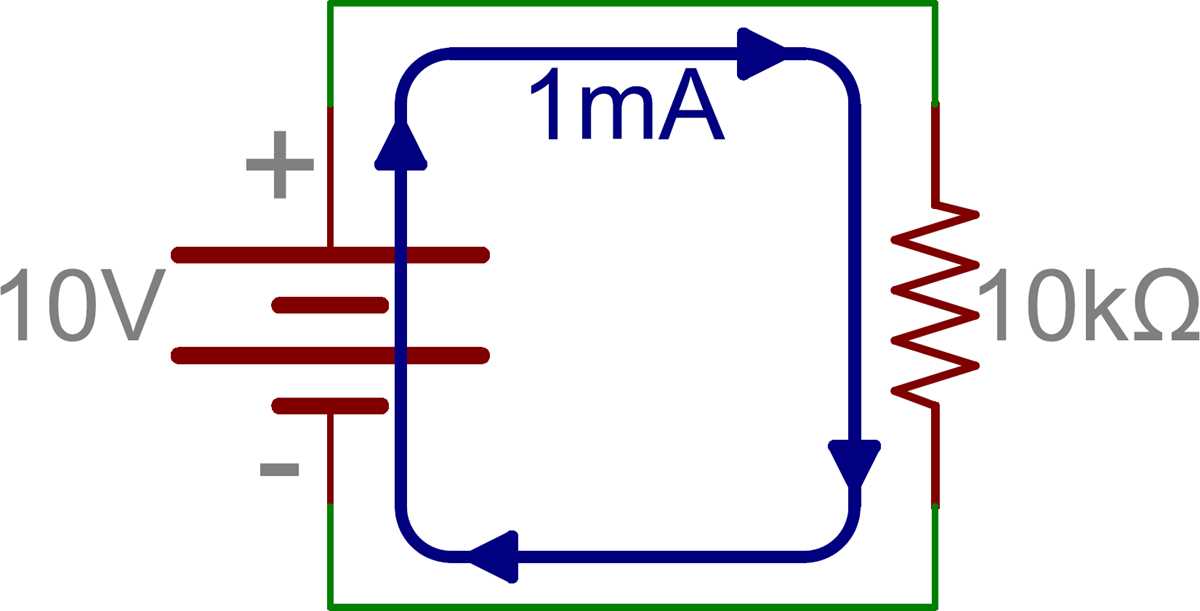

Sketching a Basic Sequential Electrical Path for Impedance Assessment
Begin by arranging conductive components in a single unbroken line on graph paper or digital schematic software. Assign each element a standardized symbol: a straight line for wires, a zigzag pattern for fixed loads (label values like 100Ω, 220Ω, or 470Ω), and a cross-hatched rectangle for power sources (e.g., 5V or 9V). Ensure connections intersect only at designated junctures–no overlapping segments unless through a shared node.
Use arrows to denote current direction, following conventional flow from the source’s positive terminal toward its negative pole. Mark each load’s impedance value adjacent to its symbol. For clarity, separate identical loads by at least 1.5 cm on paper schematics or 30 pixels in digital tools to prevent visual clutter.
| Component Type | Symbol Shape | Typical Values | Spacing Rule |
|---|---|---|---|
| Fixed load | Zigzag (4-6 peaks) | 1Ω–10MΩ | ≥2cm between adjacent |
| Power supply | Cross-hatched rectangle | 1.5V–24V | No restriction |
| Conductive path | Straight solid line | N/A | ≥0.5cm from other symbols |
Verify all junctions by tracing each path from the source’s anode to cathode–no breaks or unintended merges should exist. If uncertainty arises, redraw segments in a contrasting color (e.g., red for paths, blue for nodes) to isolate errors. Digital tools like KiCad or Fritzing automate this; manually, a multimeter’s continuity mode confirms integrity.
Calculate total impedance by summing individual load values: Rtotal = R1 + R2 + … + Rn. For three loads (e.g., 100Ω, 220Ω, 470Ω), Rtotal = 790Ω. Cross-reference this with measured voltage (V) and current (I) using Ohm’s law: V = I × R. Discrepancies exceeding 5% signal misplaced components or incorrect connections.
Label every element with a unique identifier (e.g., R1, R2) and note power ratings–exceeding these (e.g., ¼W vs. ½W) risks overheating. For prototyping, use a breadboard with rows aligned to the schematic’s node sequence: source anode on row 1, loads on succeeding rows, cathode on the final row. Trim leads to 6mm above the board surface to minimize stray capacitance.
Troubleshooting Common Layout Errors
Misaligned nodes: If the multimeter reads infinite impedance between a load’s terminals, redraw the node–ensure it intersects both the input and output paths. Floating junctions: Connect any unattached ends to a ground reference (triangle symbol) to stabilize readings. Overlapping symbols: Relocate load symbols orthogonally; 90° turns preserve clarity without ambiguity. Power reversal: Source polarity must match current arrows–reverse connections if voltage readings invert.
Measuring Voltage and Current to Apply Ohm’s Law
Connect a multimeter in parallel to the component to measure potential difference–ensure the probes touch the correct terminals without breaking the conductive path. Select DC voltage mode for steady flows or AC for alternating sources, adjusting the range to match expected values (e.g., 0–20V for small setups). Record readings at multiple intervals if the source fluctuates, averaging results for precise calculations. Use a second multimeter in series to gauge current by interrupting the path and reconnecting the probes; set the dial to amperage mode (typically 200mA or 10A depending on load). For safety, never exceed the meter’s capacity–replace fuses if blown.
- For low-power systems (under 1W), use a 4-wire Kelvin connection to eliminate lead resistance errors.
- If voltage drops below 0.1V, switch to millivolt mode to improve resolution; for currents under 1mA, enable the microamp range.
- Verify meter accuracy by checking against a known reference (e.g., a 5V regulated supply) before critical measurements.
- Calculate unknown component values via V = I × R, rearranging terms based on known quantities–isolate one variable if the other two are measured.
- Account for temperature effects: most metals increase resistivity by ~0.4% per °C; use a thermistor’s datasheet for nonlinear corrections.
