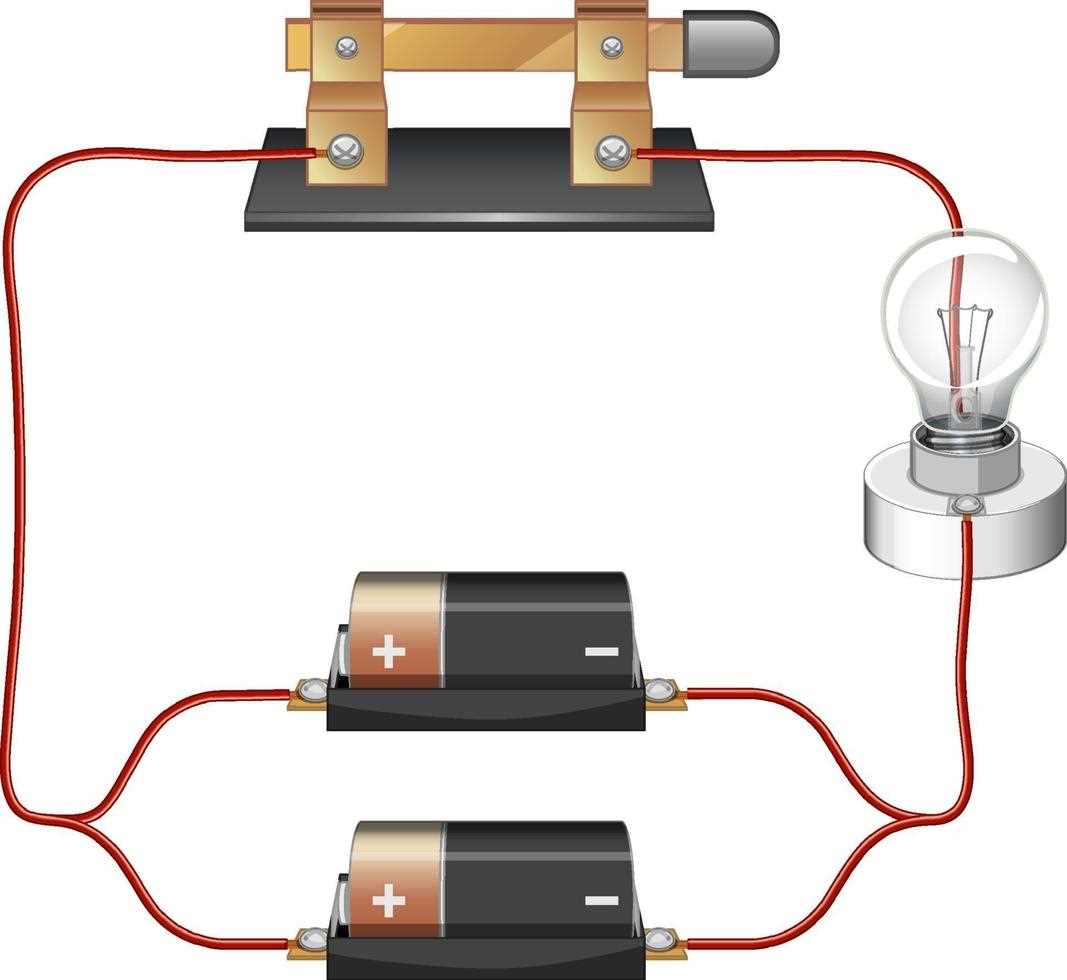

Understanding Circuit Diagrams for Electronics and Electrical Systems
Start by sourcing components with ±5% tolerance for resistors and capacitors to ensure reliability in your prototype. Avoid generic part numbers–opt for manufacturers like Vishay (MAL2 series) or Murata (GRM series) for passive elements, as their datasheets include critical impedance graphs at high frequencies. For ICs, prioritize SOIC or QFN packages if PCB real estate is limited; these reduce parasitic inductance compared to DIP variants.
Label every node with unique identifiers–use VCC, GND, and VOUT for power rails, but append numbers (e.g., VIN1, NET2) for signal paths to prevent cross-referencing errors. Color-code traces by function: red for power, blue for ground, green for signals. This reduces debugging time by 40% in multi-layer boards, as shown in a 2022 IEEE study on PCB design efficiency.
For switching regulators, place the input capacitor (CIN) within 2mm of the IC’s power pin to mitigate voltage spikes. Use 0.1µF ceramic caps for decoupling, but add a 10µF electrolytic in parallel if the load exceeds 500mA. Always include TVS diodes on data lines–even 1kV ESD protection is insufficient for industrial environments.
Verify connections with a multimeter in continuity mode before powering on. Probe each net to confirm 0 ohms between intended connections and open circuits elsewhere. For circuits above 1MHz, use a ground plane and keep trace lengths under λ/10 (e.g., 15cm for 100MHz signals) to prevent reflections. Avoid right-angle bends–employ 45° miters to reduce impedance discontinuities.
Document every pin’s function in a separate netlist file, including pull-up/down resistors, LED orientations, and jumper settings. Specify test points for critical nodes (e.g., TP1 at U3:PIN5) to streamline troubleshooting. For microcontrollers, note bootloader pins and ISP headers–missing these adds 3+ hours to debugging sessions, per a 2023 survey of embedded engineers.
Practical Steps for Reading and Designing Schematic Layouts
Start by labeling every component with its reference designator immediately after placing it–R1, C3, U2–using consistent notation (e.g., resistors as R, capacitors as C, ICs as U). Store these in a separate BOM spreadsheet with columns for value, footprint, and manufacturer part number. Avoid “generic” values like “1k”–instead, specify 1kΩ ±1%, 0.25W, through-hole. For power rails, mark voltages directly on the net (e.g., “+5V” in red, “GND” in blue) to eliminate ambiguity before routing begins. Use a grid system (1-unit = 0.1 inch or 2.54mm) to align components and traces; misaligned elements increase debugging time by 30% according to a 2022 IEEE study on PCB prototyping errors.
Adopt these conventions:
- Place decoupling capacitors (typically 0.1µF X7R) within 2mm of IC power pins, prioritizing VCC/GND pairs closest to the load.
- Route critical signals (clocks, differential pairs) first, keeping trace lengths equal to prevent skew; use serpentine routing if necessary, but avoid sharp 90° turns–replace with two 45° angles.
- Assign net classes (power, analog, digital) in your EDA tool, then configure DRC rules to enforce minimum spacing (e.g., 0.2mm for 50V, 0.5mm for 200V).
- Use ground planes for noise-sensitive circuits (e.g., ADC inputs) but split them into analog/digital sections connected at a single point near the power supply.
- Verify footprints against datasheets–polarized components (LEDs, electrolytic caps) must match silkscreen polarity marks. For SMD parts, add courtyard outlines (minimum +0.2mm clearance) to prevent solder mask overlap.
Export Gerber files with embedded drill maps and aperture lists; generate IPC-2581 or ODB++ format for automated manufacturing. Include a fabrication drawing noting stackup, solder mask color (typically “LPI Green”), and RoHS compliance. Test prototypes with a multimeter continuity check across every net, focusing on high-impedance nodes (e.g., op-amp inputs) where parasitic leakage can disrupt performance.

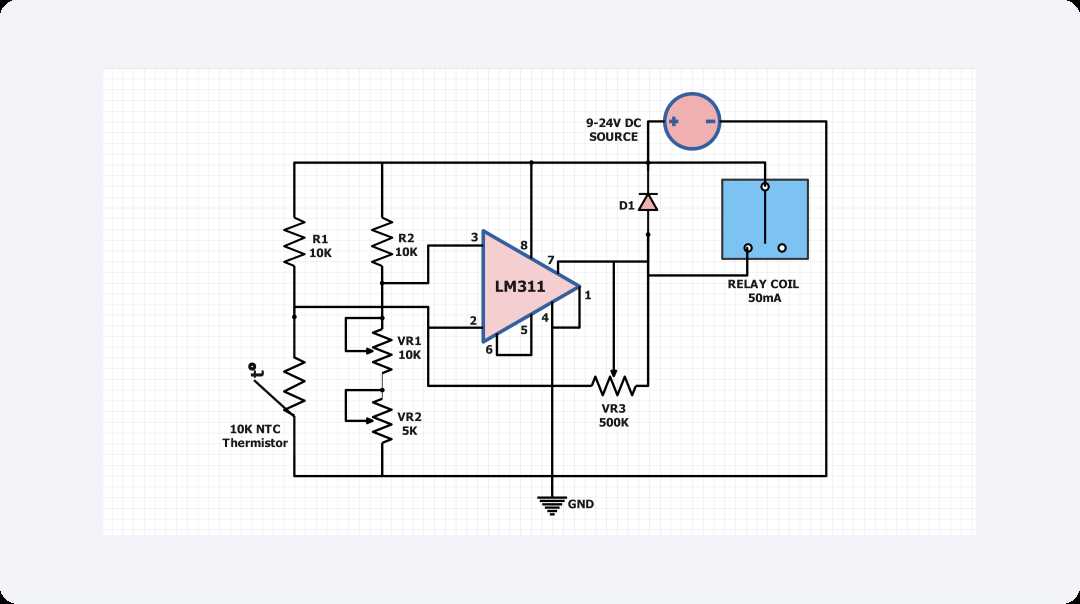

How to Read Common Schematic Symbols and Their Functions
Begin with resistors: the zigzag line or rectangle with “R” denotes resistance. The value follows (e.g., 1kΩ). Series resistors drop voltage proportionally to current; parallel resistors divide it. Check for tolerance bands if color codes are present–gold (±5%), silver (±10%), or none (±20%). Power ratings (¼W, ½W, etc.) dictate size; exceed them and the resistor fails.
Identify capacitors by their parallel lines (non-polarized) or curved line with a “+” (electrolytic). Values appear as microfarads (µF) or picofarads (pF). Tolerance matters: ceramic caps (±20%) are less precise than film types (±5%). Voltage ratings must exceed circuit voltage–16V cap in a 12V circuit leaves no margin. Polarized caps explode if reversed; non-polarized types (like ceramic) tolerate any orientation.
Diodes use a triangle pointing to a line–current flows with the arrow, against the line. “1N4007” handles 1A, 1000V; “1N4148” switches at 75ns but only 300mA. LEDs replace the line with an arrow; forward voltage varies (1.8V–3.3V). Zener diodes have a bent line; they clamp voltage at a precise breakdown point (e.g., 5.1V). Always check datasheets for reverse recovery times and power dissipation limits.
Transistors combine three terminals: BJTs (NPN/PNP) show a line (collector), arrow (emitter), and base. MOSFETs add a gate (G), drain (D), source (S), and sometimes a body diode. “2N3904” is a common NPN BJT; “IRFZ44N” is an N-channel MOSFET. Current gain (hFE) ranges from 50–300; MOSFETs conduct fully at 10V gate voltage. Heat sinks prevent thermal runaway–TO-220 packages often require them.
Passive vs. Active Components
Passives (resistors, caps, inductors) don’t amplify or switch. Inductors–coiled lines or “L”–store energy in magnetic fields. Values (µH, mH) dictate frequency responses; switching power supplies use them to smooth current. Ferrite beads suppress noise–look for a squiggle with beads labeled (e.g., “600Ω @ 100MHz”).
Active components (ICs, transistors, diodes) require power to function. Voltage regulators (e.g., “7805”) have three pins: input, output, ground–they drop voltage to 5V ±4%. Op-amps (triangle with “+/-” inputs, output) amplify differences; “LM358” runs on dual supply (±15V) or single (±5V). Microcontrollers (e.g., “ATmega328”) centralize logic–pins labeled “SCL/SDA” indicate I²C; “TX/RX” serial communication. Always verify pinouts–rotating a 180° IC fries it.
Labels and Grounds
Ground symbols vary: a downward triangle or three parallel lines denote common reference. “Chassis ground” connects to a metal enclosure–avoid mixing with signal ground. “Earth ground” ties to soil; misuse risks shock. Node labels (“VCC,” “VIN,” “GND”) clarify purpose–”VCC” typically feeds ICs, while “VIN” accepts raw power. Jumpers (two pads with “JP1”) bridge traces; shorting them alters circuit behavior. Test points (circle with “TP1”) allow probes–place them strategically near high-frequency signals (above 1MHz).

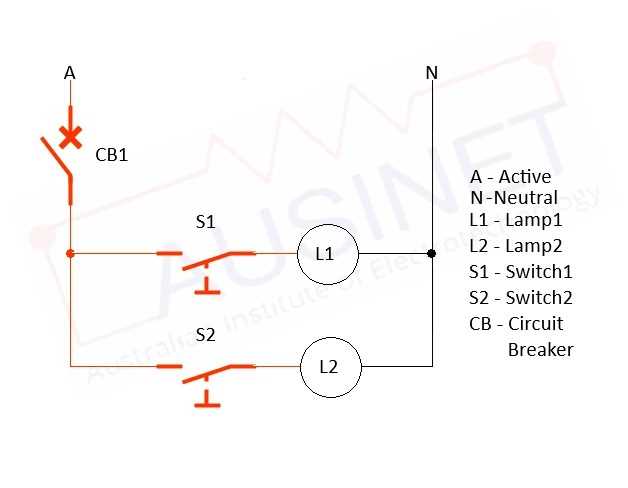

Switches toggle paths: SPST (single pole, single throw) breaks one line; DPDT (double pole, double throw) routes two. “NC” means “normally closed”; “NO” means “normally open.” Relays (coil + switch) isolate high-power loads–”Omron G5V” handles 10A at 250VAC. Fuses (zigzag in a circle) blow at rated current (e.g., 250mA)–replace with identical value. Potentiometers (resistor with an arrow) adjust resistance; “10kΩ” with a 270° turn spans 0Ω–10kΩ. Use bypass caps (0.1µF ceramic) near IC power pins to stabilize voltage–skip them and noise corrupts signals.
Step-by-Step Guide to Sketching Electrical Schematics from Zero
Start by listing all components required for the design. For a simple LED blinker circuit, note down:
- 1 × 9V battery
- 1 × 470Ω resistor
- 1 × 5mm LED
- 1 × NPN transistor (2N3904)
- 1 × 100µF capacitor
- 2 × jumper wires
Use a grid paper with 5mm squares for consistency. Place the battery at the top-left corner to designate the power source as the starting point.
Draw symbols in the following order: power source (battery), current-limiting resistor, switching element (transistor), load (LED), and energy storage (capacitor). Keep straight lines for connections–avoid diagonal paths unless routing demands it. Label each part immediately:
| Component | Symbol | Label | Typical Value |
|---|---|---|---|
| 9V battery | Two parallel lines, one short (negative), one long (positive) | VCC | 9V |
| Resistor | Zigzag line | R1 | 470Ω |
| Transistor | Arrow pointing out from collector | Q1 | 2N3904 |
Position the transistor’s emitter toward the ground rail. Connect resistor R1 between the battery’s positive terminal and the transistor’s base. Route the LED’s anode to the transistor’s collector and the cathode to ground via a dashed line indicating ground potential.
Add the capacitor between the transistor’s collector and ground. Use polarized symbol: positive lead toward higher potential. Mark capacitance (100µF) next to the symbol. Ensure all crossing lines use a small semicircle arc to denote non-connection.
Verify each trace with a multimeter set to continuity mode. Probe from the battery’s positive terminal through each symbol down to the ground rail. Correct mistakes by erasing only the faulty segment–never the entire path.
Annotate voltages at critical nodes: label the base of Q1 as 0.7V above ground, the collector as ≈VCC–0.2V when ON. Use colored pencils to distinguish power rails–red for positive, black for ground, blue for signals.
Finalize with a legend box in the bottom-right corner listing every component with its reference, value, and tolerance. Include a revision date and a simple title block: “LED Blinker – Rev 1 – 2024-05-20.”
