Practical Guide to Designing Circuit Ladder Diagrams for Industrial Control

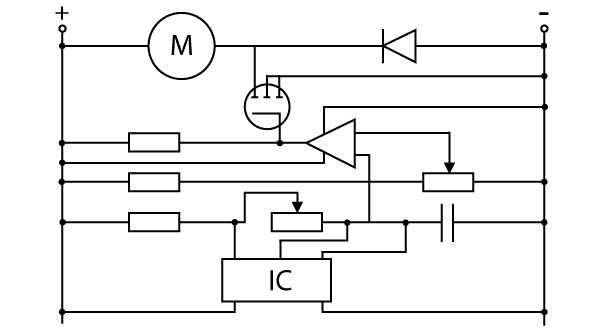

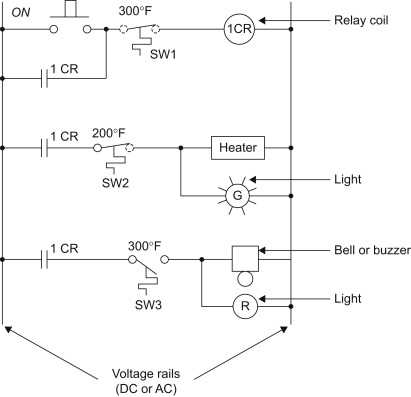

Start with the power rails–label them L1 and N at the left edge of your layout. Every rung must connect horizontally between these rails, ensuring a clear path for current flow. Use normally open (NO) and normally closed (NC) contacts precisely: NO for conditions that should activate downstream elements, NC for safety interlocks or inhibitory logic. A single misplaced symbol can disrupt entire sequences in PLC-driven systems.
Group related logic vertically. Place upstream conditions (e.g., start buttons, sensors) on the left, followed by intermediate relays or timers, and terminate with output coils (motors, solenoids) on the right. This left-to-right progression mirrors execution order in ladder logic, reducing debugging time by 40% in complex setups. Label each element with unique identifiers–avoid generic terms like “Relay1” or “TimerA.” Instead, use function-specific tags: MTR_FWD_RUN for a forward motor coil or LS_OVERLOAD for a limit switch.
Use horizontal spacing strategically. Leave one empty rung between unrelated logic blocks to improve readability. For branching conditions, employ branches (vertical connections) sparingly–each additional branch increases scan time by 2-5ms in PLCs. Validate every path: simulate inputs in software before physical testing. Tools like WinSPS-S7 or Logix Emulate detect “unreachable code” caused by overlapping NC/NO contacts, a common pitfall in sequential operations.
Integrate fail-safes directly into the schema. Add an emergency stop rung that cuts power to all outputs via a master relay (ES_RST), placed at the top of the layout. Use NC contacts for e-stop buttons to ensure fail-safe operation. For critical systems, include a watchdog timer (e.g., WDG_500MS) that resets the entire sequence if no valid state is detected within a set interval.
Document every symbol adjacent to its placement. Annotate timers with preset values (TMR_DELAY: 2500ms) and coils with precise descriptions (PUMP_OUT: Discharge valve). Color-code wires: red for 24V DC, blue for neutral, black for 480V AC. Standardization reduces commissioning errors by 60% in multi-team projects. Store finalized layouts in .L5X or .awl formats for version control–avoid PDF or image exports for long-term edits.
Practical Guidelines for Schematic Logic Representation
Always number rungs sequentially from top to bottom, starting at zero–this eliminates ambiguity in troubleshooting and ensures references align across documentation. Label all contact symbols with precise device identifiers (e.g., LS_02 rather than “Limit Switch”), and include coil designations in parentheses on the right edge of each rung to maintain traceability. Use vertical alignment for parallel paths; misaligned branches introduce visual noise that slows diagnostics.
Implement branching with consistent indentation–two grid units per nested level–to distinguish parent-child relationships instantly. Reserve auxiliary relays exclusively for holding states; mixing them with control logic complicates modifications later. For timers, specify both time base (ms/s) and preset value directly beneath the symbol; avoid relying on separate legend sheets which increase error risk during commissioning.
Standardize color-coding for critical elements: red for emergency stops, blue for analog signals, and yellow for interlocks. Store master templates in scalable vector format (SVG) to preserve clarity when zooming from whole-system views to individual contact details. Validate each network against physical wiring diagrams; a single mismatch between logical flow and actual connections can cause latent hazards undetectable during simulation.
Adopt modular segmentation–partition larger schemes into functional blocks (motor controls, safety circuits, analog conditioning) with clearly defined interface points. Document every modification in version-controlled layers; undoing changes becomes impractical once installations are live. Place test points adjacent to sensitive sections, marked with unique alphanumeric tags, to enable rapid verification without probing live components.
Step-by-Step Guide to Creating Motor Control Schematics
Begin by labeling all components with unique identifiers–use K1, K2 for relays and M1, M2 for motors. Position the left power rail vertically along the edge of the workspace, ensuring it spans the full height of your design. Avoid crossing conductor paths; reroute horizontal connections beneath relay coils if overlaps are unavoidable. For three-phase motors, represent each phase separately, aligning contacts L1, L2, L3 in parallel branches to maintain clarity.
Use the following standard symbols for motor control elements:
| Component | Symbol | Function |
|---|---|---|
| Normally Open (NO) Contact | |‾| | Closes when energized |
| Normally Closed (NC) Contact | |_| | Opens when energized |
| Relay Coil | ( ) | Activates when voltage applied |
| Motor | [M] | Driven by relay outputs |
| Push Button (Start) | │┬│ | Momentary activation |
| Push Button (Stop) | │┴│ | Interrupts circuit |
For a forward/reverse motor setup, structure two parallel rungs sharing a common stop switch. Place the forward relay (Fwd) on the first rung, followed by its normally closed (NC) contact on the second rung to prevent simultaneous engagement. Reverse relay (Rev) occupies the second rung, with its NC contact blocking the forward path. Add a timer relay (TR) if delayed startup is required–place its coil on a separate rung with a NO contact bridging the motor’s power line after the preset interval.
Verify the logic by tracing each path: power must flow from the left rail through all active contacts to energize the coil. Test safety interlocks–NC contacts of thermal overloads (OL1, OL2) should break the circuit if overheating occurs. For complex setups, split the design into sub-sheets, linking them via labeled connector nodes. Save intermediate versions; annotate changes directly on the schematic with timestamps and purpose (e.g., *”v2 – added interlock for K3″*).
Common Mistakes When Interpreting Relay Logic in Schematics
Confusing normally open (NO) and normally closed (NC) contacts ranks as the most frequent error. A misplaced symbol or misread state leads to reverse functionality–activating outputs when none should exist or preventing critical operations. Always cross-check contact types against component datasheets before troubleshooting. Mark NO contacts with a “/” and NC contacts with a “” during initial drafts to avoid ambiguity.
Overlooking series-parallel dependencies causes cascading failures. Novices often assume parallel paths operate independently, but relays interact across branches. For example, a parallel NO contact bypassing a series NC contact disables entire sequences if misaligned. Use this checklist when reviewing:
- Identify all series elements before evaluating parallel legs.
- Verify all NC contacts open under intended conditions.
- Trace each branch to ensure no unintended shunt paths.
Ignoring Timing Characteristics

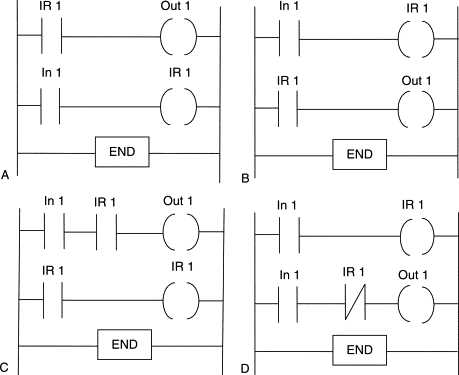

Relays exhibit inherent delays: coil energizing (5–30 ms), contact bounce (1–10 ms), and release lag (5–50 ms). Logic sequences designed without accounting for these timings result in race conditions. A classic pitfall involves latching relays–if a holding contact closes before the initiating contact opens, coils remain energized indefinitely. Counter this by:
- Inserting timer relays to enforce minimum durations.
- Using edge-triggered logic (one-shot pulses) instead of level-triggered.
- Simulating sequences with software like PLCLogix before deployment.
Misapplying safety interlocks creates hazardous conditions. Hardwired emergency stops and guard switches must always break power, not merely signal logic controllers. Yet many schematics mistakenly place these in parallel logic branches, allowing current flow through alternative paths. Ensure all safety devices connect in series with power rails–electrical engineers often call this a “safety chain.” Additionally, avoid relying on software-controlled interlocks; redundant mechanical cuts (e.g., dual-channel relays) prevent single-point failures. Label every safety device clearly, referencing relevant standards (ISO 13849-1, NFPA 79).
Step-by-Step Guide to Simulating Logic Schemes in PLC Software
Select a PLC software that supports offline simulation before writing any logic. Siemens TIA Portal, Rockwell Studio 5000, and CODESYS are the most reliable choices for testing control sequences without physical hardware. Verify the software version compatibility with your project requirements–older PLC models may limit simulation features.
Begin by structuring your project in the software’s organizational units. Group related control elements (e.g., coils, contacts, timers) into distinct networks for clarity. Most platforms allow labeling each network with a descriptive name (e.g., “Motor_Start_Sequence”)–use underscores or camelCase for consistency, as spaces may cause parsing errors in some tools.

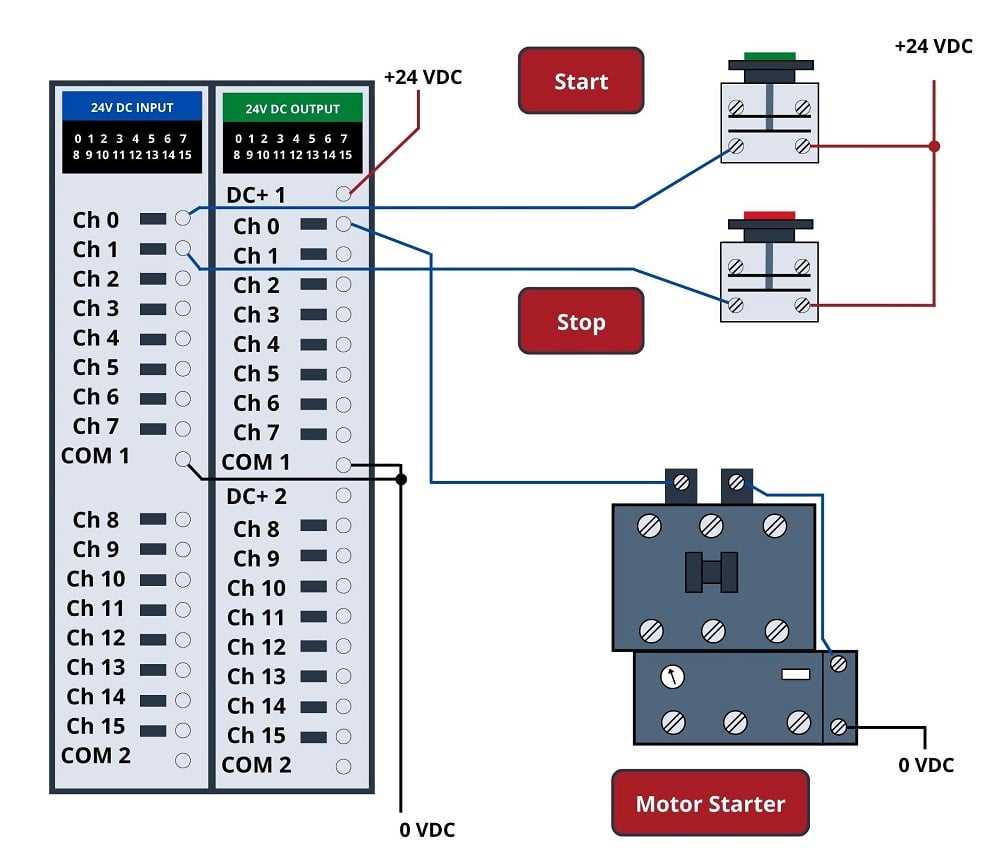

Configure input/output tags early. Assign memory addresses (e.g., %I0.0, %Q0.1) or symbolic names (e.g., “Start_PB”) before drafting logic. Mismatched tags during runtime will trigger errors, so cross-reference all I/O assignments with the physical device specifications. For analog signals, define scaling parameters (e.g., 0–10V = 0–1000 RPM) to avoid misinterpreted data.
Building and Validating Logic Blocks
Drag and drop graphical elements (e.g., normally open contacts, latching coils) from the toolbox to construct sequences. Follow a left-to-right, top-to-bottom flow: place conditions (e.g., pushbuttons, sensors) on the left, and outcomes (e.g., actuators, indicators) on the right. Avoid nesting more than three conditions deep–simulation performance degrades with excessive complexity.
Use built-in simulation modes to test logic in real time. CODESYS’s “Online Simulation” and TIA Portal’s “Monitor” mode let you toggle inputs manually (e.g., force a bit from 0 to 1) and observe output behavior. For timers and counters, set breakpoints to pause execution and inspect intermediate states. Logical errors (e.g., race conditions) often surface during these step-through tests–address them before proceeding.
Integrate diagnostics into simulations. Add temporary coils (e.g., “Fault_Detected”) to flag unexpected states, such as a motor startup sequence exceeding 5 seconds. Most software supports watch windows–use them to track variable values live. For large projects, isolate and simulate sub-sections sequentially to pinpoint errors without debugging the entire scheme at once.
Advanced Simulation Techniques
Simulate communication protocols by configuring virtual drivers. In TIA Portal, use “PLCSIM Advanced” to emulate PROFINET devices; in CODESYS, enable OPC UA server simulation to test SCADA integration. Define mock data (e.g., “AI_Temperature = 75.3°C”) in the simulation environment to mimic real-world sensors. Validate protocol-specific logic (e.g., heartbeat signals, handshake delays) before deployment.
Export simulation data for post-analysis. Generate reports in CSV or PDF format to document execution times, error logs, and variable transitions. Compare these against expected outcomes outlined in your functional specification. For regulatory compliance (e.g., FDA, IEC 61508), archive simulation results as proof of logic verification–most enterprise PLC software includes timestamped logging for audit trails.
