Key Components and Wiring Guide for Electrical Circuit Schematics
Start by isolating high-current traces from signal paths. Copper weight must match load–2 oz/ft² for currents above 3A, 1 oz/ft² for sensitive analog sections. Keep power planes continuous beneath noisy components (switching regulators, MCUs) to suppress EMI. Use solid ground fills under oscillators; stitch vias at ≤5mm spacing to prevent loop radiation.
Thermal vias should be 0.3–0.5mm diameter, filled or plugged, placed directly under high-power pads (e.g., MOSFET tabs, LDOs). For QFN packages, distribute vias in a grid; avoid clustering to prevent solder voids. Heatsinks require a 1mm thermal relief pad with vias connecting to an internal plane–match pad size to component tab for optimal conduction.
Decoupling capacitors (100nF X7R) must sit ≤2mm from IC pins. Place bulk caps (10µF) at each voltage rail entry point. For DDR memory, follow JEDEC guidelines: VTT termination resistors within 15mm of the chip, series termination (typically 22Ω–47Ω) on every signal line. Trace impedance targets: 50Ω single-ended, 100Ω differential–use a calculator with layer stackup and dielectric constants.
High-speed nets (USB, PCIe, HDMI) demand tight length matching. USB 2.0: ±150ps skew (~20mm trace length). PCIe Gen3: 1% tolerance on intra-pair and inter-pair skew. Route differential pairs with 1:1 width-to-gap ratio; fanout vias at 90° to avoid coupling. Avoid sharp corners–use 45° miters or arcs with r ≥ 3× trace width.
Testpoints should be spaced ≥1.27mm apart (0.050″ grid) for reliable probing. Analog front-ends need guard rings with vias connecting to a clean reference plane. For RF sections, use via fences around sensitive traces (5–10mm spacing, grounded vias). Silkscreen reference designators ≥1mm tall; orient consistently (pin 1 markers at 0° or 90°).
Export Gerbers with RS-274X format. Include fab notes: solder mask expansion (typically 0.1mm), paste reduction for QFN/BGA (20–30% stencil aperture area). Panelize boards with 3mm mouse bites; add fiducials (1mm diameter) for pick-and-place accuracy. Generate IPC-D-356 netlist for bare-board testing.
Building Accurate Electronic Schematics: Key Components

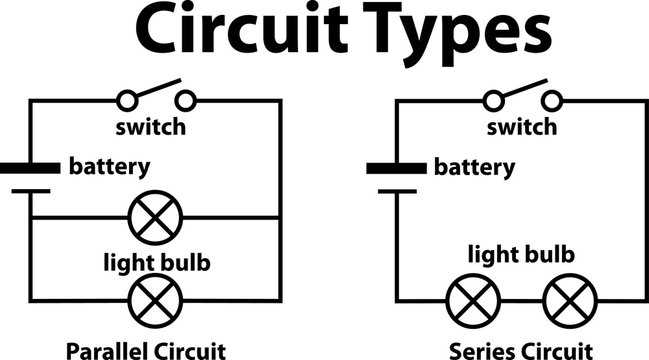

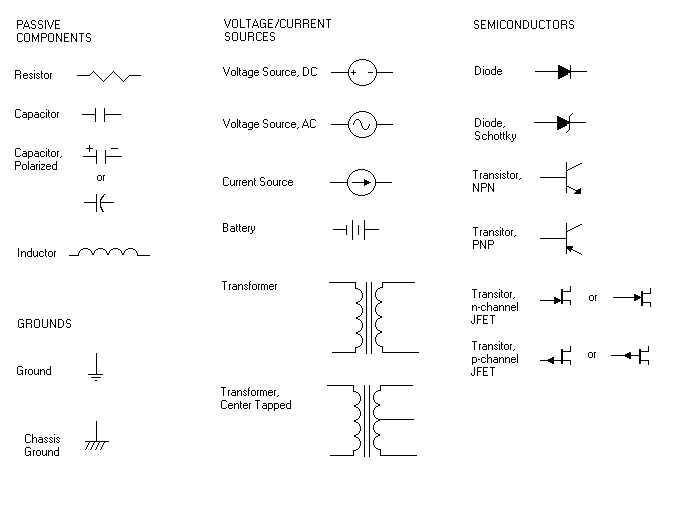

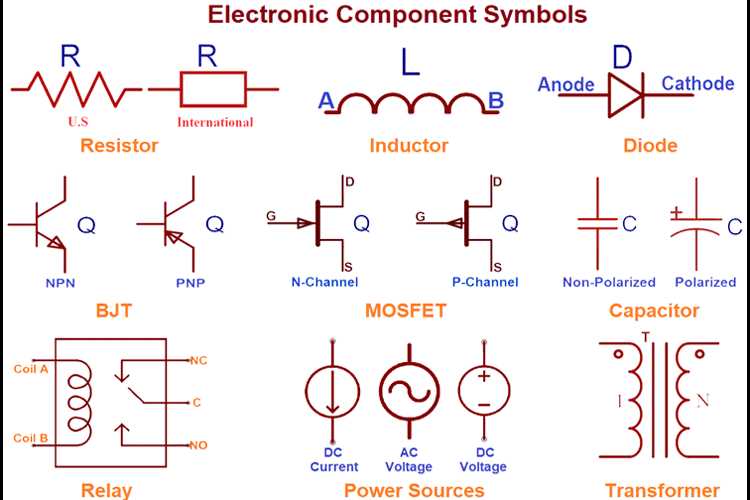

Begin by labeling every element in your electronic layout with a unique identifier–R1, C3, U2–to eliminate ambiguity during assembly or debugging. Use industry-standard symbols for resistors, capacitors, and ICs; deviations confuse collaborators and delay prototyping. For resistors, specify both resistance (e.g., 4.7kΩ) and power rating (e.g., 1/4W) to prevent overheating. Capacitors require voltage ratings (e.g., 25V for a 10µF electrolytic) to avoid failure under load. Transistors demand exact part numbers (e.g., 2N3904) since generic labels like “NPN” omit critical parameters like gain and max current.
Organize your schematic into functional blocks–power supply, signal processing, output–using horizontal bubbles or dotted lines. This visual grouping reveals dependencies at a glance. For power rails, draw separate lines for VCC, GND, and analog/digital grounds to highlight isolation needs. Add test points (TP1, TP2) near critical nodes to simplify scope probing. Include connector pinouts verbatim from datasheets; errors here (e.g., swapping TX/RX) cascade into design flaws. Below is a reference table for common elements with their default attributes:
| Element | Symbol | Key Attributes | Example Value |
|---|---|---|---|
| Fixed resistor | R |
Resistance, tolerance, power | 10kΩ ±1%, 1/8W |
| Ceramic capacitor | C |
Capacitance, voltage, dielectric | 0.1µF 50V X7R |
| NPN BJT | Q |
Part number, hFE, Ic(max) | BC547B (hFE 200, Ic 100mA) |
| Voltage regulator | U |
Input range, output, dropout | LM7805 (7-25V → 5V, 2V dropout) |
Annotate all off-board connections (e.g., PCB headers, modules) with physical pin numbers and mating connector types (e.g., JST-XH 2.5mm). For microcontrollers, list every I/O pin’s function–GPIO, ADC, UART–and its internal pull-up/down resistor status. Document clock speeds (e.g., 16MHz crystal) and decoupling networks (e.g., 0.1µF + 10µF per power pin). Omit these details, and minor oversights (e.g., missing reset pull-up) can stall firmware development.
Validate your layout by tracing signal paths manually: follow power rails from source to load, verify control logic gates fan-out/fan-in, and confirm all grounds converge at a single star point. Export the schematic in vector format (PDF/SVG) to preserve scaling for printed documentation. Use net names (e.g., “PWM_OUT”) instead of “wire1” to maintain clarity across revisions. Archive previous versions with revision logs noting changes (e.g., “v1.2: Added 10kΩ pull-up to I2C SDA”).
Essential Elements for Schematic Representations

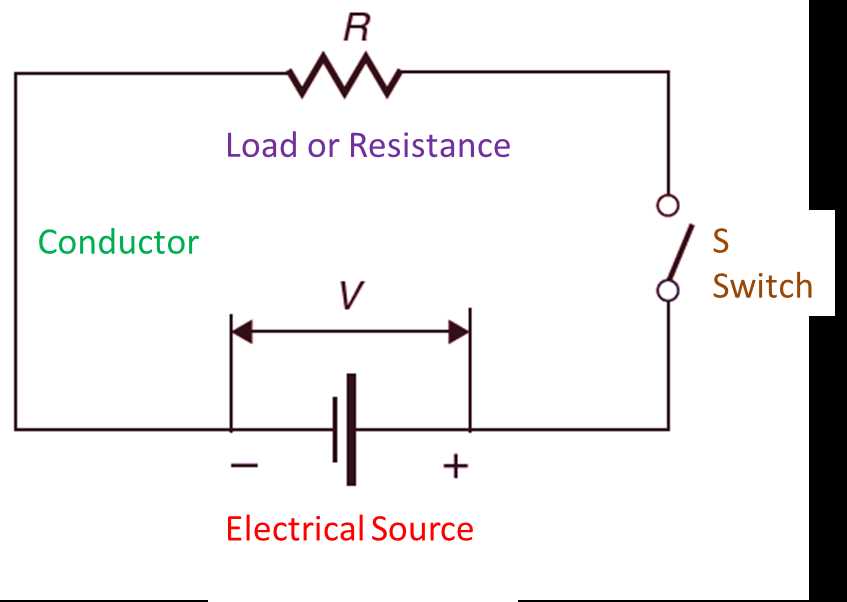

Begin with power sources–label batteries, AC/DC converters, or power rails with exact voltage ratings. Specify polarity for DC supplies and include fuses or circuit breakers where overcurrent protection is critical. For multi-voltage systems, use distinct symbols like thick bars for high-voltage lines and zigzag arrows for ground paths to prevent misinterpretation.
Include resistors, capacitors, and inductors with precise values in ohms, farads, or henries. Add tolerance markings (% or ±) for components where accuracy matters, such as sensing resistors or timing capacitors. For surface-mount devices, note package types (e.g., 0603, 0805) to aid layout planning.
Active Devices and Connections
Transistors, ICs, and diodes require clear pinouts–use standardized symbols like arrows for BJTs and gate markers for MOSFETs. Annotate ICs with part numbers (e.g., LM358, ATmega328) and include decoupling capacitors (typically 0.1µF) close to their power pins. For microcontrollers, highlight reset circuitry, clock sources, and programming headers.
Wiring paths should follow logical flow: input signals on the left, outputs on the right. Use thicker lines for high-current traces and dashed lines for optional or auxiliary connections. Label nets with descriptive names (e.g., “VCC_5V,” “SDA_I2C”) to avoid confusion during troubleshooting. Avoid crossing lines–reroute or use jumper symbols (e.g., dots or bridges) to clarify intersections.
Protection and Control Features
Integrate transient voltage suppressors (TVS diodes), varistors, or snubber circuits near inductive loads like motors or relays. Show thermal protection with thermistors or heat sinks on power components, noting temperature thresholds (e.g., 125°C shutdown). For safety, mark hazardous areas (high voltage, high current) with warning triangles or text.
Switches, potentiometers, and connectors demand exact pin designations. For DIP switches, denote on/off positions; label potentiometers with their maximum resistance and taper (linear/logarithmic). Connectors should include mating references (e.g., Molex 2.54mm, JST-XH) and pin numbering matching the physical device.
Signal conditioning elements–op-amps, comparators, and filters–need gain settings, cutoff frequencies, or bandwidth limits. Example: A low-pass RC filter with R=10kΩ and C=1µF yields ~16Hz. For op-amps, indicate non-inverting (+) and inverting (-) inputs, and power supply rails (±V) to verify correct operation.
Document firmware-specific details like ISP headers, bootloader pins, or I/O mappings for microcontrollers. Use standardized symbols for serial interfaces (UART, SPI, I2C) with clock/data lines clearly marked. Add a revision table in the corner listing changes, dates, and designer initials to track iterative updates.
Step-by-Step Guide to Sketching an Electronic Schematic Arrangement
Begin with a grid paper or digital tool offering 0.1-inch spacing to maintain standardized component proportions. Align symbols vertically or horizontally–avoid diagonal placements unless representing off-board connections like cables. Use a soft pencil (HB or 2B) for manual drafting to allow quick corrections without smudging conductive traces.
- Power rails: Draw two parallel lines at the top (positive) and bottom (ground) of your sheet. Label them immediately with voltage values (
+5V,GND, etc.) to avoid ambiguity. - Input/output nodes: Place these on the left (input) and right (output) edges. Ensure sufficient spacing (minimum 0.5 inches) between adjacent nodes to accommodate labels later.
- Passive elements: Resistors, capacitors, and inductors should be oriented consistently–horizontal for series connections, vertical for parallel branches. Mark component values in engineering notation (e.g.,
10kΩ,100nF).
Prioritize Signal Flow Clarity
Trace signal paths from input to output with straight lines or gentle 90-degree bends. Intersecting lines should cross at clear junctions–use a small dot to denote intentional connections, leaving unmarked intersections for accidental overlaps. For integrated circuits, group related pins (e.g., power, ground, I/O) and cluster decoupling capacitors (0.1µF) within 0.2 inches of the IC’s power pins.
- Label every component with its reference designator (
R1,C2) and value. Use uppercase letters for consistency. - Add test points for critical nodes, indicated by circles with identifiers (
TP1,TP2). Place them near components requiring debugging or validation. - Include a legend for less common symbols (e.g., transistors, relays) if the arrangement exceeds basic passive elements. Specify footprint sizes (e.g.,
0805,TO-220) where relevant.
Review the draft by visually following each signal path. Verify that:
- No unintended connections exist (e.g., overlapping lines without dots).
- Power and ground paths are contiguous, with no open loops.
- Component orientations match physical constraints (e.g., polarized capacitors’ positive terminal, diodes’ anode/cathode direction).
- Space exists for later annotations (e.g., pin numbers for ICs, trace widths for high-current paths).
Finalization Techniques
Ink the pencil draft using a fine-tip pen (0.3mm for traces, 0.5mm for component bodies) to create a permanent copy. Scan or export the finalized arrangement at 600 DPI for digital sharing. For physical copies, use acid-free paper to prevent yellowing over time. Archive both the sketch and a netlist (if applicable) for future reference.
