Understanding Cisco Router Internal Architecture and Component Layout Guide

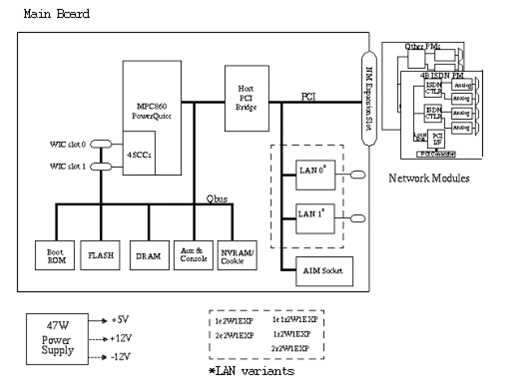

Start by studying the hardware architecture of a typical enterprise-grade networking unit. Focus on the backplane, primary processor (often a multi-core CPU running at 1.5 GHz or higher), and dedicated packet-forwarding ASICs. These components handle traffic processing at line rate–critical for maintaining throughput without congestion. Identify the memory modules: onboard DDR4 for system operations and separate flash storage for firmware and configuration files. A 256 MB DRAM module is standard, but high-end models scale to 1 GB or more for buffering large routing tables.

Trace power distribution paths from the external adapter to internal regulators. Modern units use modular power supplies rated between 250W and 1000W, depending on redundancy requirements. Switching ICs (typically buck converters) step down voltages to 3.3V, 1.8V, and 1.2V for different subsystems. Verify grounding connections–poor grounding leads to signal noise and intermittent failures. Look for EMI shielding around high-frequency clock lines, especially near the SerDes interfaces operating at 10+ Gbps.

Examine signal paths for interface modules. Copper Ethernet ports rely on magnetics (transformers) for signal isolation and common-mode noise rejection. Optical SFP cages use a separate transceiver circuitry with laser drivers and PD receivers, often tied to a PHY chip that negotiates link speeds. For WAN connections, DSU/CSU circuits convert signals to T1/E1 standards, including clock recovery and line encoding/decoding logic. Note voltage levels: 2.5V for TX/RX pairs, 3.3V for auxiliary signals.

Decode the boot sequence by locating the primary bootloader (stored in masked ROM) and the secondary boot image (in flash memory). The bootloader initializes critical peripherals–serial ports, management controllers, and memory–before loading the full OS. Key debug points include the UART interface (usually 115200 baud) and JTAG headers for firmware recovery. Hardware diagnostics run at power-on, testing RAM, flash integrity, and interface connectivity.

Map the internal switching fabric, which moves packets between ports without CPU intervention. On mid-range devices, this is a shared-memory architecture with a non-blocking crossbar. High-performance units use pipelined ASICs with cut-through forwarding to reduce latency. Identify buffer zones–ingress queues (typically 1 MB deep) and egress shapers (configured per port) prevent packet drops under burst traffic. Check temperature sensors near critical components; thermal throttling engages when thresholds exceed 85°C.

Inspect the security hardware: a dedicated crypto-engine accelerates SSL/IPsec operations, offloading AES-256 and SHA-2 hashing. Physical security features include tamper-evident screws and intrusion detection switches. Management interfaces–CLI, SNMP, and REST APIs–interface with a dedicated BMC (Baseboard Management Controller) for remote monitoring. Verify that the real-time clock maintains synchronization across reboots, using an external battery backup.

Understanding Network Hardware Blueprints

Start by identifying key components on the device layout: power modules, CPU, memory banks, interface slots, and cooling systems. Label each part with precise technical specifications–voltage ranges, bus speeds, and interface types. For example, a 24-port Gigabit Ethernet switch should list “10/100/1000BASE-T RJ-45” on each port, not just “network ports.” Include Silicon One processors for high-end models, specifying Q200 ASIC variants where applicable.

Map data pathways using color-coded lines: red for power distribution, blue for management traffic, green for data lanes. Show exact PCB trace widths (e.g., 12 mil for signal integrity) and impedance-controlled layers. Indicate separation between Layer 2 forwarding engines and control plane components to prevent bottlenecks in high-throughput environments (10Gbps+).

Power and Thermal Management

Detail voltage regulator modules (VRMs) with input/output ratings, such as 48V DC to 1.2V for core logic. Specify thermal thresholds: ambient 0–45°C, junction temp 105°C max for RAM, 125°C for CPUs. Include heatsink dimensions (e.g., 50x50x15mm aluminum fin arrays) and fan CFM (40 CFM at 5000 RPM). Highlight redundant power supplies–dual 300W AC/DC converters with hot-swap capabilities.

Avoid placing high-power components near temperature-sensitive ones. Show isolation zones for FPGAs vs. ASICs, using thermal vias (0.3mm diameter) for heat dissipation. Label critical thermal sensors (e.g., LM75 with I2C interface) and their locations relative to heat-generating chips. Note cooling requirements for PoE modules (7W per port max).

Interface and Expansion Layout

Group physical ports by function: WAN (SFP+ cages), LAN (copper RJ-45), and management (serial/USB). Specify magneto isolation for each RJ-45 port (1500V RMS) and PHY chip models (Broadcom BCM5461S for Gigabit). Show expansion slots with exact dimensions–2x PCIe Gen3 x4 for modular cards–and pin assignments (P1/P2 power rails at 3.3V/12V).

Include internal connectivity: SPI/NOR flash for boot images (Winbond W25Q256JV, 256Mb), DDR4 ECC memory (Micron MT40A512M16JY-075E, 8GB), and M.2 slots for storage (2242 form factor, SATA/NVMe). Mark JTAG headers (10-pin ARM standard) and UART pins for debugging. Show power sequencing–core logic must initialize before peripheral ICs to prevent latch-up.

Verify signal integrity by noting impedance-controlled traces (90Ω differential for USB 3.0, 100Ω for PCIe). Indicate ground planes and stitching vias (0.1mm diameter) to prevent EMI. List component heights (e.g., electrolytic capacitors at 10mm) to ensure compatibility with enclosure tolerances (1U/2U rackmount spacing).

For stackable devices, show proprietary interconnects (e.g., StackWise-480 cables) with exact pinouts–power, data, control lanes–and supported bandwidth (480Gbps bidirectional). Include QSFP-DD cages for 400G transceiver modules, noting thermal envelopes (10W max per port). Label all test points (TP1 for Vcc, TP2 for GND) with expected voltage readings during diagnostics.

Key Components and Their Symbols in Network Device Blueprints

Use standardized symbols to represent hardware interfaces immediately–this prevents misinterpretation during deployment. Fast Ethernet ports (FE) typically appear as rectangles with a diagonal arrow pointing inward, while Gigabit Ethernet (GE) ports adopt the same shape but add a small “G” inside the arrowhead. Serial interfaces, often depicted as circles with two opposing arrows, include a label like “S0/0/0” to denote slot and port hierarchy. For WAN connections, distinguish between T1/E1 (small filled circle) and DSL (zigzag line inside an oval) to avoid signal type confusion.

Power supplies require clear differentiation in layouts: AC inputs use a lightning bolt symbol with an “AC” label, while DC variants replace it with a “+” and “-” inside a rectangle. Redundant power units should be drawn as parallel rectangles, each with distinct labels (e.g., “PS1,” “PS2”) to indicate failover capabilities. Cooling fans, often overlooked, are shown as squares with a propeller icon–always include airflow direction arrows to flag thermal management needs during rack placement.

Hardware modules like VPN accelerators or firewall blades use a stacked-card symbol with a horizontal line separating layers. Label each module’s function explicitly (e.g., “ASA-SM,” “IPsec”) and note its slot position (e.g., “Slot 3”) to simplify diagnostics. Memory components–RAM and Flash–appear as rectangles with “DIMM” or “CF” labels; specify capacity (e.g., “4GB DDR4”) to preempt upgrade bottlenecks.

Physical cabling deserves precise symbolization: Straight-through cables use solid lines, crossover cables add small intersecting arcs, and fiber optics employ dashed lines with arrowheads. Include color-coding (e.g., “orange = MMF,” “aqua = SMF”) to match manufacturer standards during troubleshooting. Trunk ports, marked with a double-headed arrow, must specify VLAN IDs (e.g., “VLAN 10, 20”) to clarify traffic segregation.

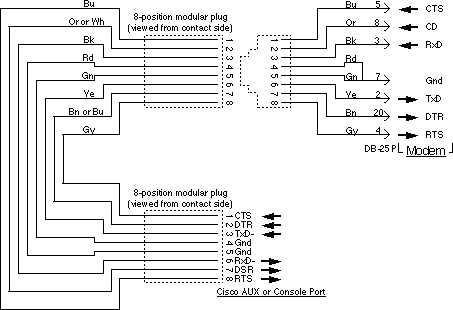

Switch fabric backplanes are drawn as thick horizontal bars connecting vertical lines–highlight bandwidth (e.g., “40Gbps”) and redundancy paths with parallel bars. Console and auxiliary ports (rounded rectangles) should include cable types (e.g., “RJ-45 → DB-9”) to guide initial configuration. Management interfaces (e.g., “Gig 0”) require a dedicated label with IP addressing specifics (e.g., “192.168.1.1/24”) to streamline remote access setup.

Grounding points use a chassis symbol (square with a ground line), while surge protectors add a zigzag inside a rectangle–both must connect to a clear reference node. LED indicators (small circles) should include state labels (“ACT” = activity, “LNK” = link) to aid real-time status checks without physical inspection. For multi-vendor environments, align symbols with IEEE 315 or IEC 60617 standards to ensure cross-platform compatibility.

Step-by-Step Guide to Illustrating a Network Device Blueprint

Begin by selecting a vector-based drafting tool with precision grid alignment, such as Visio 2021 Enterprise or Lucidchart Enterprise. Configure the workspace to use 1:1 scale relative to standard rack units (1U = 44.45mm) and enable snap-to-grid at 5mm increments. Import manufacturer-provided EPS templates for hardware models to ensure dimensional accuracy; avoid resizing these elements post-placement to maintain consistency across documentation.

Define interface labeling conventions before placement. Use a three-segment identifier format (e.g., Gig1/0/12 for modular chassis ports or Ten0/2/4 for high-speed interfaces). Create a legend table early in the drafting process:

Symbol	Component	Template Source	Layer
⬛	10GBASE-T Port	Catalyst-9000-EPS	Connectivity
◾	SFP+ Cage	ASR-1000-Series	Optics
▫	Console Port	ISR-4400-Template	Management

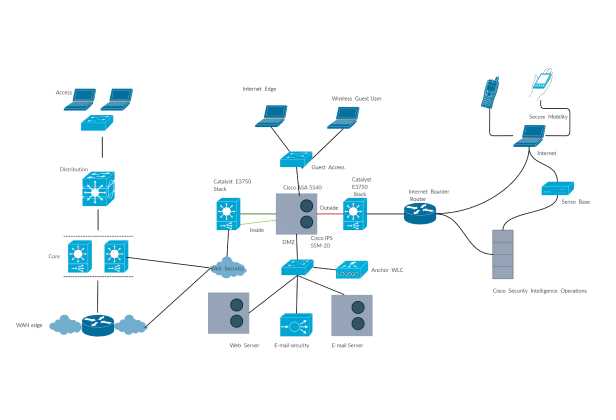

Establish a color-coding system for connection media: #FF0000 for fiber trunks, #0000FF for copper cross-connects, and #00FF00 for out-of-band management links. Apply 0.5pt dashed lines for planned but unprovisioned links, reserving 1.5pt solid strokes for active circuit paths. Group related components into collapsible layers named after functional zones (e.g., “WAN Edge,” “Core Switching,” “DMZ”) to simplify navigation during complex topology drafting.

Implement automated verification by generating checksum hashes for each connectivity group using the tool’s scripting API. For Visio, execute this VBA macro to validate interface counts against inventory manifests:

Sub ValidatePortCount()
Dim shp As Shape
Dim intCount As Integer
Dim expectedCount As Integer: expectedCount = 24
intCount = 0
For Each shp In ActivePage.Shapes
If shp.Master.Name = "SFP_Port" Then intCount = intCount + 1
Next shp
If intCount  expectedCount Then
MsgBox "Port count mismatch: " & intCount & "/" & expectedCount
End If
End Sub

Configure dynamic callouts for power redundancy symbols. Use a triangular badge with superscript “1” or “2” to denote primary/secondary PSU feeds, positioning these 3mm from the device outline’s northeast corner. Add mechanical clearance annotations in millimeters where rack density conflicts with cable bend radius limitations–particularly critical for QSFP-DD interfaces requiring 50mm minimum radius on adjacent ports.

Export the blueprint in SVG format with embedded metadata containing: drafting software version, physical location identifier (e.g., DC-RCK04-SECTOR-B), last validation timestamp, and engineer certification ID. Embed the SVG into technical documentation using object encapsulation tags to enable interactive zooming without resolution degradation during print outputs exceeding 150cm width.

Layer-Specific Depth Optimization

For multi-floor network representations, create depth-separated layers with distinct visual cues: solid black outlines for Layer 2 adjacencies, gradient fills (linear: left-right) for Layer 3 routing domains, and stippled patterns for security segmentation boundaries. Implement a depth-ordering system using these numerical prefixes in layer names: 00_ for underlay infrastructure, 10_ for overlay services, and 99_ for annotation overlays. Apply a 0.2 alpha transparency to all upper-layer elements to maintain visual hierarchy while preserving lower-layer legibility.
